Manifold Tuning Valve (3.5L High Output)

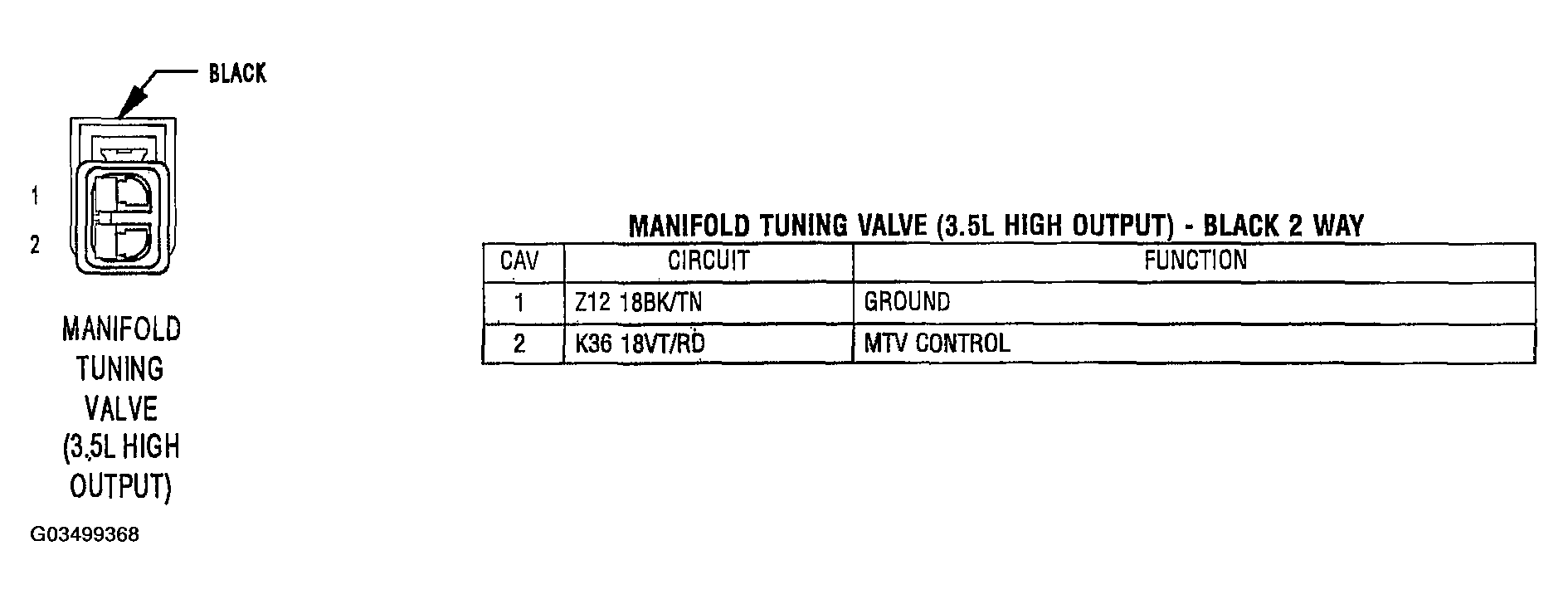

Fig 1: Identifying Manifold Tuning Valve (3.5L High Output) Sensor Connector
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
