Power Distribution Center

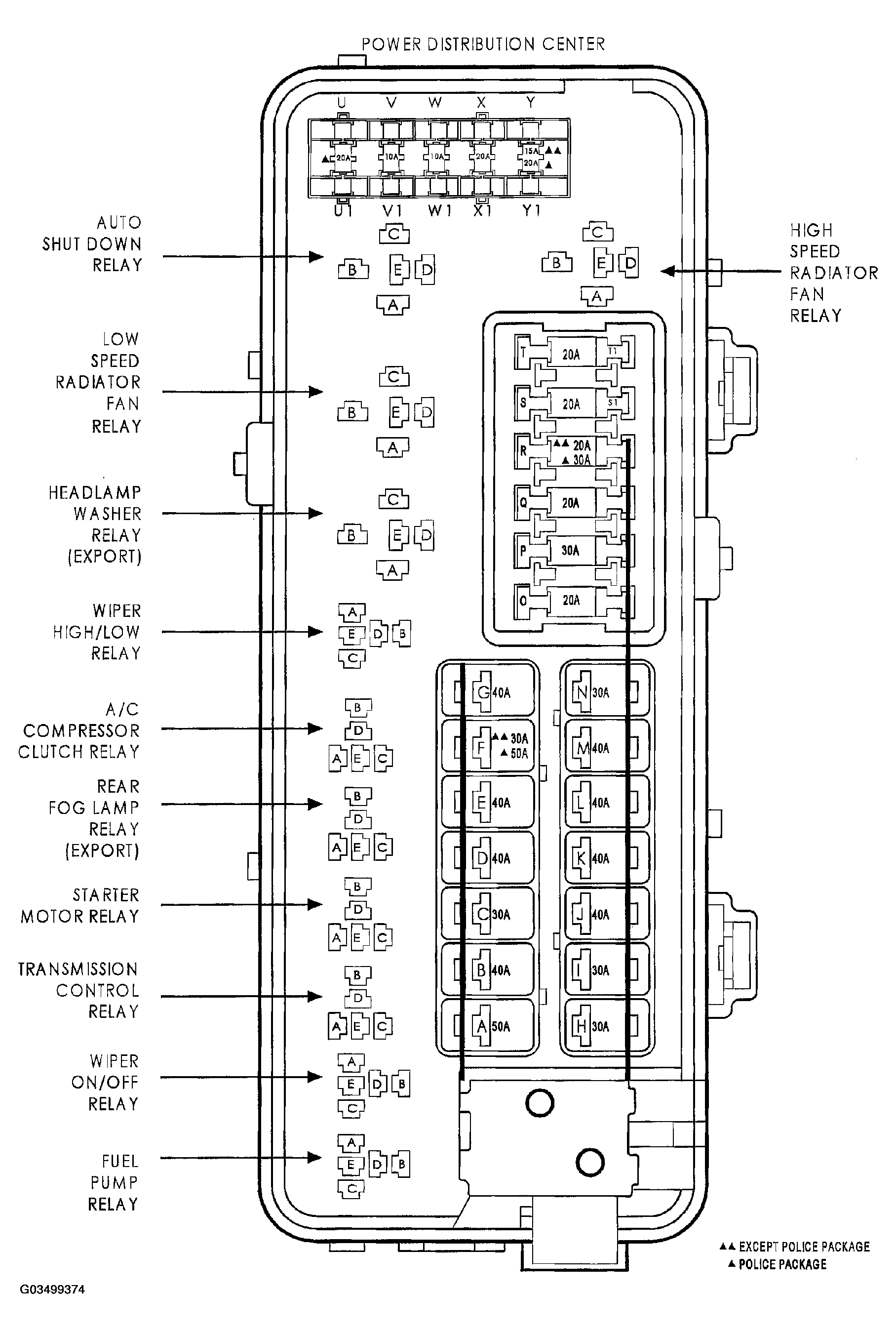

Fig 1: Identifying Power Distribution Center
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
