Connector PINOUTS: Relays

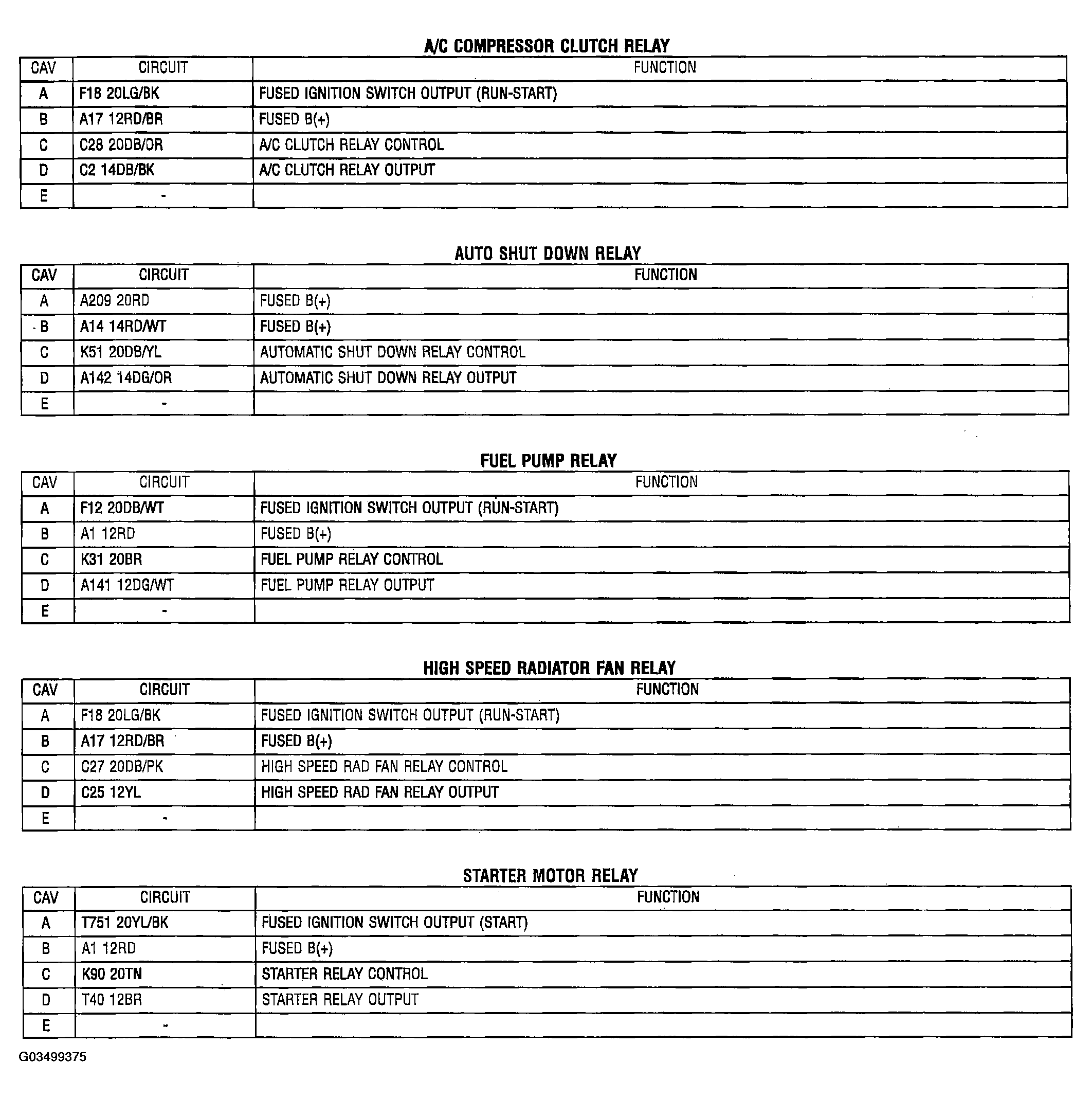

Fig 1: Identifying Relay Connector Pinouts

G03499375

Courtesy of DAIMLERCHRYSLER CORP.
