Right Speed Control Switch

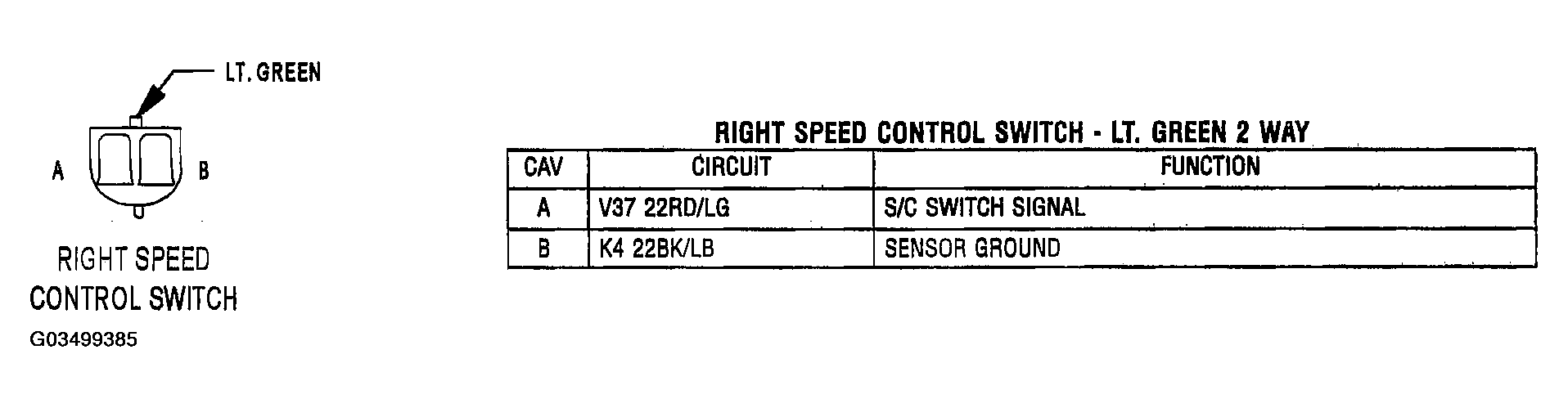

Fig 1: Identifying Right Speed Control Switch Connector
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
