Throttle Position Sensor (2.7L)

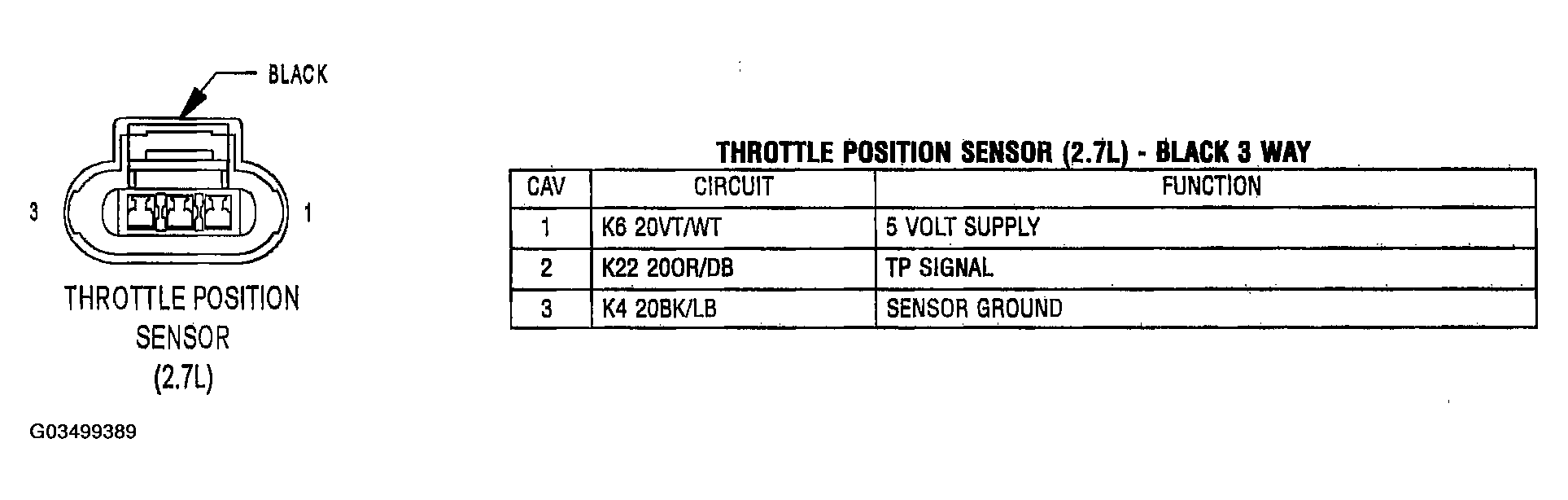

Fig 1: Identifying Throttle Position Sensor (2.7L) Connector
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
