Diagnosis And Testing - Power Window Switch

Remove the switch. Using an ohmmeter, test the window switch for continuity in all positions listed in the Continuity Table. Refer to the Power Window Switch Continuity table to determine if continuity is correct.

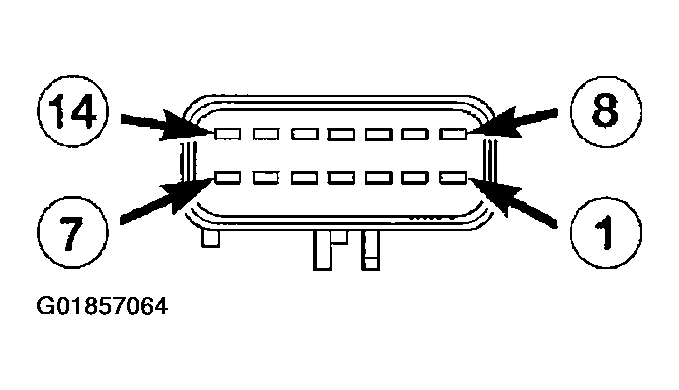

Fig 1: Identifying Front Window Switch

Courtesy of DAIMLERCHRYSLER CORP.

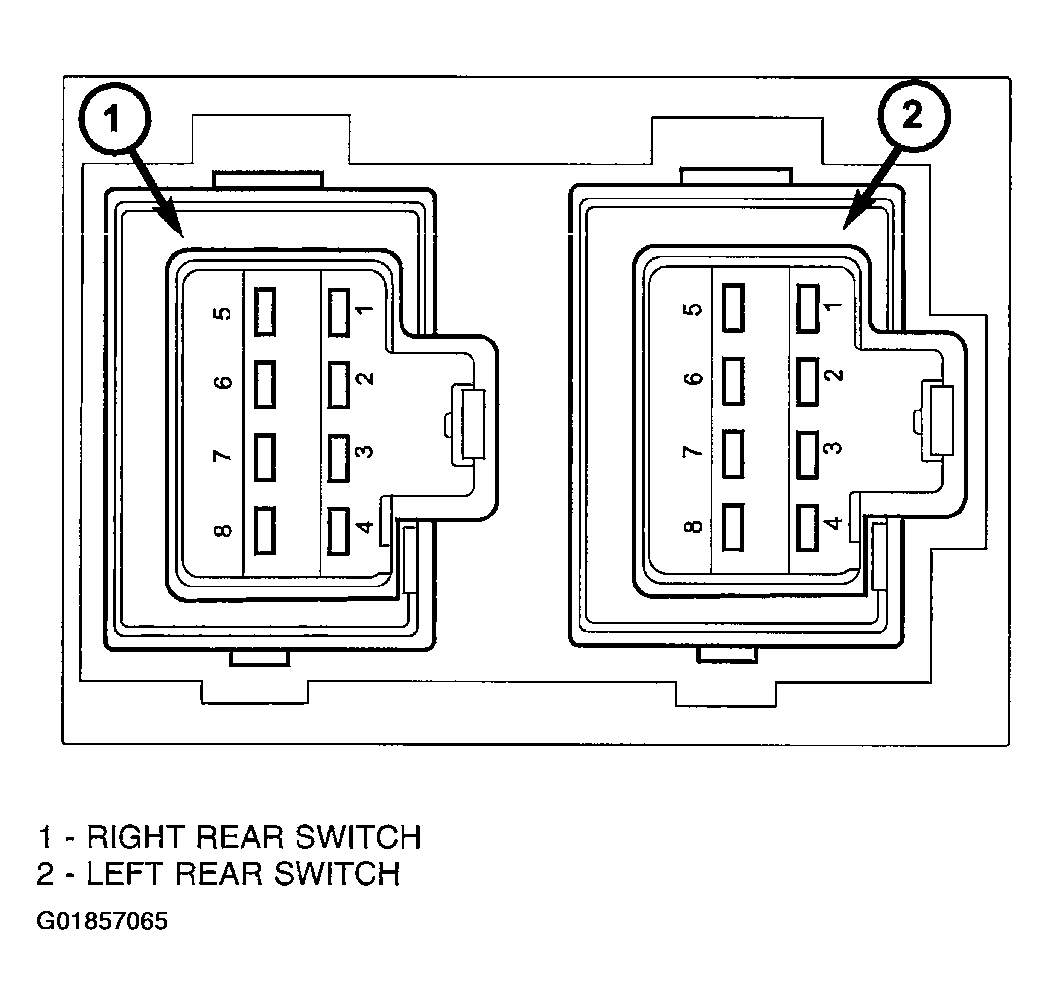

Fig 2: Identifying Rear Window Switches

Courtesy of DAIMLERCHRYSLER CORP.

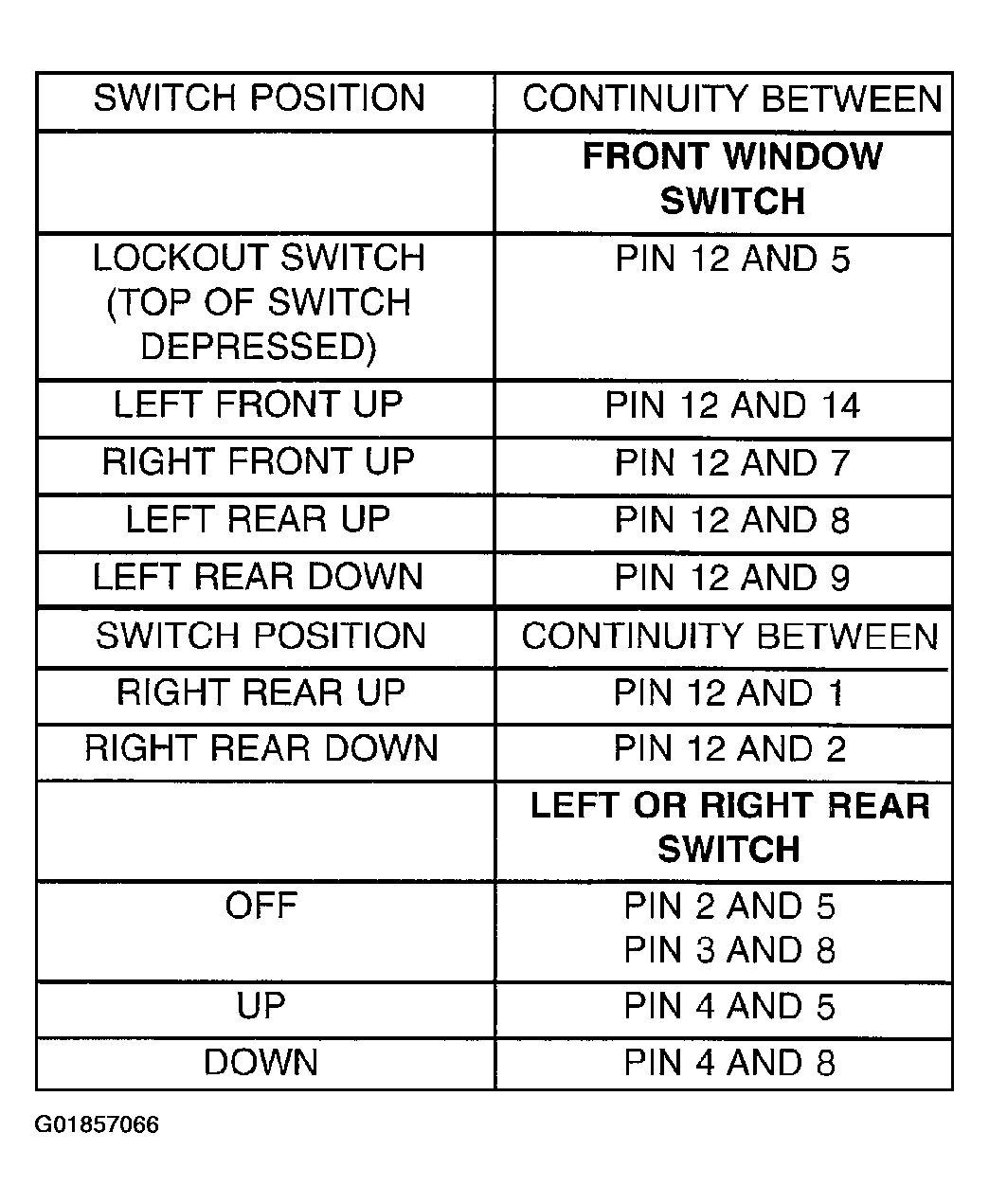

Fig 3: Identifying Power Window Switch Continuity Table

Courtesy of DAIMLERCHRYSLER CORP.

To test the left front down and express down switch position, connect pin 4 to ground and pin 12 to a 12 volt source. Using a voltmeter, measure for voltage from pin 13 to ground.

To test the right front down and express down switch position, connect pin 4 to ground and pin 12 to a 12 volt source. Using a voltmeter, measure for voltage from pin 3 to ground. If the correct results are not obtained, replace the switch.
