Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component |
Location |
| Fuse Block |

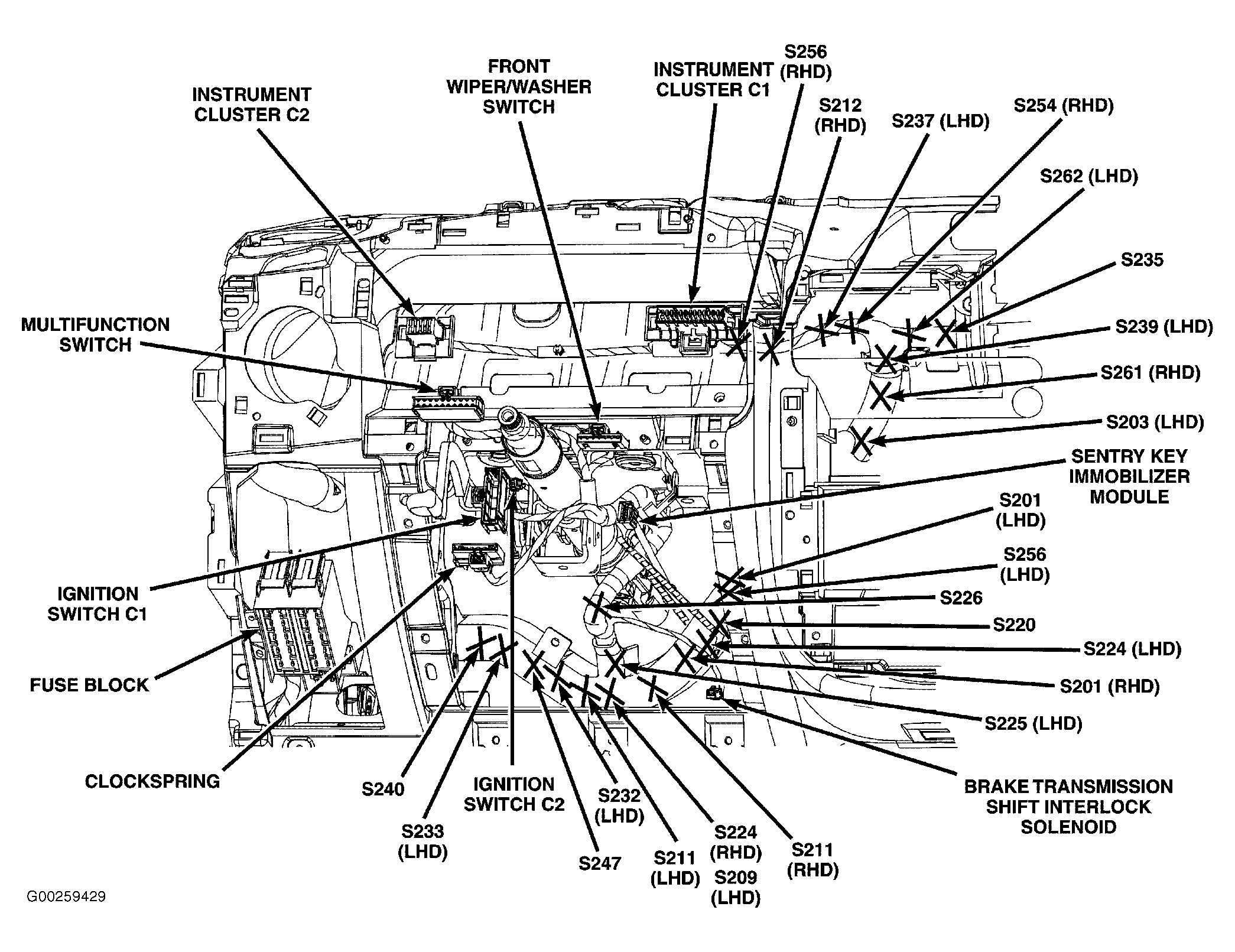

At lower left front of dash. See Figure
. |
| Fusible Link |
At left side of engine block. |
| Power Distribution Center |

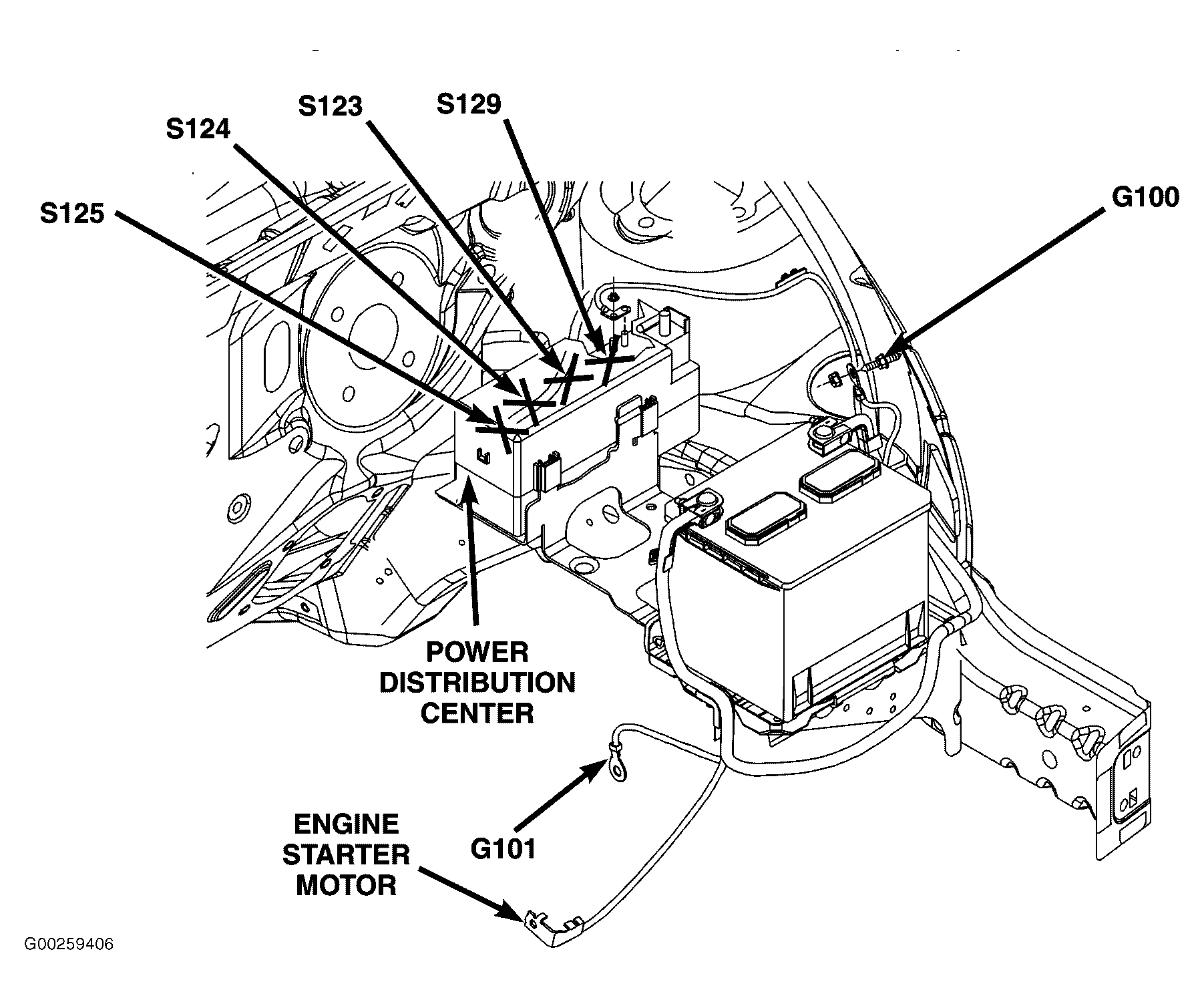

On left side of engine compartment. See Figure
. |
