Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

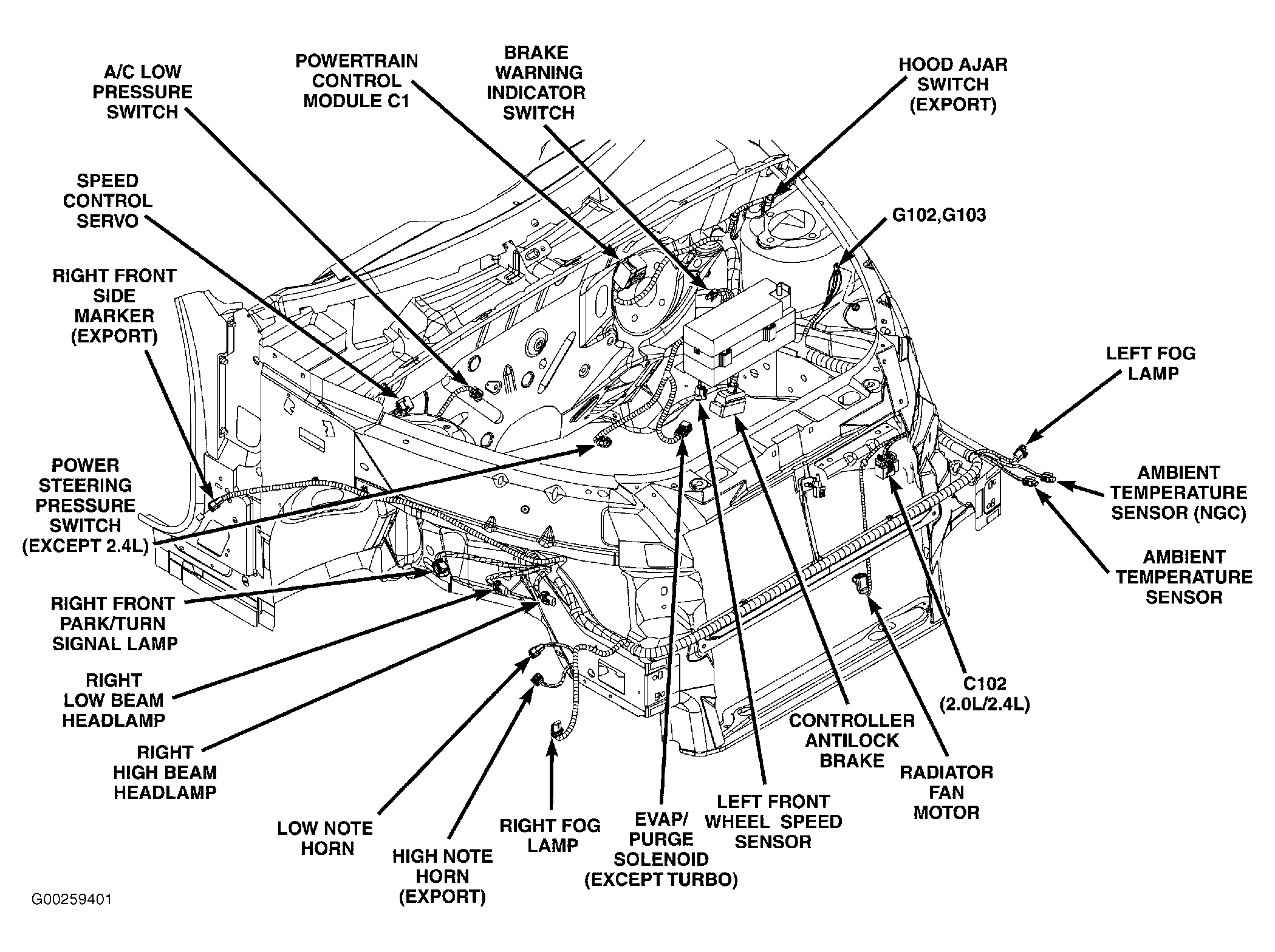

Fig 1: Engine Compartment

G00259401

Courtesy of DAIMLERCHRYSLER CORP.

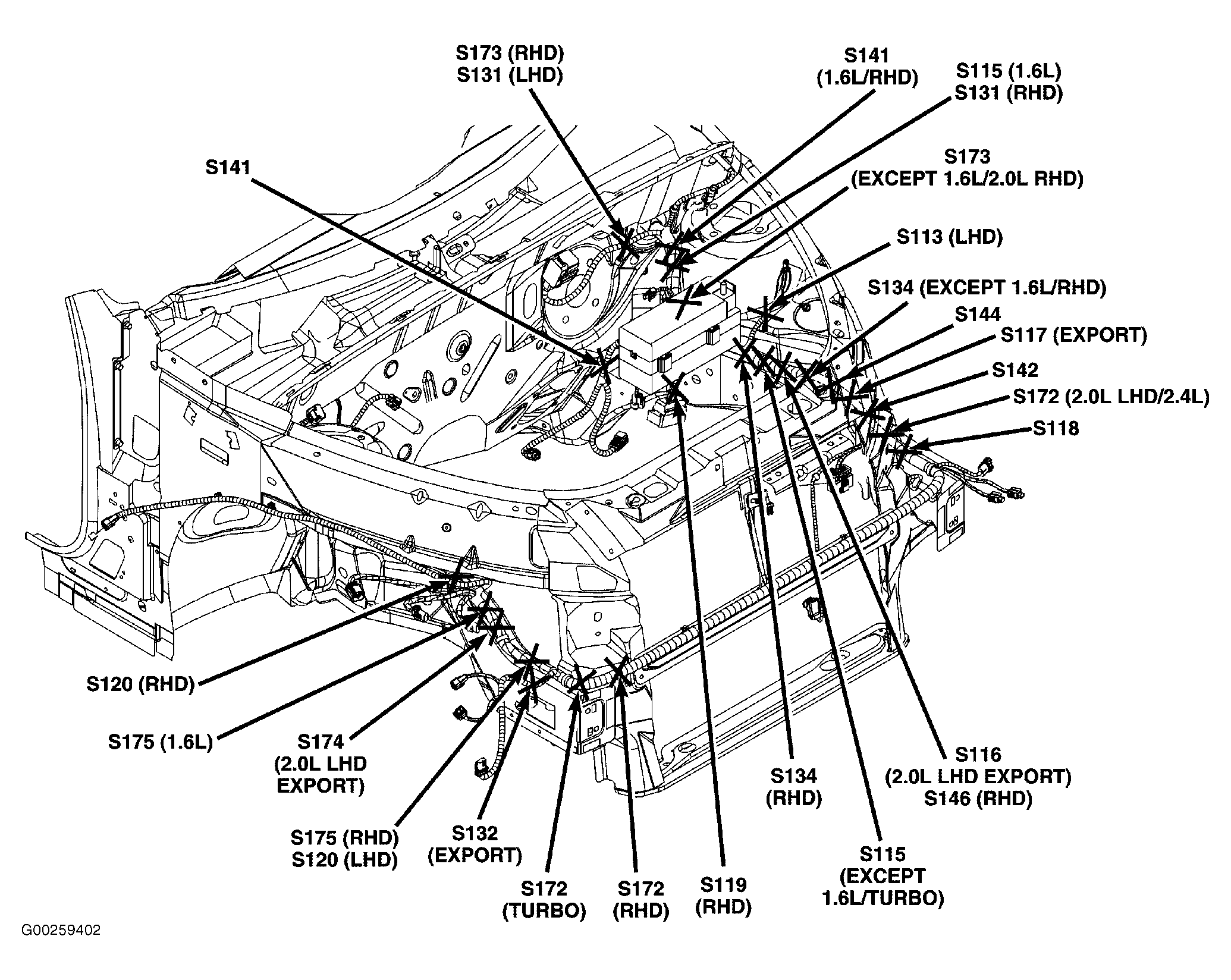

Fig 2: Engine Compartment Splices

G00259402

Courtesy of DAIMLERCHRYSLER CORP.

Fig 3: Left Front Of Engine Compartment

G00259406

Courtesy of DAIMLERCHRYSLER CORP.

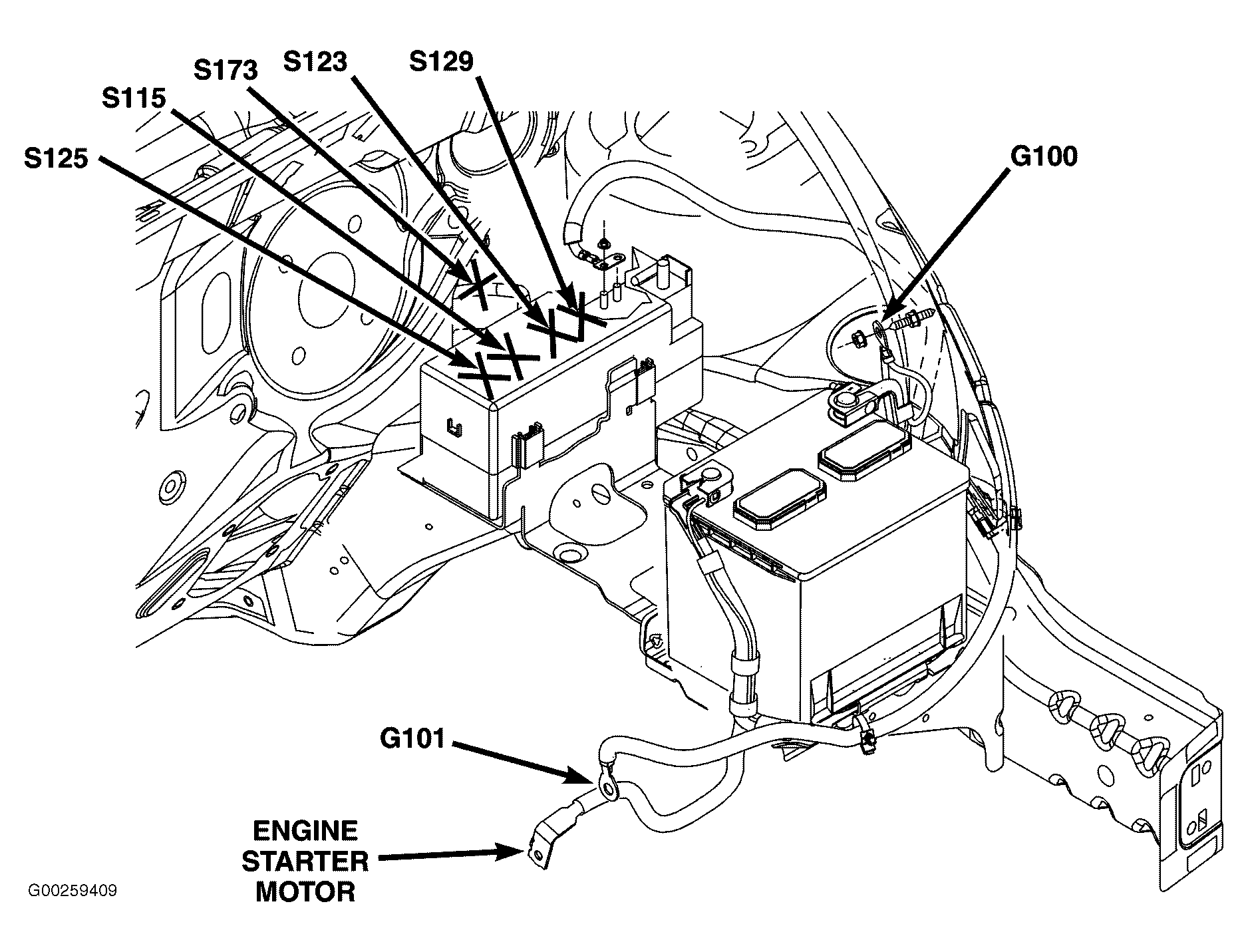

Fig 4: Left Front Of Engine Compartment (Turbo)

G00259409

Courtesy of DAIMLERCHRYSLER CORP.

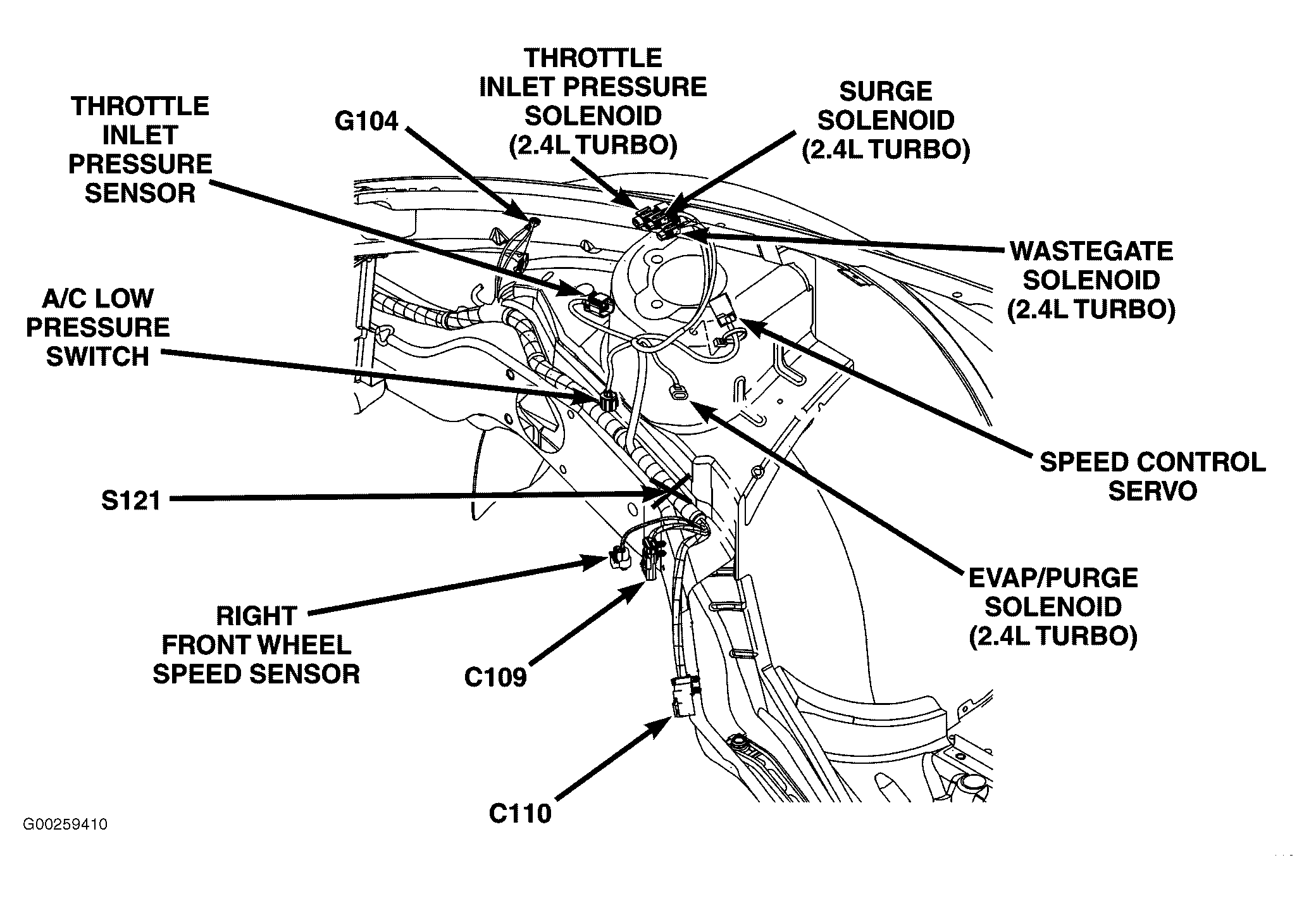

Fig 5: Right Rear Of Engine Compartment

G00259410

Courtesy of DAIMLERCHRYSLER CORP.

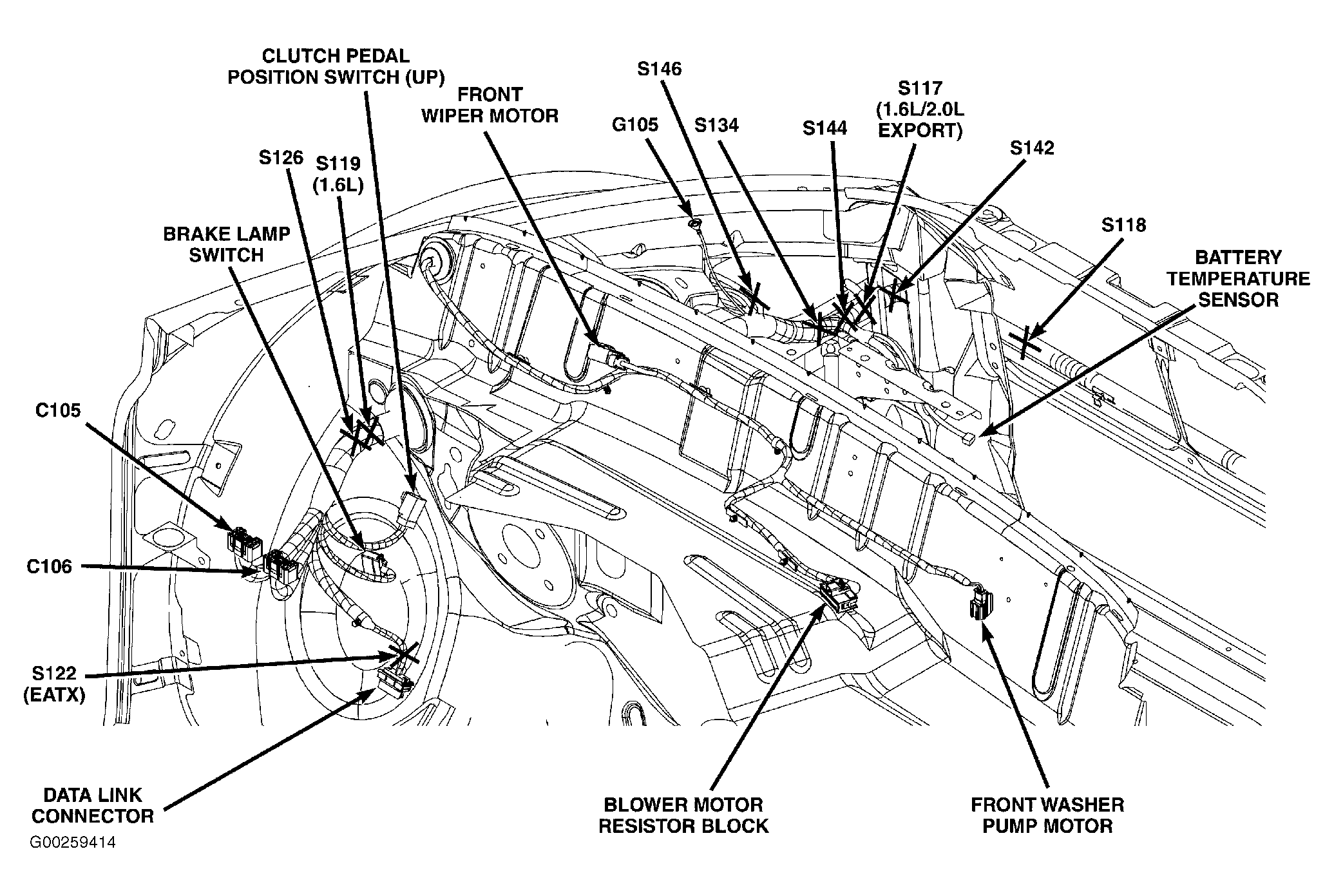

Fig 6: Left Side Cowl Panel

G00259414

Courtesy of DAIMLERCHRYSLER CORP.

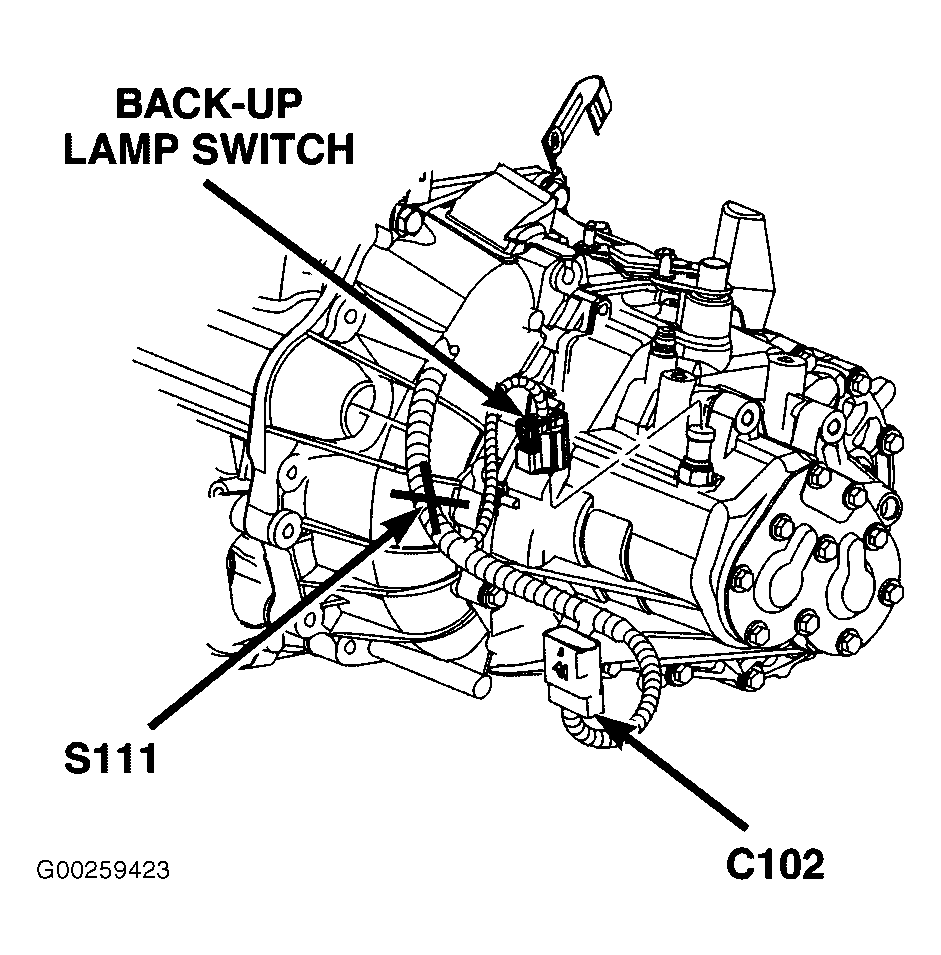

Fig 7: Manual Transaxle

G00259423

Courtesy of DAIMLERCHRYSLER CORP.

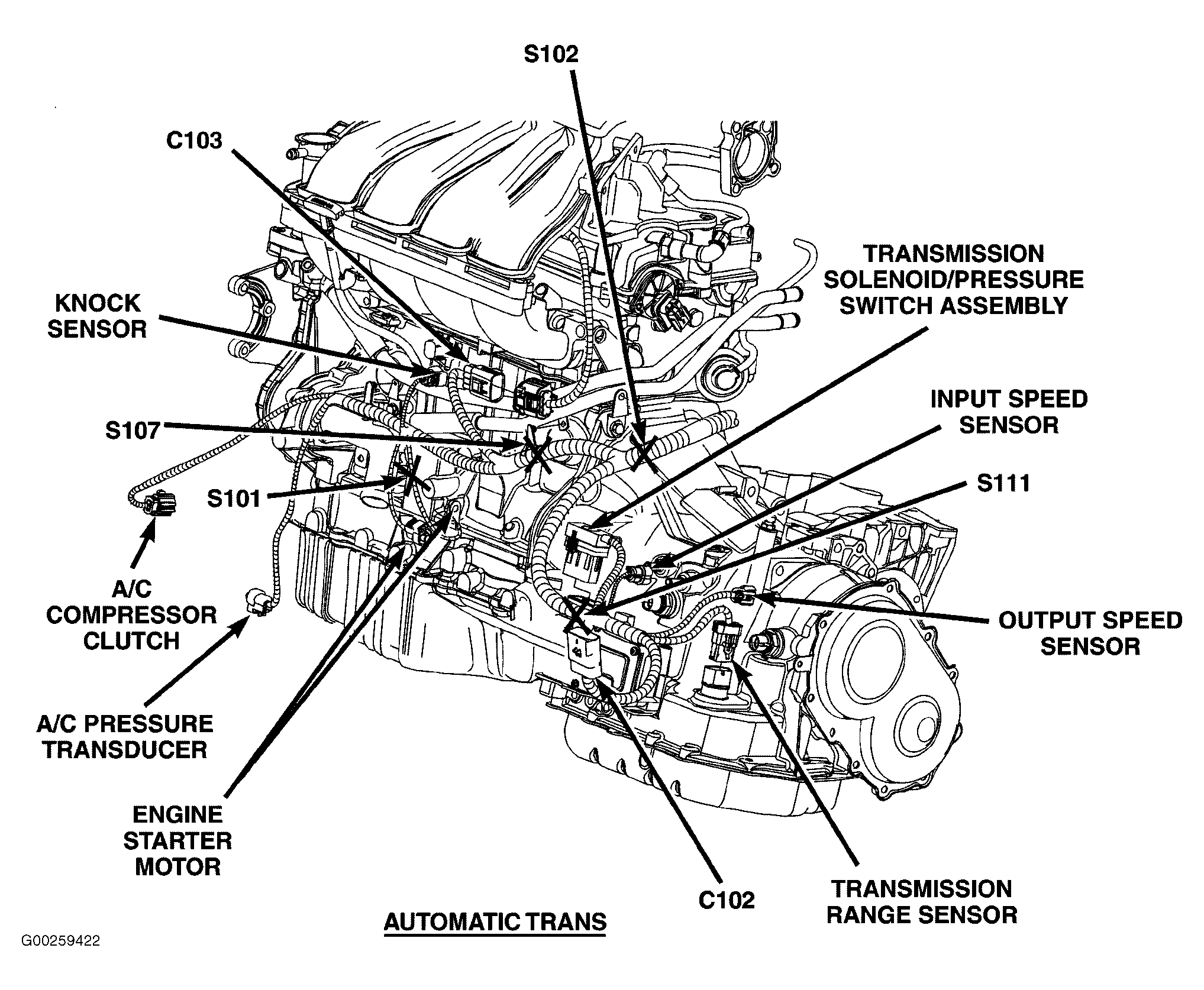

Fig 8: Automatic Transaxle

G00259422

Courtesy of DAIMLERCHRYSLER CORP.

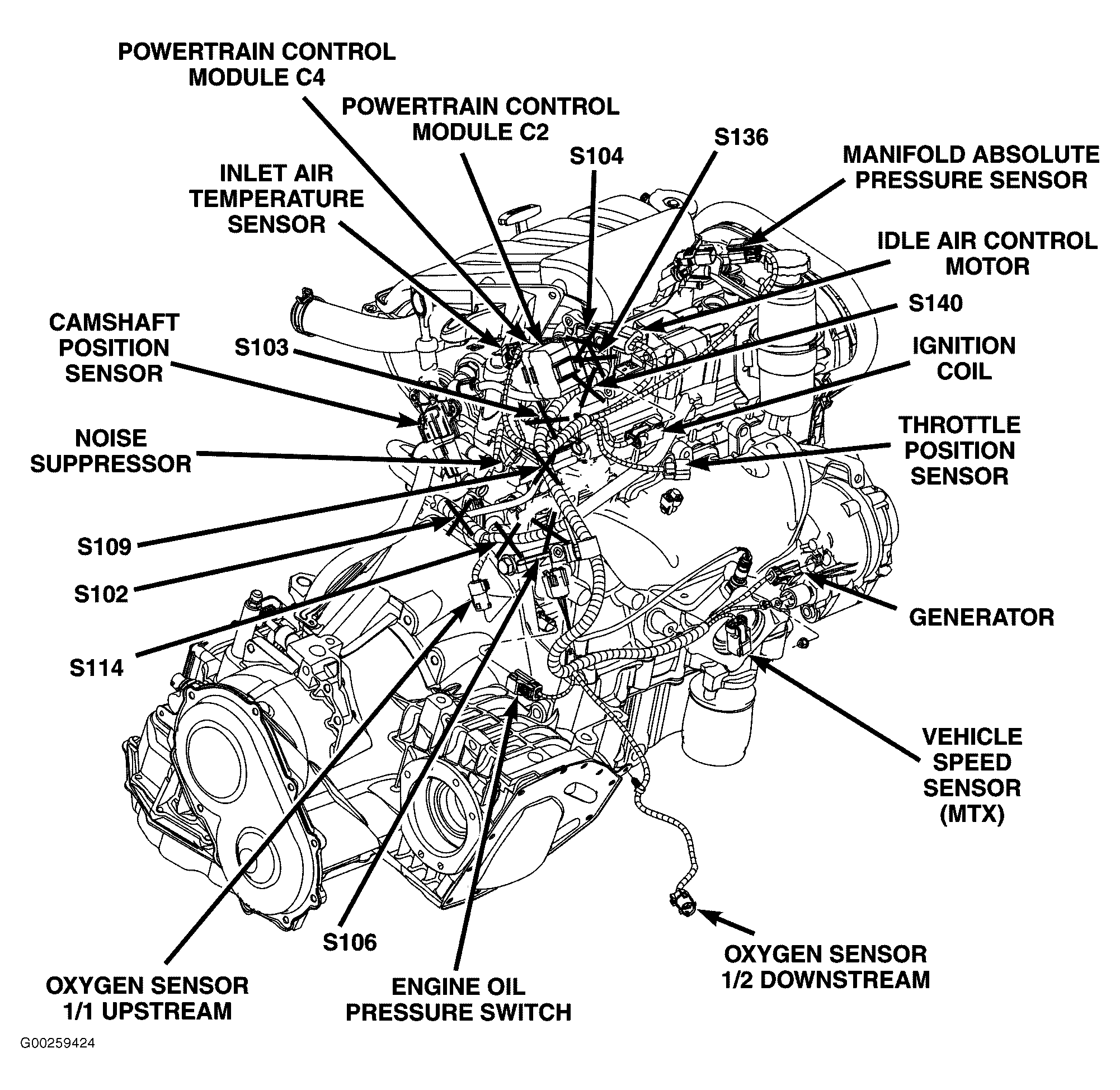

Fig 9: Engine (Non-Turbo)

G00259424

Courtesy of DAIMLERCHRYSLER CORP.

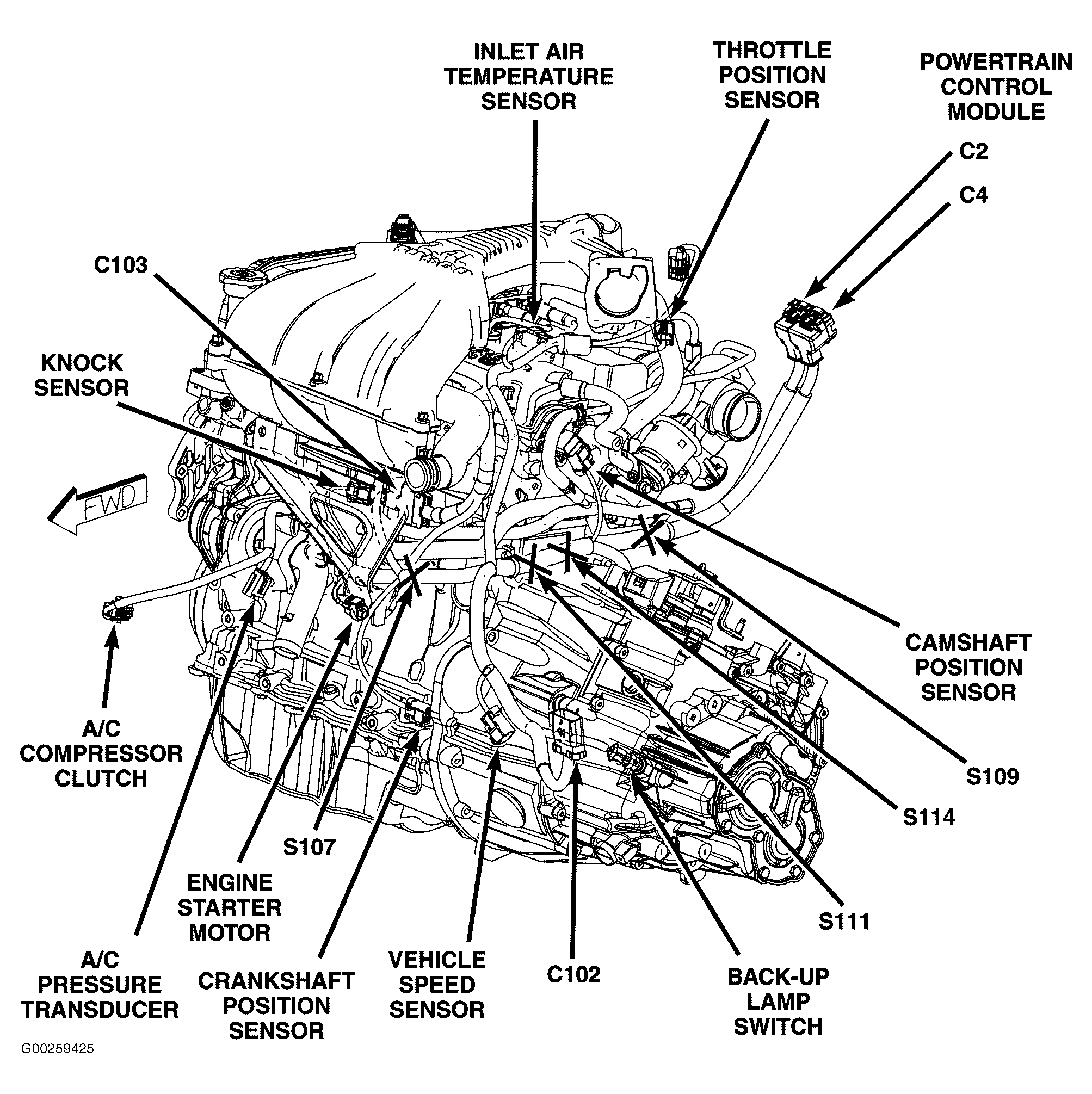

Fig 10: Left Side Of Engine (Turbo)

G00259425

Courtesy of DAIMLERCHRYSLER CORP.

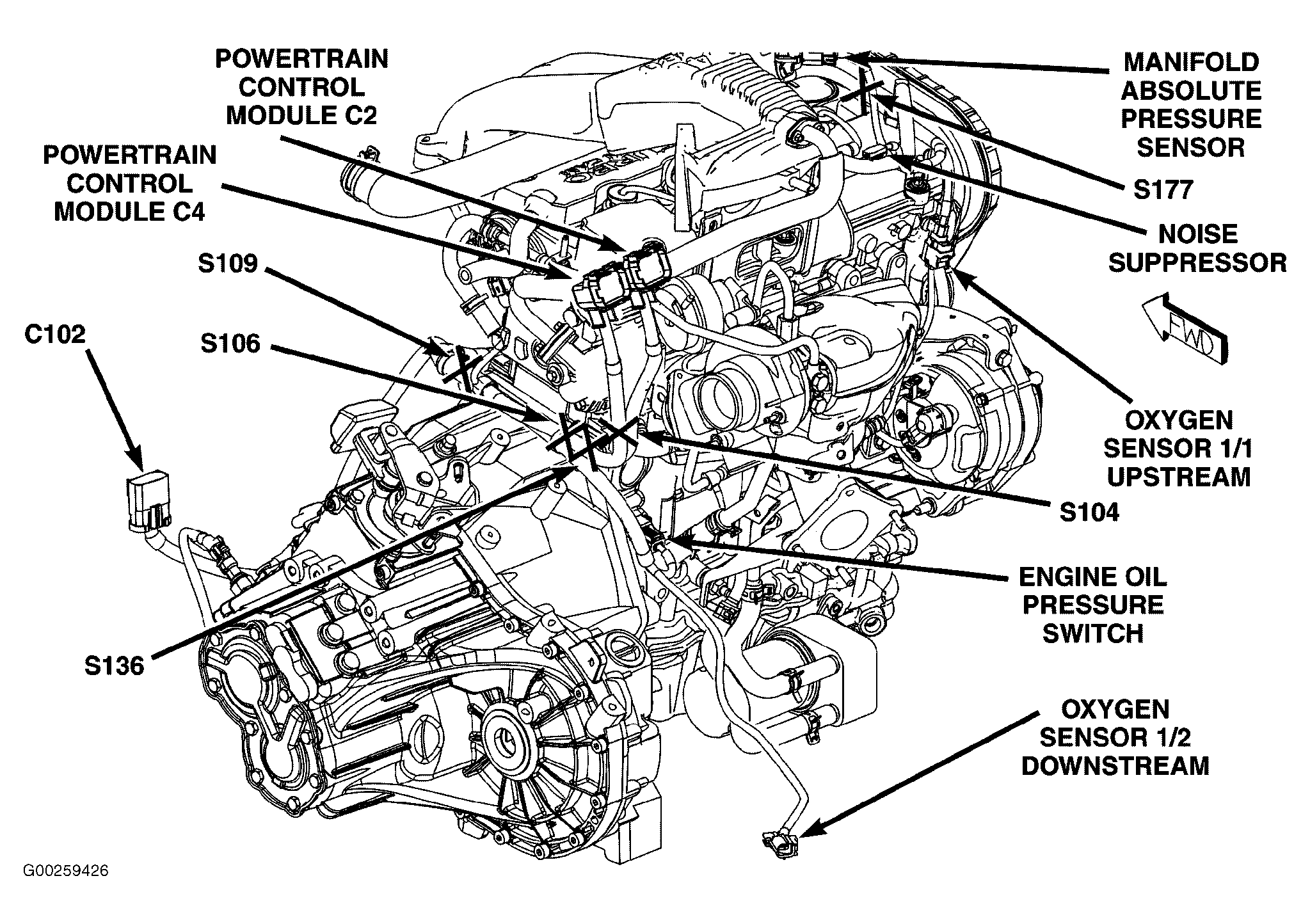

Fig 11: Rear Of Engine (Turbo)

G00259426

Courtesy of DAIMLERCHRYSLER CORP.

Fig 12: Left Side Of Instrument Panel

G00259429

Courtesy of DAIMLERCHRYSLER CORP.

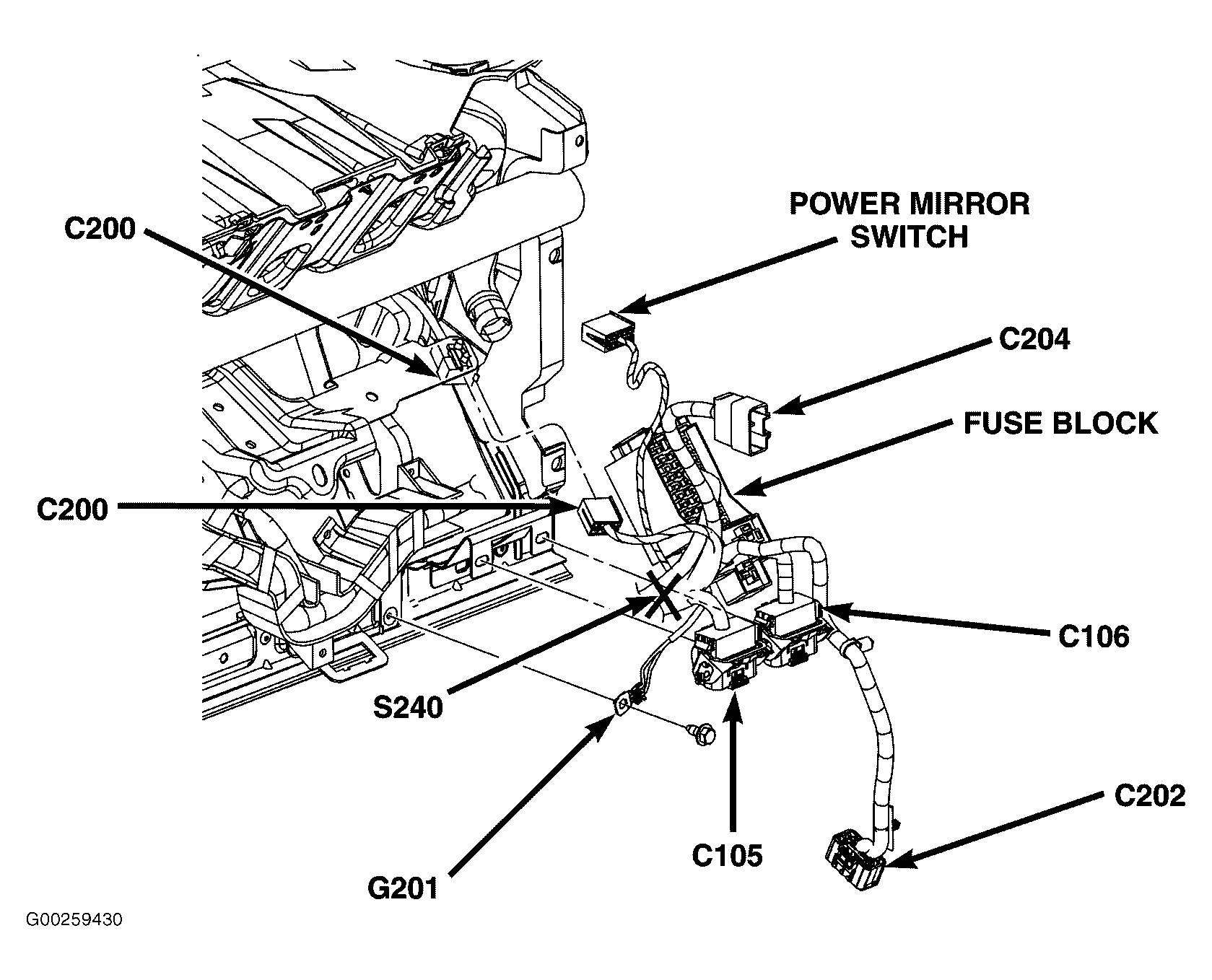

Fig 13: Left Rear Of Instrument Panel

G00259430

Courtesy of DAIMLERCHRYSLER CORP.

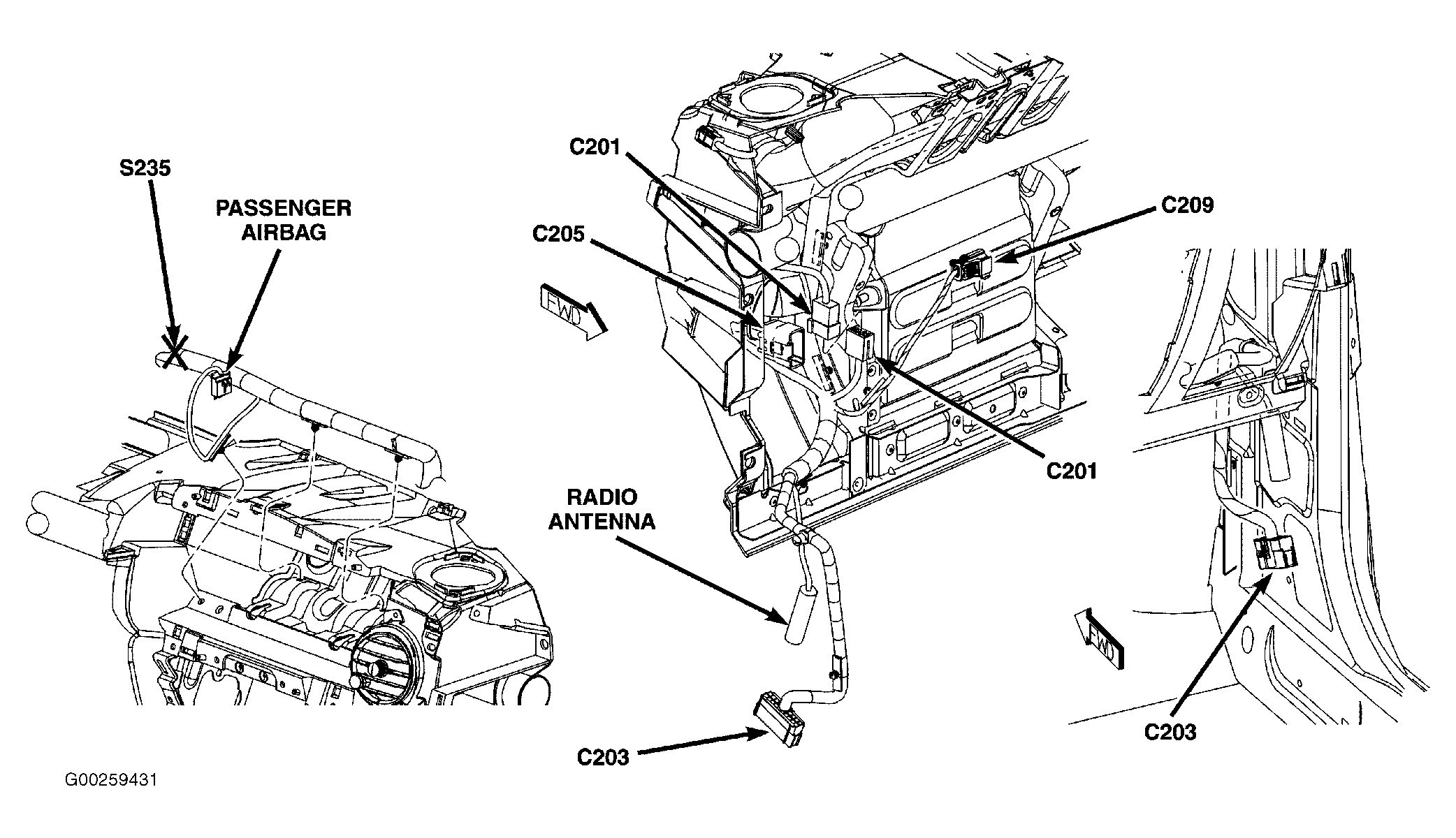

Fig 14: Right Rear Of Instrument Panel

G00259431

Courtesy of DAIMLERCHRYSLER CORP.

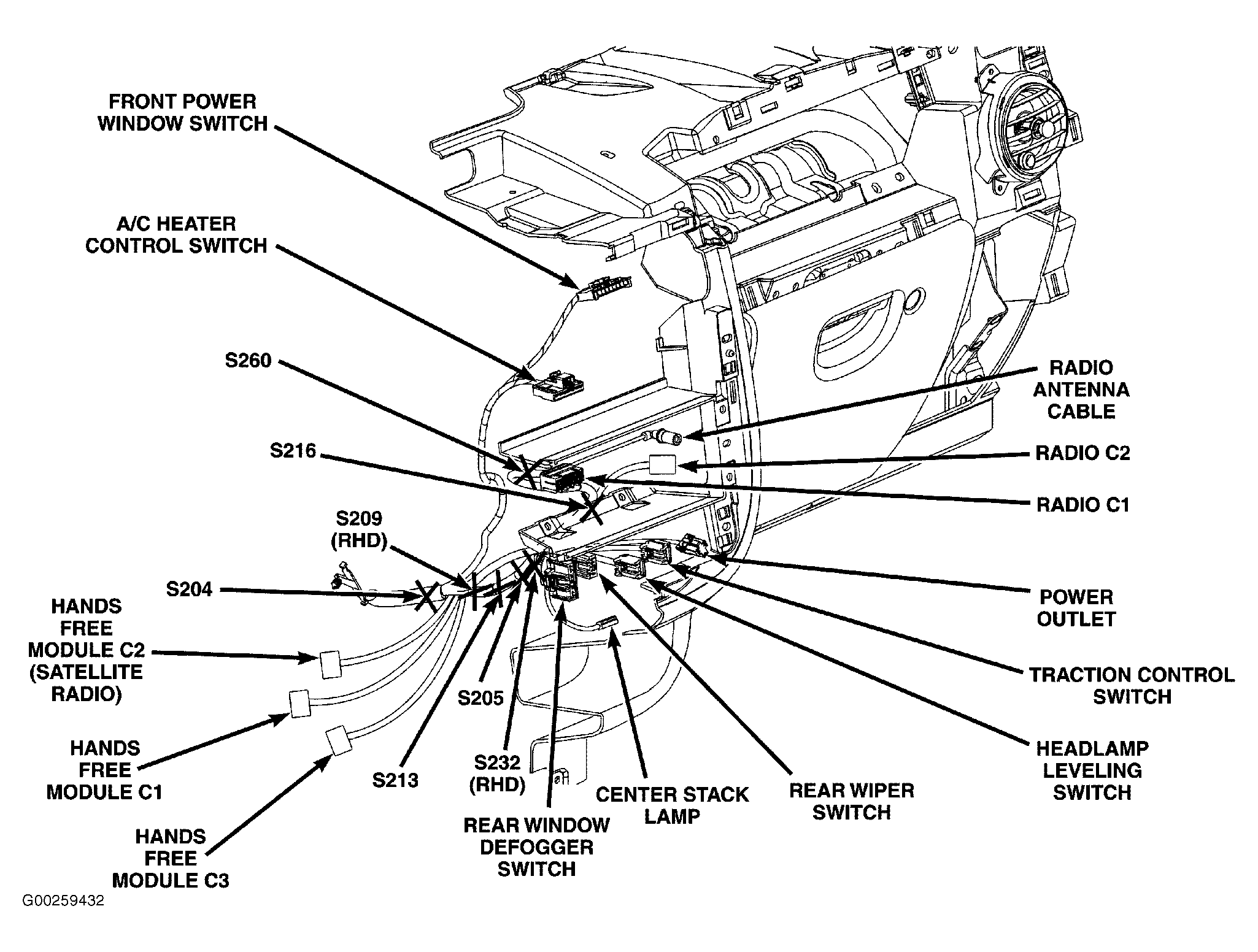

Fig 15: Center Of Instrument Panel

G00259432

Courtesy of DAIMLERCHRYSLER CORP.

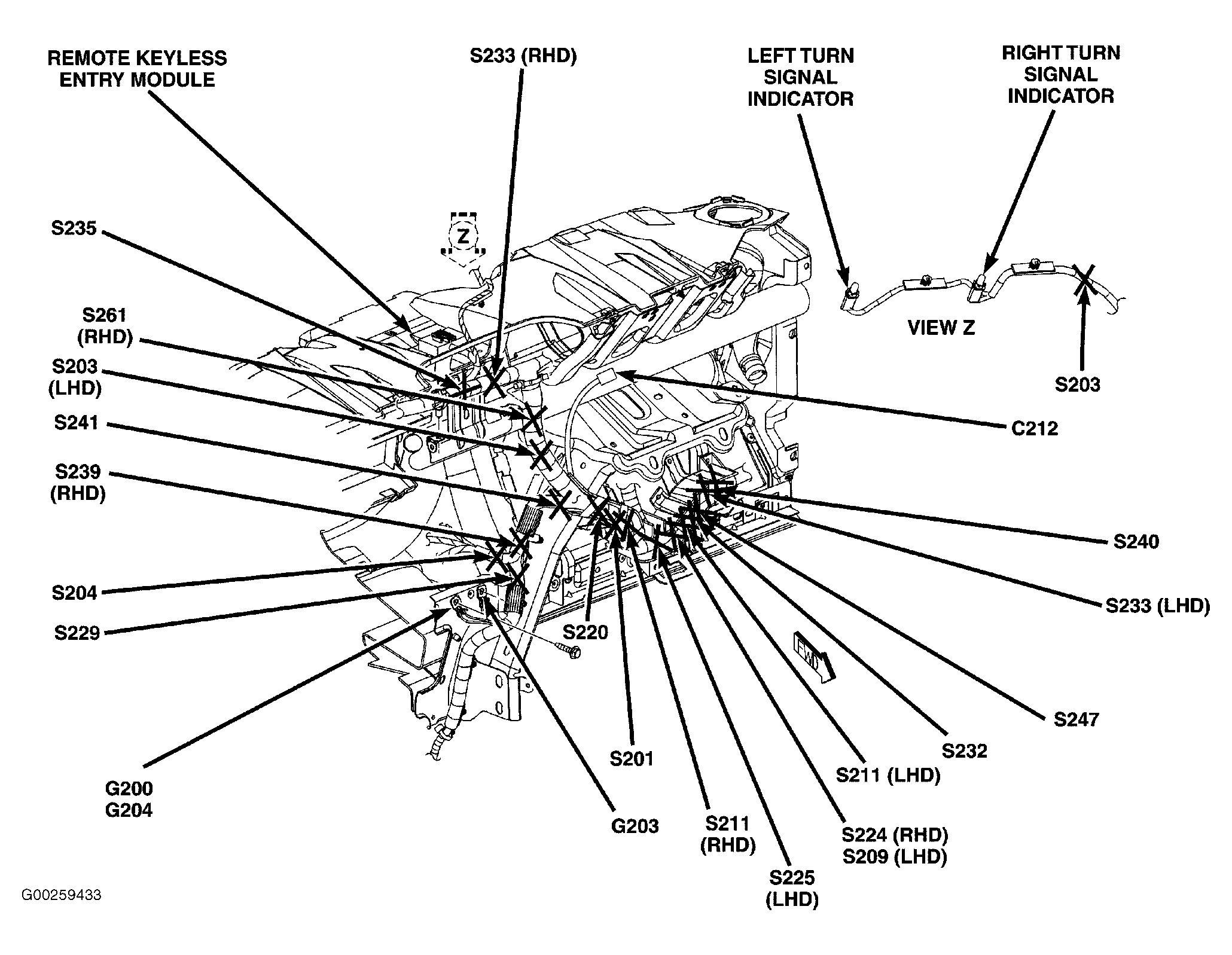

Fig 16: Rear Center Of Instrument Panel

G00259433

Courtesy of DAIMLERCHRYSLER CORP.

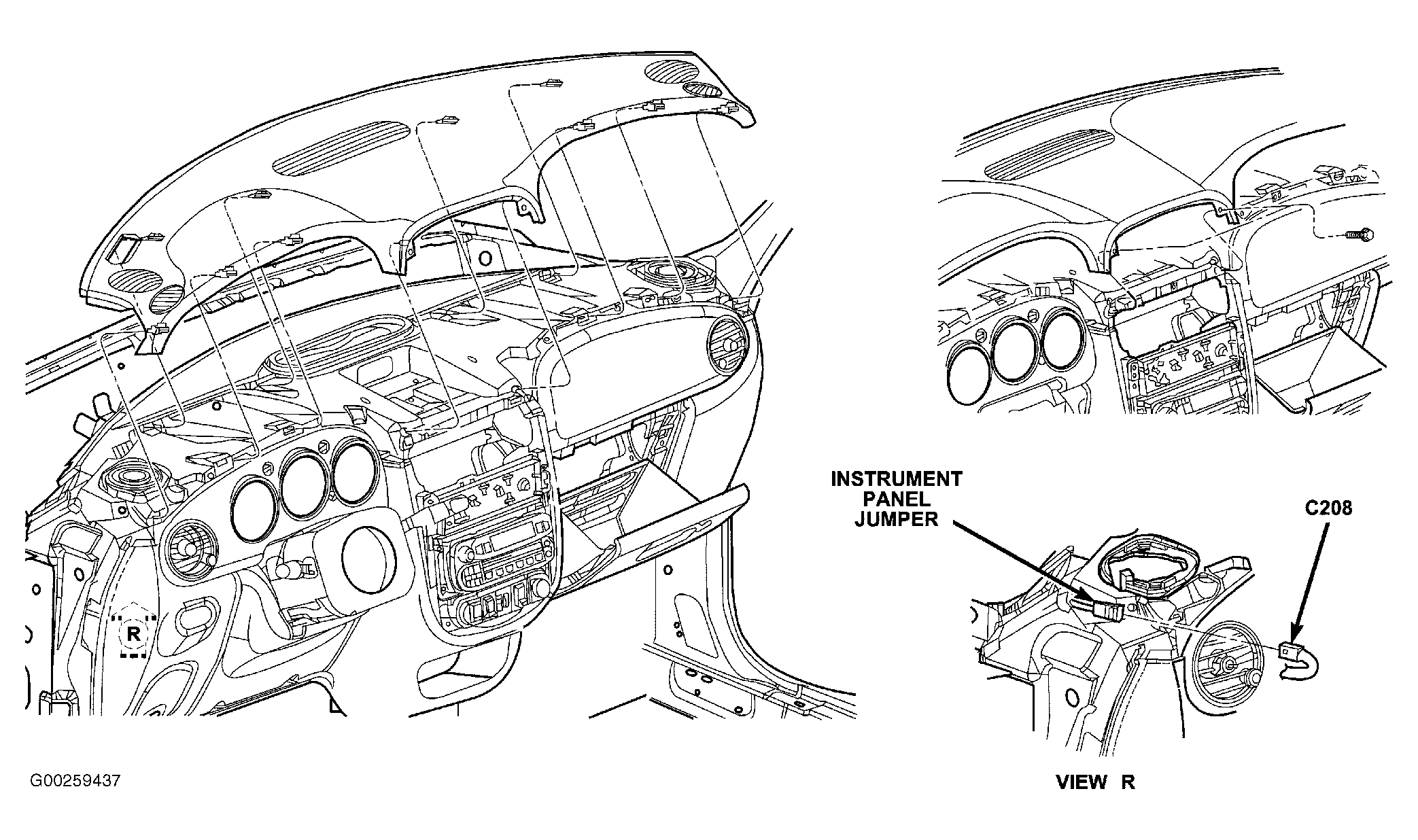

Fig 17: Instrument Panel Jumper

G00259437

Courtesy of DAIMLERCHRYSLER CORP.

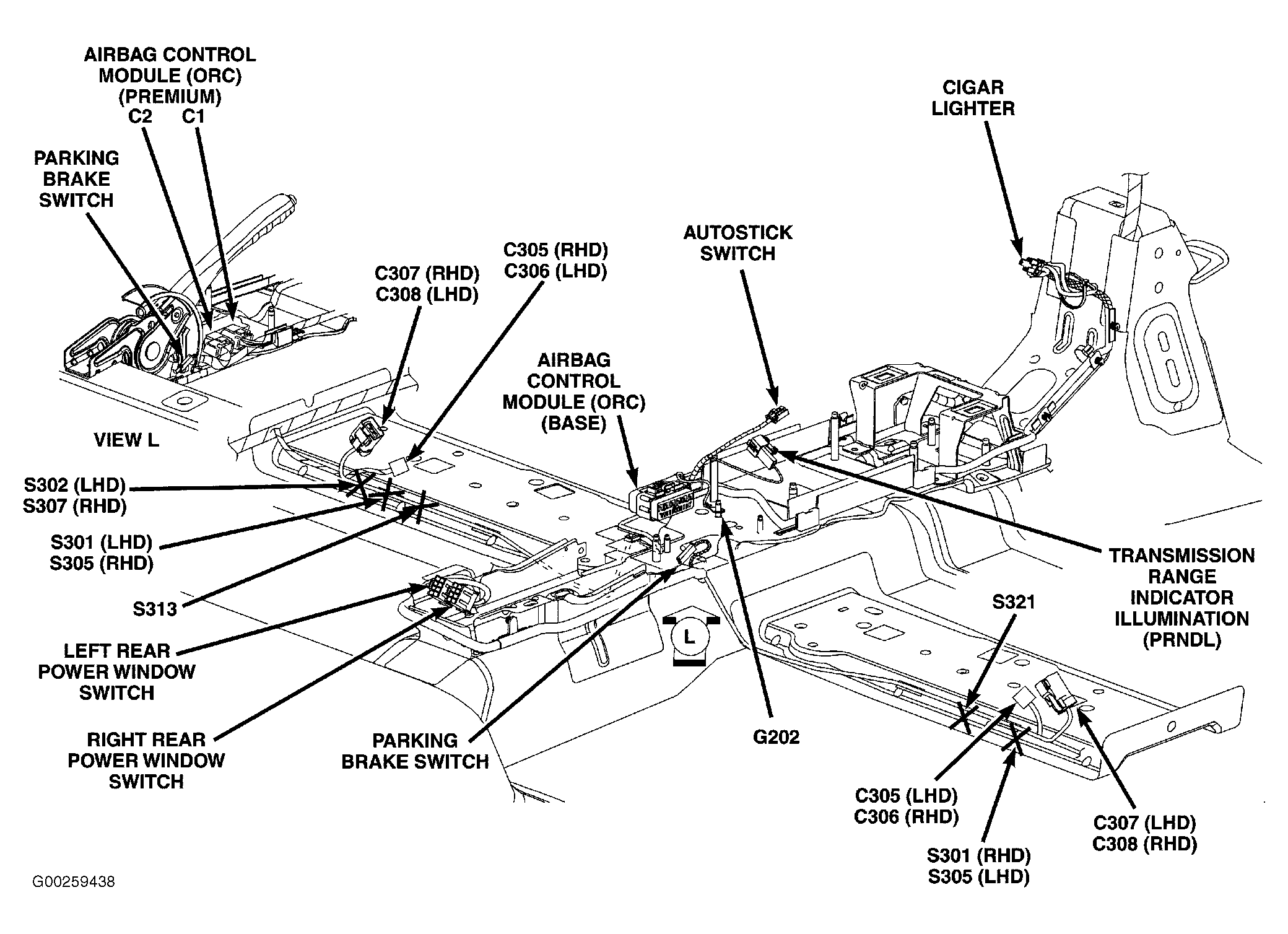

Fig 18: Center Console

G00259438

Courtesy of DAIMLERCHRYSLER CORP.

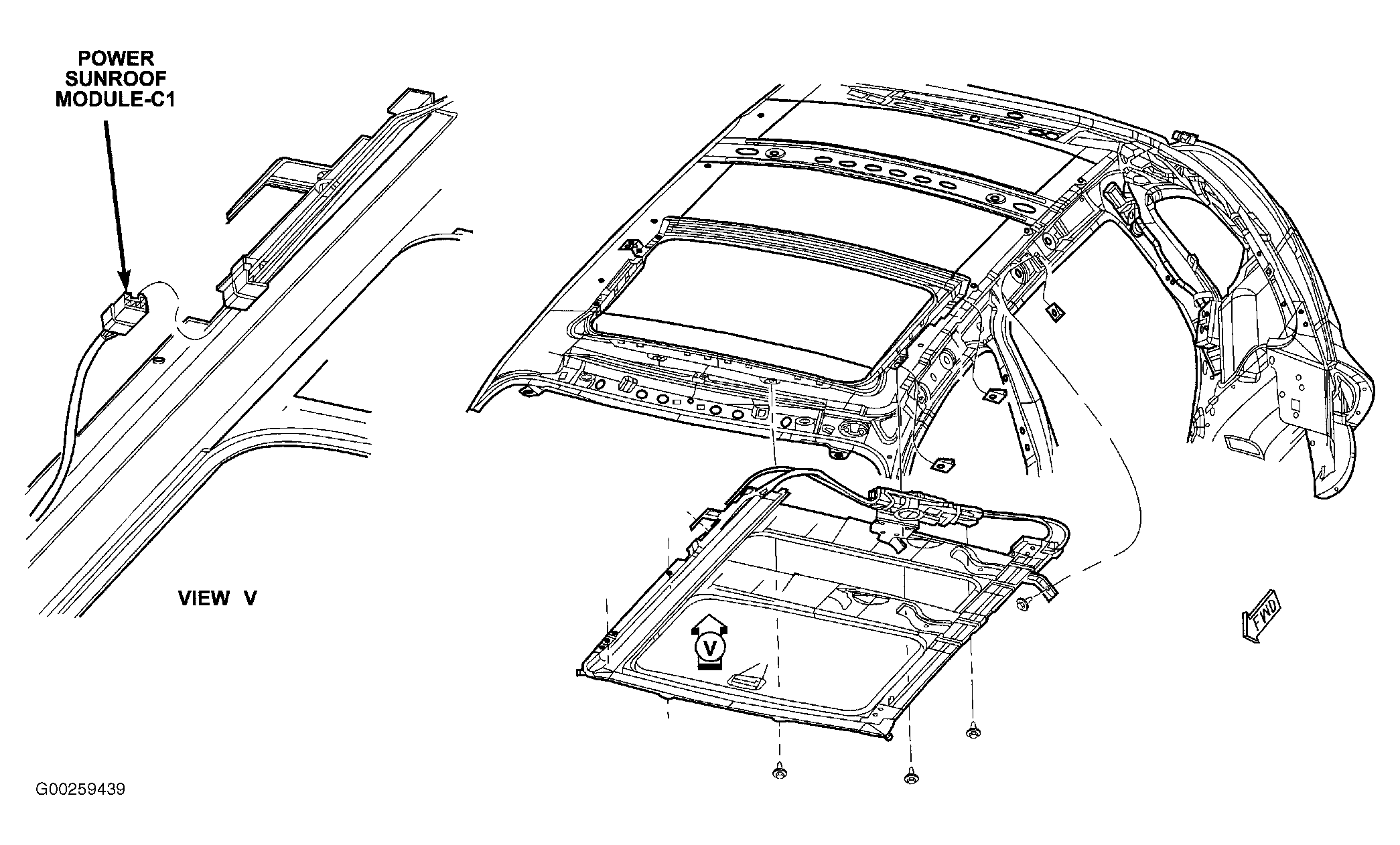

Fig 19: Sunroof

G00259439

Courtesy of DAIMLERCHRYSLER CORP.

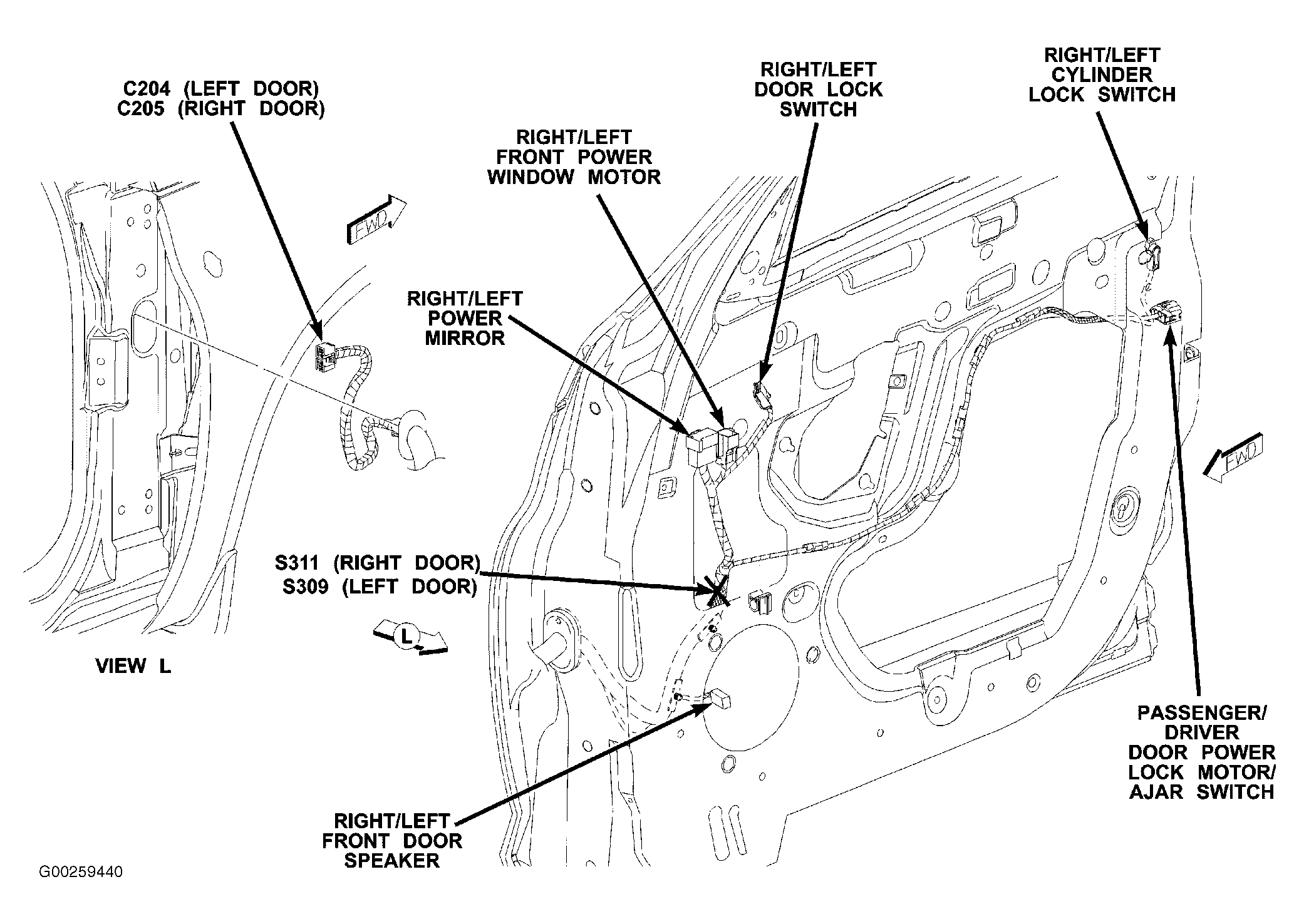

Fig 20: Front Door

G00259440

Courtesy of DAIMLERCHRYSLER CORP.

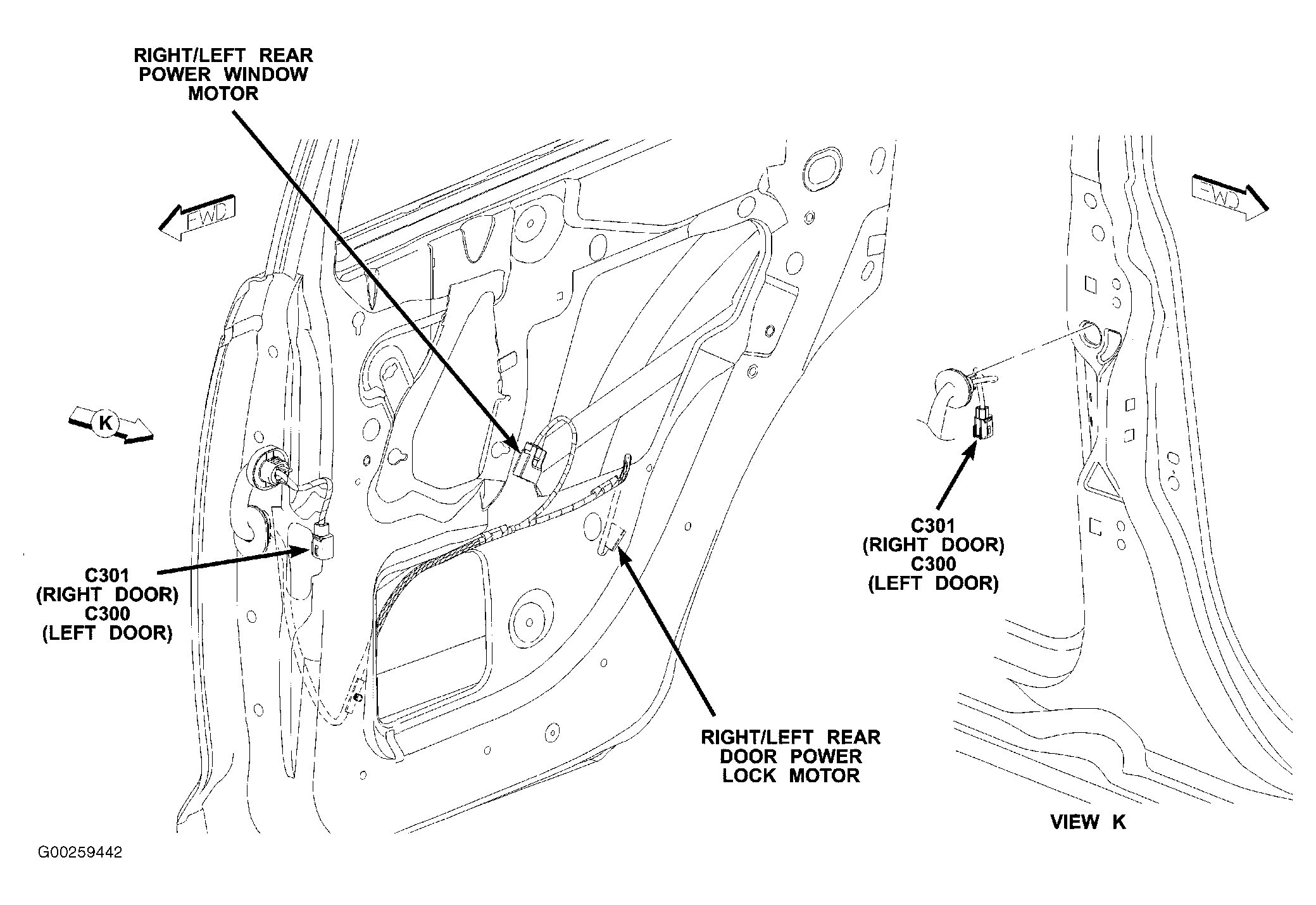

Fig 21: Rear Door

G00259442

Courtesy of DAIMLERCHRYSLER CORP.

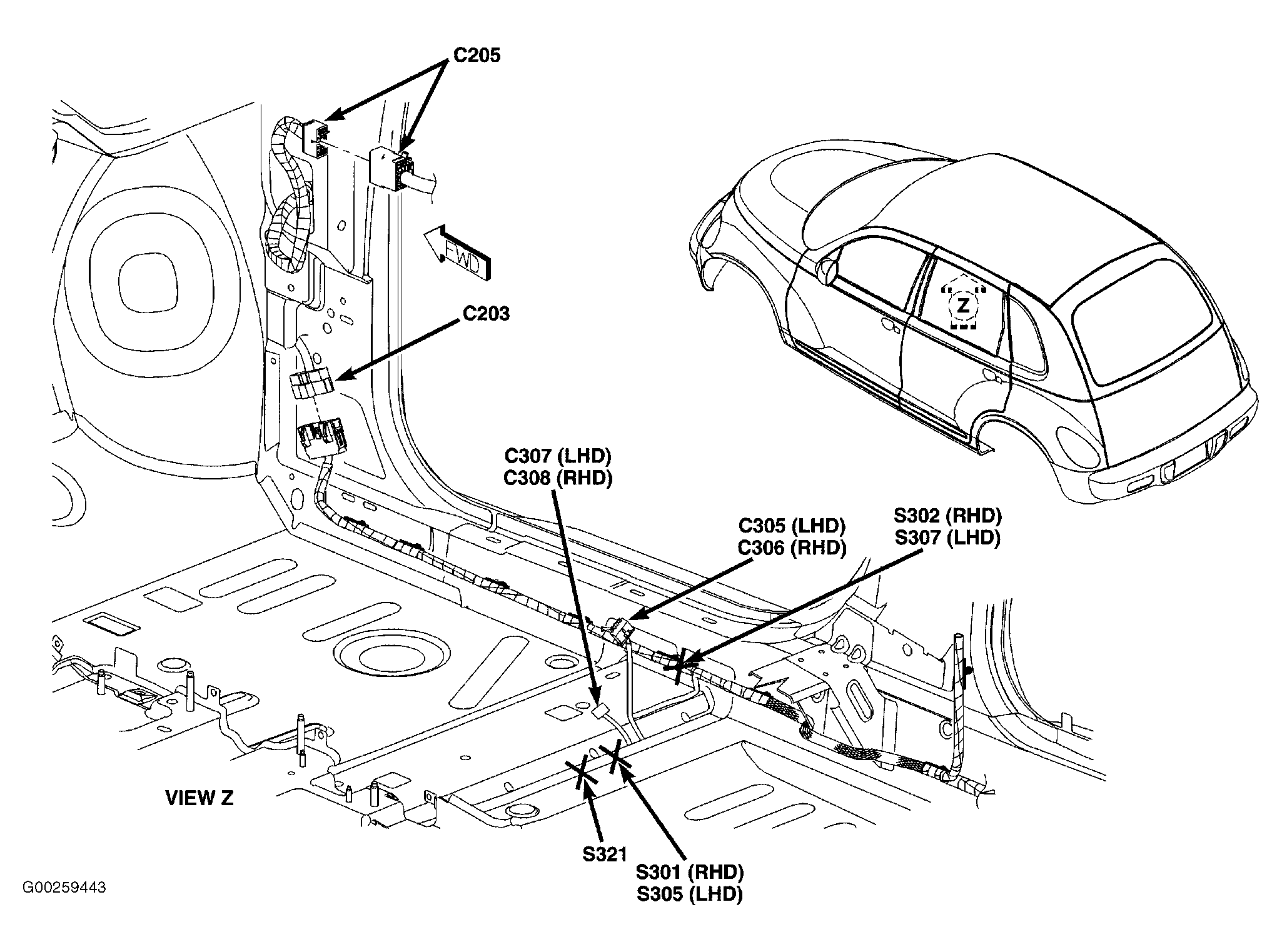

Fig 22: Right Front Body

G00259443

Courtesy of DAIMLERCHRYSLER CORP.

Fig 23: Right Rear Body

G00259444

Courtesy of DAIMLERCHRYSLER CORP.

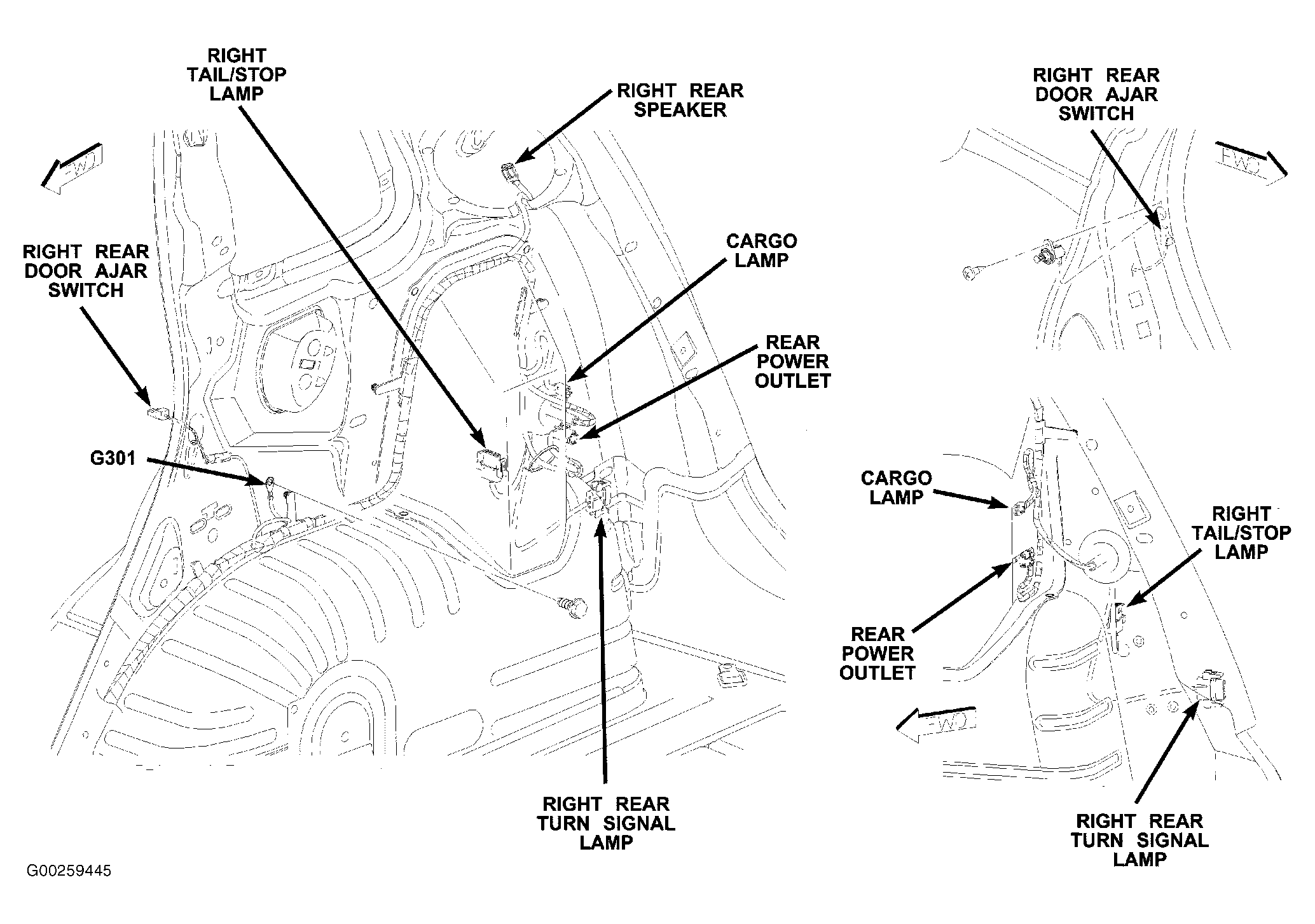

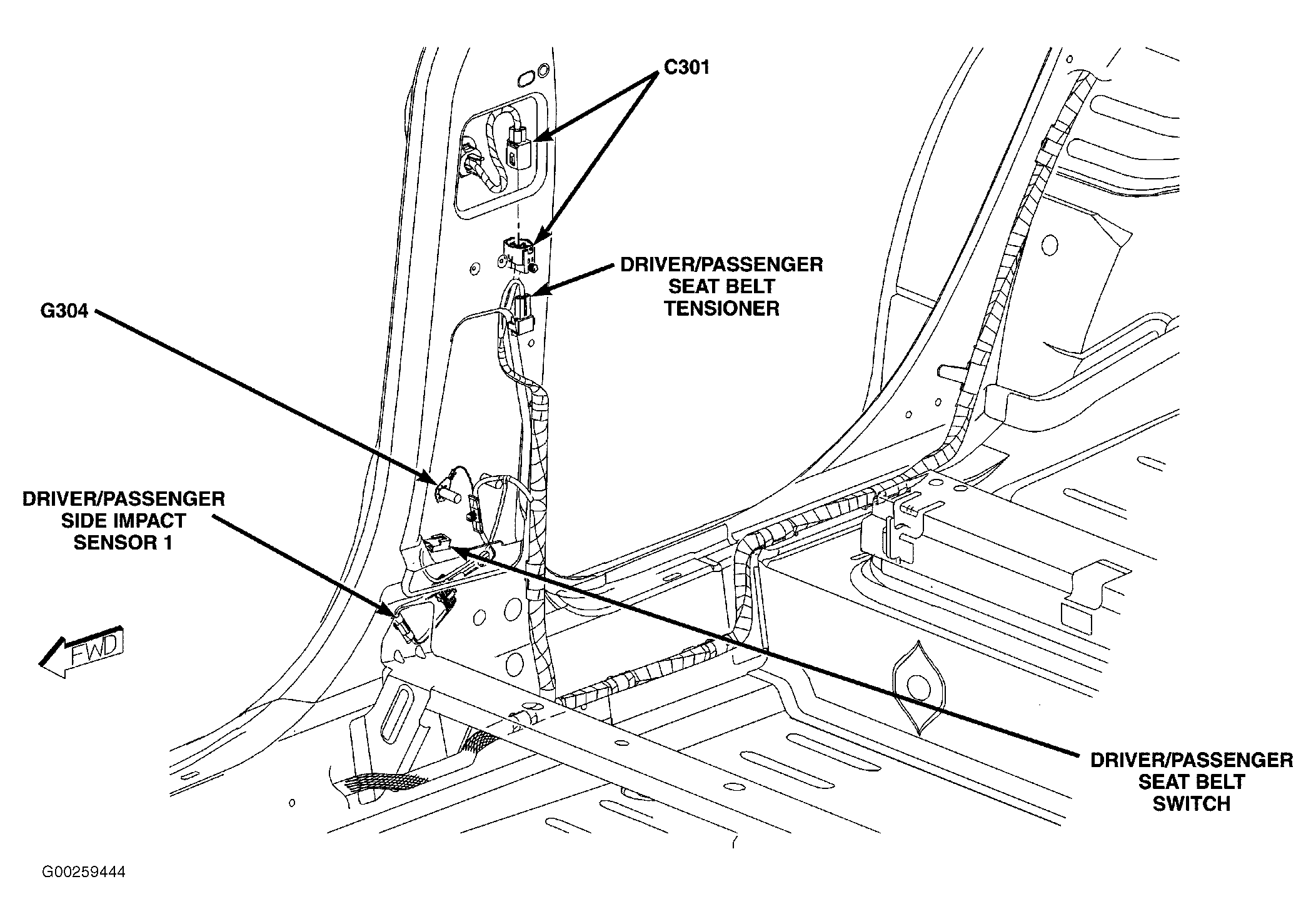

Fig 24: Right Rear Quarter

G00259445

Courtesy of DAIMLERCHRYSLER CORP.

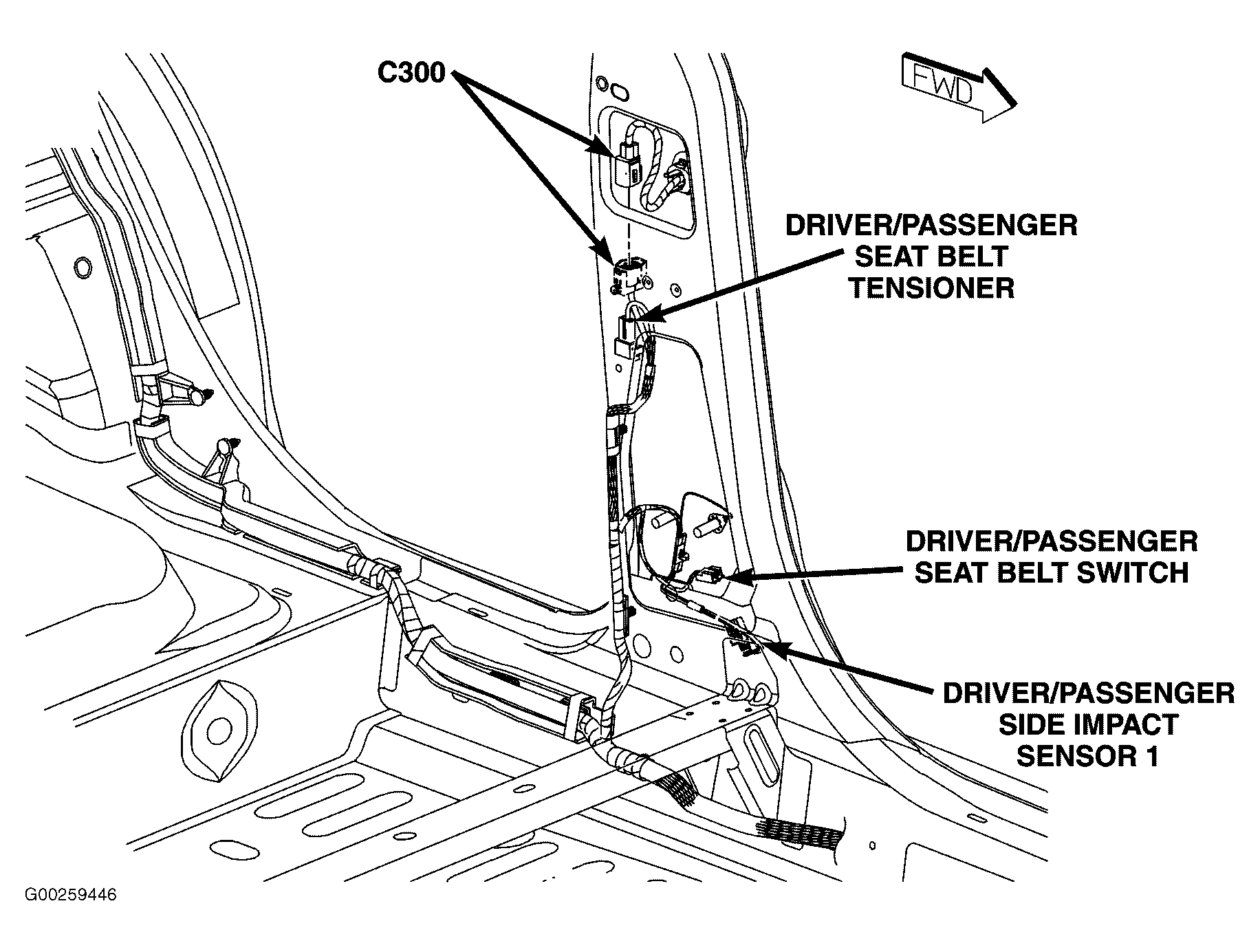

Fig 25: Left Center Of Body

G00259446

Courtesy of DAIMLERCHRYSLER CORP.

Fig 26: Left Rear Quarter

G00259449

Courtesy of DAIMLERCHRYSLER CORP.

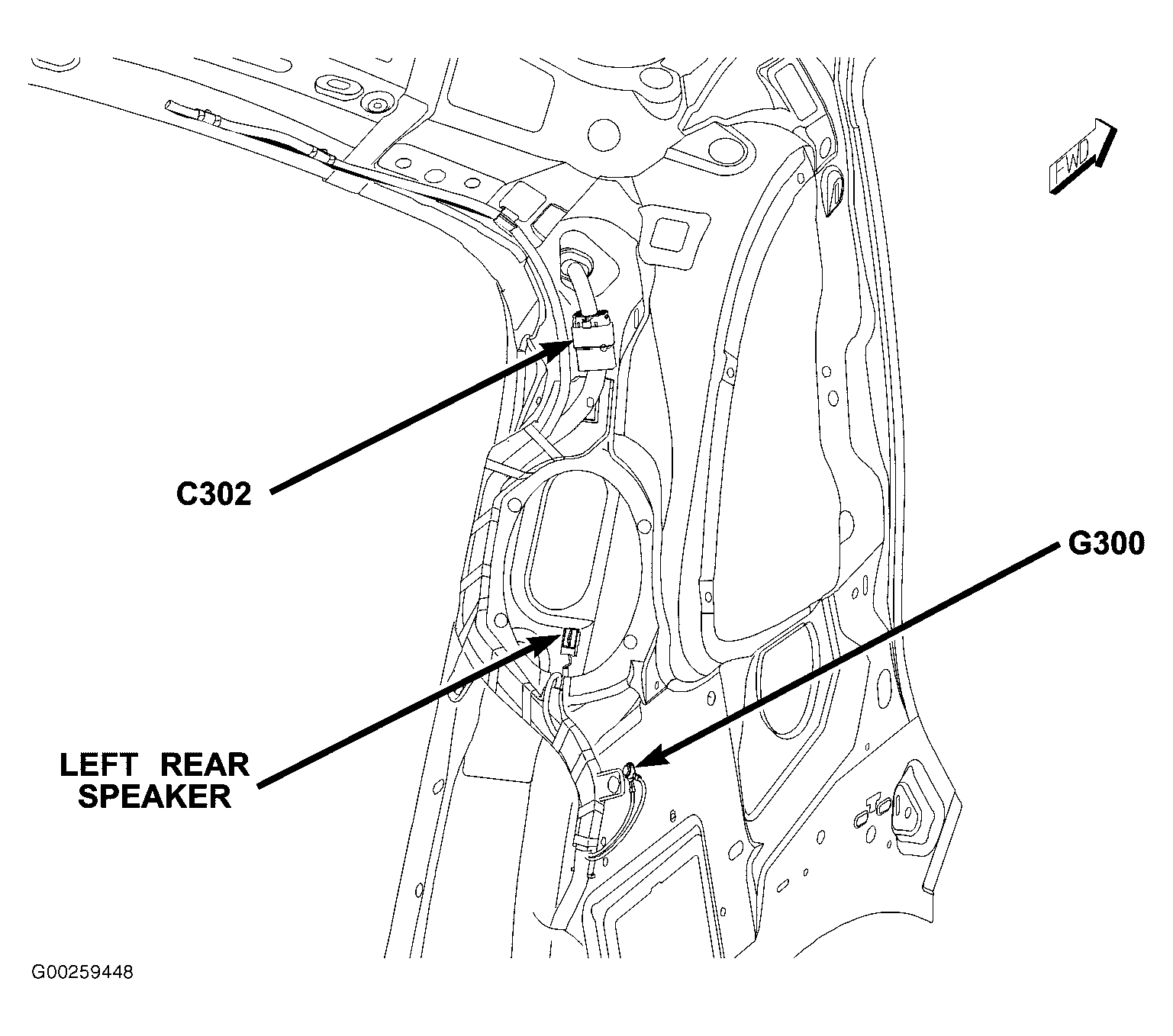

Fig 27: Left Rear Of Vehicle

G00259448

Courtesy of DAIMLERCHRYSLER CORP.

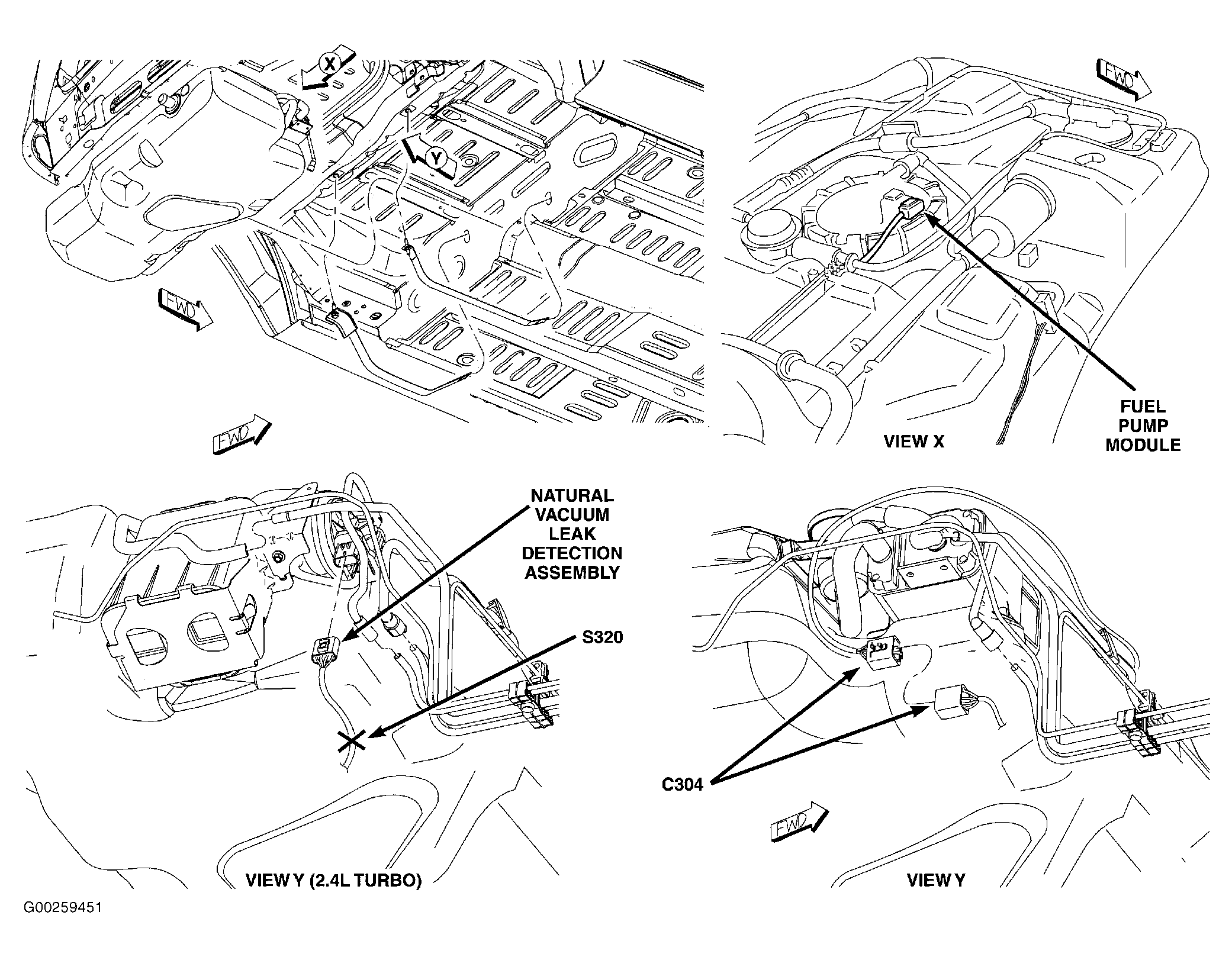

Fig 28: Fuel Tank

G00259451

Courtesy of DAIMLERCHRYSLER CORP.

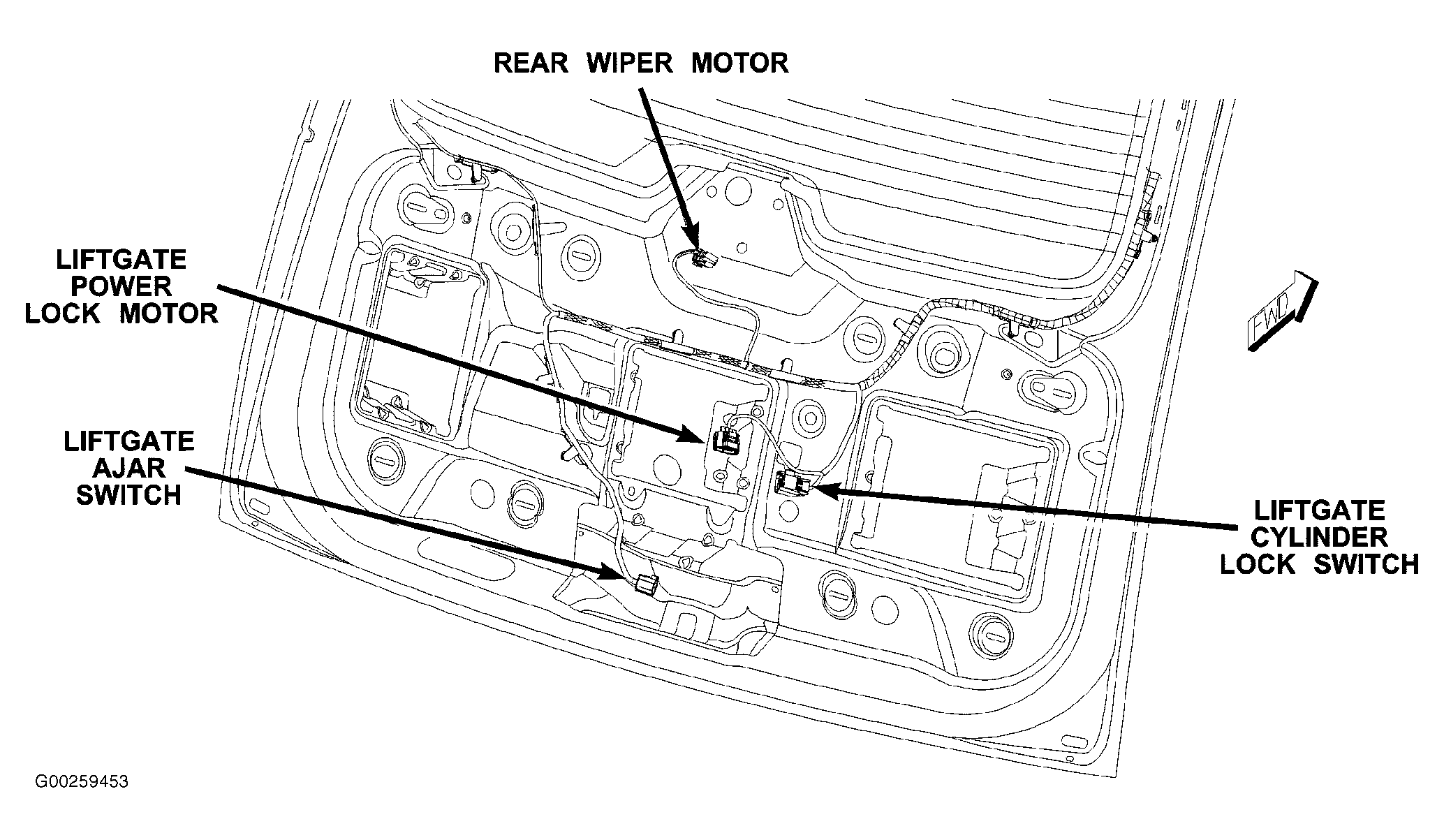

Fig 29: Lower Liftgate

G00259453

Courtesy of DAIMLERCHRYSLER CORP.

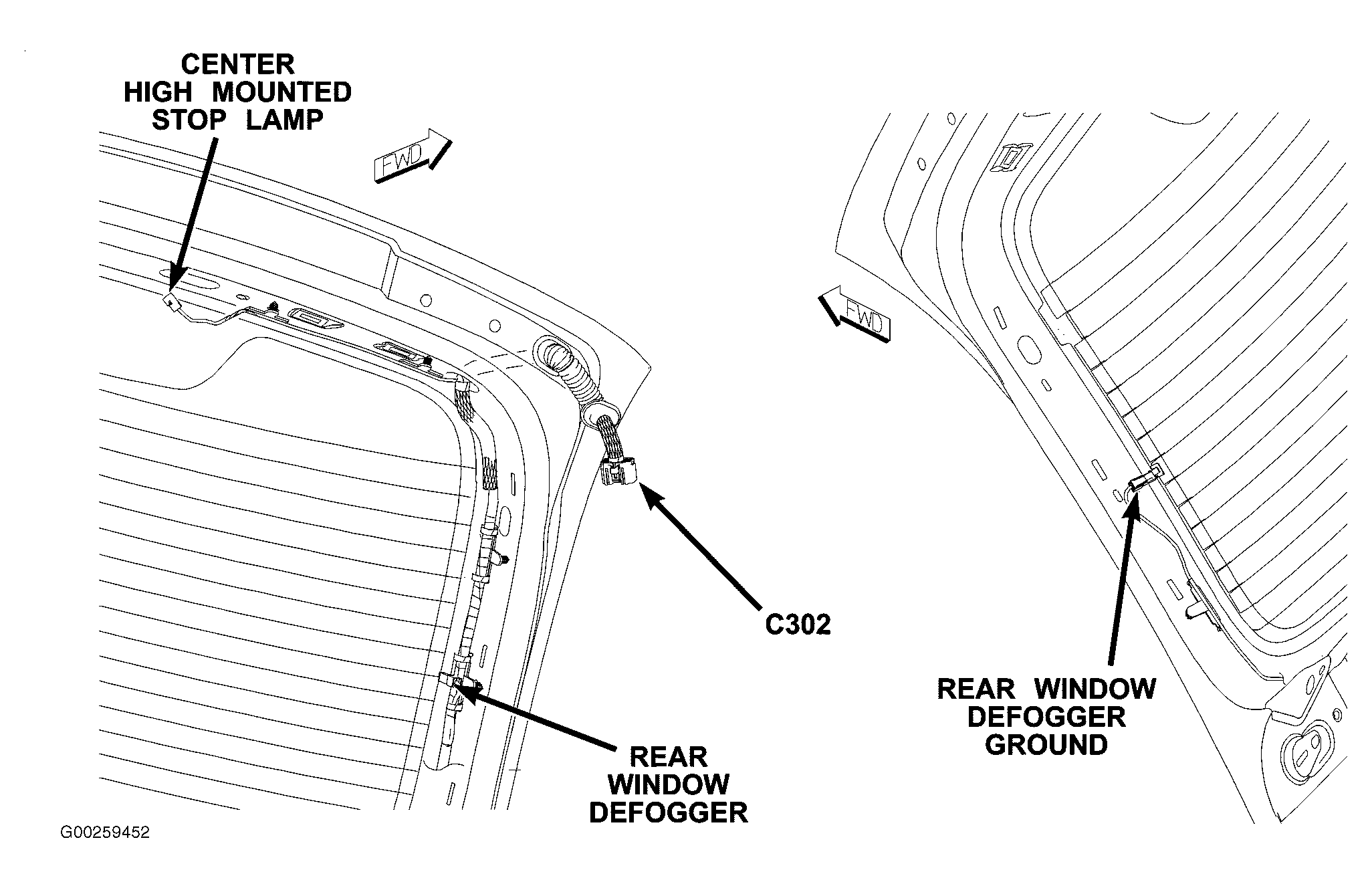

Fig 30: Heated Rear Window

G00259452

Courtesy of DAIMLERCHRYSLER CORP.

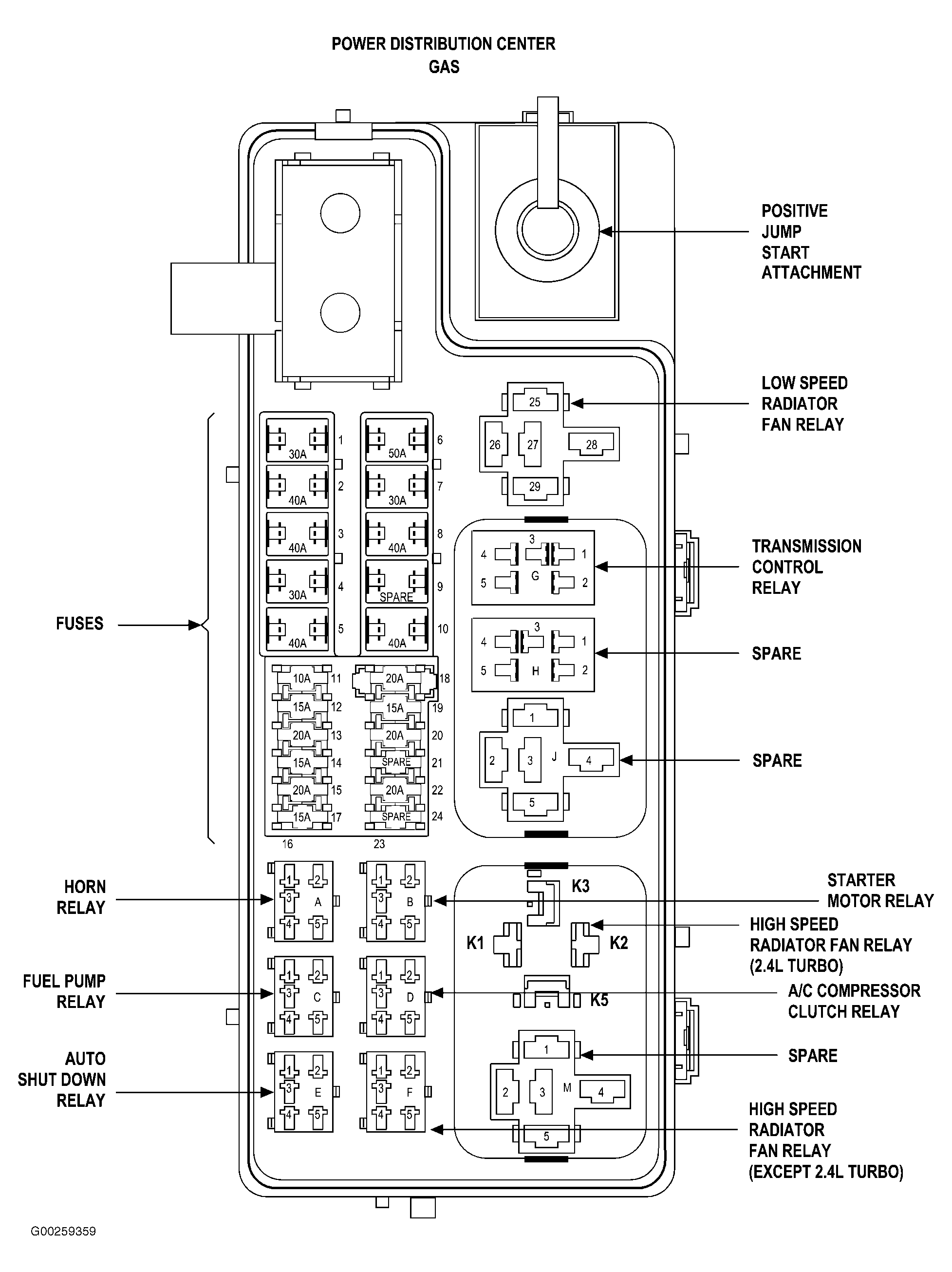

Fig 31: Power Distribution Center

G00259359

Courtesy of DAIMLERCHRYSLER CORP.

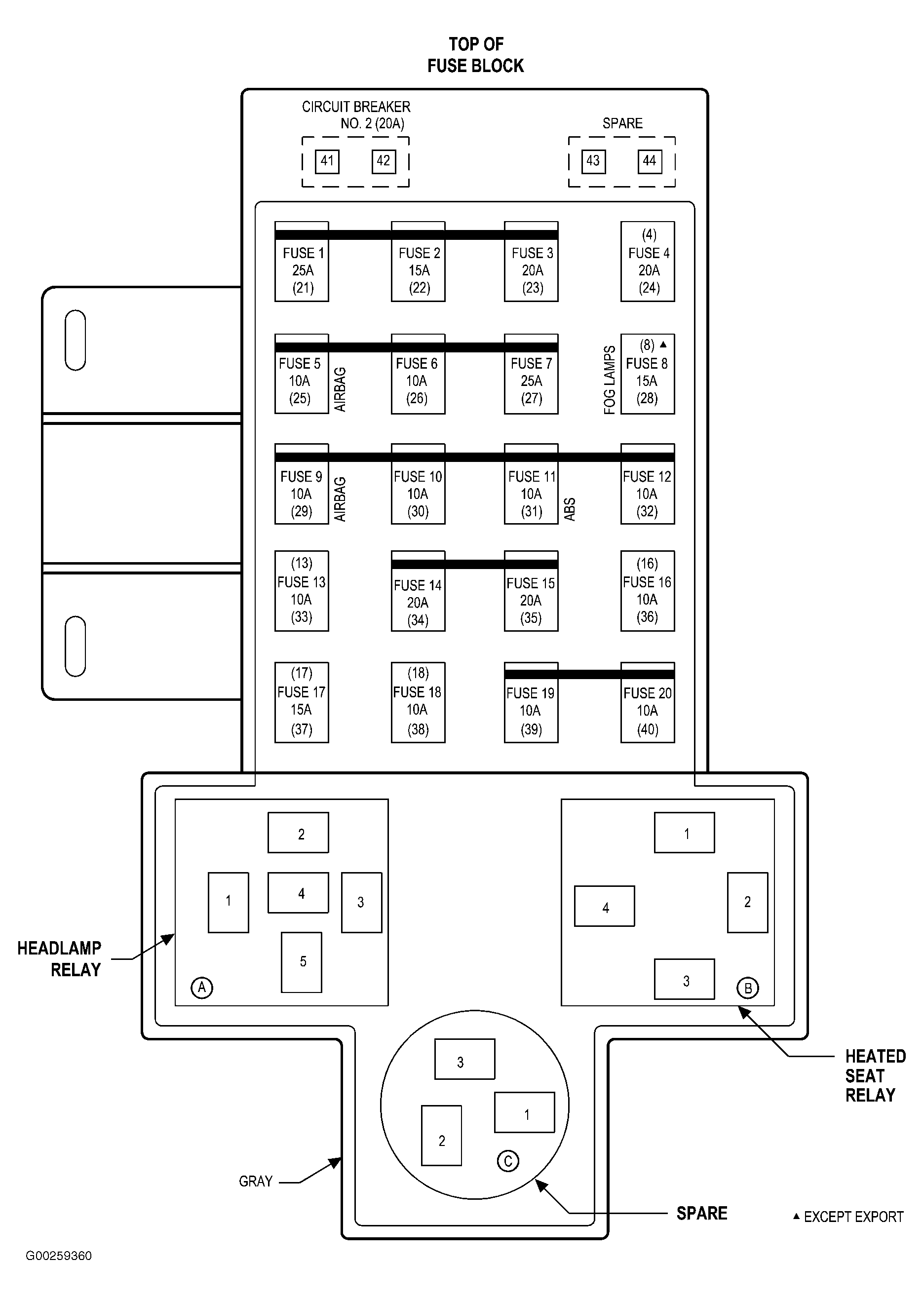

Fig 32: Fuse Block

G00259360

Courtesy of DAIMLERCHRYSLER CORP.
