Electrical Component Locator: Grounds

GROUNDS LOCATION

Component Location
G100 At left side of engine compartment. See Figure .
G101 At battery tray. See Figure .
G102 At left front strut tower. See Figure .
G103 At left front strut tower. See Figure .
G104 At front of right front fender. See Figure .
G105 Left front inner fender. See Figure .

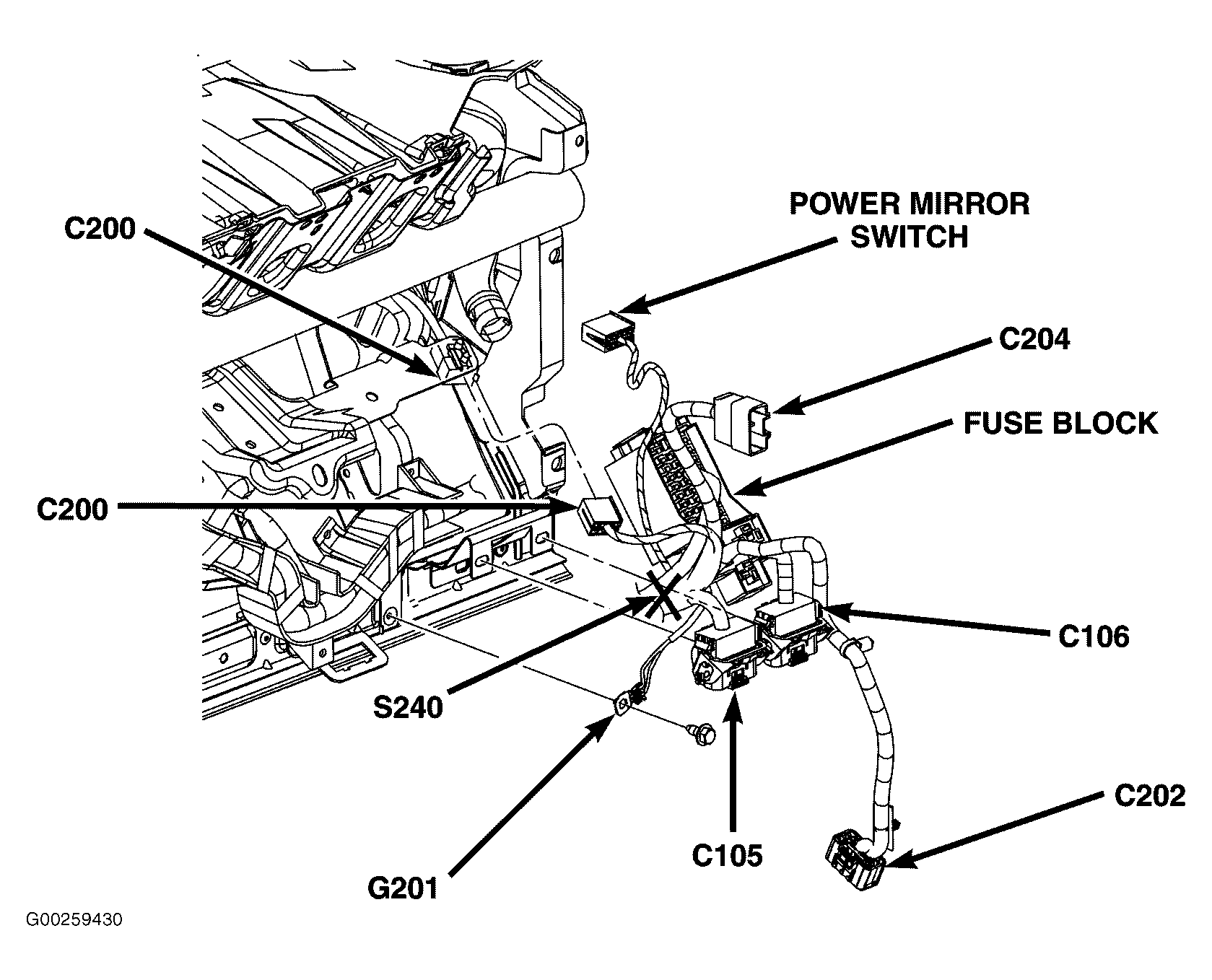

G200 Behind center of dash. See Figure .
G201 Behind center of dash. See Figure .
G202 At left kick panel, near breakout for air bag control module. See Figure .
G203 Behind center of dash. See Figure .
G204 Behind center of dash. See Figure .
G300 At left rear quarterpanel. See Figure .
G301 At right rear quarterpanel. See Figure .
G304 Right "B" pillar. See Figure .
Rear Window Defogger Ground Right side of rear window. See Figure .
