Electrical Component Locator: Miscellaneous
MISCELLANEOUS LOCATION
| Component | Location |
|---|---|
| Blower Motor Resistor Block | On right side of firewall, below base of windshield. See Figure . |
| Clockspring | Bottom of steering wheel. See Figure . |
| Data Link Connector | Under left side of dash, near kick panel. See Figure . |
| Driver Door Power Lock Motor/Ajar Switch | In driver's door. See Figure . |

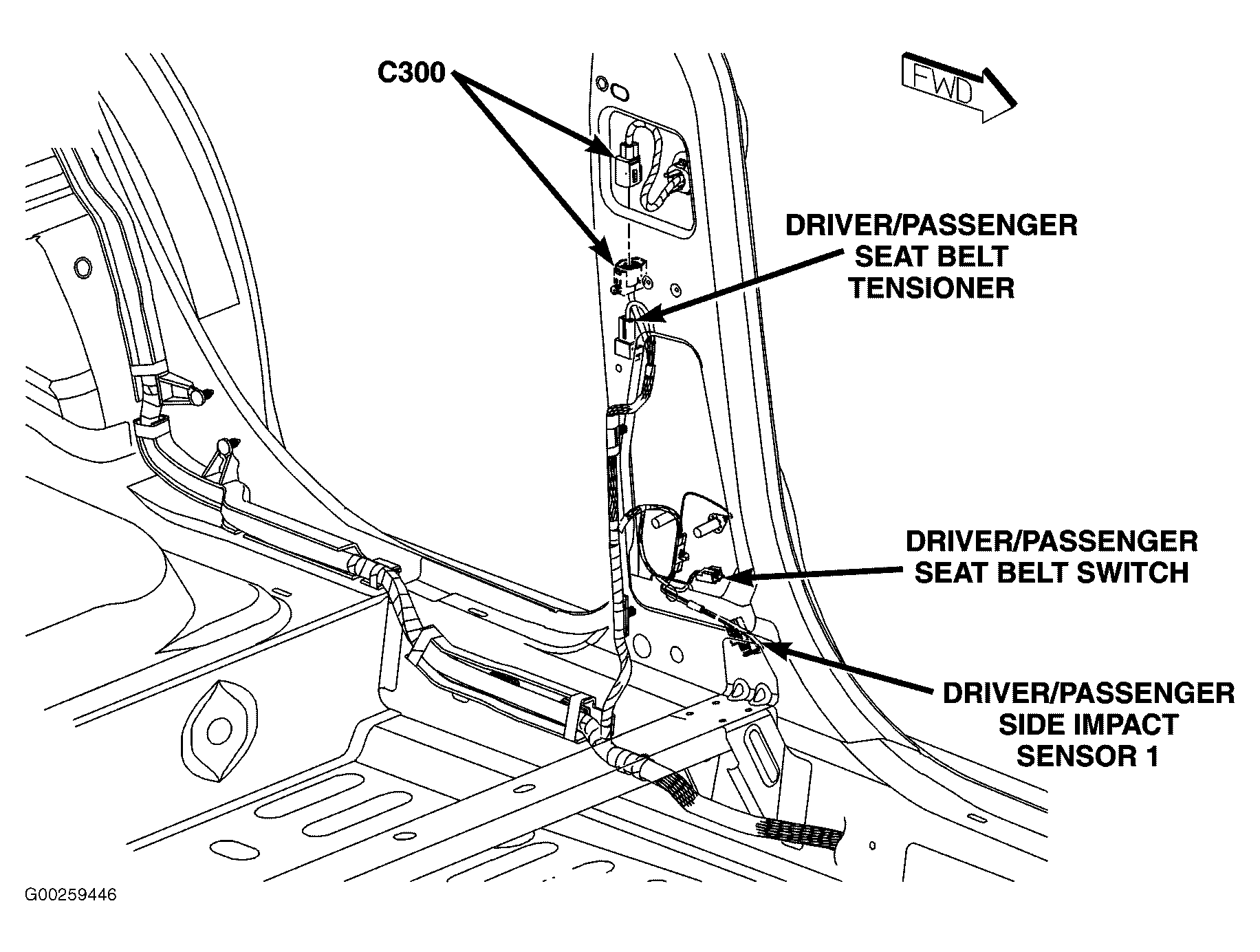

| Driver Seat Belt Tensioner | In left "B" pillar. See Figure . |
| Generator | Right front of engine. See Figure . |
| Horn (High Note) | Below right front headlight. |
| Horn (Low Note) | Below right front headlight. See Figure . |
| Ignition Coil | On valve cover. See Figure . |
| Instrument Cluster | Left side of instrument panel. See Figure . |
| Instrument Panel Jumper | At top left side of dash. See Figure . |
| Natural Vacuum Leak Detection Assembly | Right front of fuel tank. See Figure . |
| Noise Suppressor (Non-Turbo) | On top right rear of engine. See Figure . |
| Noise Suppressor (Turbo) | On top right front of engine. See Figure . |
| Passenger Airbag | Right side of instrument panel. See Figure . |

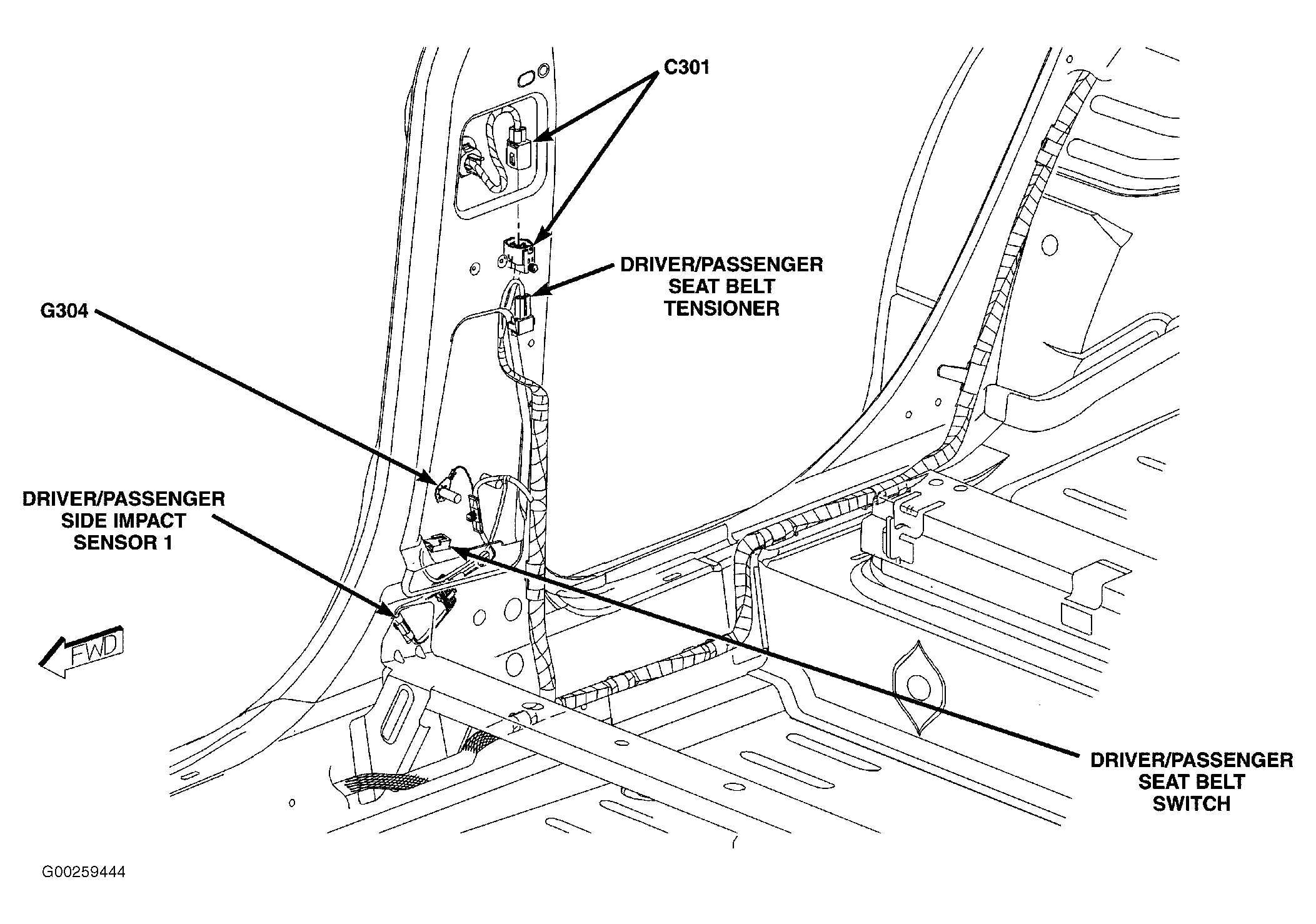

| Passenger Seat Belt Tensioner | In right "B" pillar. See Figure . |
| Positive Jump Start Attachment | On power distribution center. See Figure . |
| Radio Antenna Cable | Right rear of instrument panel. See Figure . |
| Rear Window Defogger | In rear window. See Figure . |
