Fuel Rail: Description

The fuel rail supplies the necessary fuel to each individual fuel injector and is mounted to the intake manifold.

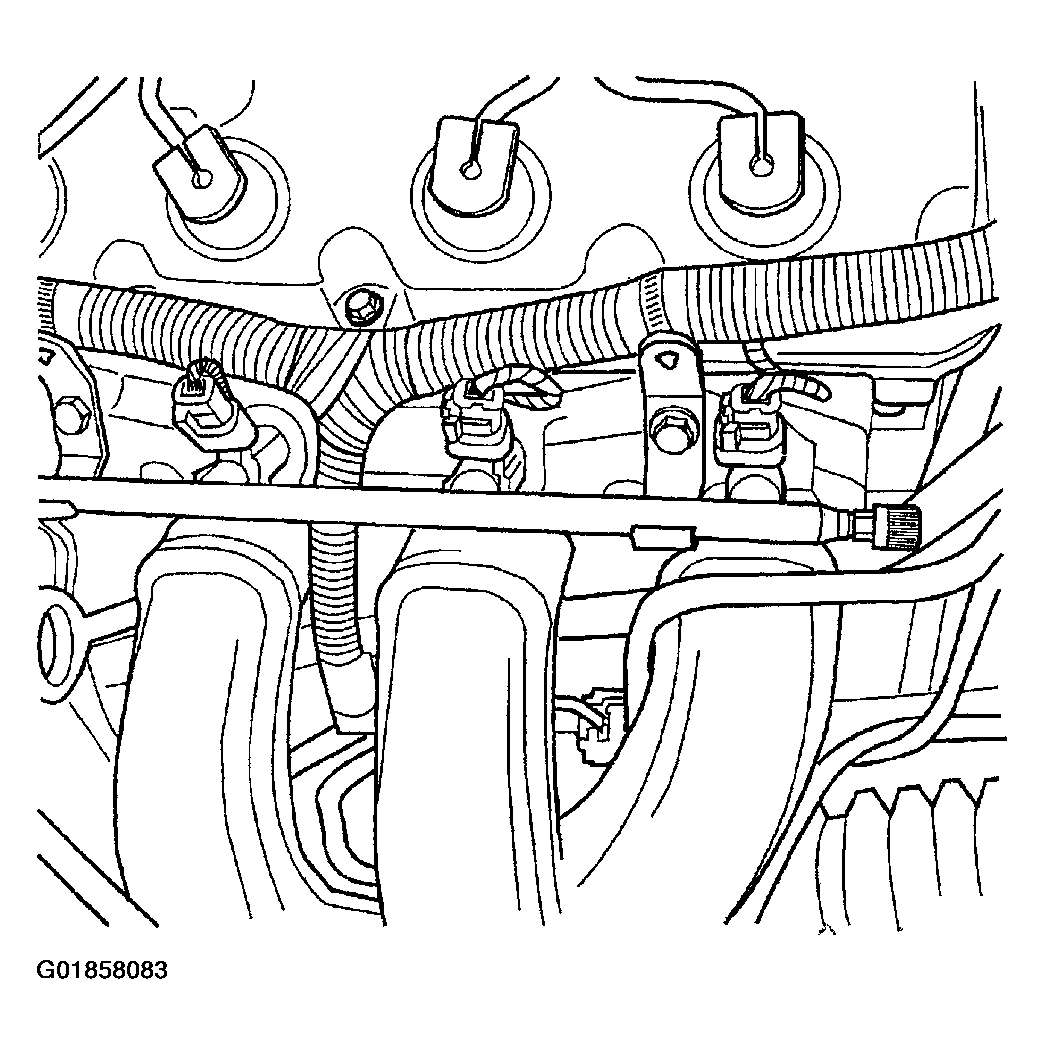

Fig 1: Identifying Fuel Rail
G01858083Courtesy of DAIMLERCHRYSLER CORP.
