Fuel Injection: Specifications: Torque

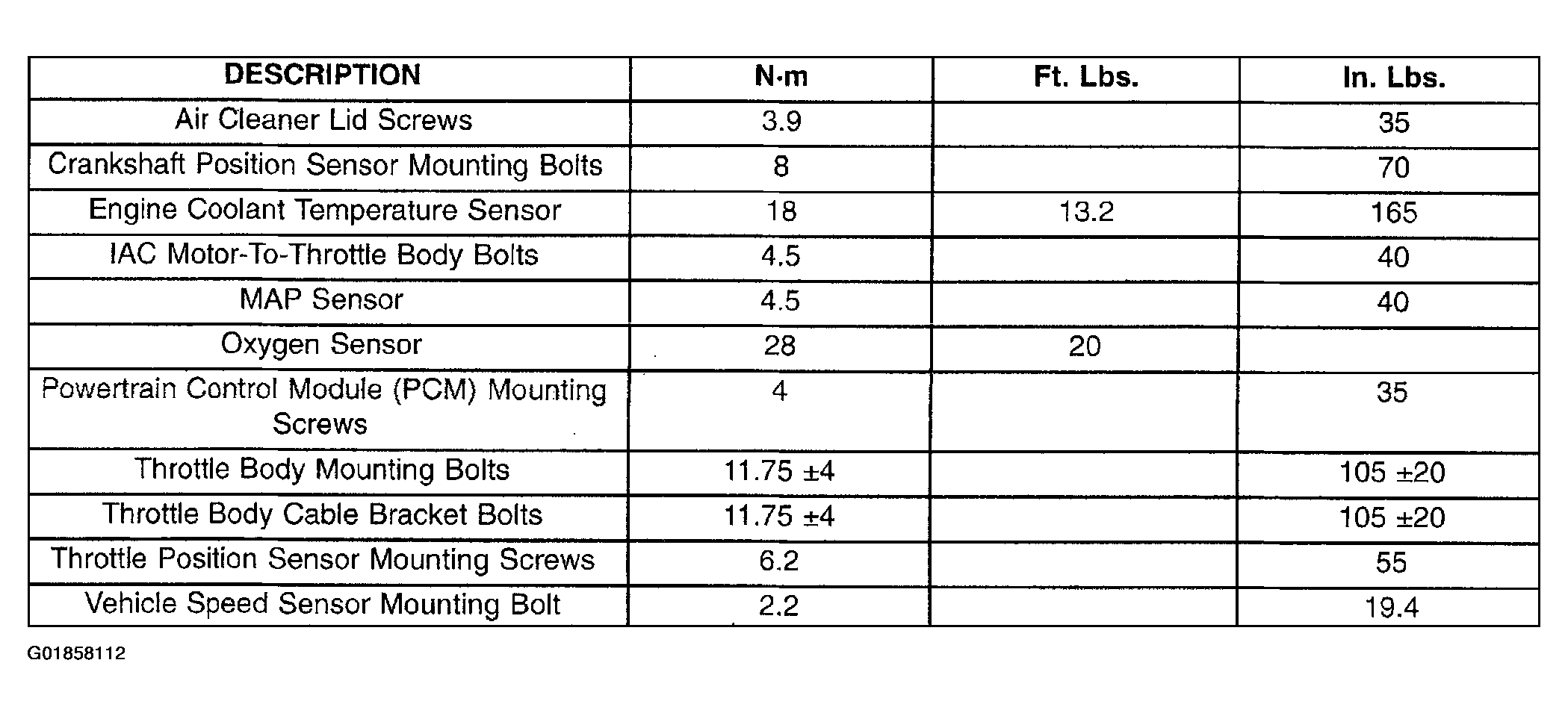

Fig 1: Fastener Tightening Torque Specifications Table
G01858112Courtesy of DAIMLERCHRYSLER CORP.
