Fuel Injector: Description

The injectors are positioned in the intake manifold with the nozzle ends directly above the intake valve port.

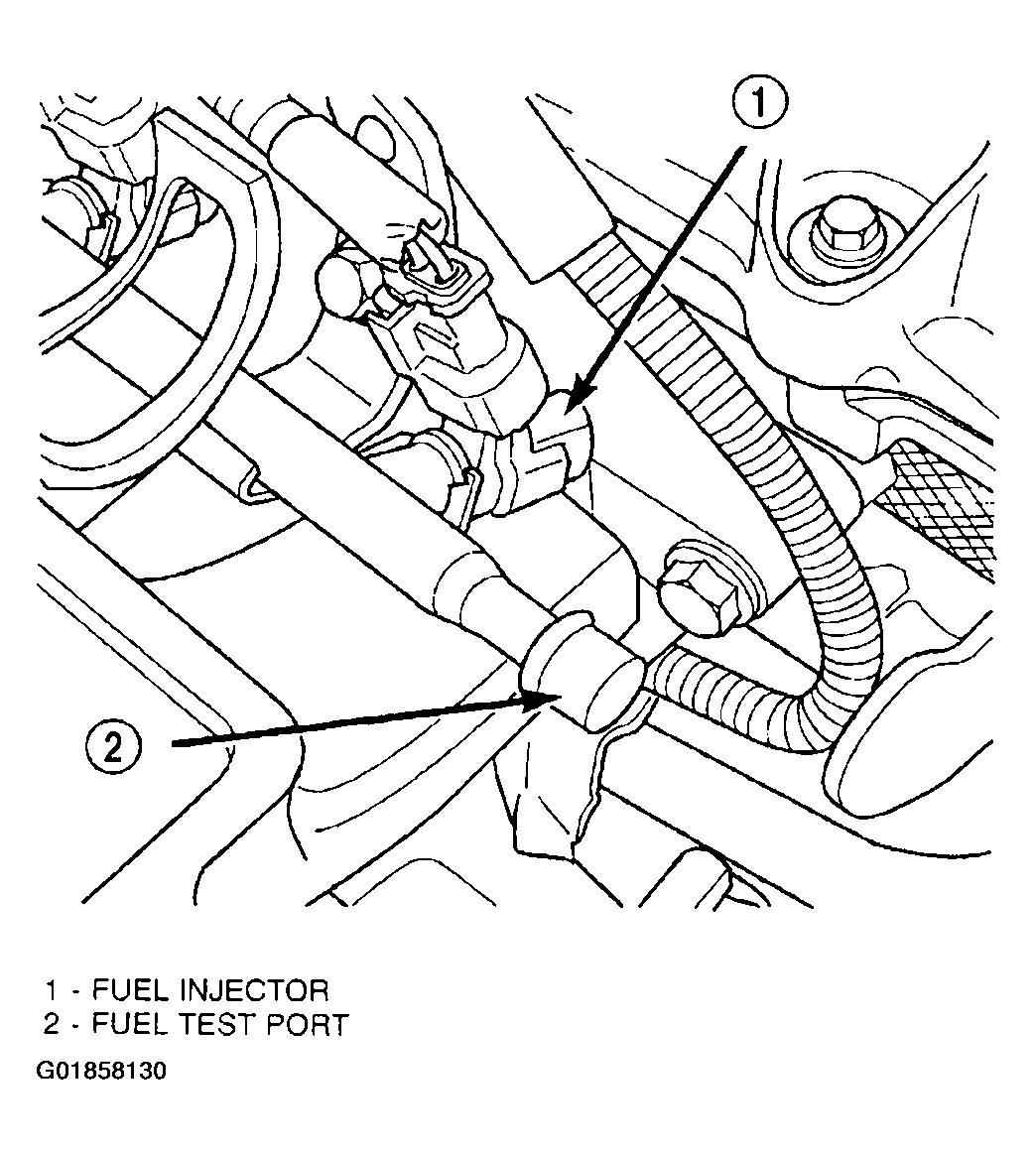

Fig 1: Locating Fuel Injector - Typical

Courtesy of DAIMLERCHRYSLER CORP.
