Removal - Injector Connector

Disconnect electrical connectors at the fuel injectors. To remove connector, see Fig 2. Pull the red colored slider away from injector (1). While pulling the slider, depress tab (2) and remove connector (3) from injector. The factory fuel injection wiring harness is numerically tagged (INJ 1, INJ 2, etc.) for injector position identification. If harness is not tagged, make note of wiring location before removal.

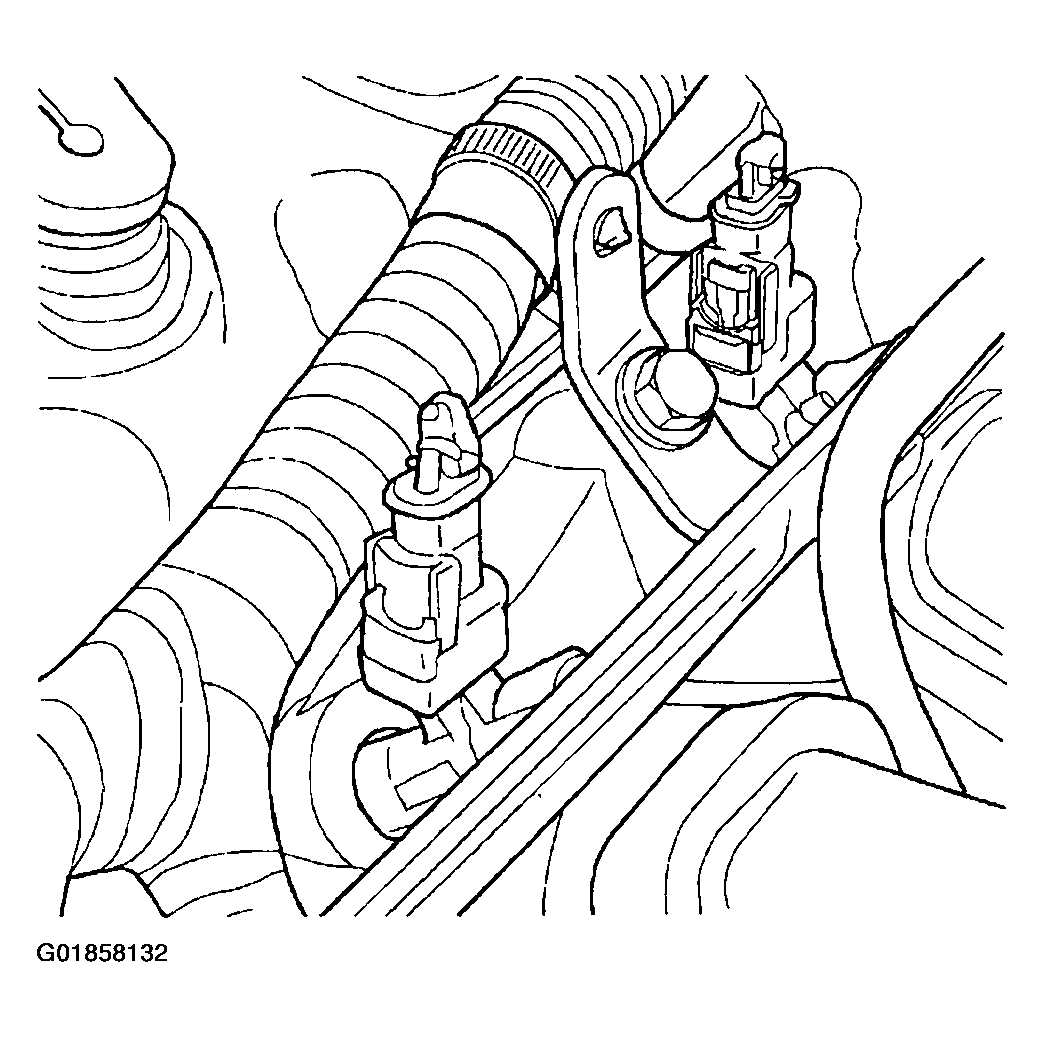

Fig 1: Disconnecting Electrical Connectors At Fuel Injectors
Courtesy of DAIMLERCHRYSLER CORP.

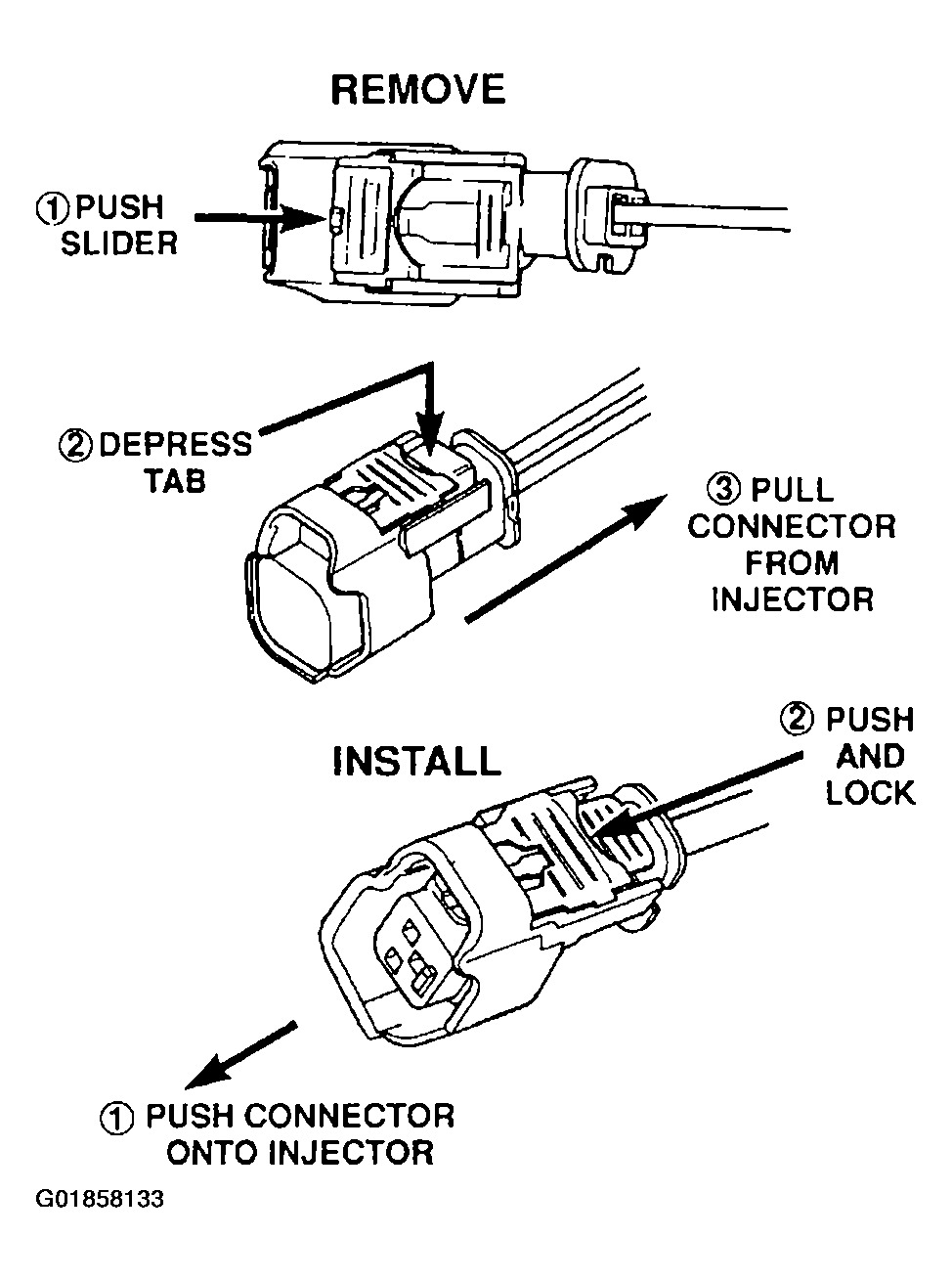

Fig 2: Removing & Installing Injector Connector

Courtesy of DAIMLERCHRYSLER CORP.
