Fuel Level Sending Unit / Sensor: Installation

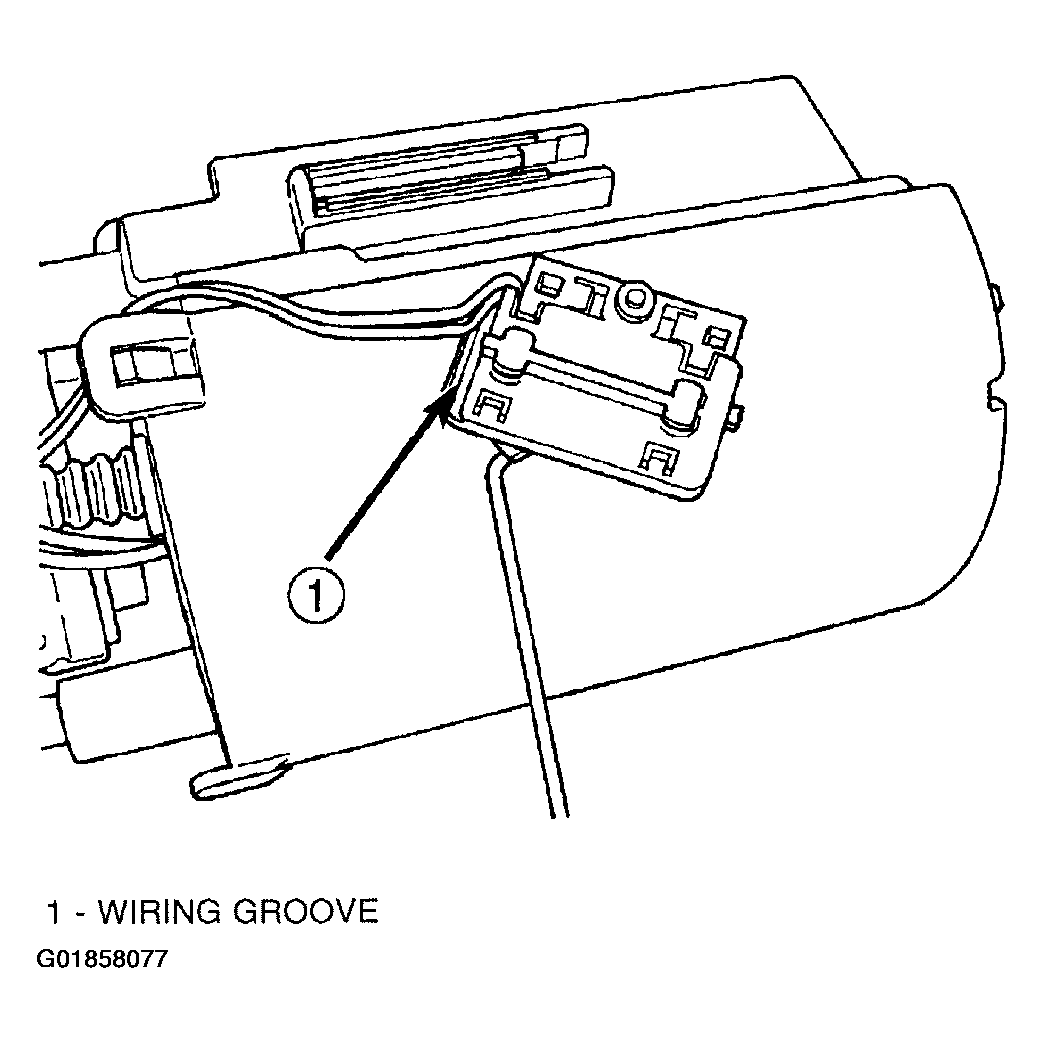

- Wrap wires into groove in back of level sensor.
Courtesy of DAIMLERCHRYSLER CORP.
- While feeding wires into guide grooves, slide level sensor up into channel until it snaps into place. Ensure tab at bottom of sensor locks in place.
- Install level sensor wires in connector. Push the wires up through the connector and then pull them down until they lock in place. Ensure signal and ground wires are installed in the correct position refer to SYSTEM WIRING DIAGRAMS
.

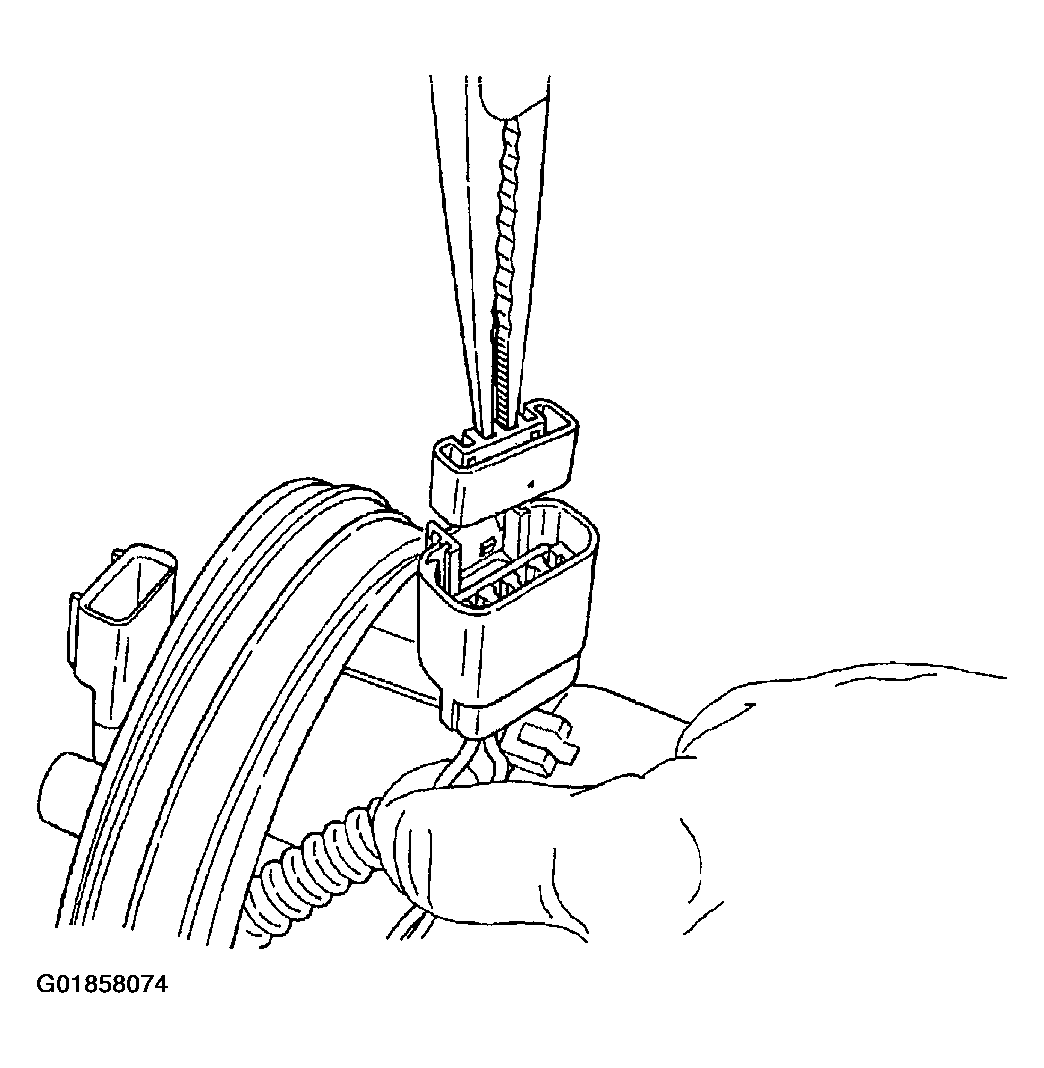

- Install locking wedge on connector. See Figure.

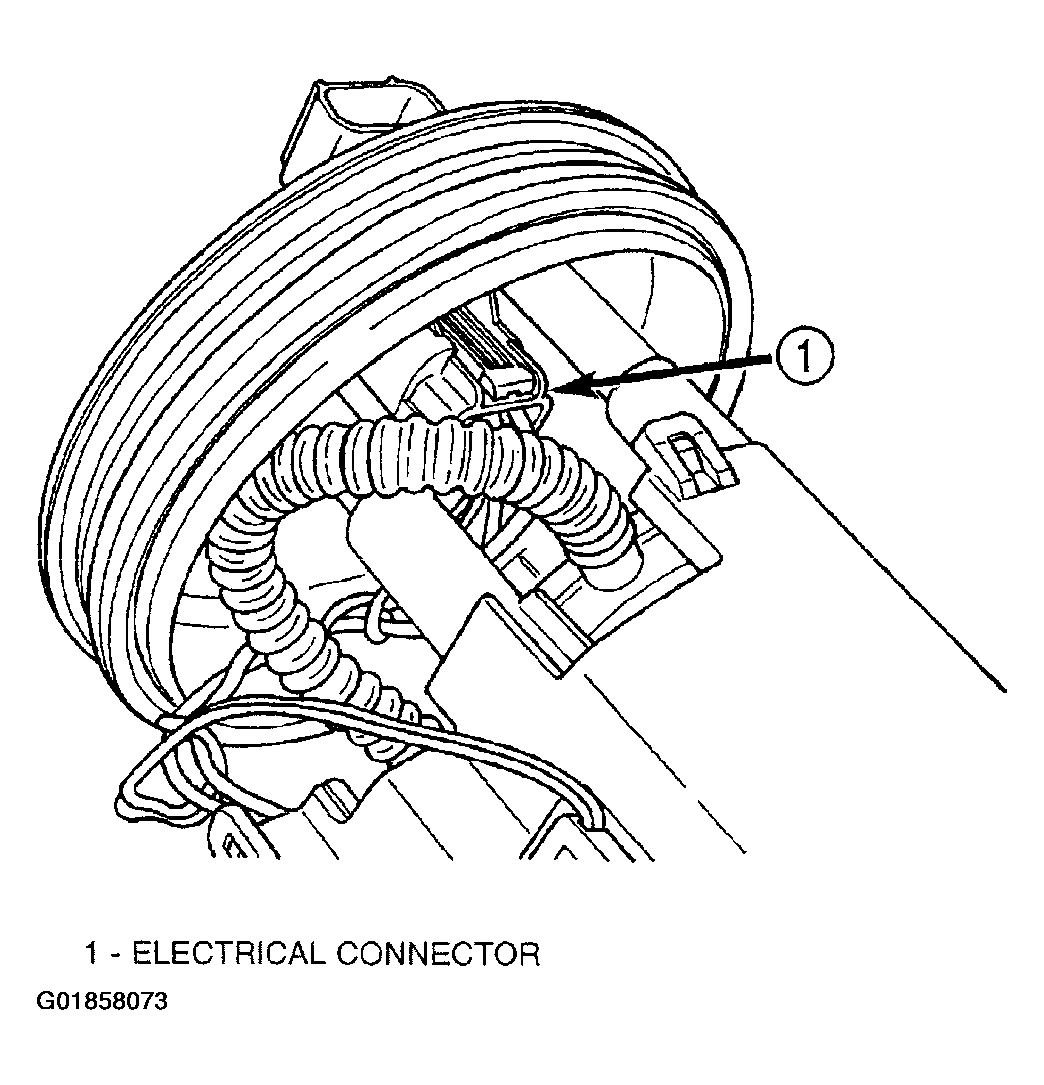

- Push connector up into bottom of fuel pump module electrical connector. See Figure.
- Install fuel pump module. Refer to FUEL PUMP MODULE .
