Fuel Level Sending Unit / Sensor: Removal

NOTE: The pump module harness on TOP of flange is not serviceable or removable.

Fig 1: Locating Fuel Pump/Level Sensor Electrical Connector

Courtesy of DAIMLERCHRYSLER CORP.

Depress retaining tab and remove the fuel pump/level sensor connector from the BOTTOM of the fuel pump module electrical connector.
Remove the wedge lock from the electrical connector.

Fig 2: Identifying Wedge Lock
Courtesy of DAIMLERCHRYSLER CORP.
Using Special Tool C-4334 terminal remover or equivalent, remove terminals from level sensor connector.

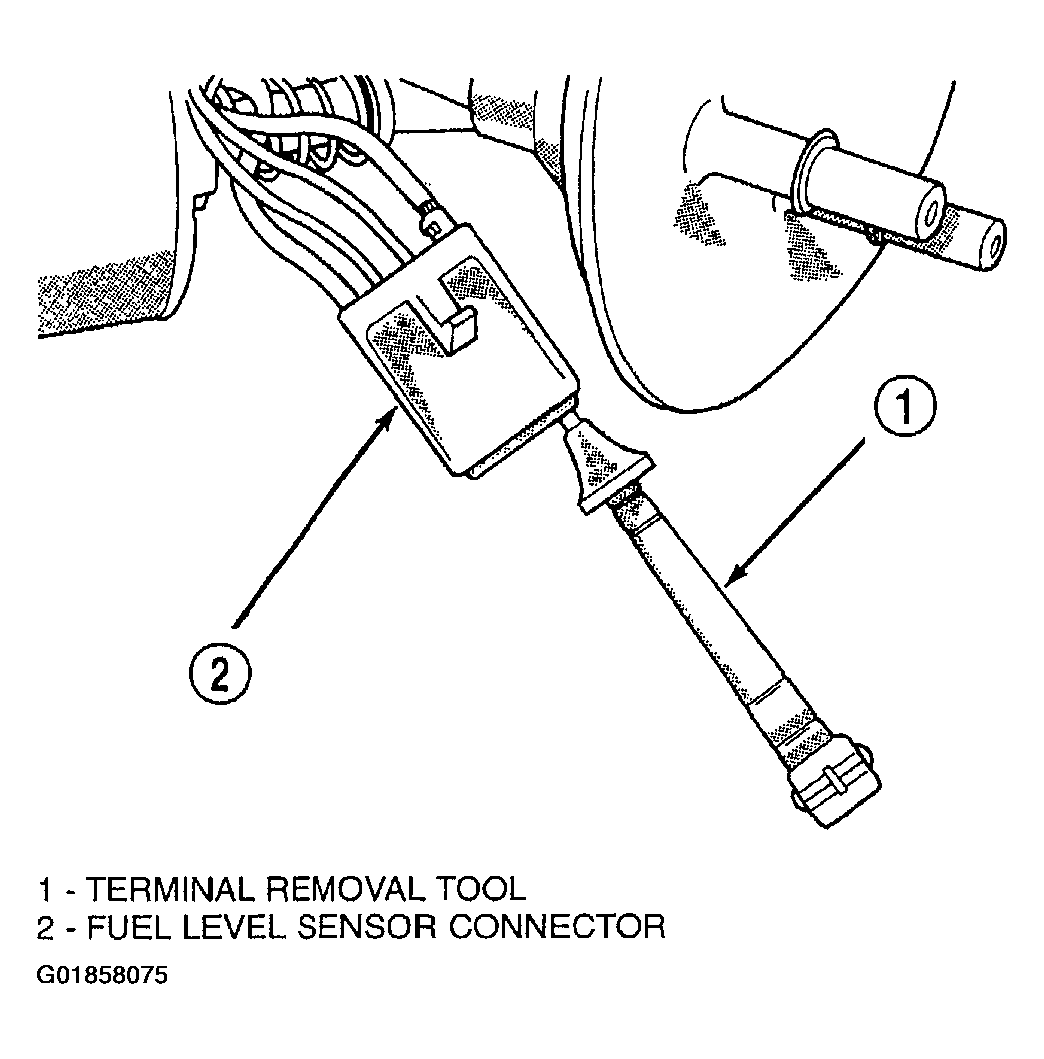

Fig 3: Identifying Terminal Removal Tool - Typical
Courtesy of DAIMLERCHRYSLER CORP.
Depress the tab and slide the sensor toward the bottom of the fuel pump module.

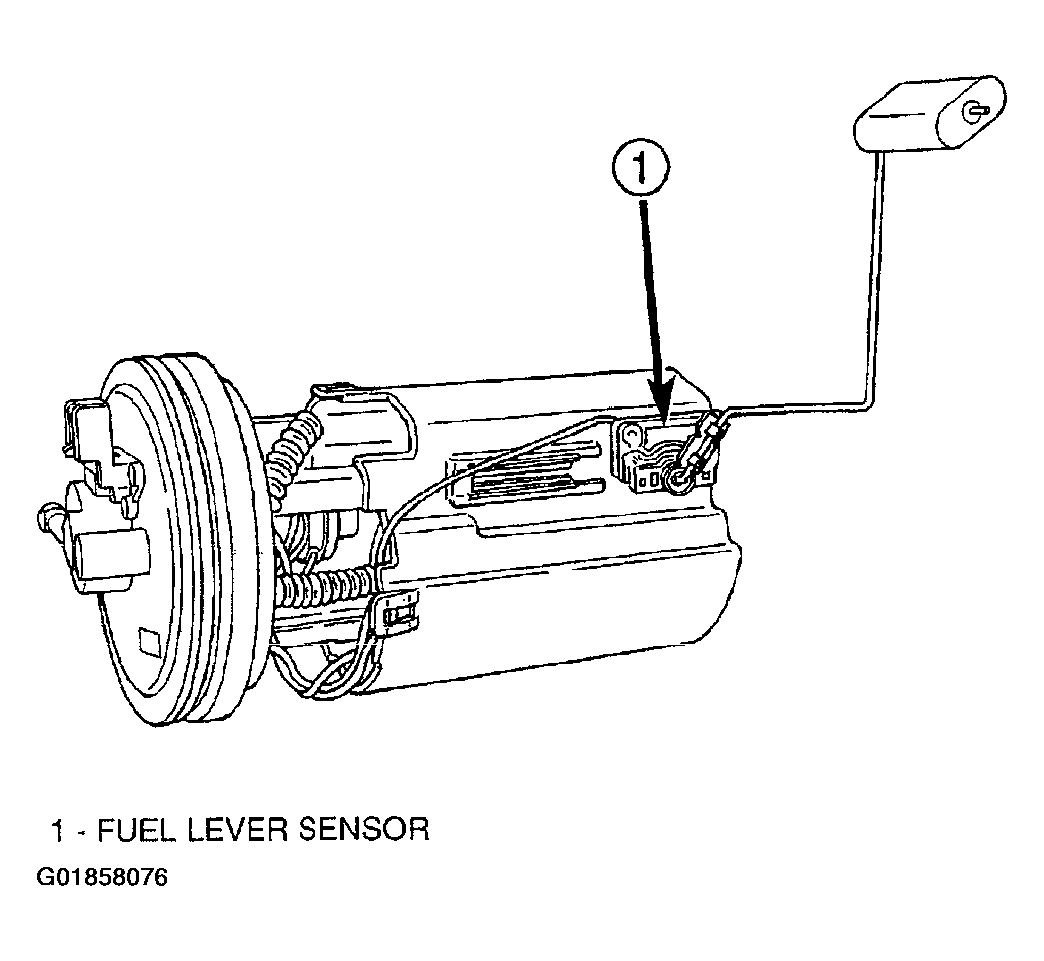

Fig 4: Identifying Level Sensor
Courtesy of DAIMLERCHRYSLER CORP.
Slide level sensor out of channel in module.
