Throttle Position Sensor: Removal

The throttle position sensor attaches to the side of the throttle body.

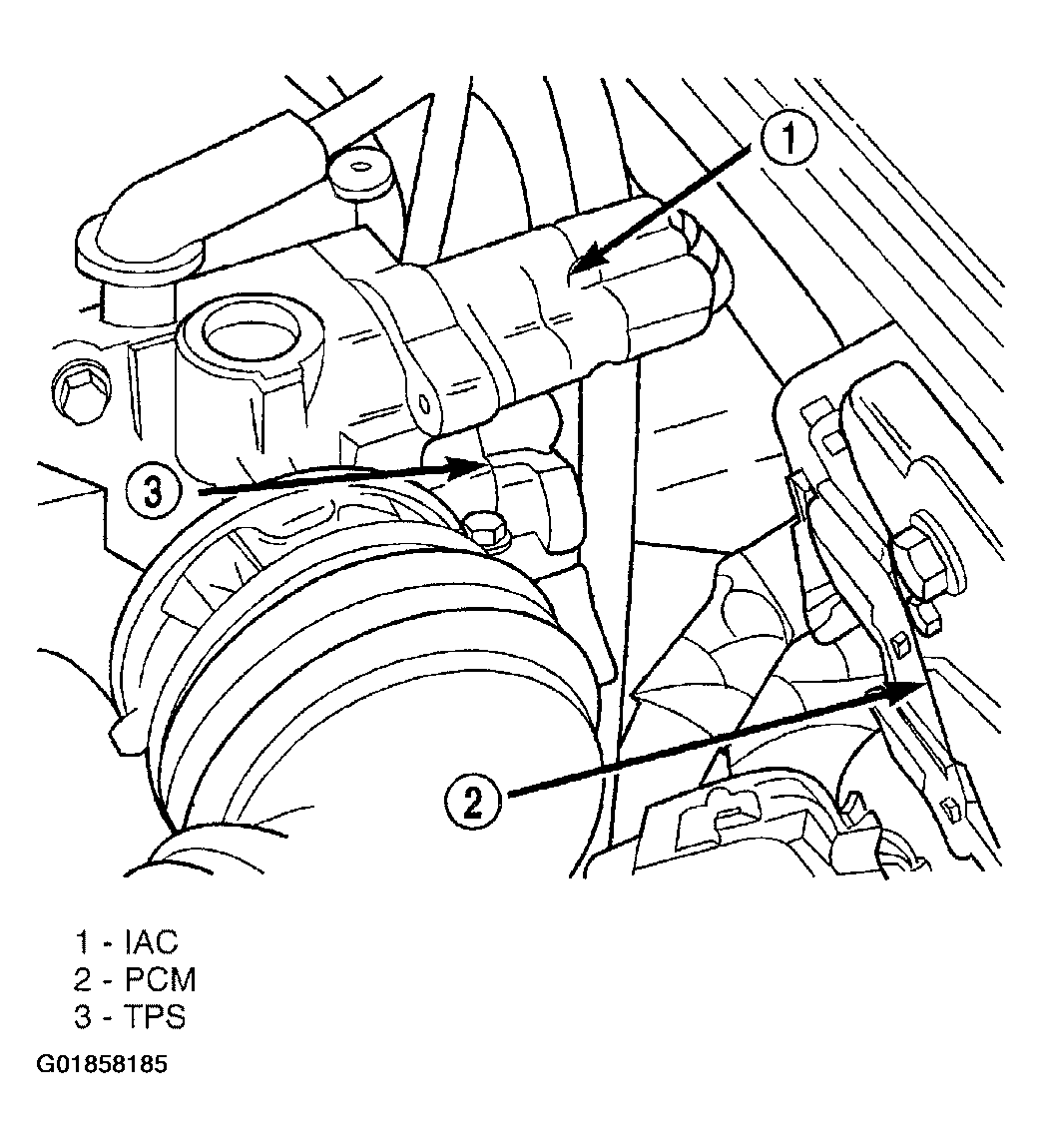

Fig 1: Locating Throttle Position Sensor & Idle Air Control Motor

Courtesy of DAIMLERCHRYSLER CORP.

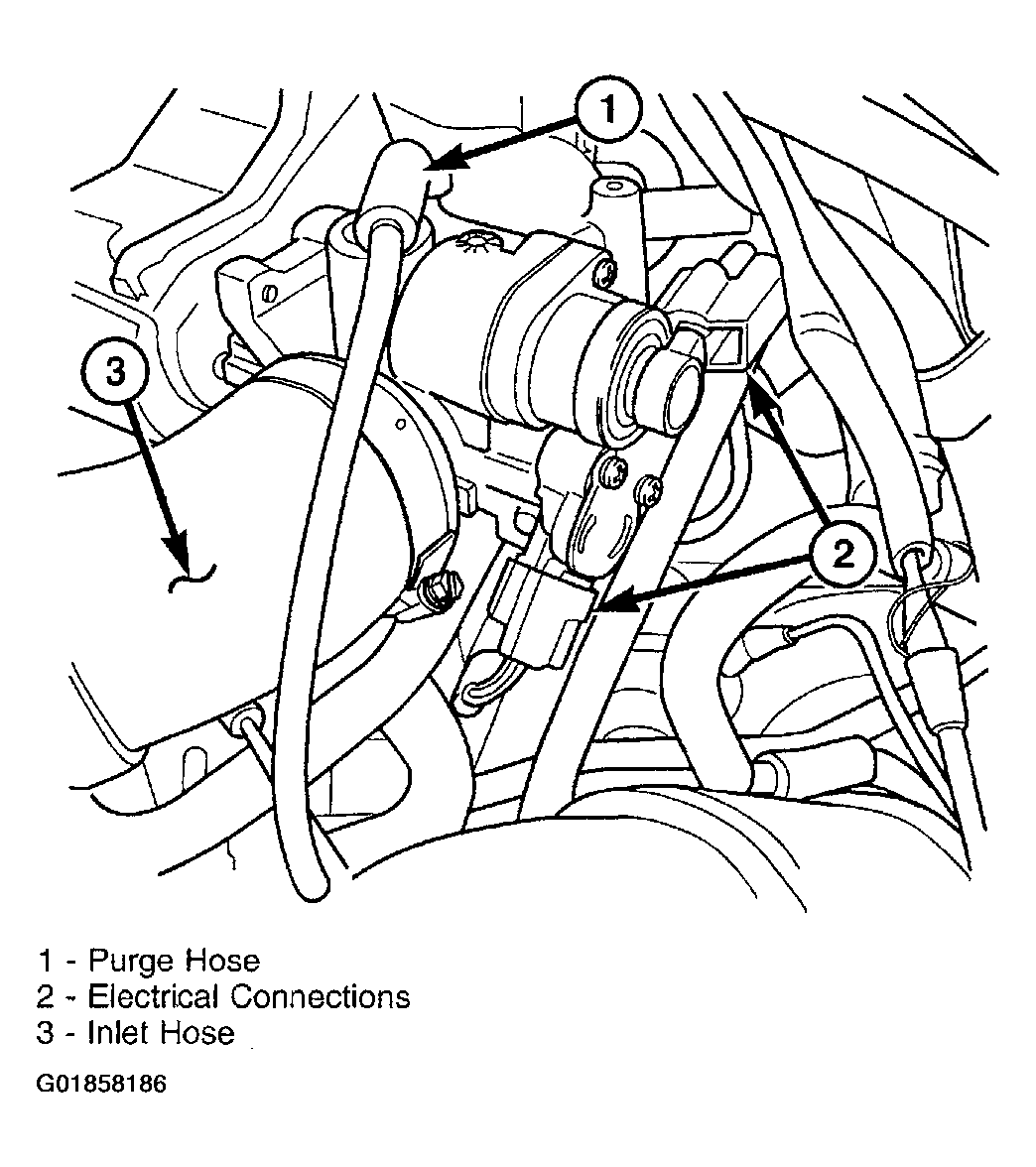

Fig 2: Identifying Throttle Body Connections - Turbo

Courtesy of DAIMLERCHRYSLER CORP.

1. Remove the air cleaner lid and makeup air hose. Loosen the clamp and relocate assembly.
2. Remove the negative battery cable.
3. Disconnect electrical connector from the throttle position sensor.
4. Remove throttle position sensor mounting screws.
5. Remove throttle position sensor.
