Camshaft Position Sensor: Description

On 2.0/2.4L engines the camshaft position sensor is mounted to the rear of the cylinder head.

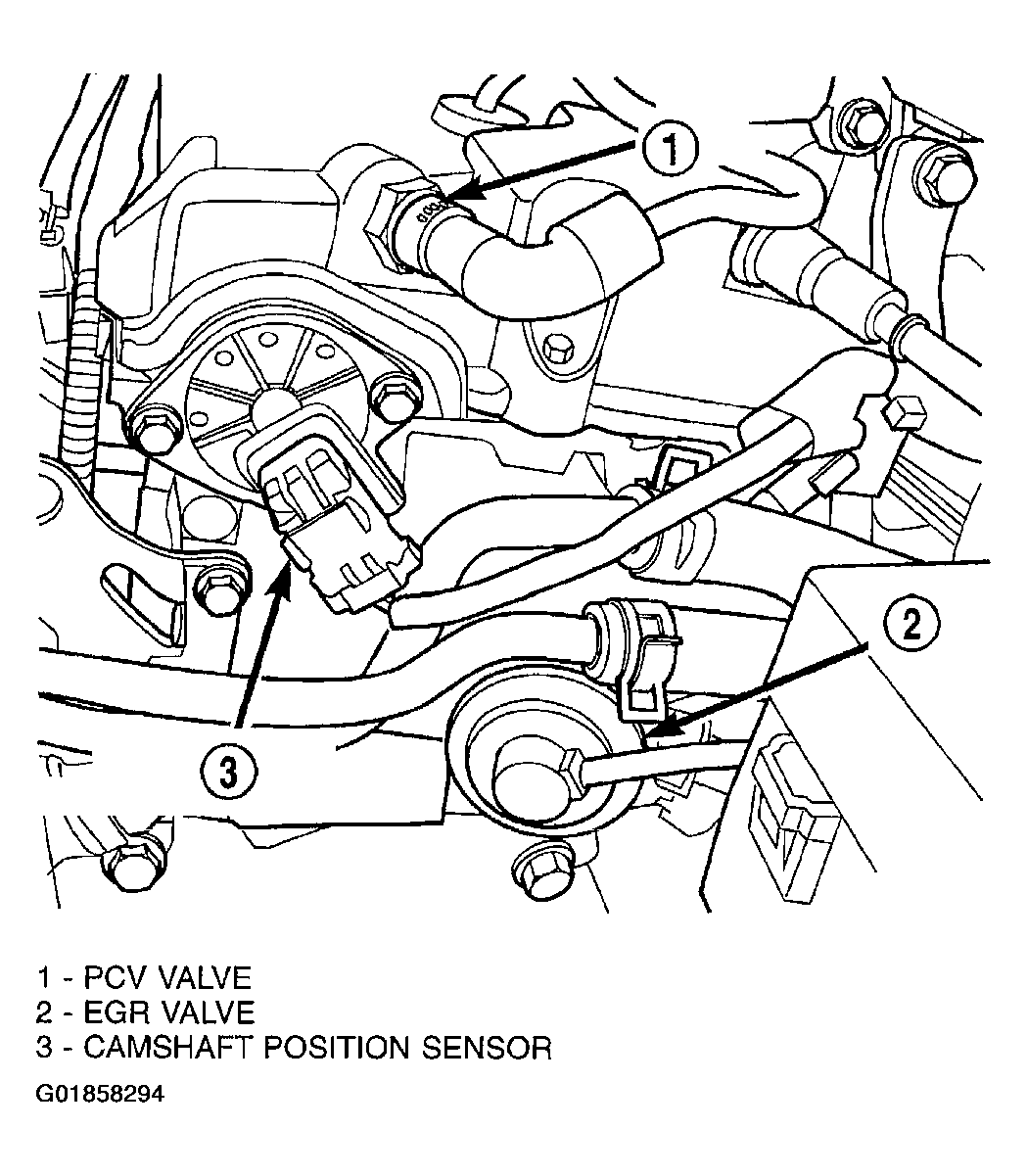

Fig 1: Locating Camshaft Position Sensor - 2.0/2.4L DOHC

Courtesy of DAIMLERCHRYSLER CORP.

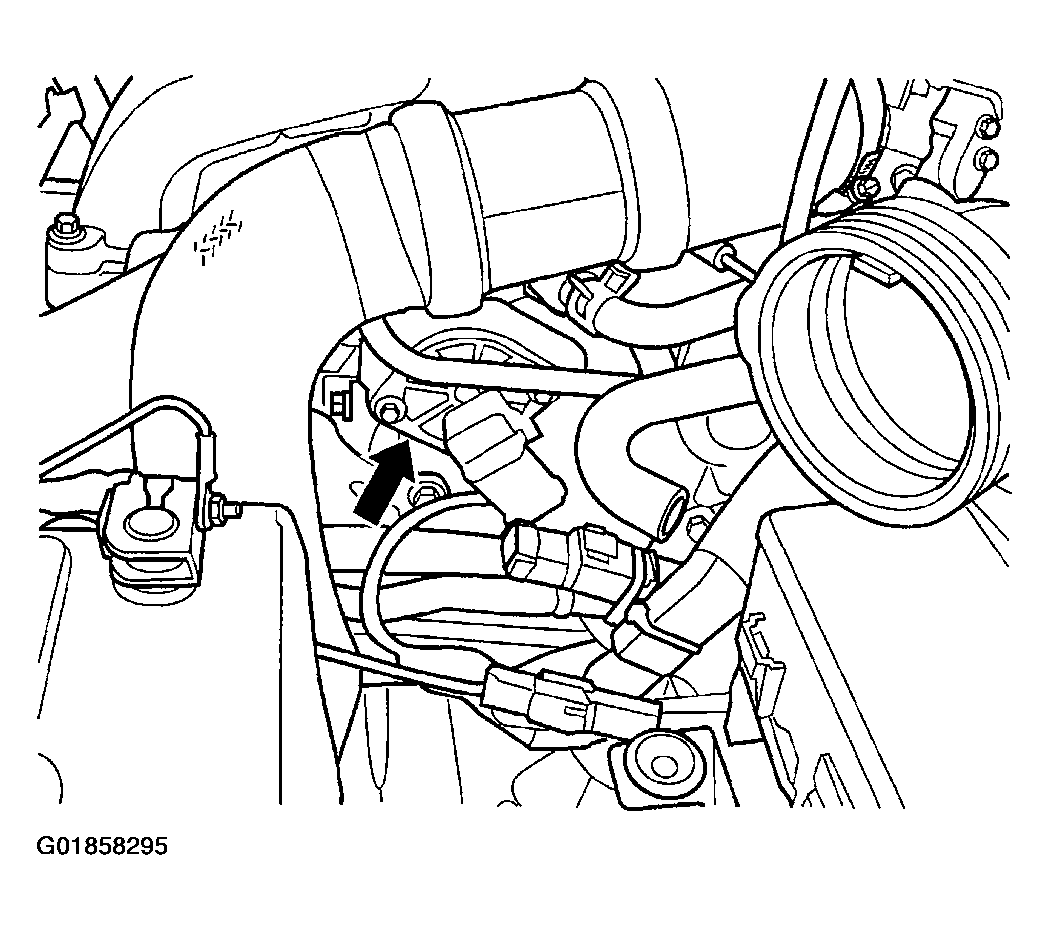

Fig 2: Locating Camshaft Position Sensor - 2.4L Turbo

Courtesy of DAIMLERCHRYSLER CORP.
