Installation - 1.6L

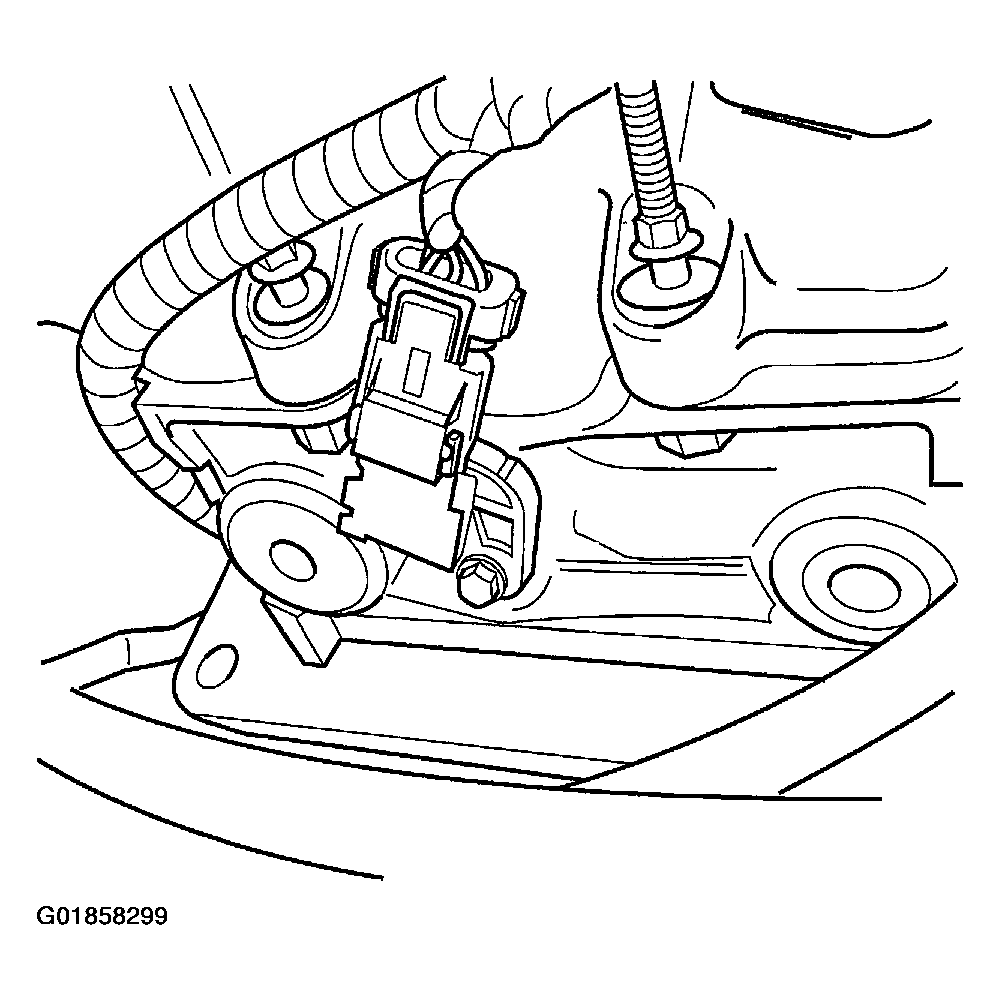

  1. Install sensor to cylinder head. See Figure.
  2. Tighten screws to 9 N.m (80 in. lbs.).
  3. Connect the electrical connector to the sensor.
  4. Relocate the power steering return line.
  5. Connect the negative battery cable
