Installation - 2.0/2.4L

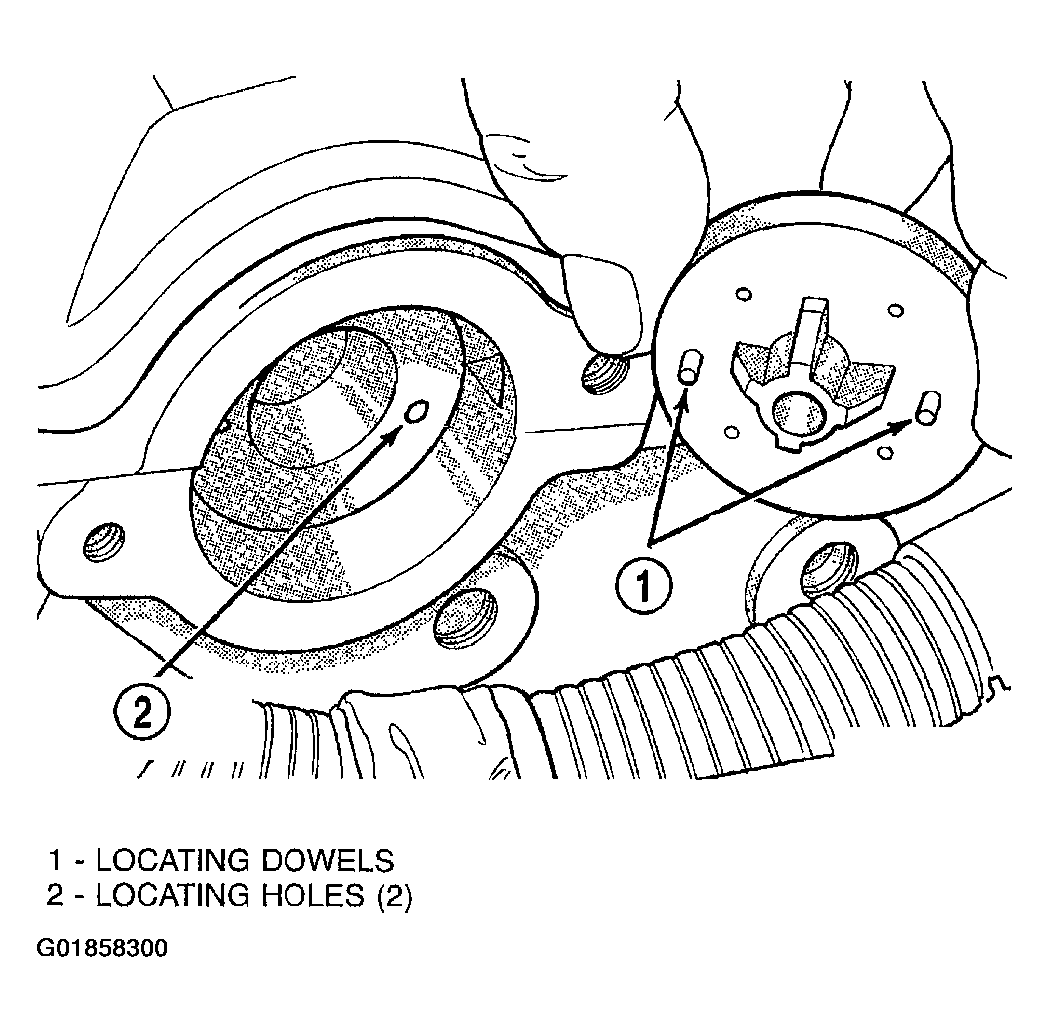

The target magnet has locating dowels that fit into machined locating holes in the end of the camshaft.
- Install target magnet in end of camshaft. Tighten mounting screw to 3.6 N.m (32 +/-5 in. lbs.) torque. Over torquing could cause cracks in magnet. If magnet cracks replace it.
- Install camshaft position sensor. Tighten sensor mounting screws to 9 N.m (80 +/- 15 in. lbs.) torque.
- Carefully attach electrical connector to camshaft position sensor. Installation at an angle may damage the sensor pins.
- Install the negative battery cable.
- Install the air cleaner lid, connect the inlet air temperature sensor and makeup air hose.
