Camshaft Position Sensor: Removal: 2.0/2.4L
- Remove the air cleaner lid, disconnect the inlet air temperature sensor and makeup air hose.
- Remove the negative battery cable.

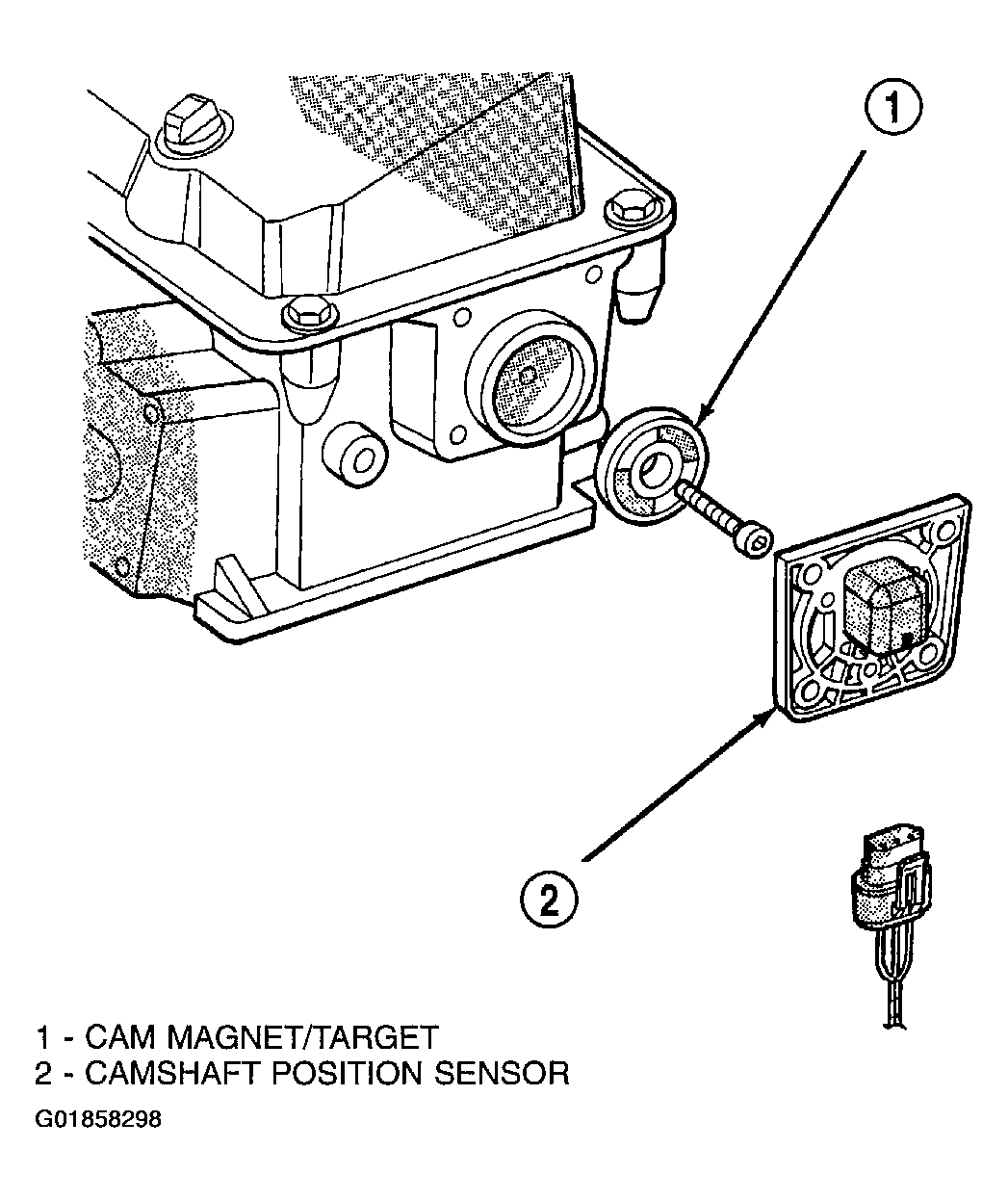

- Disconnect electrical connector from camshaft position sensor.
- Remove camshaft position sensor mounting screws. Remove sensor.
- Loosen screw attaching target magnet to rear of camshaft.
