Ignition Coil: Description

WARNING: THE DIRECT IGNITION SYSTEM GENERATES APPROXIMATELY 40,000 VOLTS. PERSONAL INJURY COULD RESULT FROM CONTACT WITH THIS SYSTEM.

The coil pack consists of 2 coils molded together. The coil pack is mounted on the valve cover.

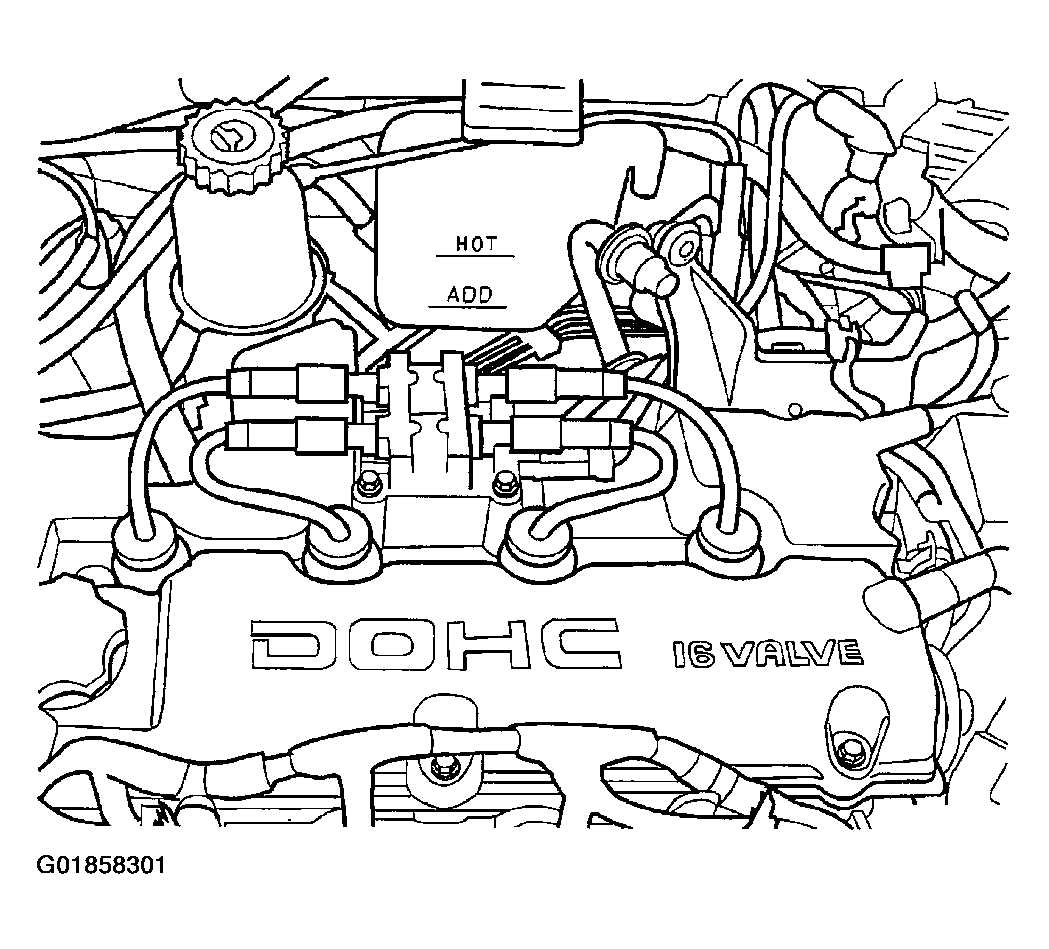

Fig 1: Identifying Ignition Coil Pack - 2.0/2.4L
G01858301Courtesy of DAIMLERCHRYSLER CORP.

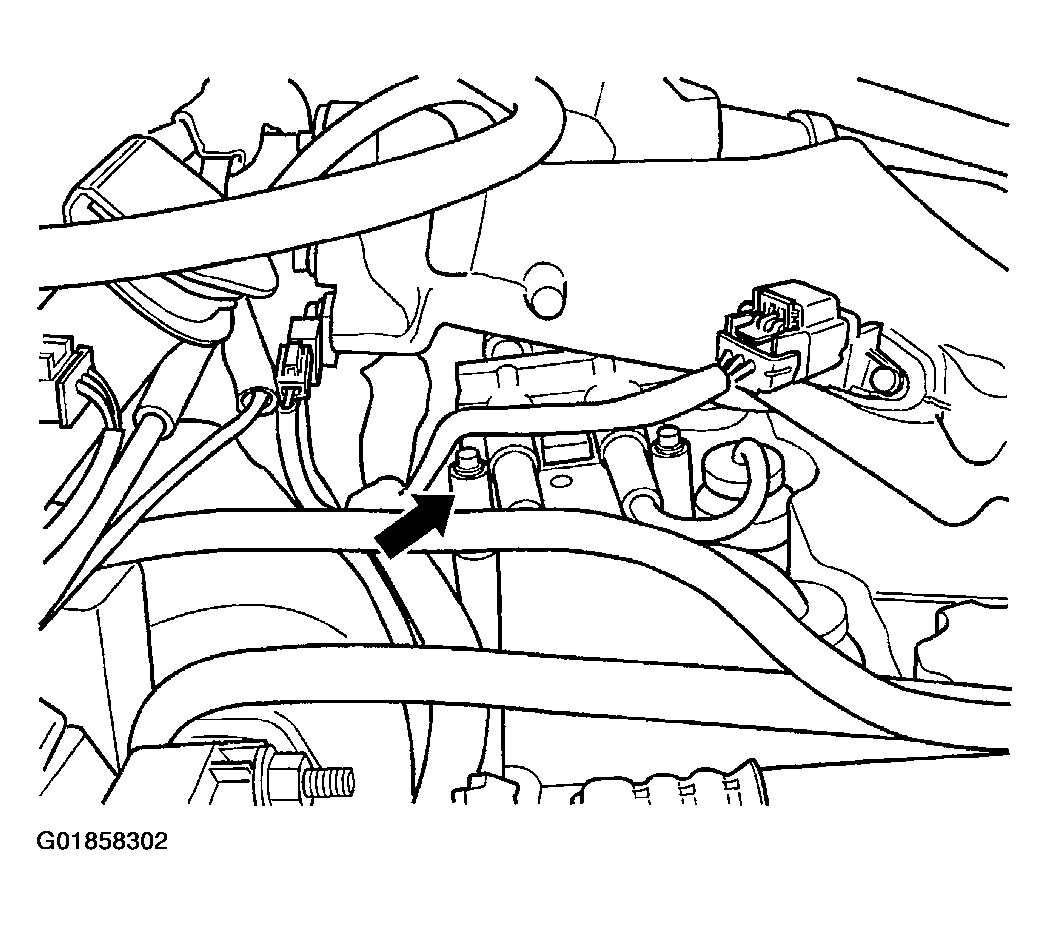

Fig 2: Locating Ignition Coil - 2.4L Turbo
G01858302Courtesy of DAIMLERCHRYSLER CORP.
