Installation- 2.0/2.4L

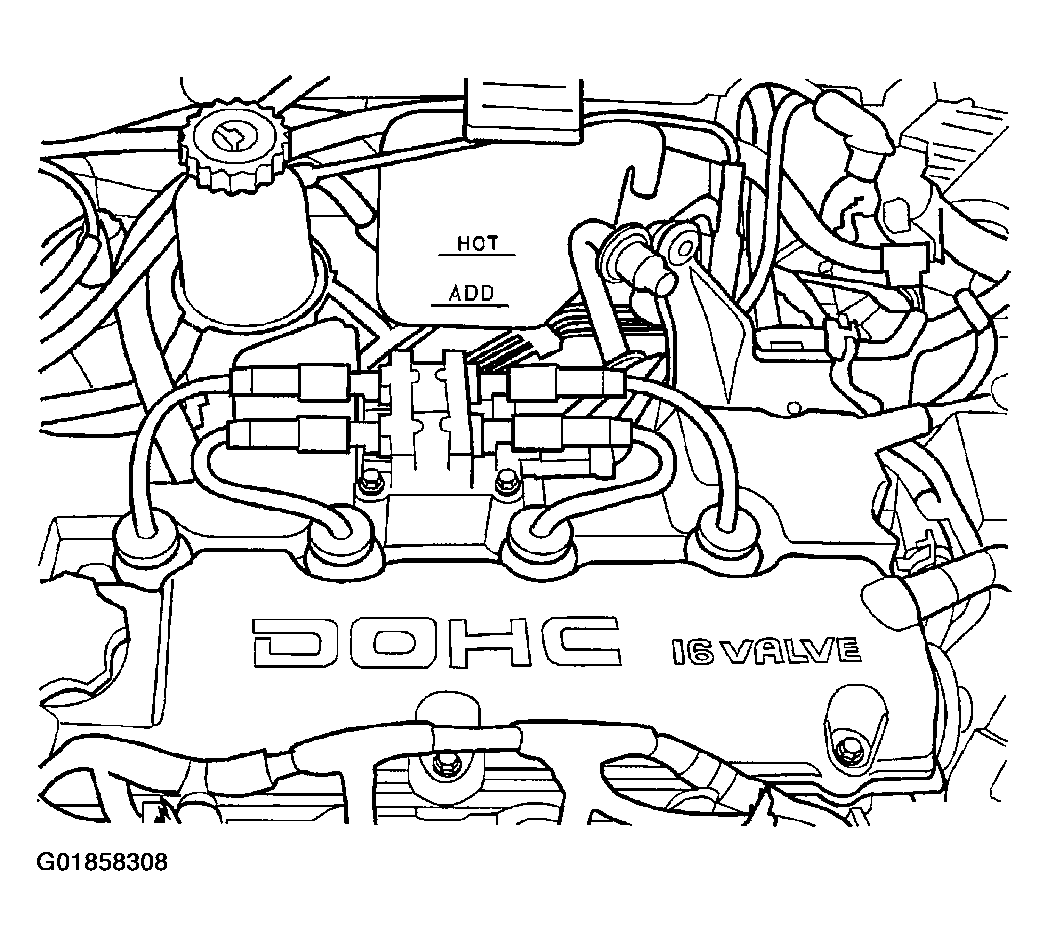

The electronic ignition coil pack attaches directly to the valve cover. See Figure.

1. Install coil pack on valve cover. Tighten the bolts to 11.8 N.m (105 +/-20 in. Ibs.).
2. Transfer spark plug cables to new coil pack. The coil pack towers are numbered with the cylinder identification. Be sure the ignition cables snap onto the towers.
3. Install the negative battery cable.
