Control And Solenoids

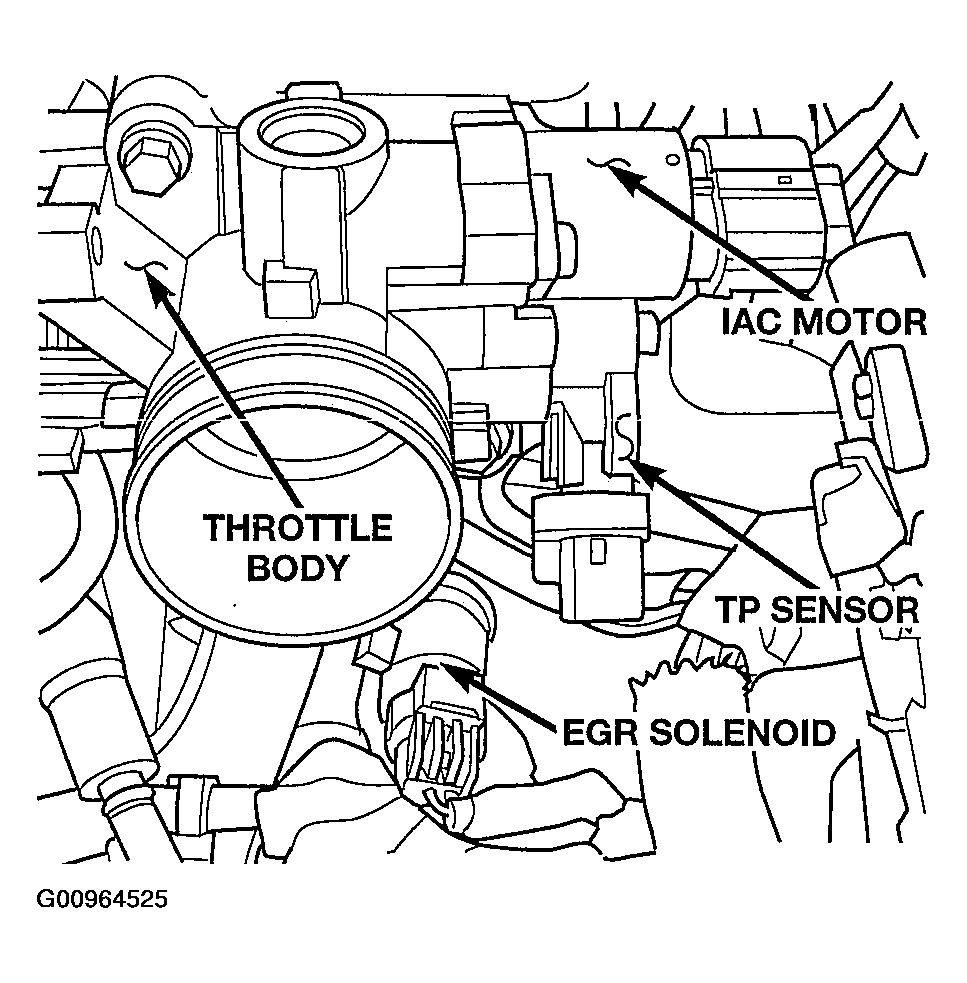

Fig 1: Locating IAC Motor, TP Sensor, EGR Solenoid & Throttle Body

Courtesy of DAIMLERCHRYSLER CORP.

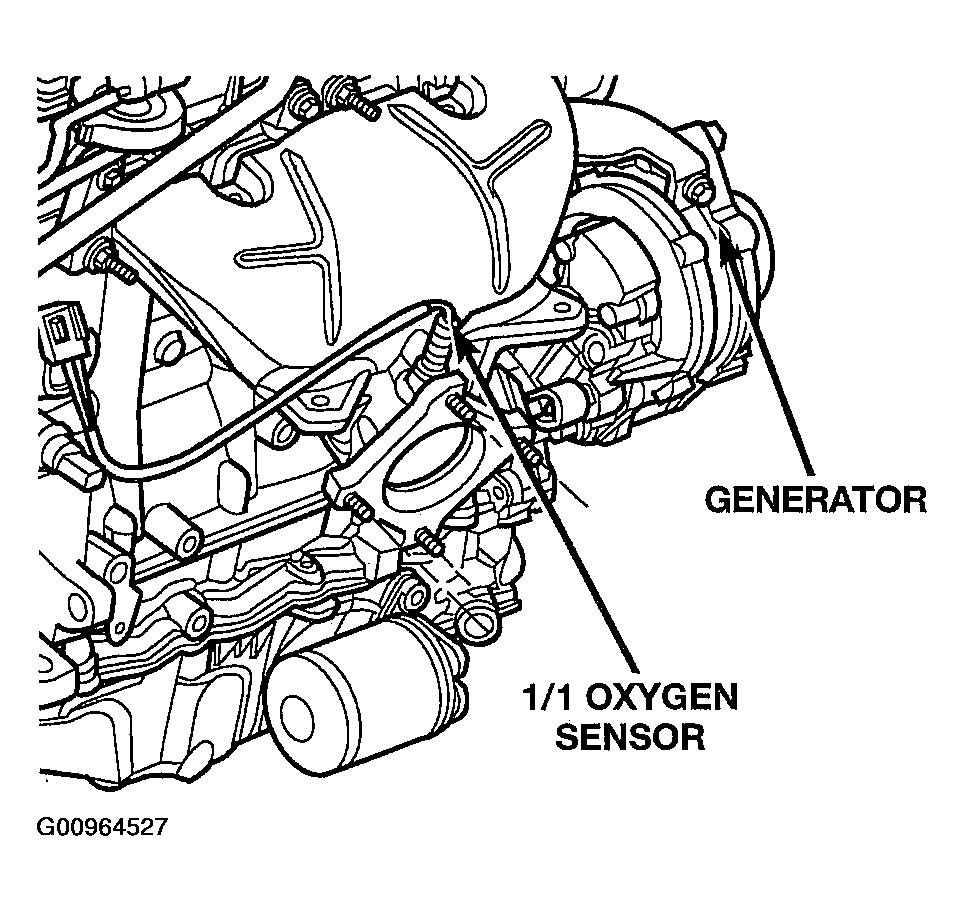

Fig 2: Locating Generator & 1/1 Oxygen Sensor

Courtesy of DAIMLERCHRYSLER CORP.

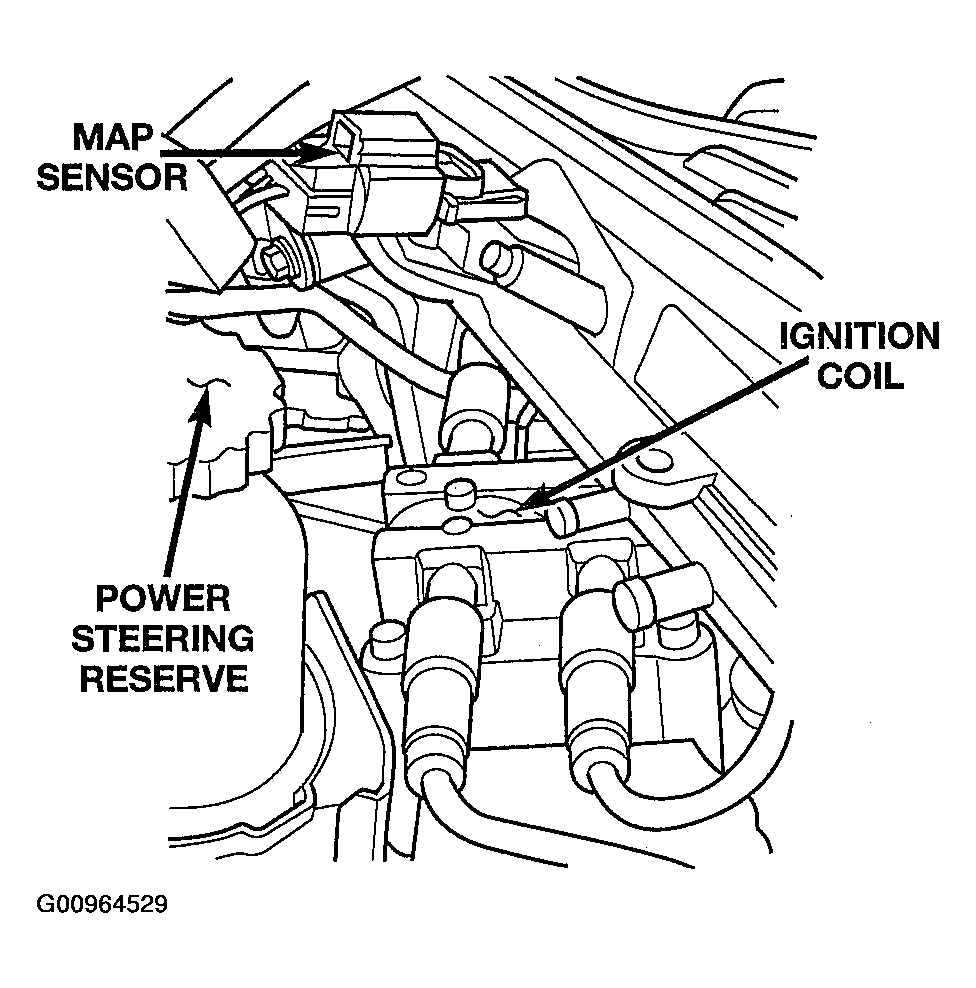

Fig 3: Locating Ignition Coil, MAP Sensor & Power Steering Reservoir

Courtesy of DAIMLERCHRYSLER CORP.

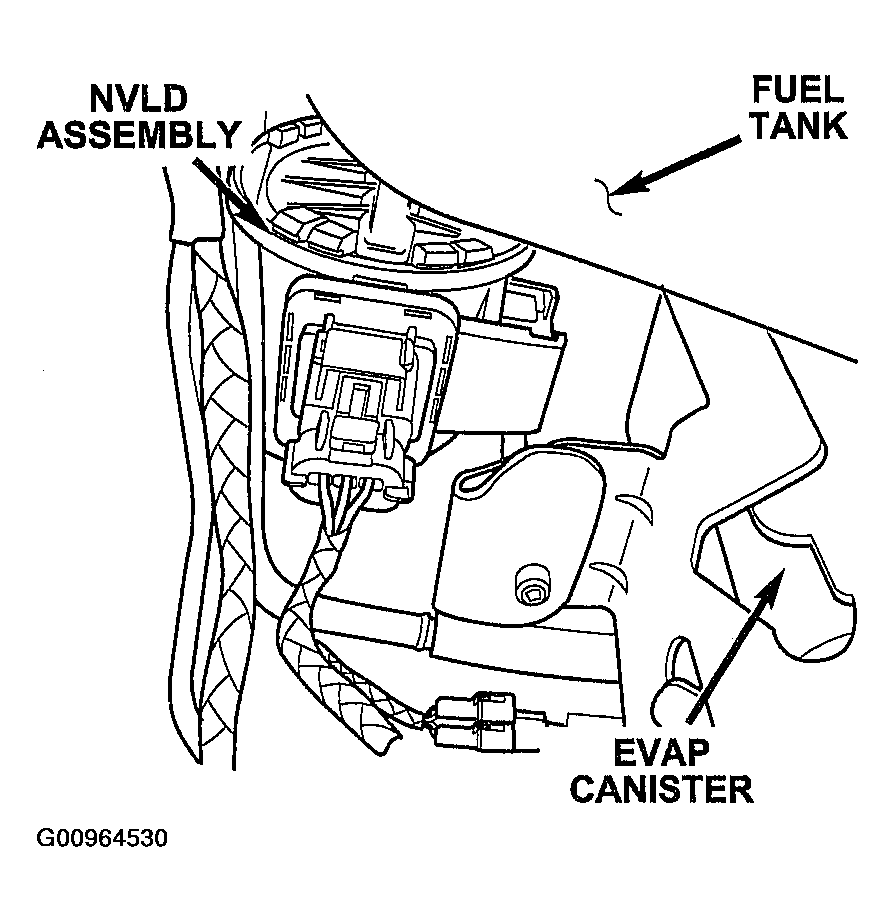

Fig 4: Locating EVAP Canister & NVLD Assembly

Courtesy of DAIMLERCHRYSLER CORP.

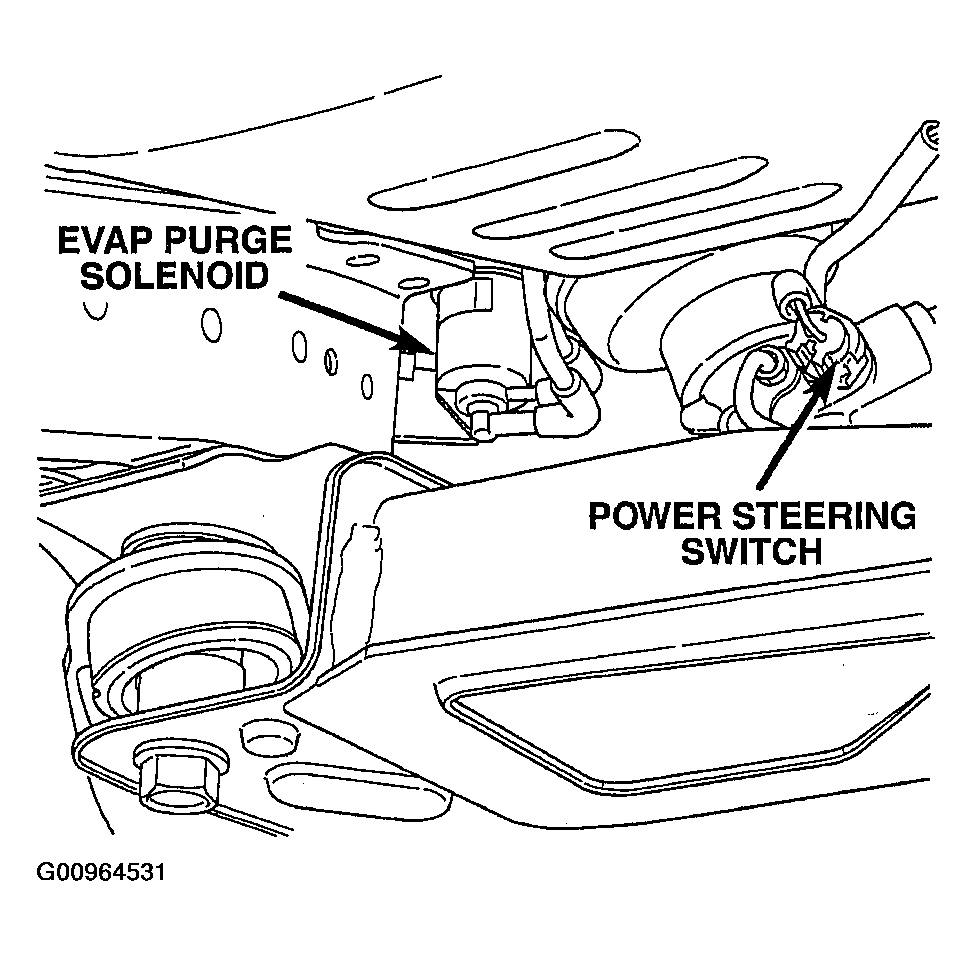

Fig 5: Locating EVAP Purge Solenoid & Power Steering Switch

Courtesy of DAIMLERCHRYSLER CORP.

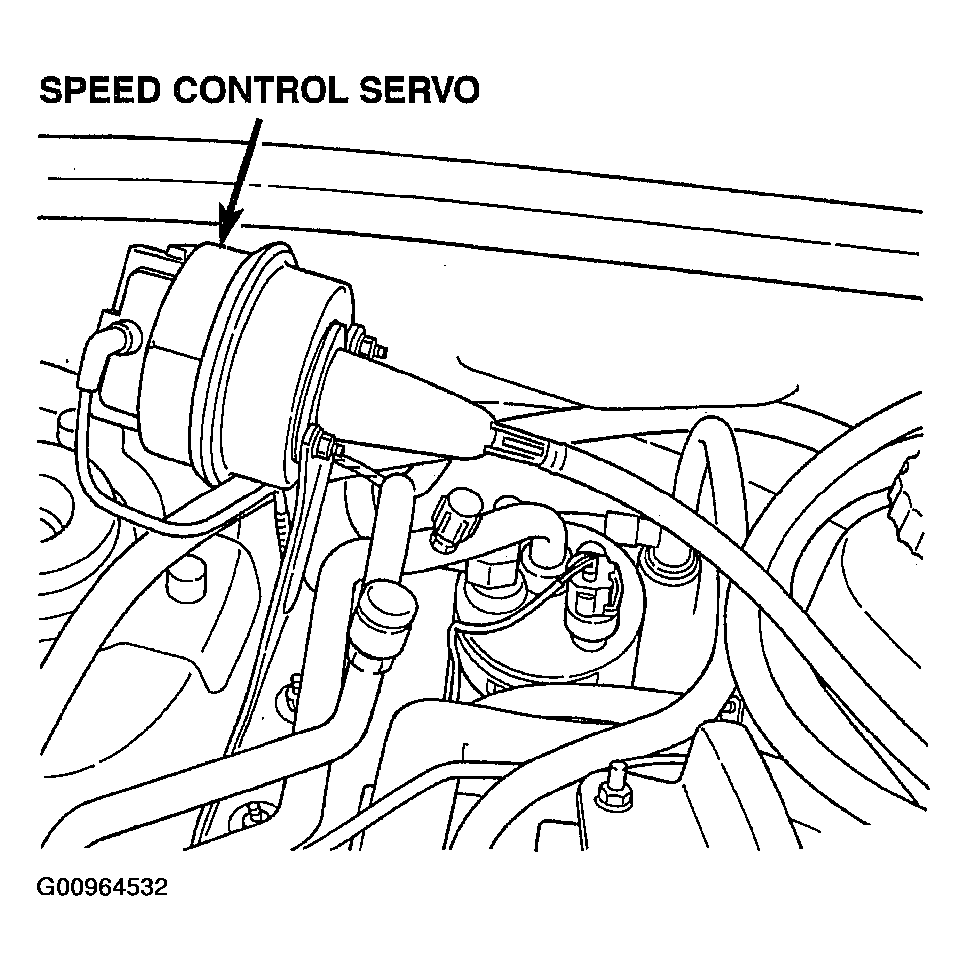

Fig 6: Locating Speed Control Servo

Courtesy of DAIMLERCHRYSLER CORP.

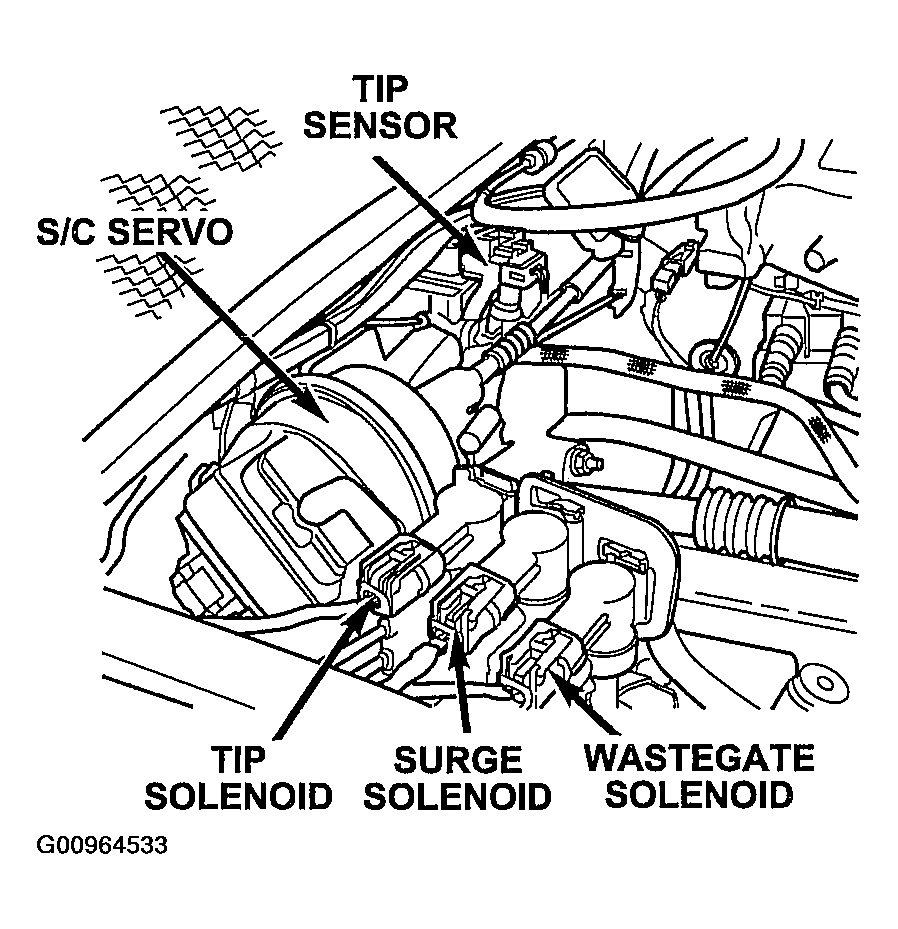

Fig 7: Locating TIP Sensor, S/C Servo, TIP Solenoid, Surge Solenoid & Wastegate Solenoid (Turbo)

Courtesy of DAIMLERCHRYSLER CORP.
