*PCI Bus Communication Failure: Testing

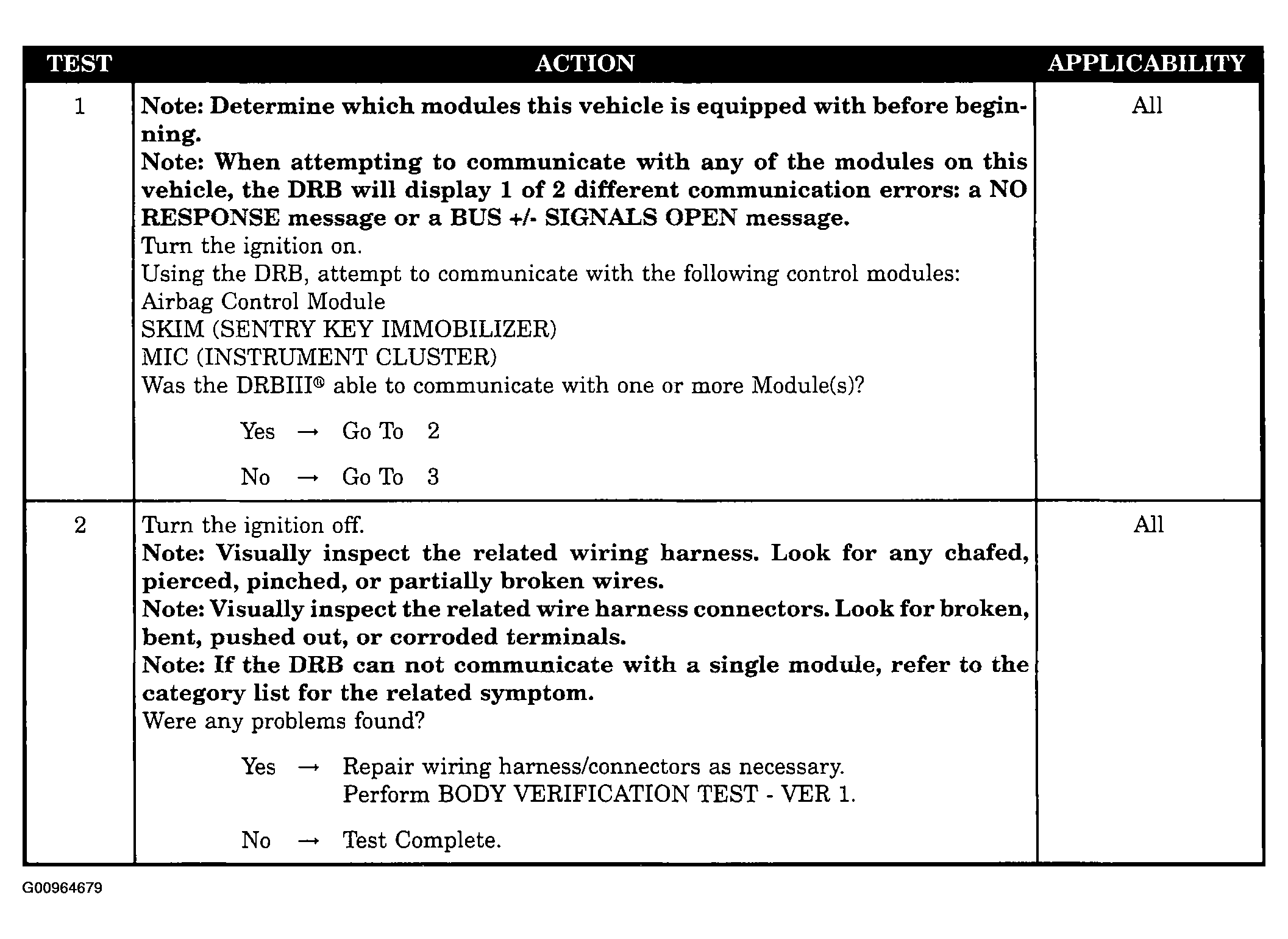

Fig 1: Testing: *PCI BUS Communication Failure (1 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.

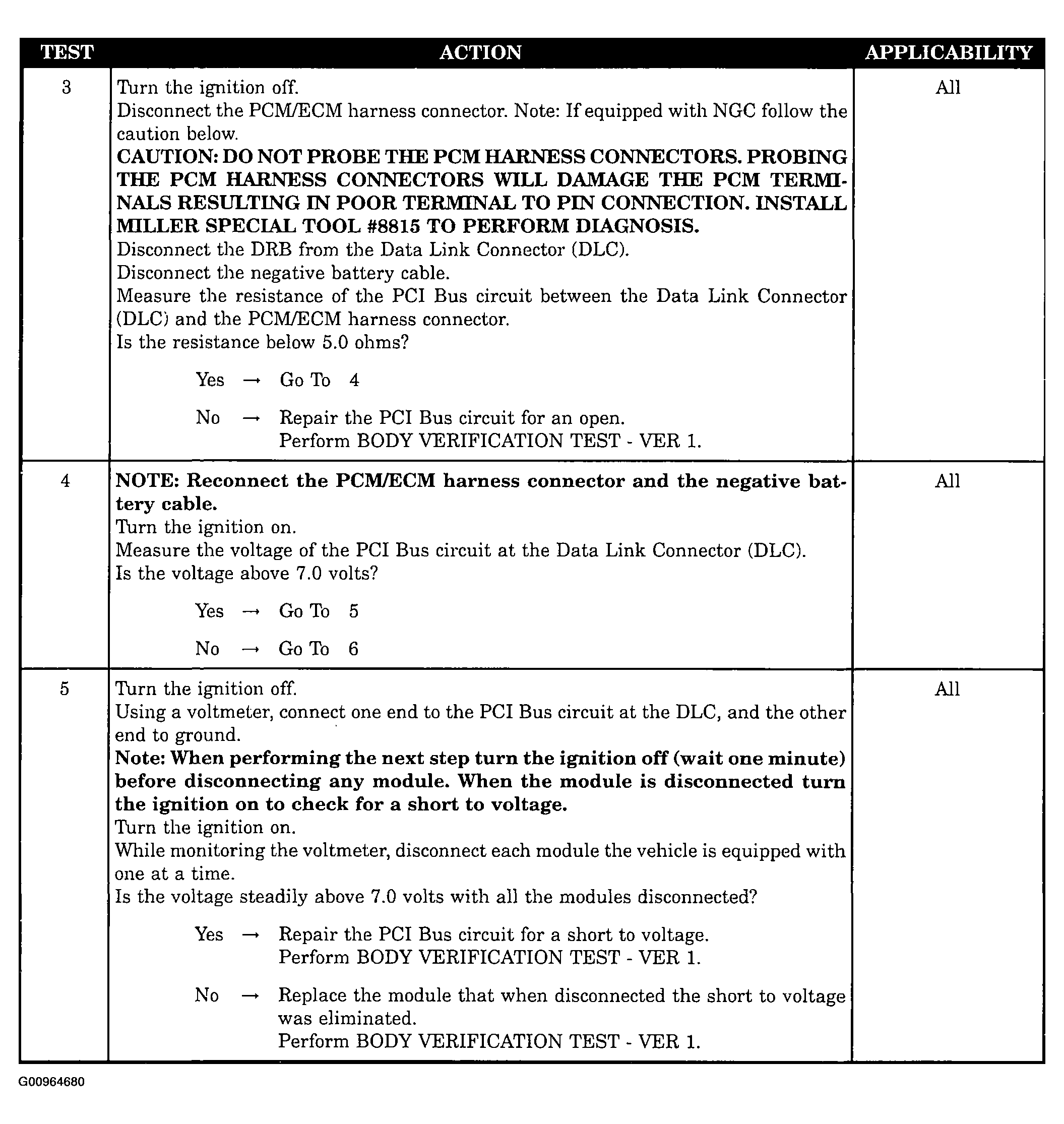

Fig 2: Testing: *PCI BUS Communication Failure (2 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.

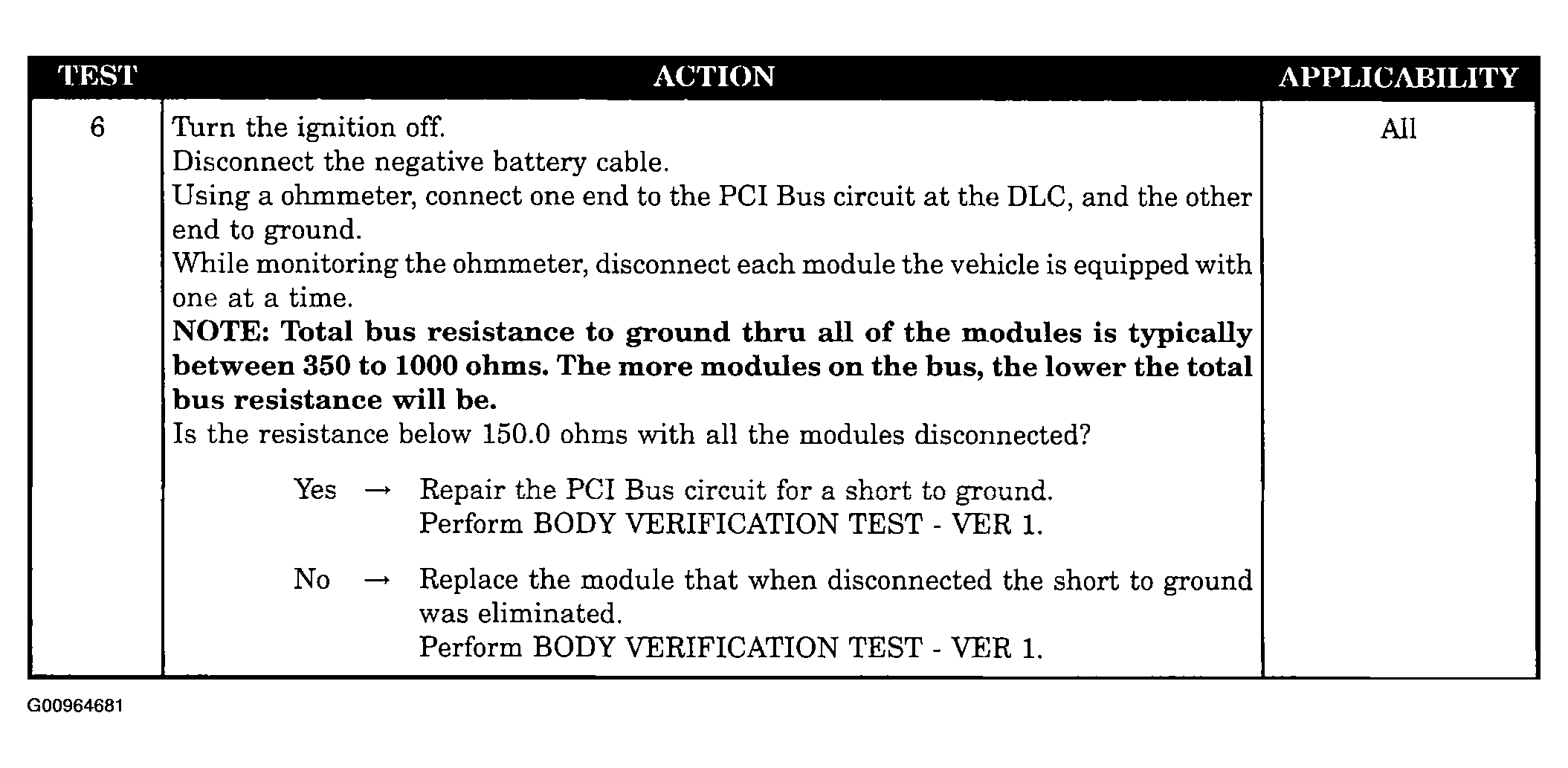

Fig 3: Testing: *PCI BUS Communication Failure (3 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.
