Verification Tests

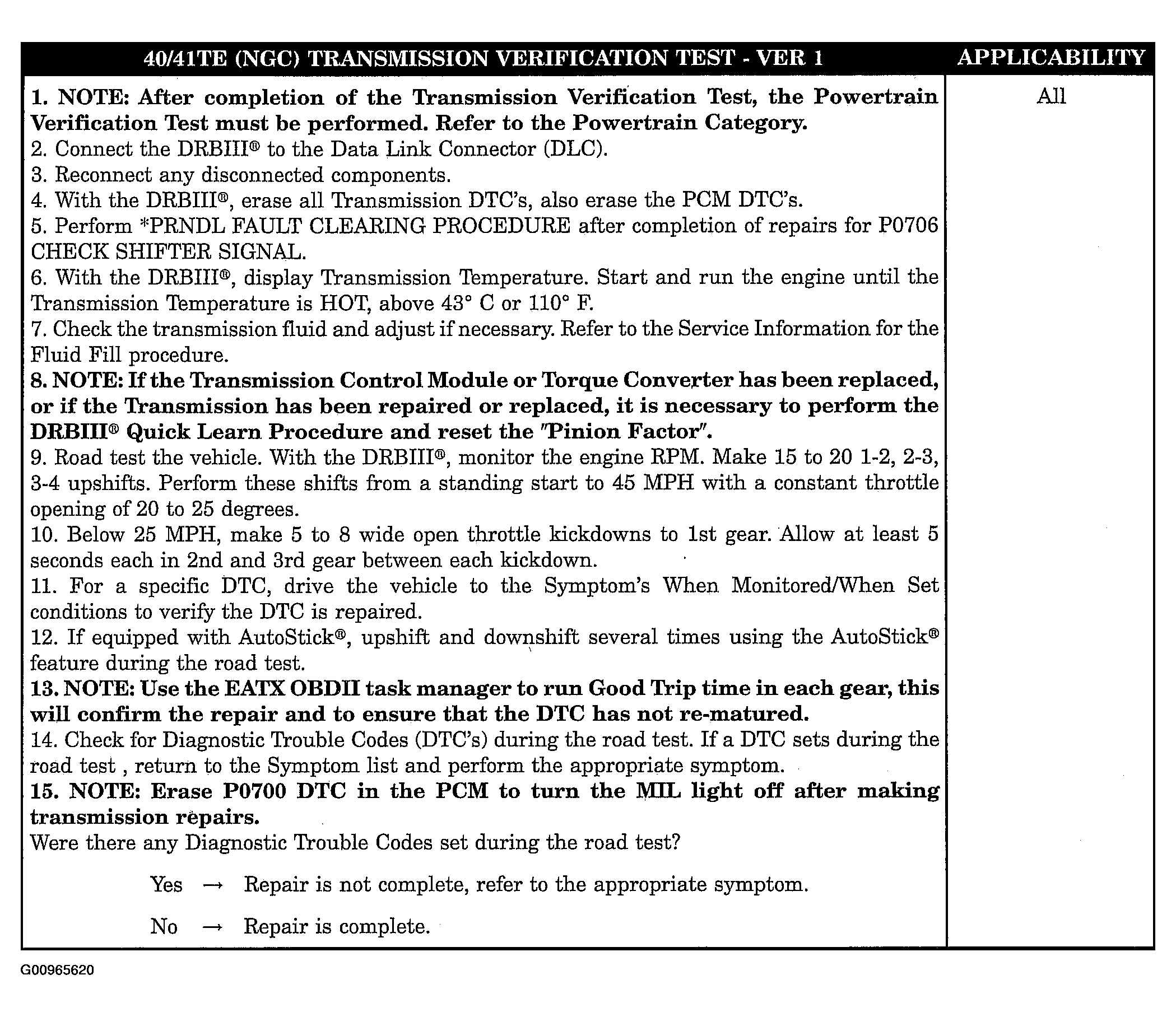

Fig 1: Identifying 40/41TE (NGC) Transmission Verification Test - Ver 1
G00965620Courtesy of DAIMLERCHRYSLER CORP.
Fig 2: Identifying Body Verification Test - Ver 1
G00965621Courtesy of DAIMLERCHRYSLER CORP.

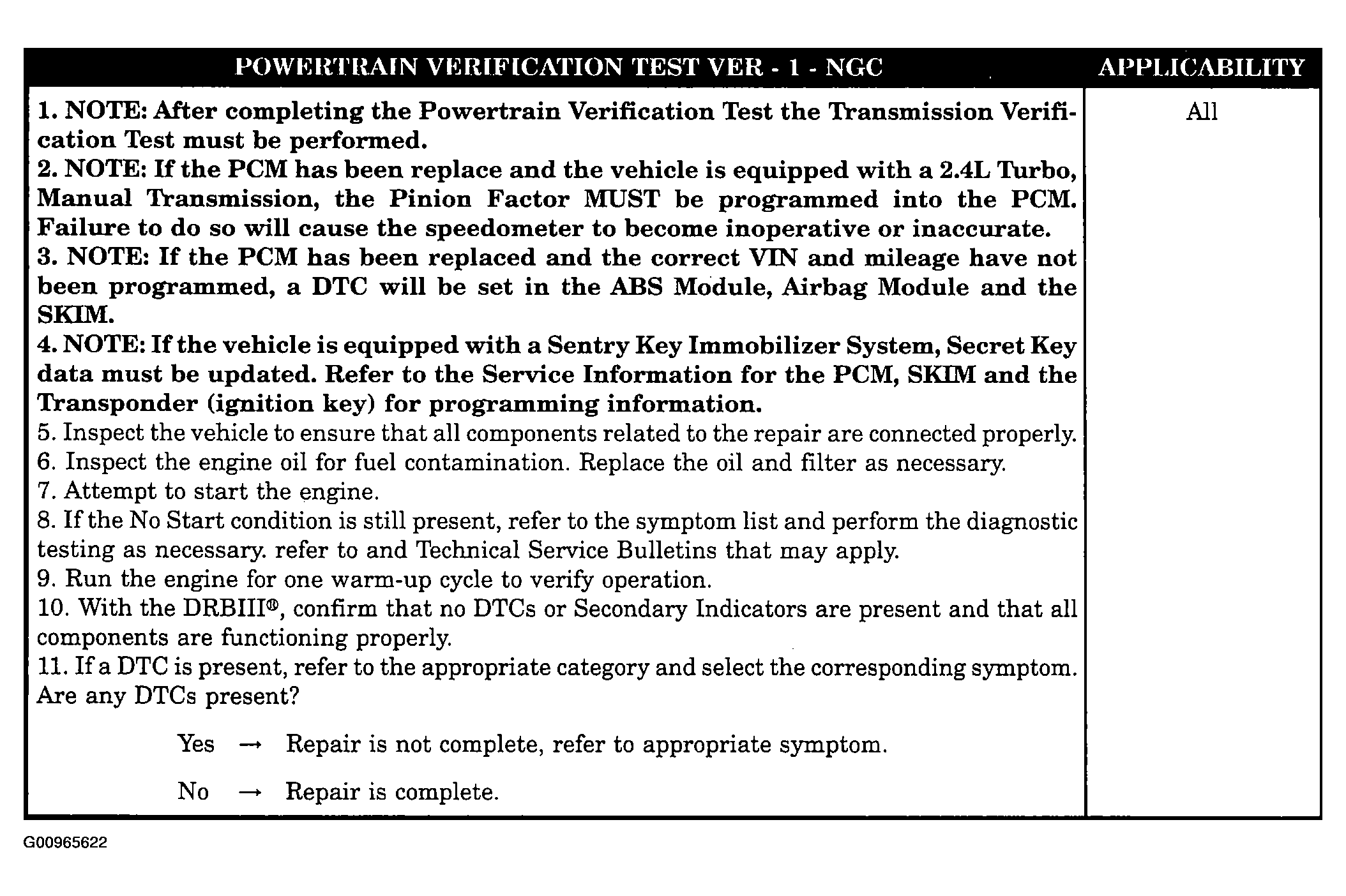

Fig 3: Identifying Powertrain Verification Test - Ver 1 - NGC
G00965622Courtesy of DAIMLERCHRYSLER CORP.

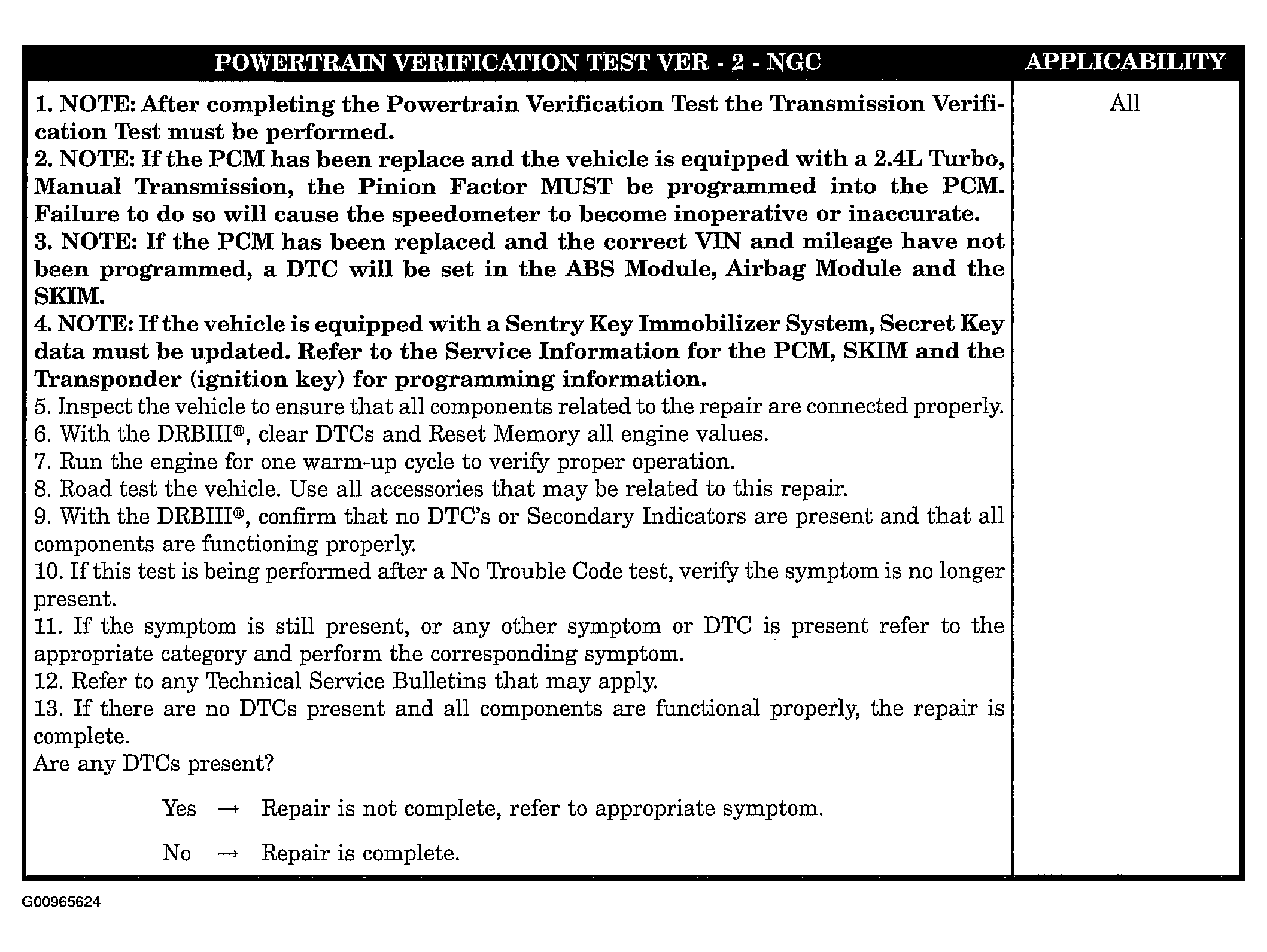

Fig 4: Identifying Powertrain Verification Test - Ver 2 - NGC
G00965624Courtesy of DAIMLERCHRYSLER CORP.

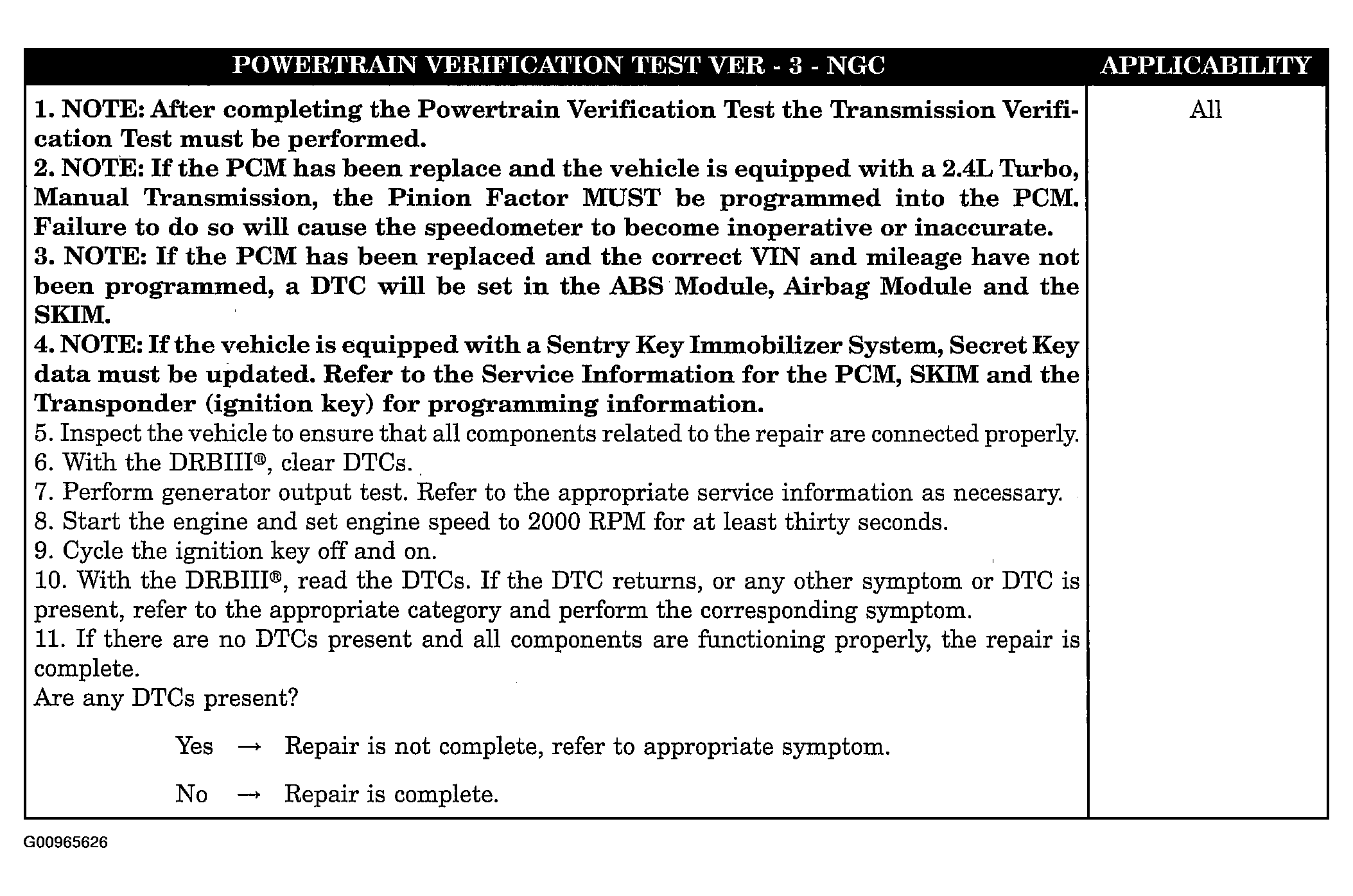

Fig 5: Identifying Powertrain Verification Test - Ver 3 - NGC
G00965626Courtesy of DAIMLERCHRYSLER CORP.

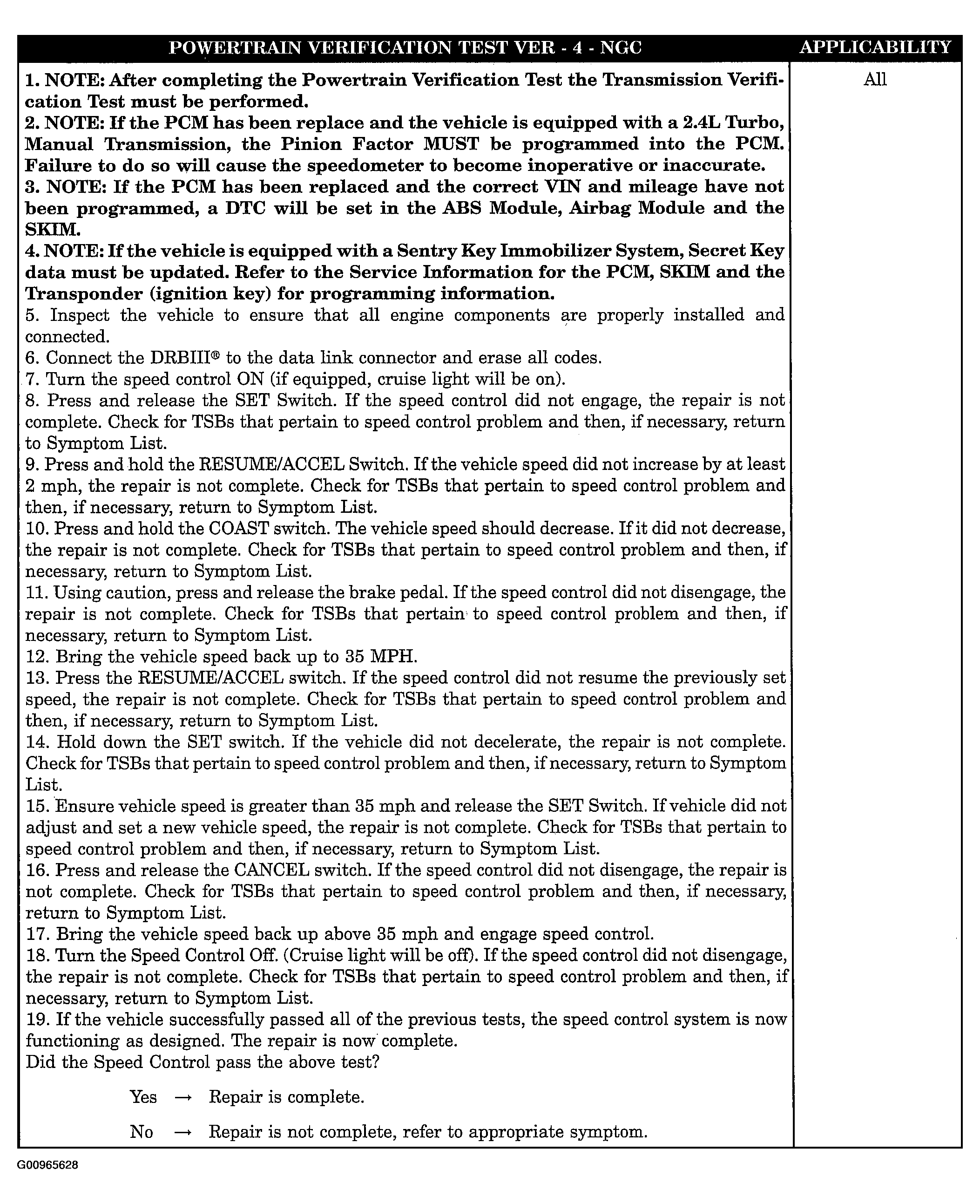

Fig 6: Identifying Powertrain Verification Test - Ver 4 - NGC
G00965628Courtesy of DAIMLERCHRYSLER CORP.

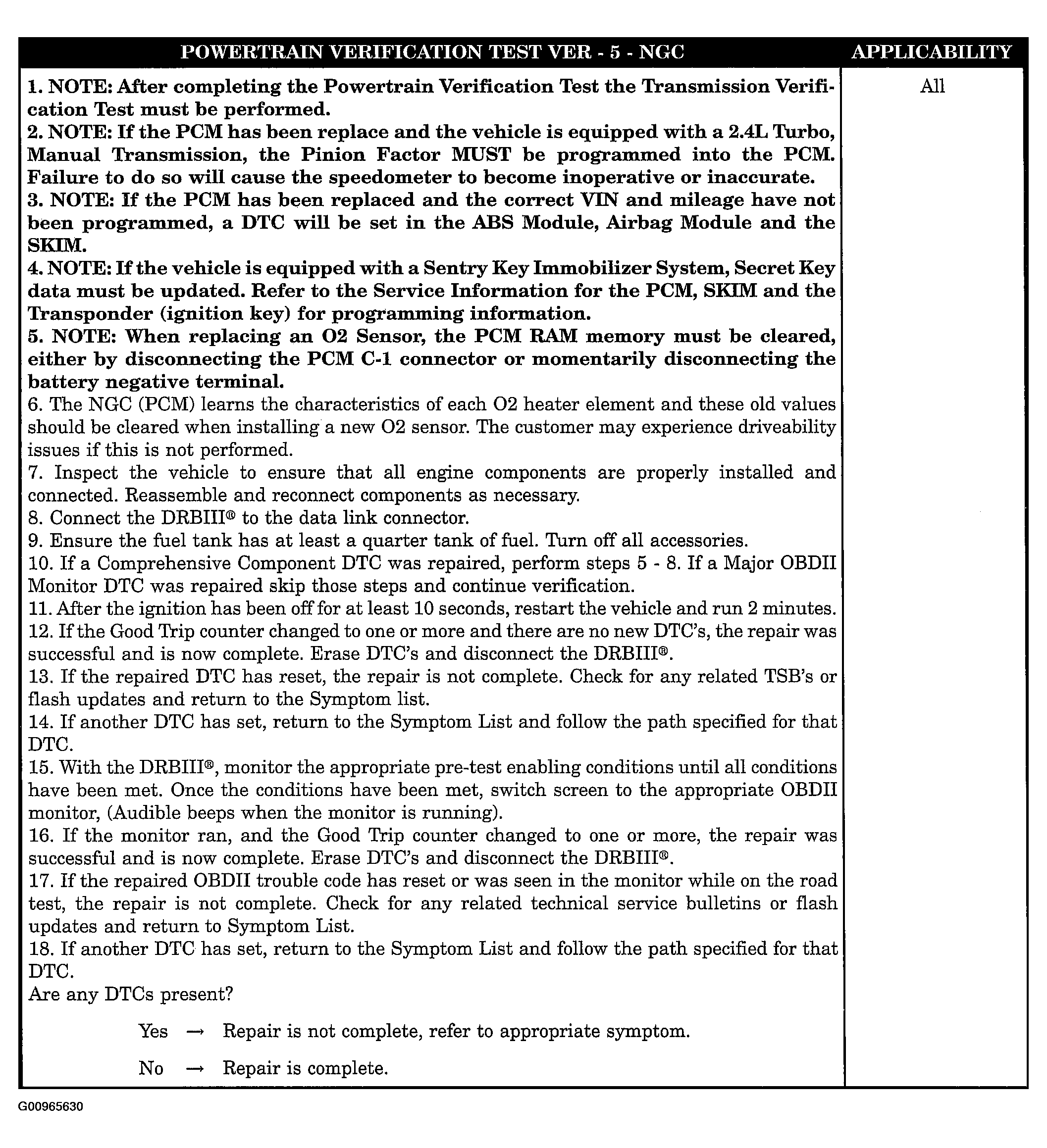

Fig 7: Identifying Powertrain Verification Test - Ver 5 - NGC
G00965630Courtesy of DAIMLERCHRYSLER CORP.

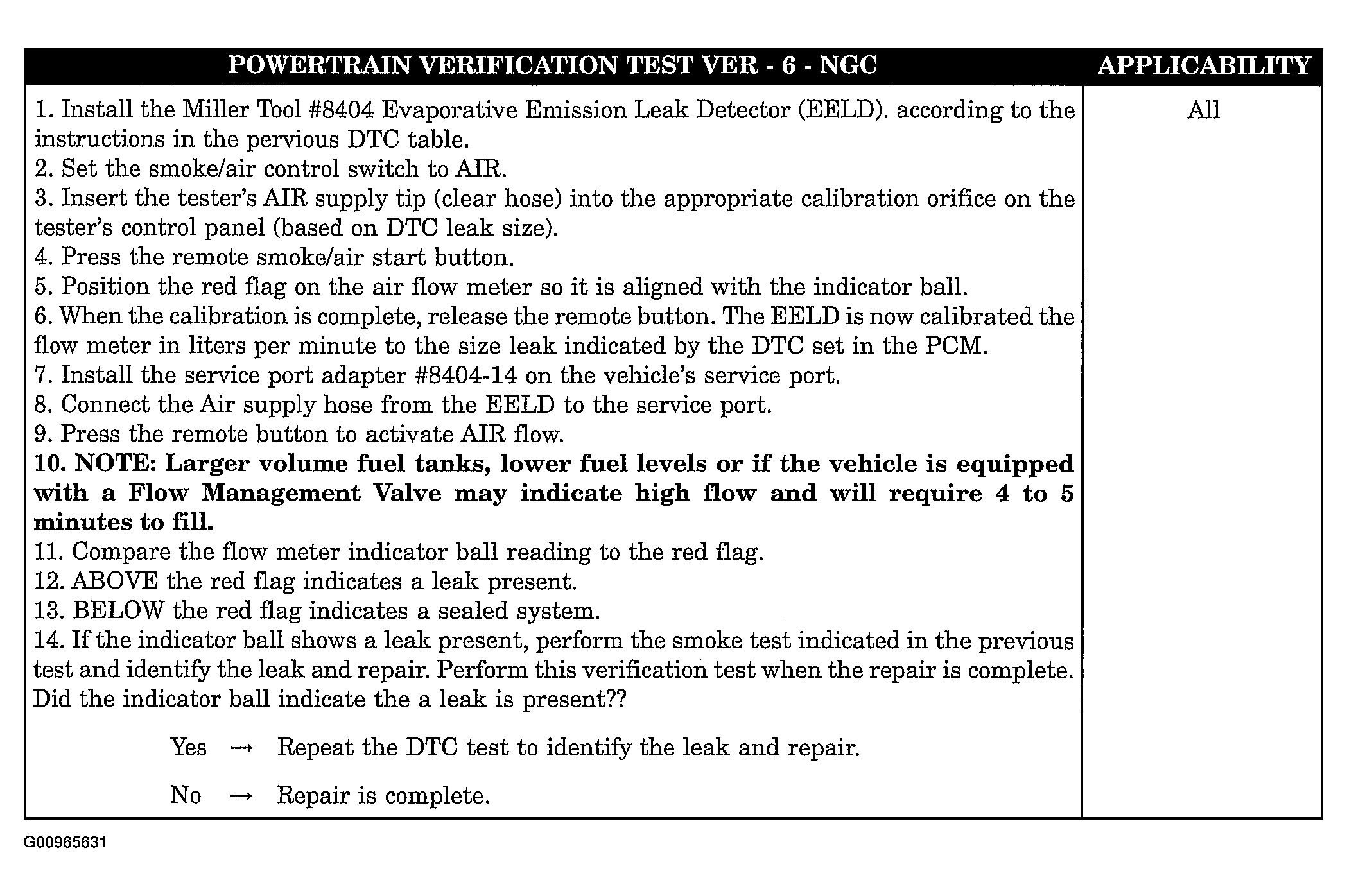

Fig 8: Identifying Powertrain Verification Test - Ver 6 - NGC
G00965631Courtesy of DAIMLERCHRYSLER CORP.

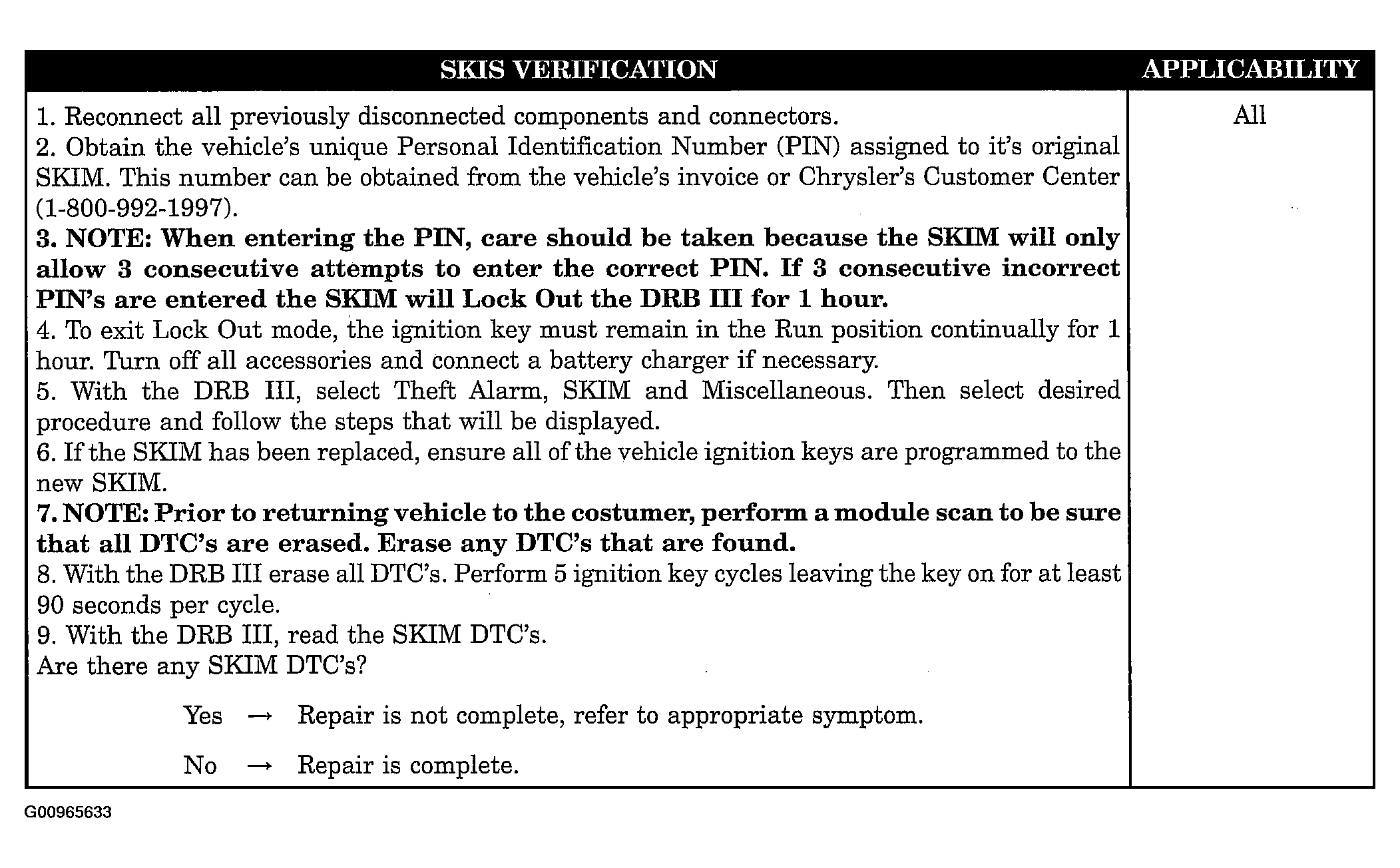

Fig 9: Identifying SKIS Verification Test
G00965633Courtesy of DAIMLERCHRYSLER CORP.
