Idle Air Control Motor: Description

The Idle Air Control (IAC) motor is mounted on the throttle body. The PCM operates the idle air control motor.

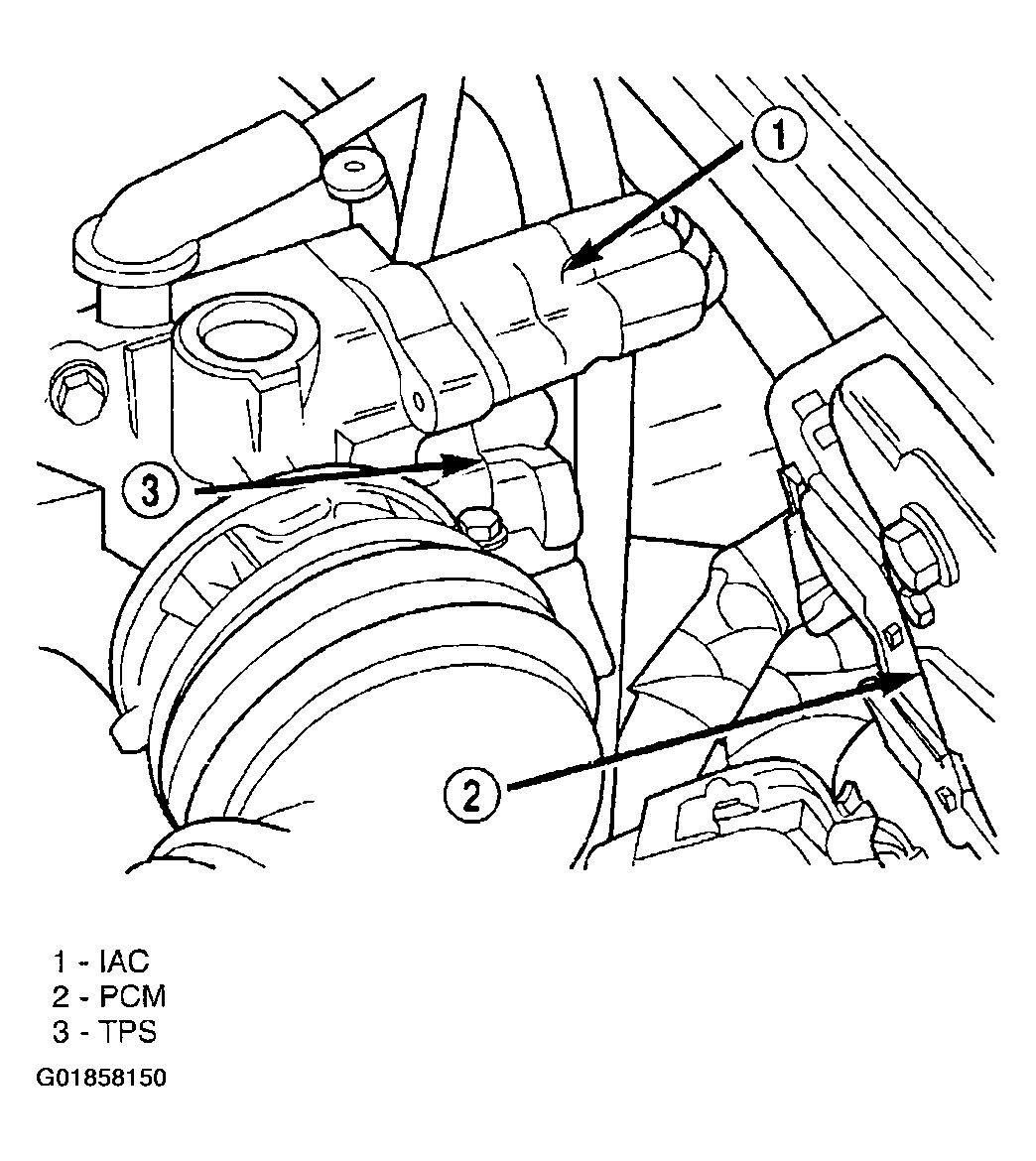

Fig 1: Identifying Idle Air Control Motor - 2.4L

Courtesy of DAIMLERCHRYSLER CORP.

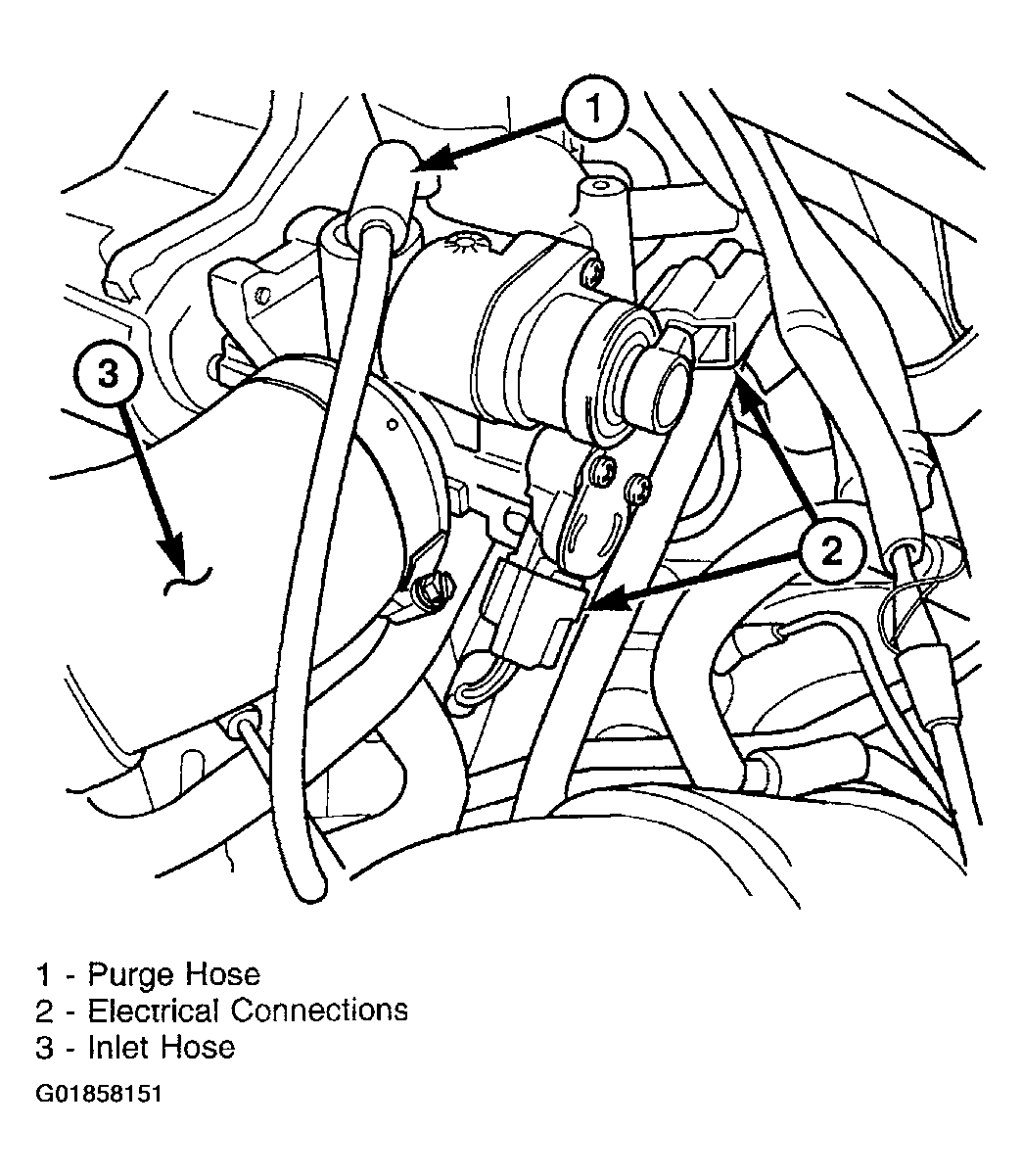

Fig 2: Identifying Throttle Body Connections - 2.4L Turbo

Courtesy of DAIMLERCHRYSLER CORP.
