Idle Air Control Motor: Installation

When servicing throttle body components, always reassemble components with new O-rings and seals where applicable. Never use lubricants on O-rings or seals, damage may result. If assembly of component is difficult, a light coat of engine oil may be applied to the O-RINGS ONLY  to aid assembly.

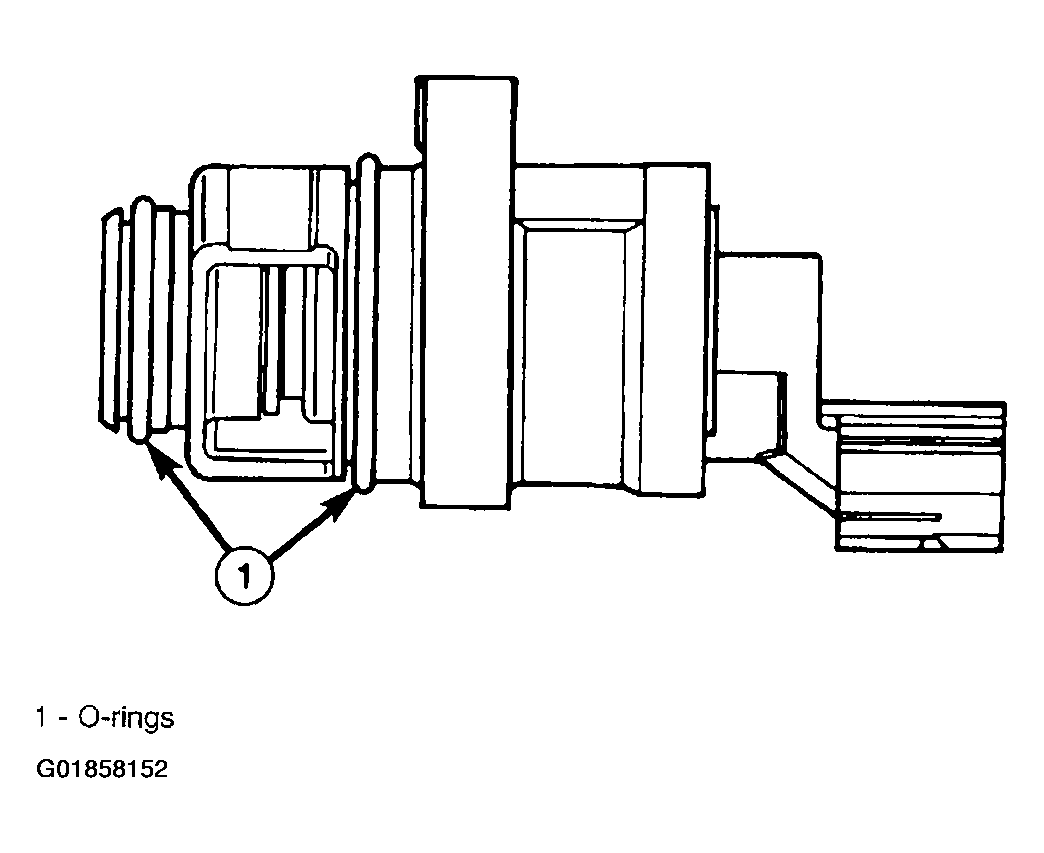

Fig 1: Identifying O-Rings

Courtesy of DAIMLERCHRYSLER CORP.

1. The new idle air control motor has a new O-ring installed on it.
2. Carefully place idle air control motor into throttle body.
3. Install mounting screw. Tighten screw to 7 N.m (62 in. lbs.) torque.
4. Connect electrical connector to idle air control motor.
5. Connect negative cable to battery.
