Installation - 2.4L Turbo

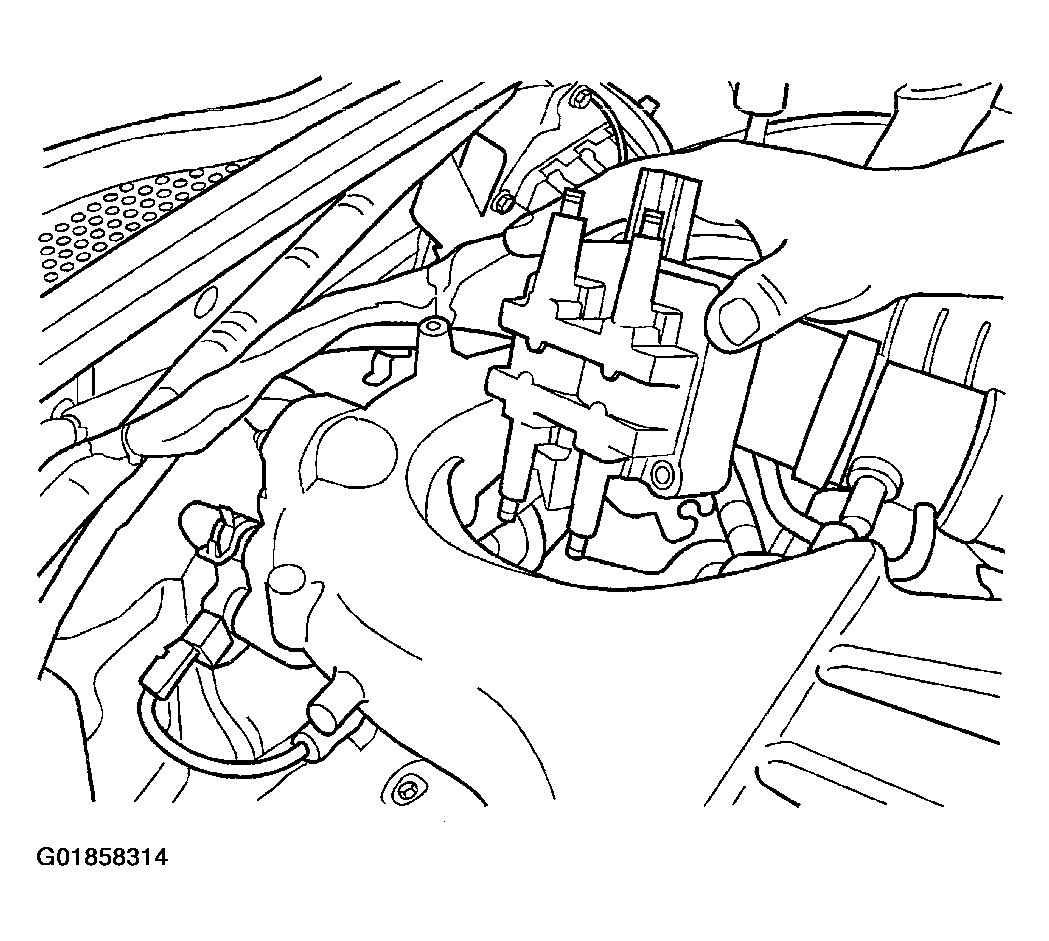

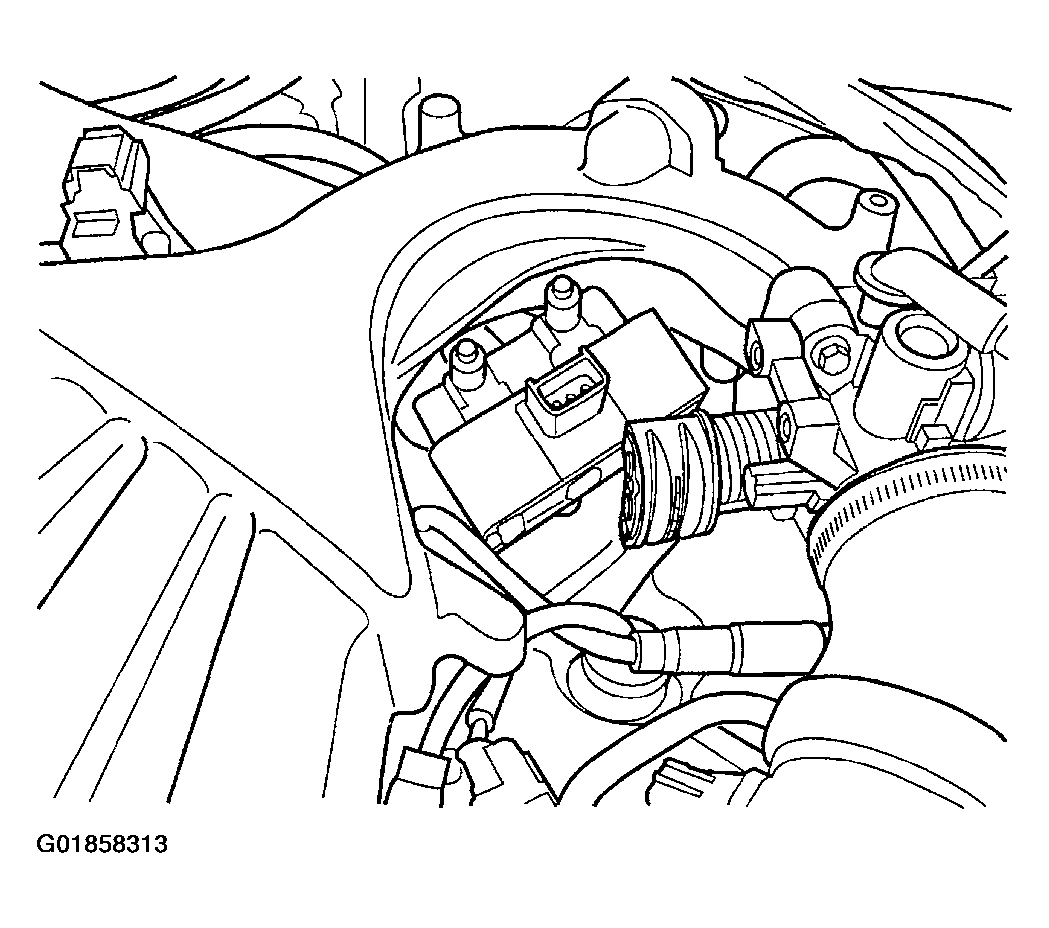

  1. Install the coil on throttle body side of the intake manifold, rotate down past the throttle body to the valve cover. See Figure and Figure.
  2. Connect and lock the electrical connector to the ignition coil.

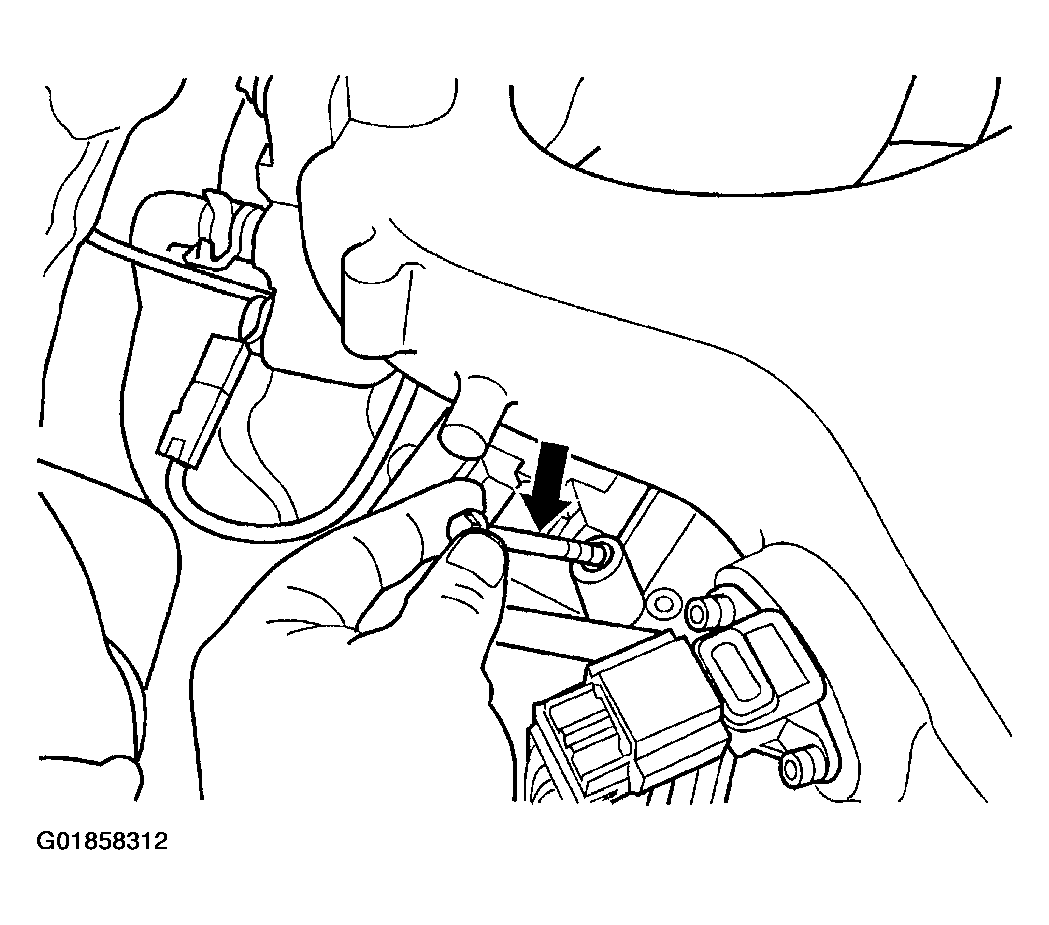

  3. Install bolts to ignition coil. Twist coil to install 2 of the bolts to the coil after installing it to vehicle. See Figure.
  4. Install the spark plug cables to the ignition coil.

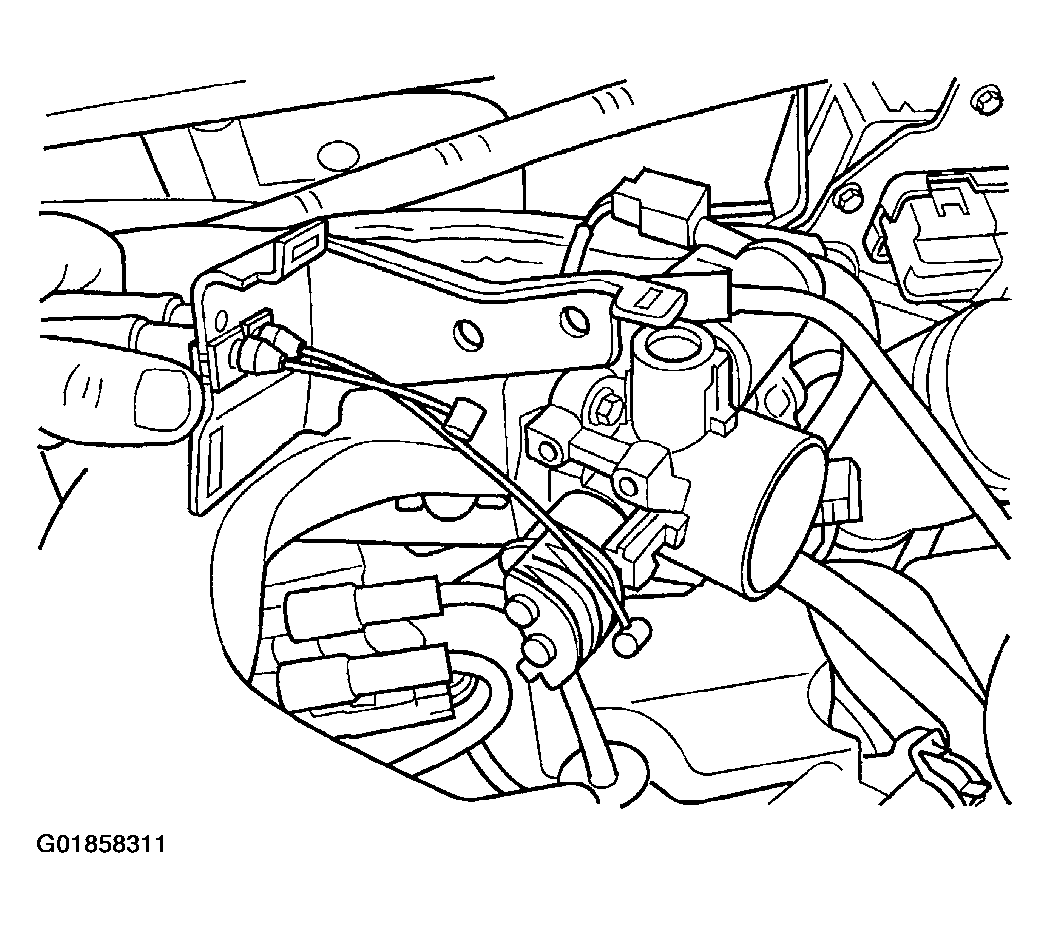

  5. Install the throttle cable bracket. See Figure.

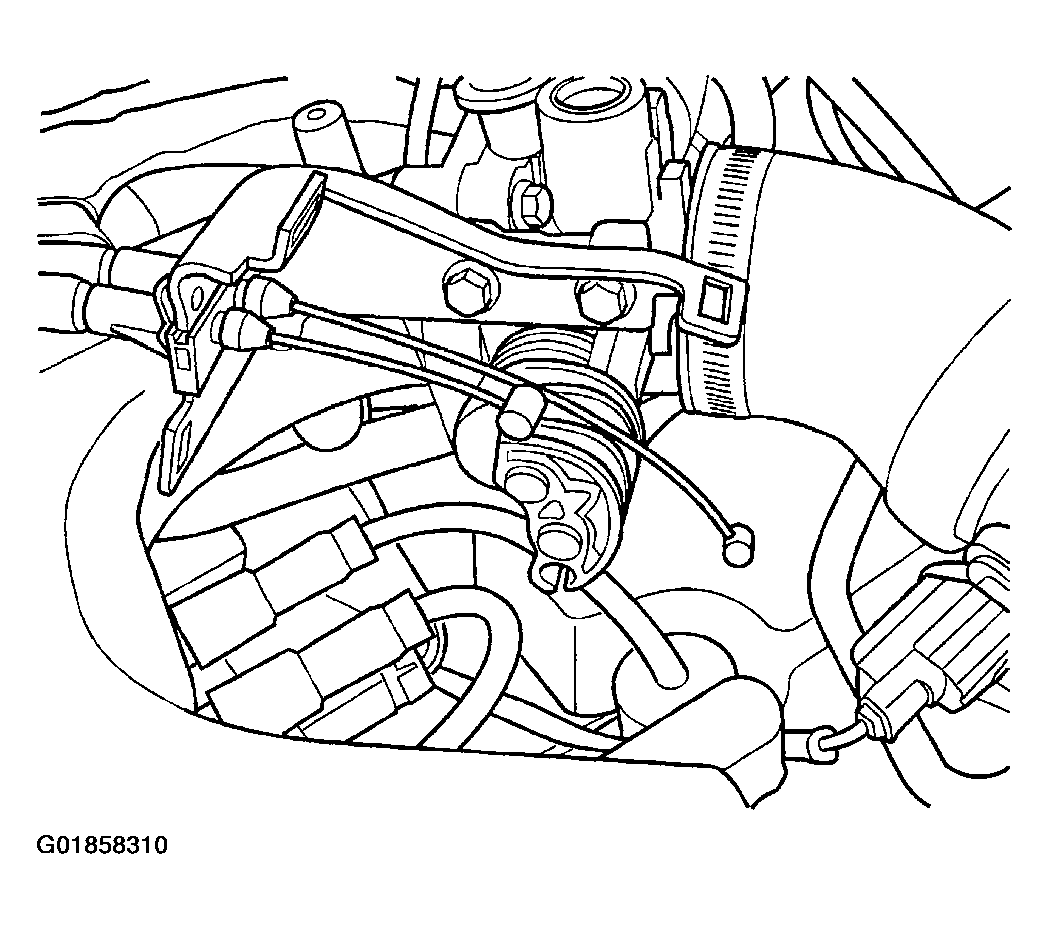

  6. Install the throttle cables to the throttle body lever. See Figure.

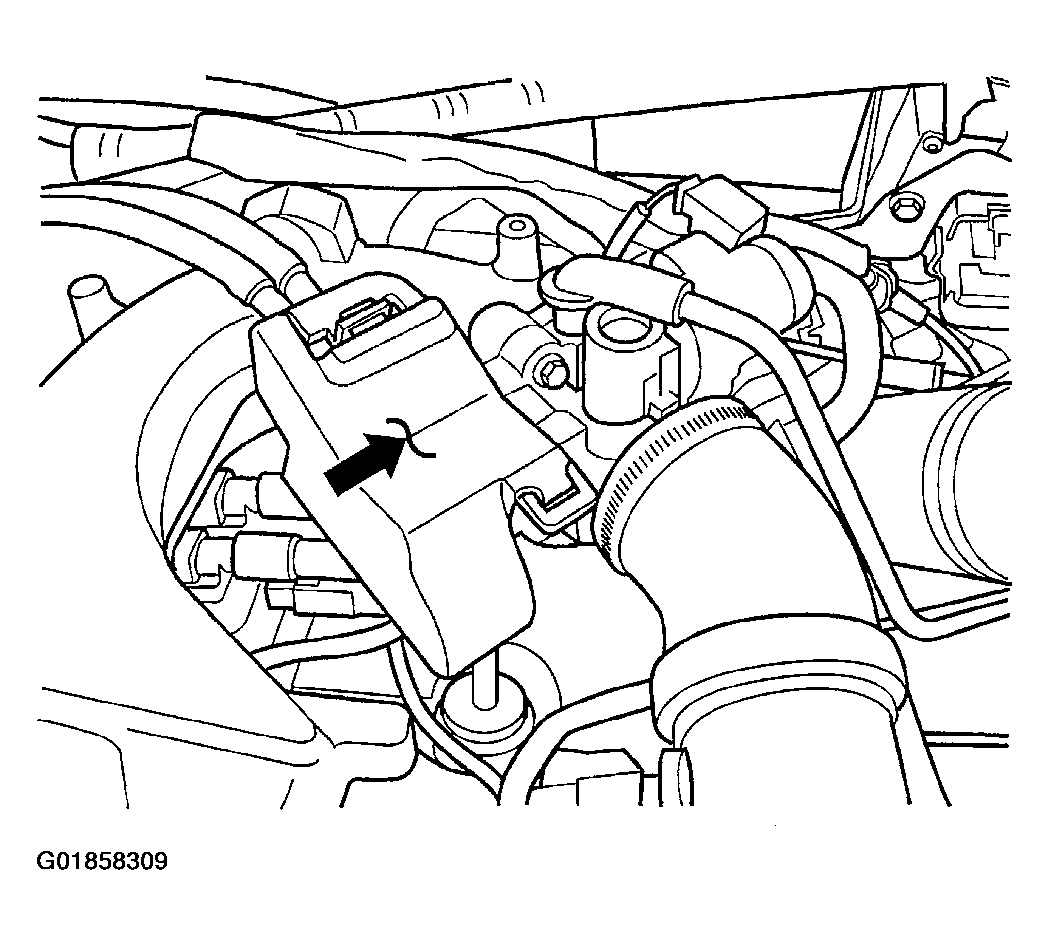

  7. Install the throttle control shield. See Figure.
    8. NOTE: Check and make sure that throttle body and attachments will not contact ignition cables.
  8. Connect the negative battery cable.
