PT Cruiser Base, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Electronic Diagnostics
>>
System Description & Functional Operation
>>
D. 02 Sensor Heater Monitor
>>
NVLD Leak Detection
>>
NVLD Assembly Internal Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
NVLD Assembly Internal Schematic

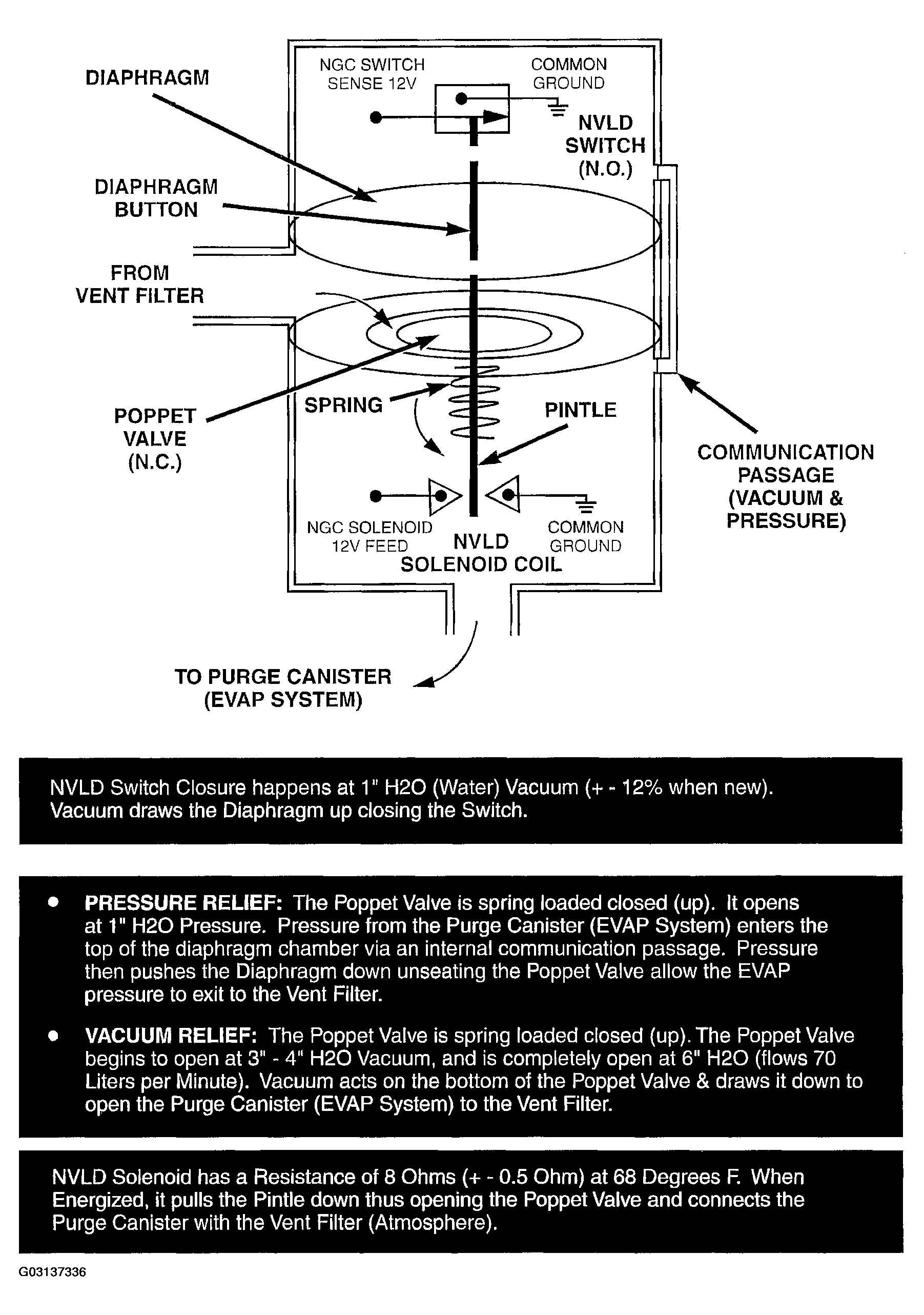

Fig 1: NVLD Assembly Internal Schematic
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
