Ignition Coils

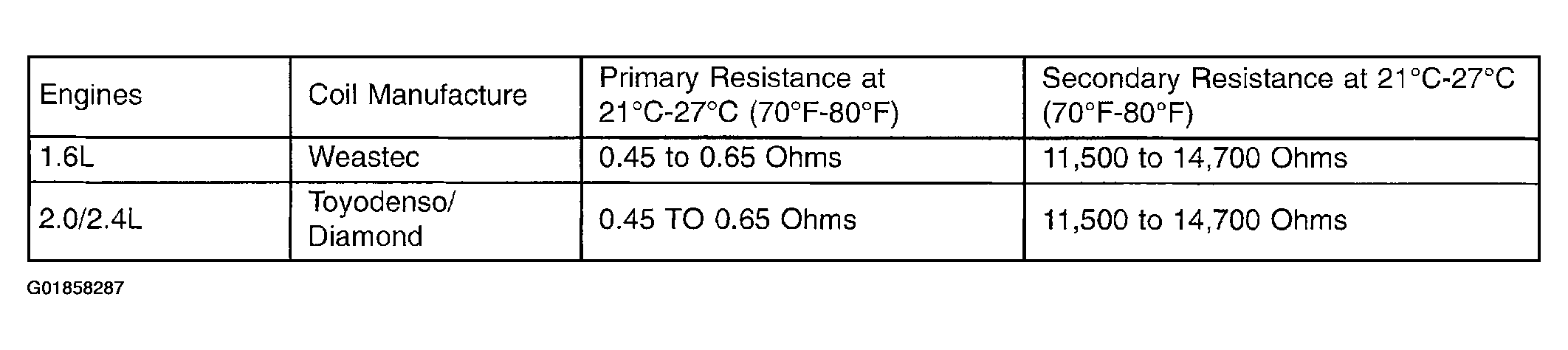

Fig 1: Identifying Ignition Coil Specifications
Courtesy of DAIMLERCHRYSLER CORP.

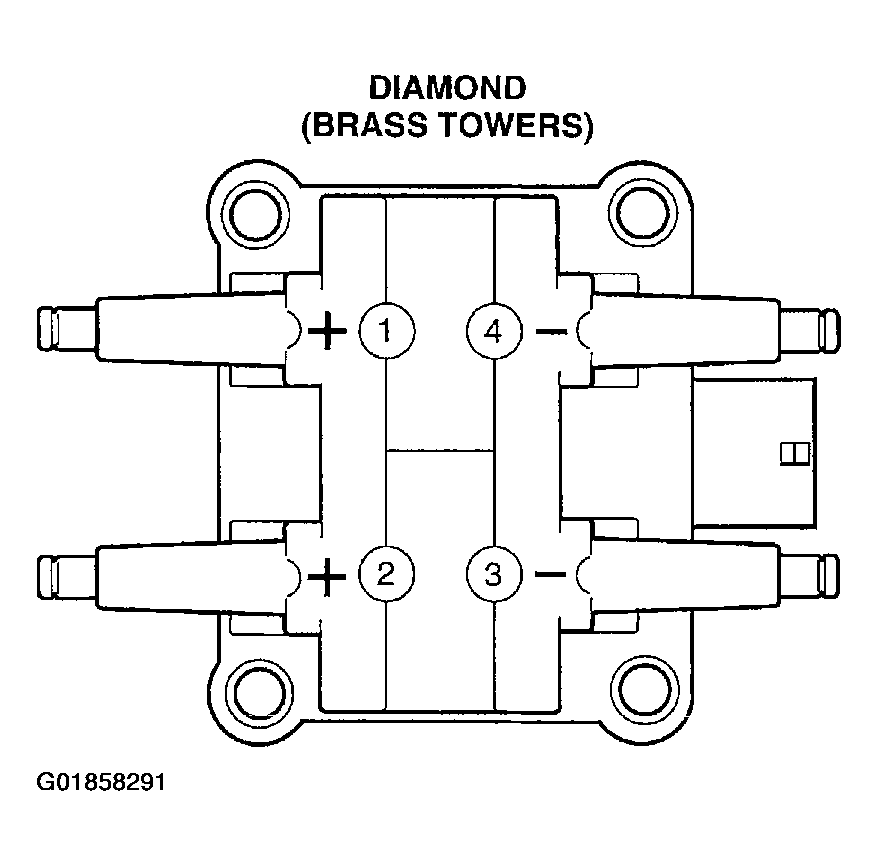

Fig 2: Identifying Ignition Coil - Diamond (Brass Towers)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 3: Identifying Ignition Coil - Weastec (Silver Towers)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
