Idle Air Control Motor: Removal

  1. Disconnect the negative battery cable.
  2. Disconnect the IAC electrical connector (Fig 1 ).

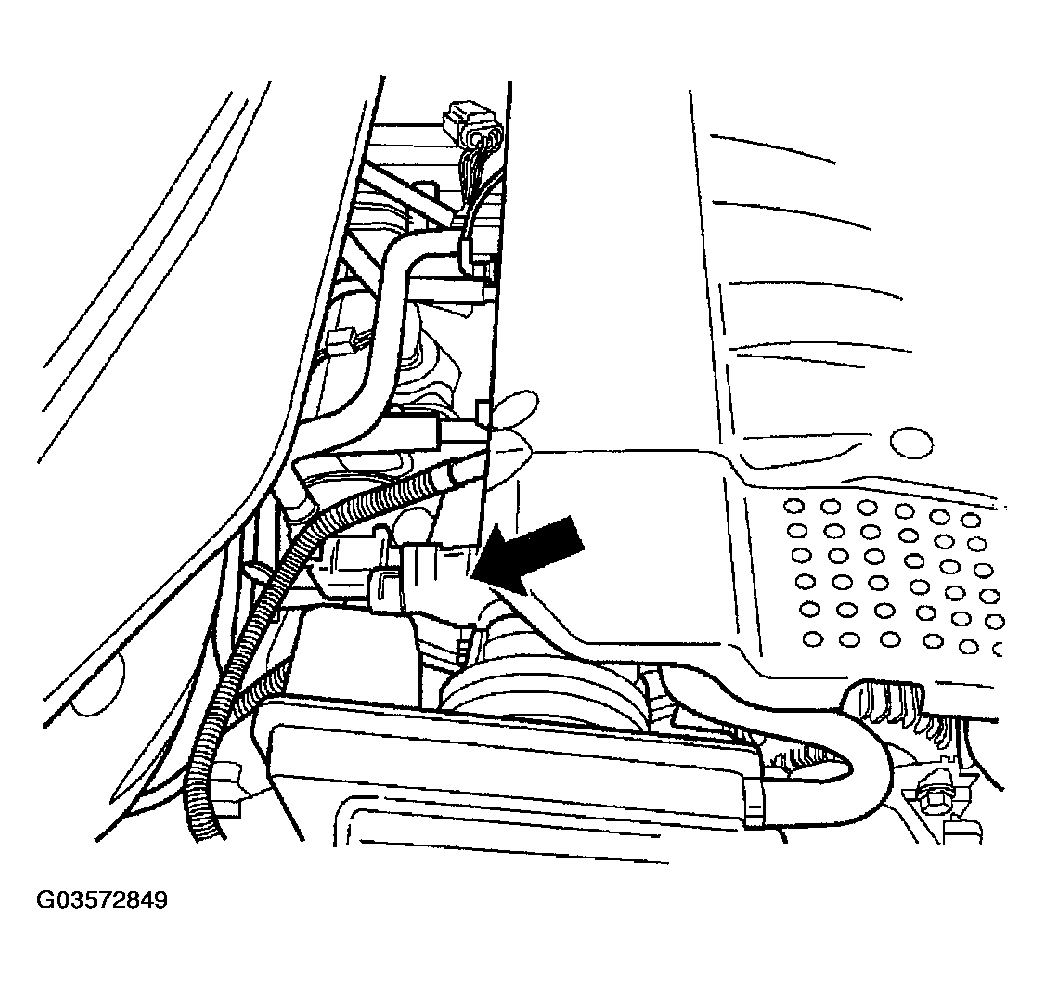

    Fig 1: Identifying Idle Air Control Motor
    G03572849Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove the IAC mounting screws.
  4. Remove the IAC.
