Manifold Tune Valve: Removal

  1. Disconnect the negative battery cable.
  2. Remove the engine cover.
  3. Disconnect the electrical connector (Fig 1 ).

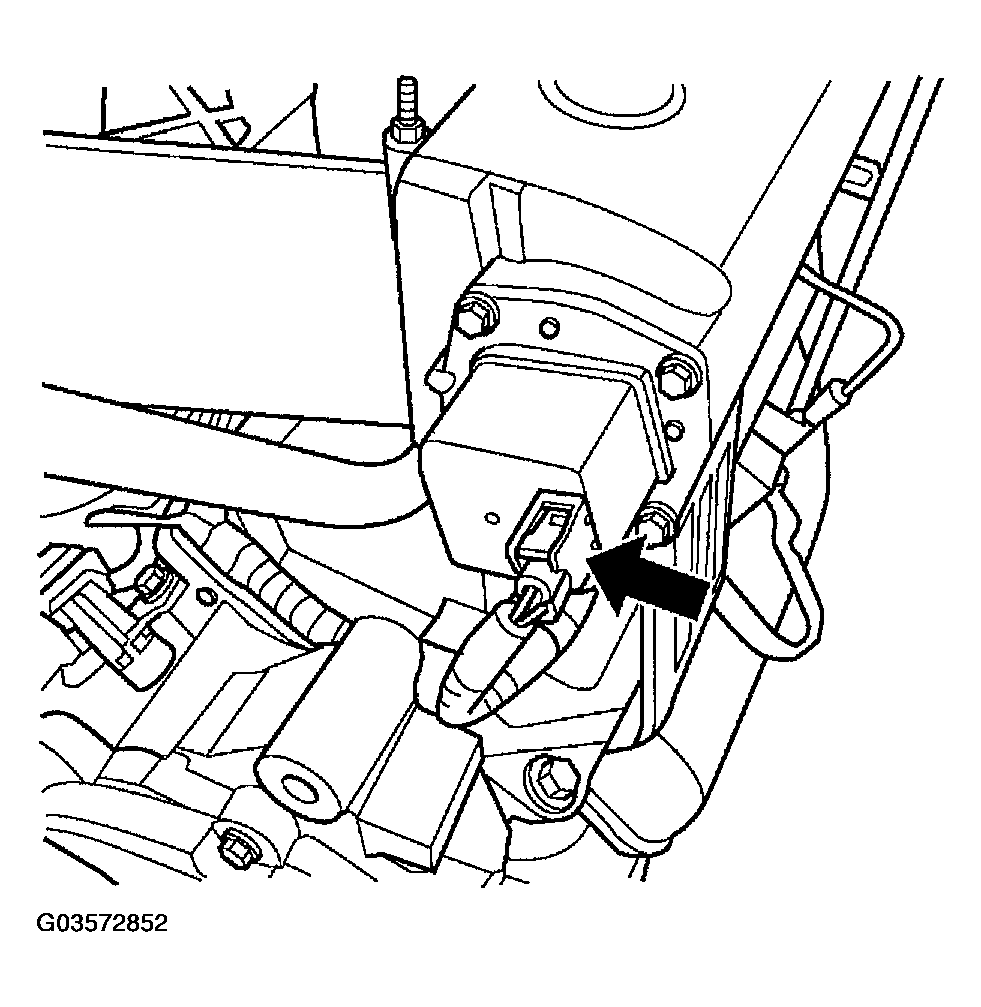

    Fig 1: Identifying Manifold Tuning Valve Electrical Connector
    G03572852Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove the 4 mounting bolts (Fig 2 ).
    Fig 2: Identifying MTV Valve
    G03572853Courtesy of DAIMLERCHRYSLER CORP.
  5. Pull valve straight out of manifold (Fig 3 ).

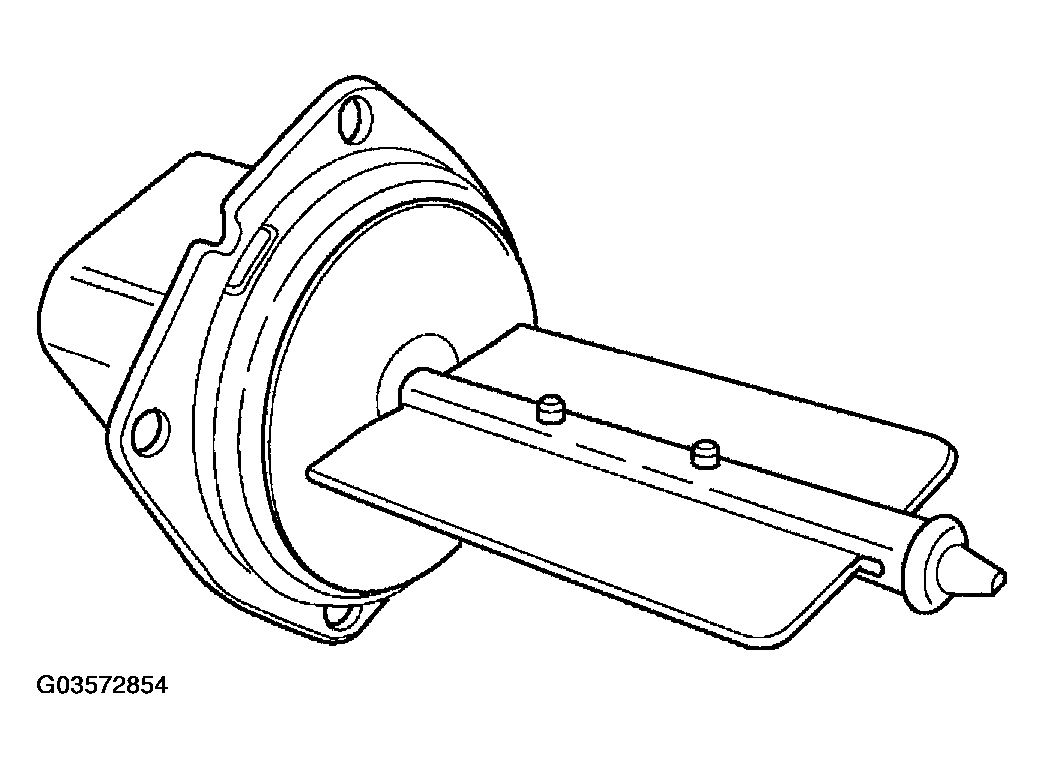

    Fig 3: Removing MTV Valve
    G03572854Courtesy of DAIMLERCHRYSLER CORP.
