Control And Solenoids

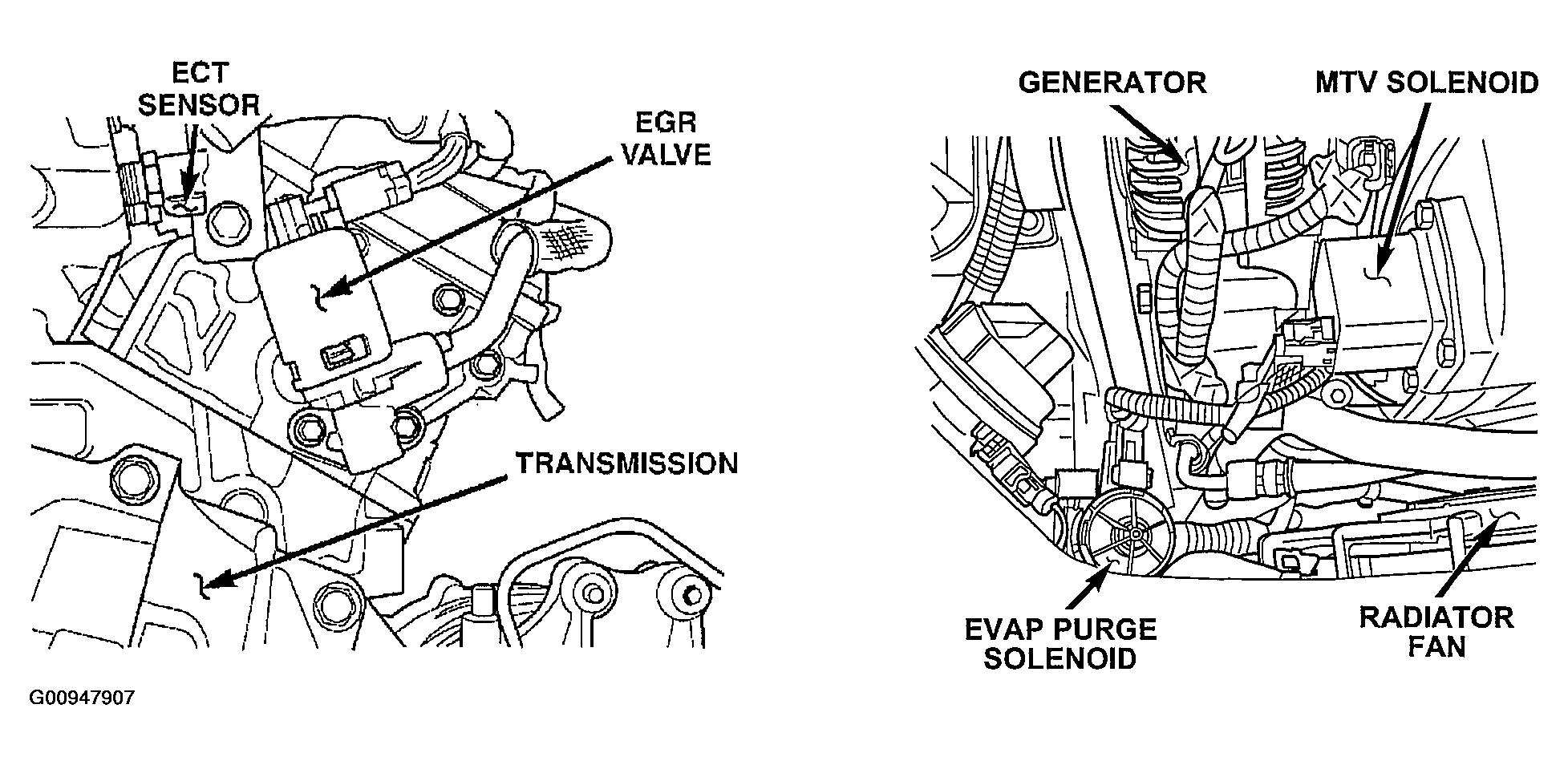

Fig 1: Locating Control And Solenoids (1 Of 2)
G00947907Courtesy of DAIMLERCHRYSLER CORP.

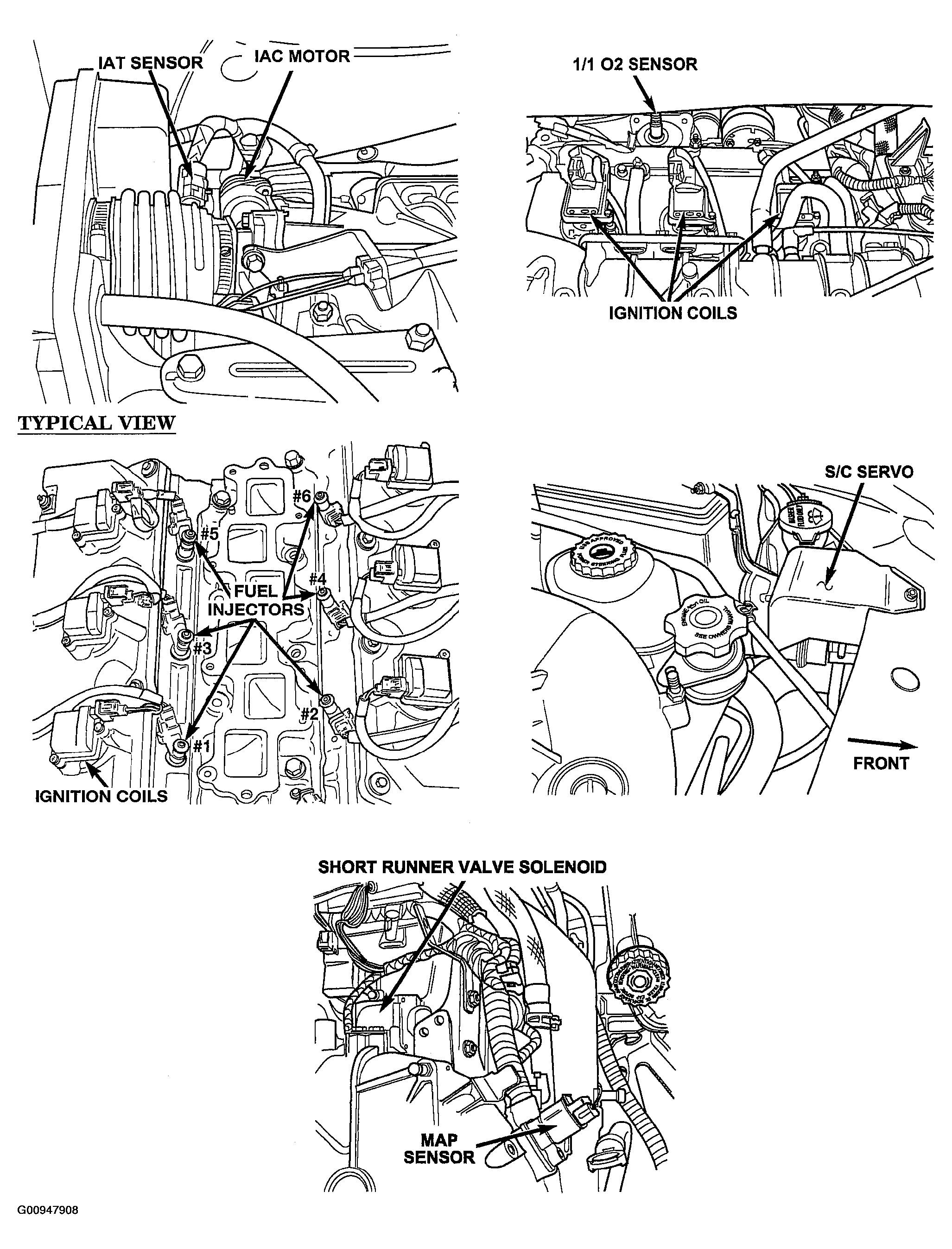

Fig 2: Locating Control And Solenoids (2 Of 2)
G00947908Courtesy of DAIMLERCHRYSLER CORP.
