A/C Compressor Clutch Relay Connector End View

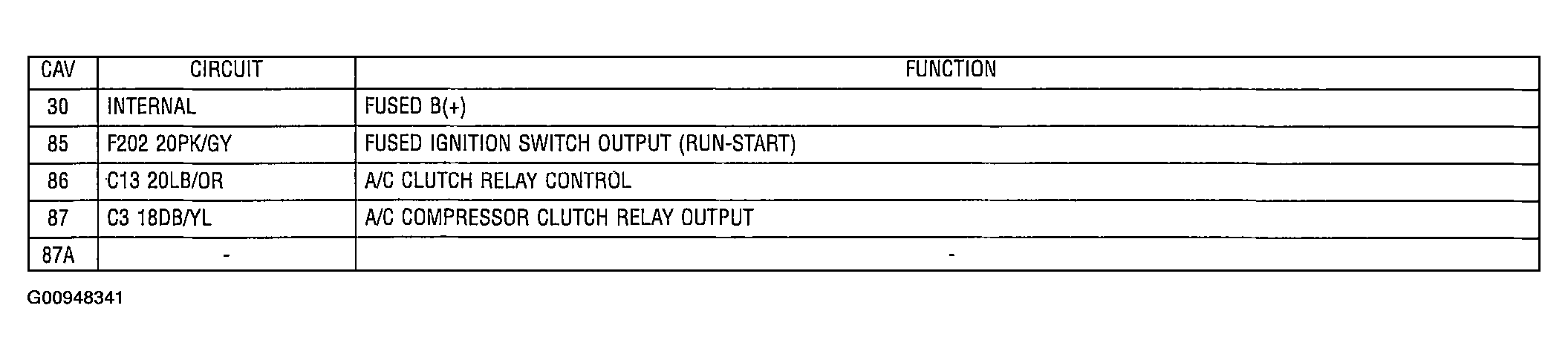

Fig 1: Identifying A/C Compressor Clutch Relay Connector
G00948341Courtesy of DAIMLERCHRYSLER CORP.
