Camshaft Position Sensor Connector End View

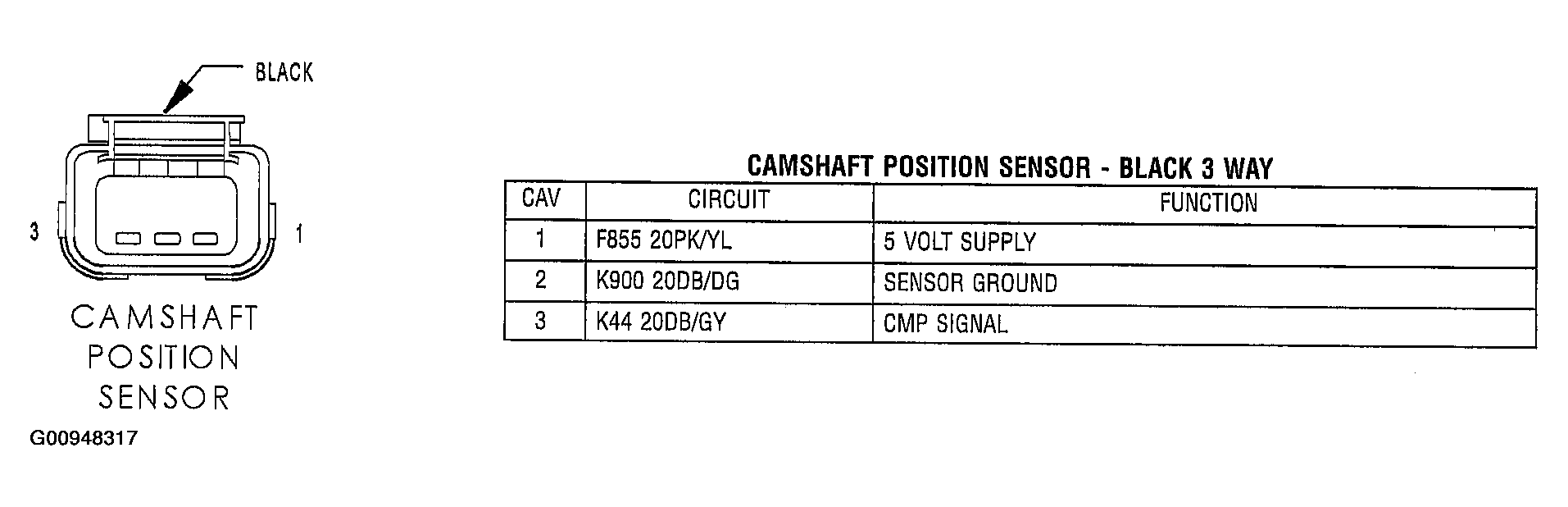

Fig 1: Identifying Camshaft Position Sensor - Black 3 Way Connector
G00948317Courtesy of DAIMLERCHRYSLER CORP.
