Intake Air Temperature Sensor Connector End View

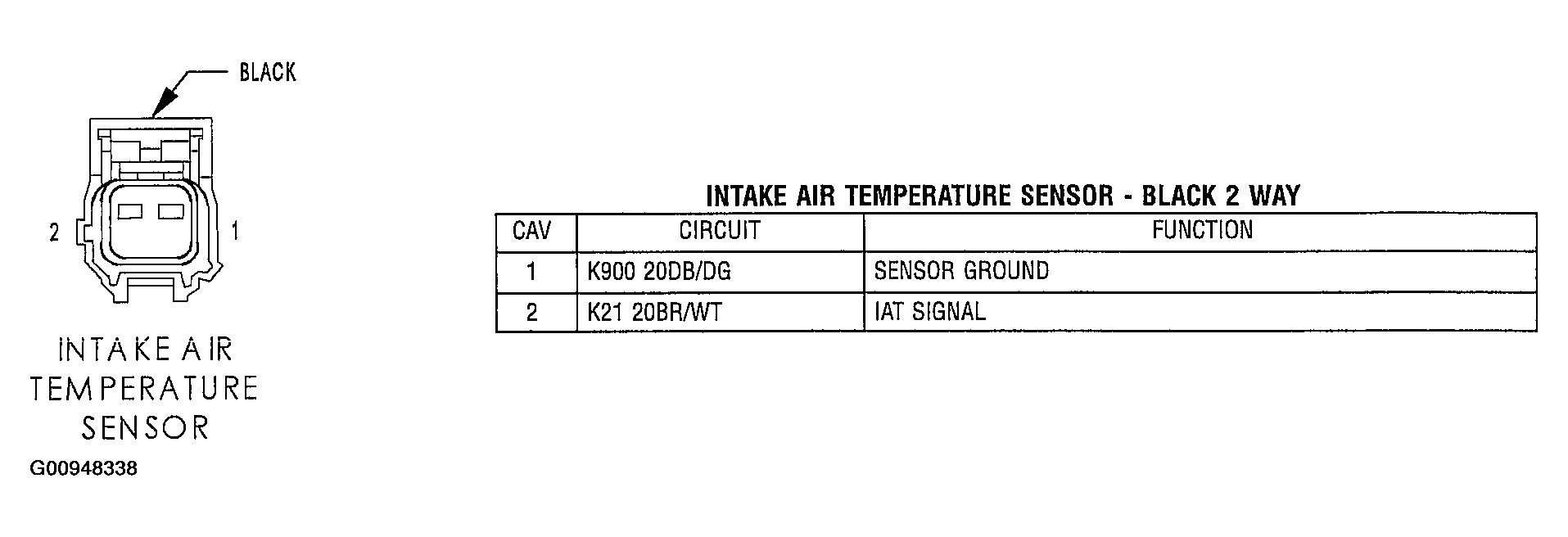

Fig 1: Identifying Intake Air Temperature Sensor - Black 2 Way Connector
G00948338Courtesy of DAIMLERCHRYSLER CORP.
