Manifold Absolute Pressure Sensor Connector End View

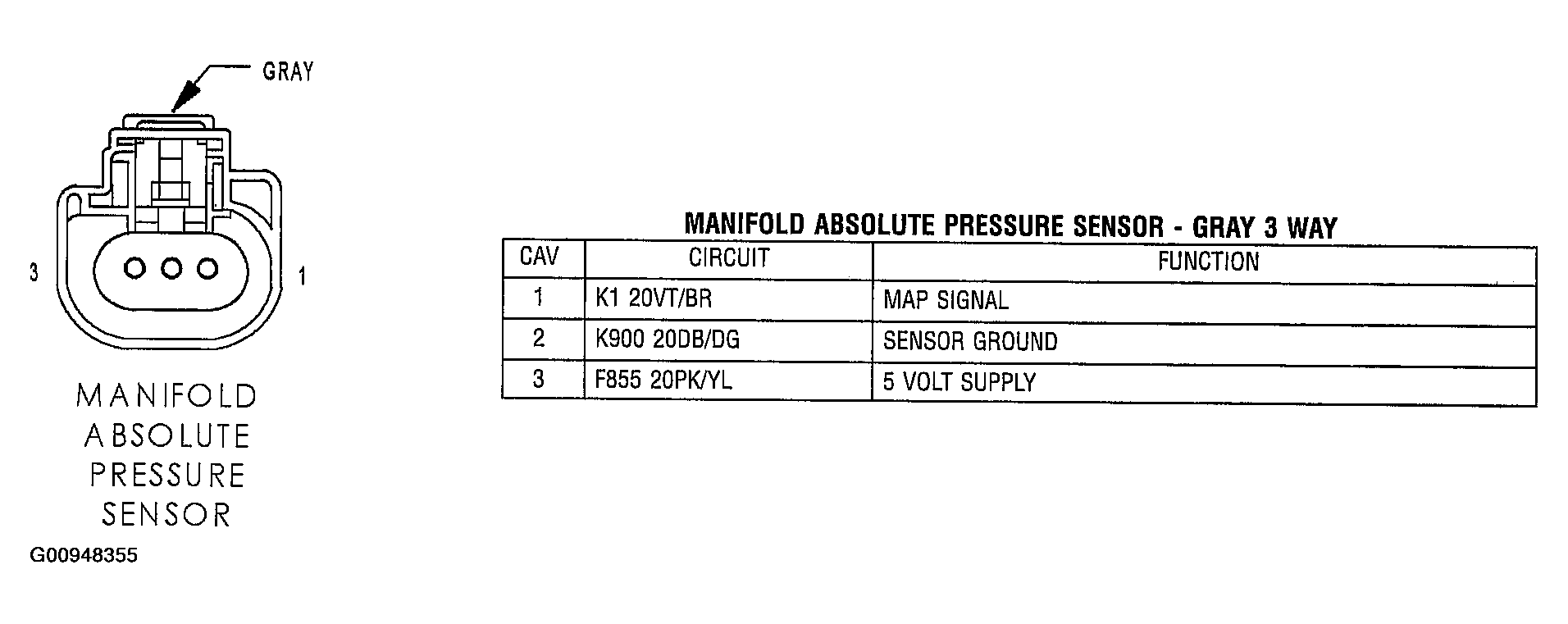

Fig 1: Identifying Manifold Absolute Pressure Sensor - Gray 3 Way Connector
G00948355Courtesy of DAIMLERCHRYSLER CORP.
