Natural Vacuum Leak Detection Assembly Connector End Views

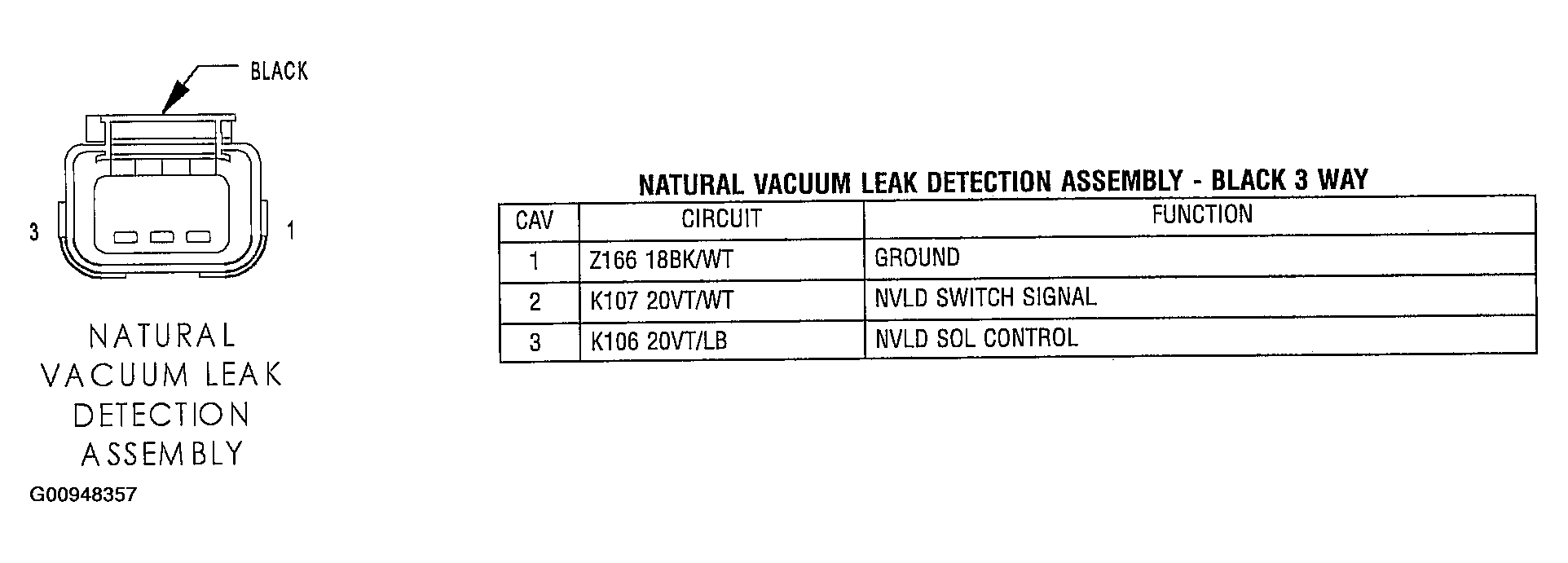

Fig 1: Identifying Natural Vacuum Leak Detection Assembly - Black 3 Way Connector
G00948357Courtesy of DAIMLERCHRYSLER CORP.
