Throttle Position Sensor Connector End View

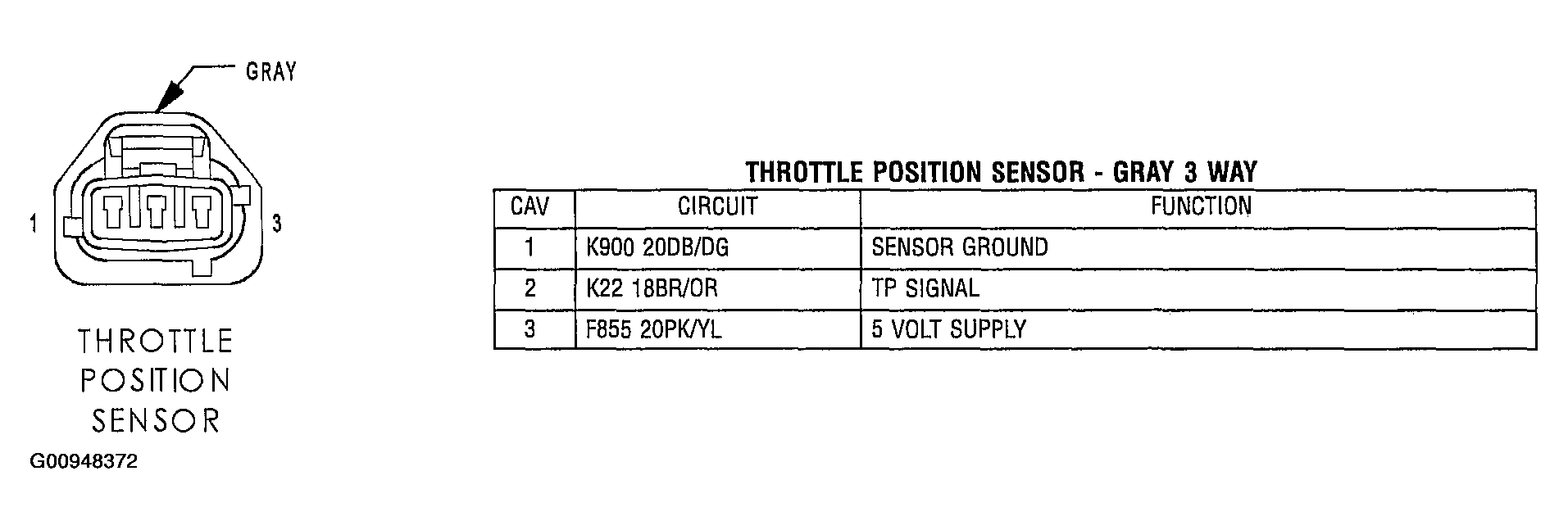

Fig 1: Identifying Throttle Position Sensor - Gray 3 Way Connector
G00948372Courtesy of DAIMLERCHRYSLER CORP.
