Battery Tray: Removal

  1. Disconnect and isolate the negative battery cable.
  2. Remove the battery from the vehicle. Refer to REMOVAL - BATTERY  .
  3. Remove the battery tray retaining fasteners (Fig 1 ).

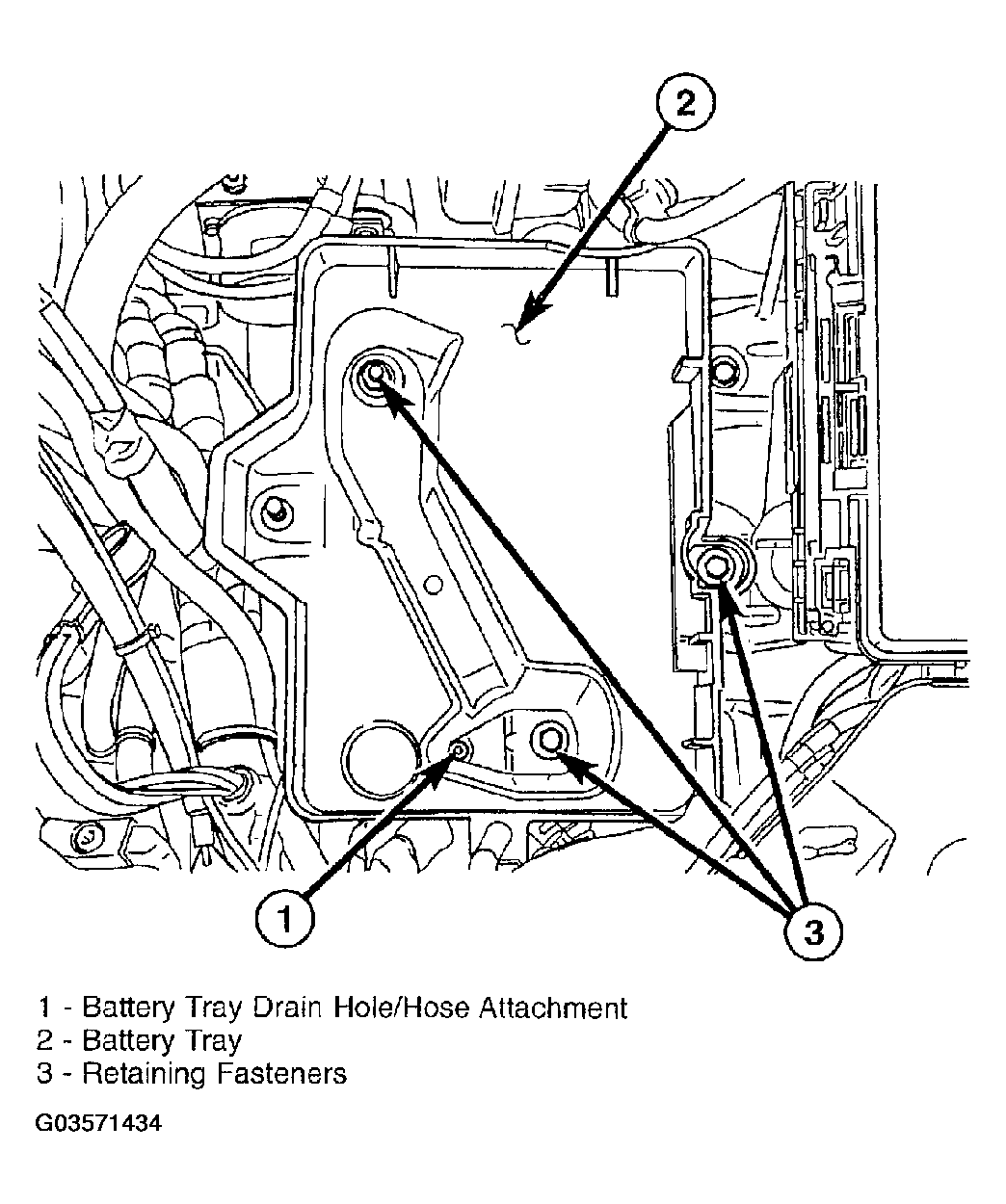

    Fig 1: Removing Battery Tray From Vehicle
    G03571434Courtesy of DAIMLERCHRYSLER CORP.
  4. Pull battery tray up far enough to disconnect the drain hose assembly.
  5. Remove the battery tray from the vehicle.
