Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

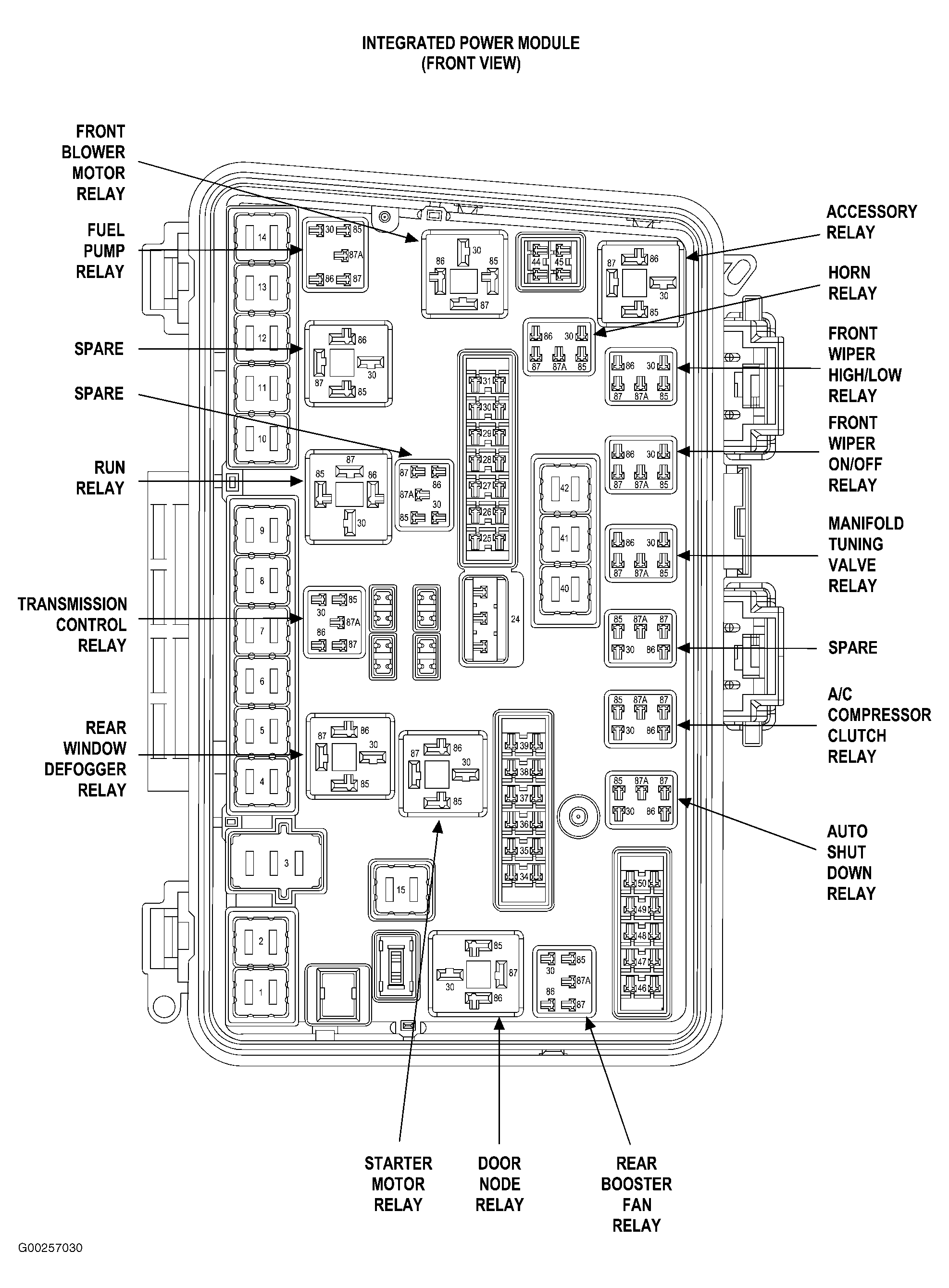

Fig 1: Integrated Power Module

G00257030

Courtesy of DAIMLERCHRYSLER CORP.

Fig 2: Left Front Of Engine Compartment

G00257031

Courtesy of DAIMLERCHRYSLER CORP.

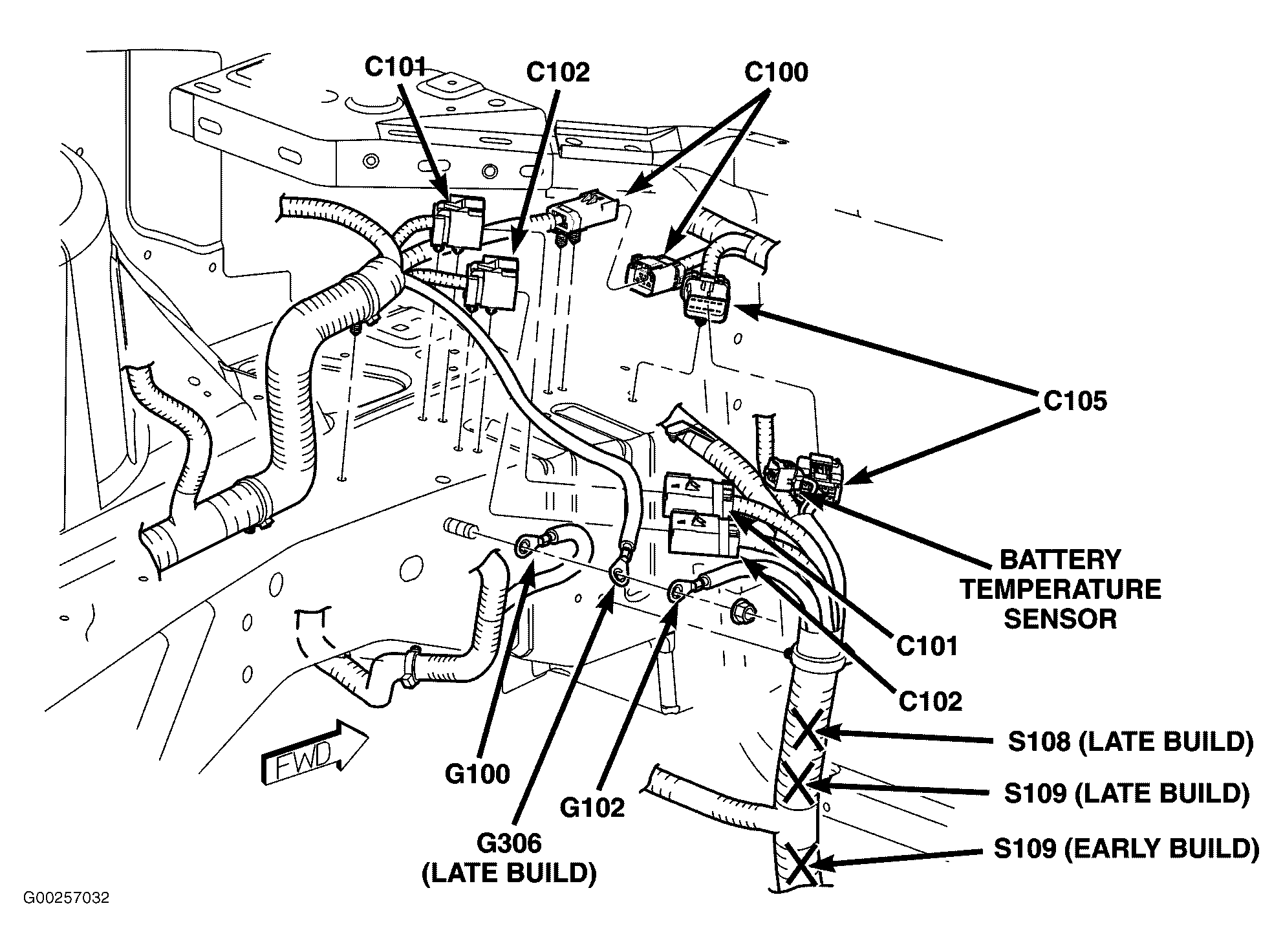

Fig 3: Left Side Of Engine Compartment

G00257032

Courtesy of DAIMLERCHRYSLER CORP.

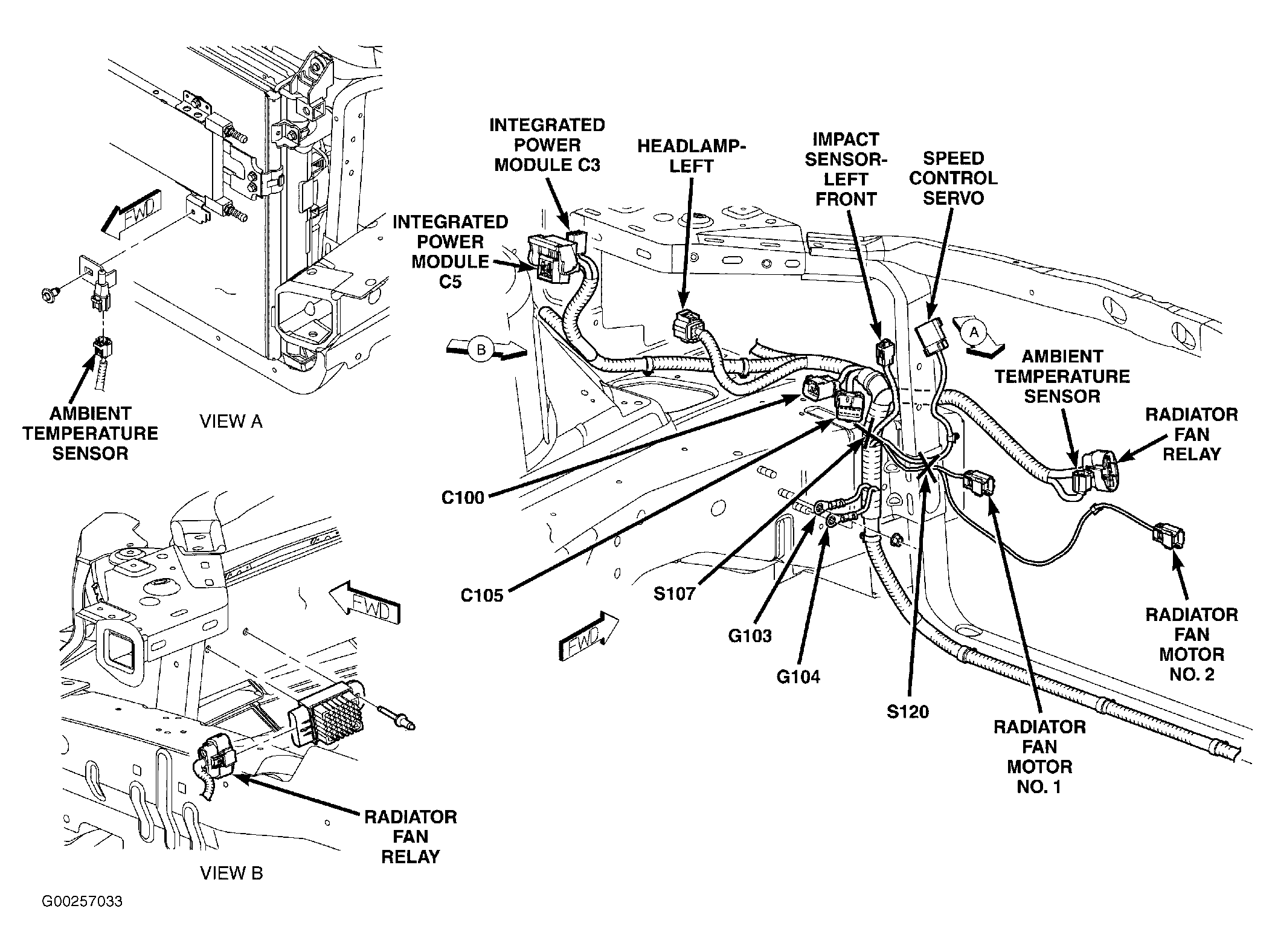

Fig 4: Front Of Engine Compartment

G00257033

Courtesy of DAIMLERCHRYSLER CORP.

Fig 5: Left Side Of Engine Compartment

G00257034

Courtesy of DAIMLERCHRYSLER CORP.

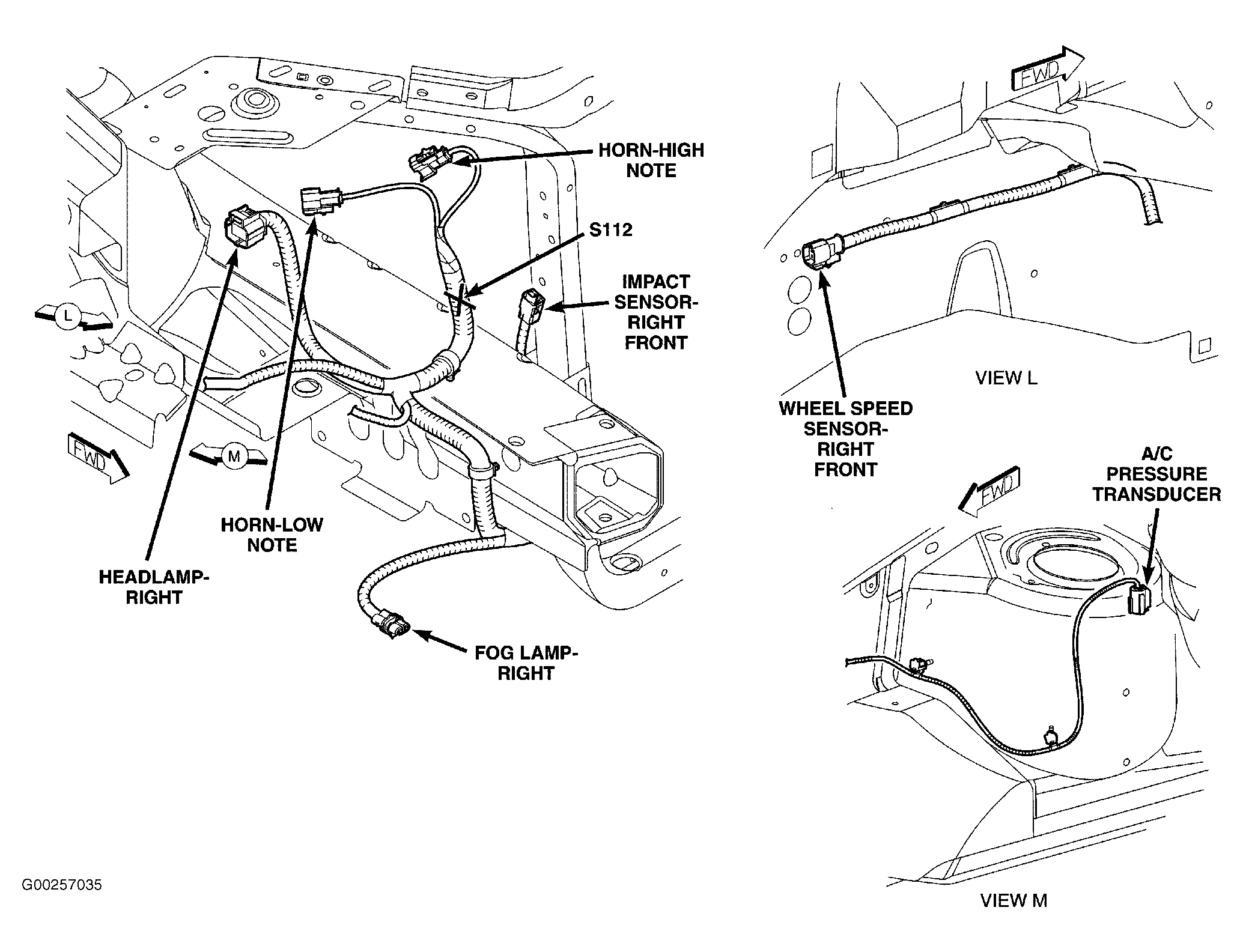

Fig 6: Right Side Of Engine Compartment

G00257035

Courtesy of DAIMLERCHRYSLER CORP.

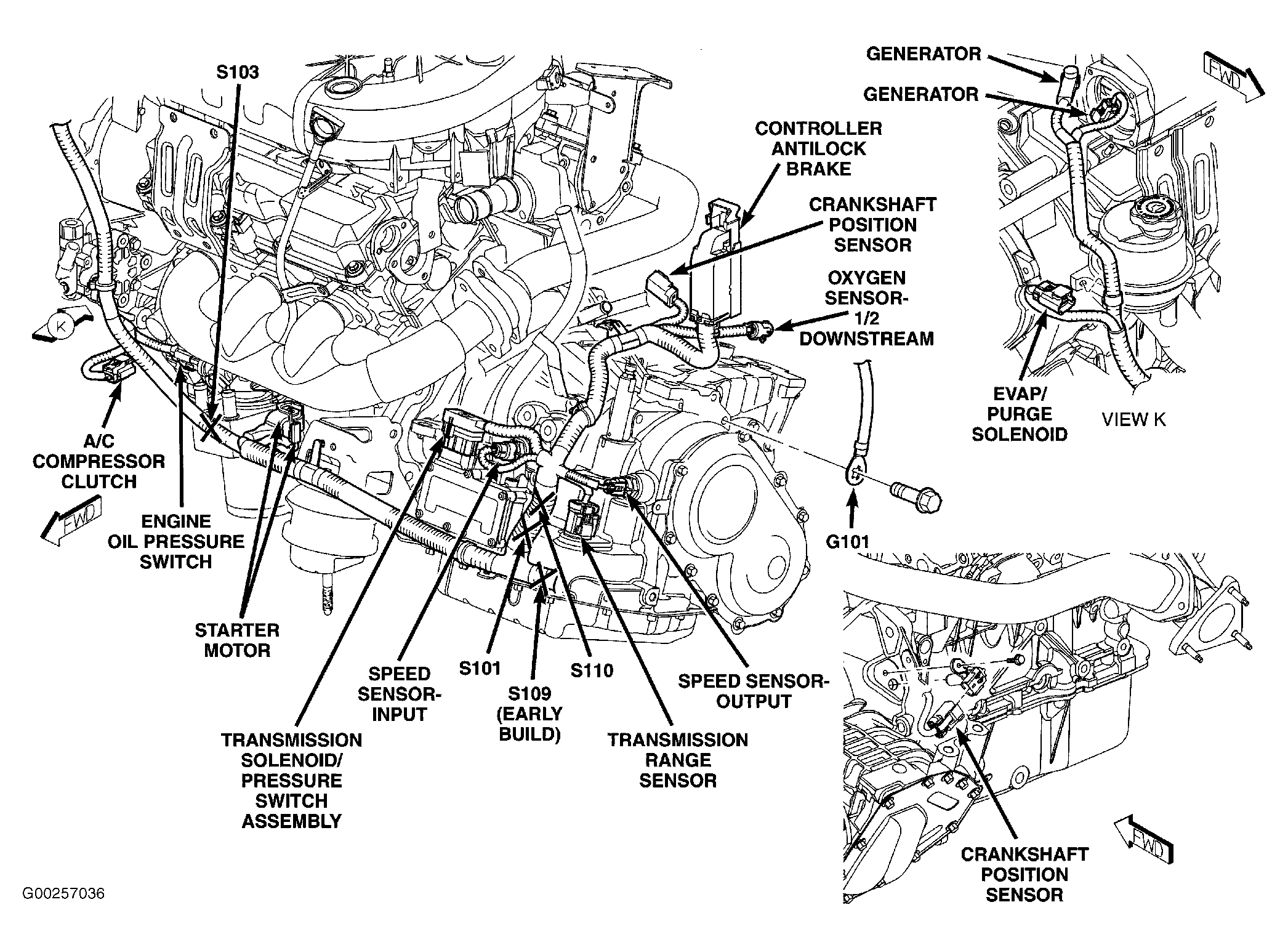

Fig 7: Left Side Of Engine

G00257036

Courtesy of DAIMLERCHRYSLER CORP.

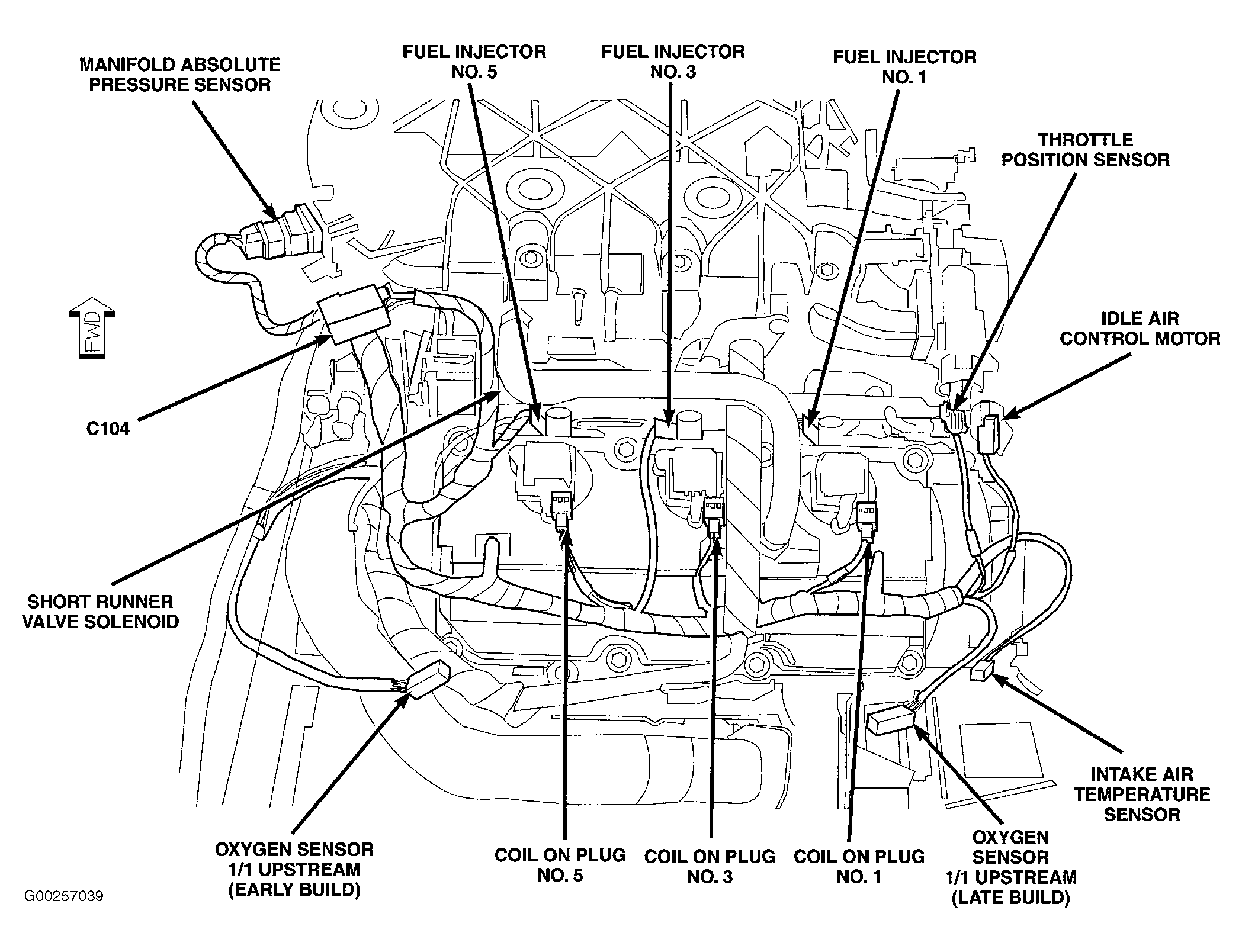

Fig 8: Top Left Of Engine

G00257039

Courtesy of DAIMLERCHRYSLER CORP.

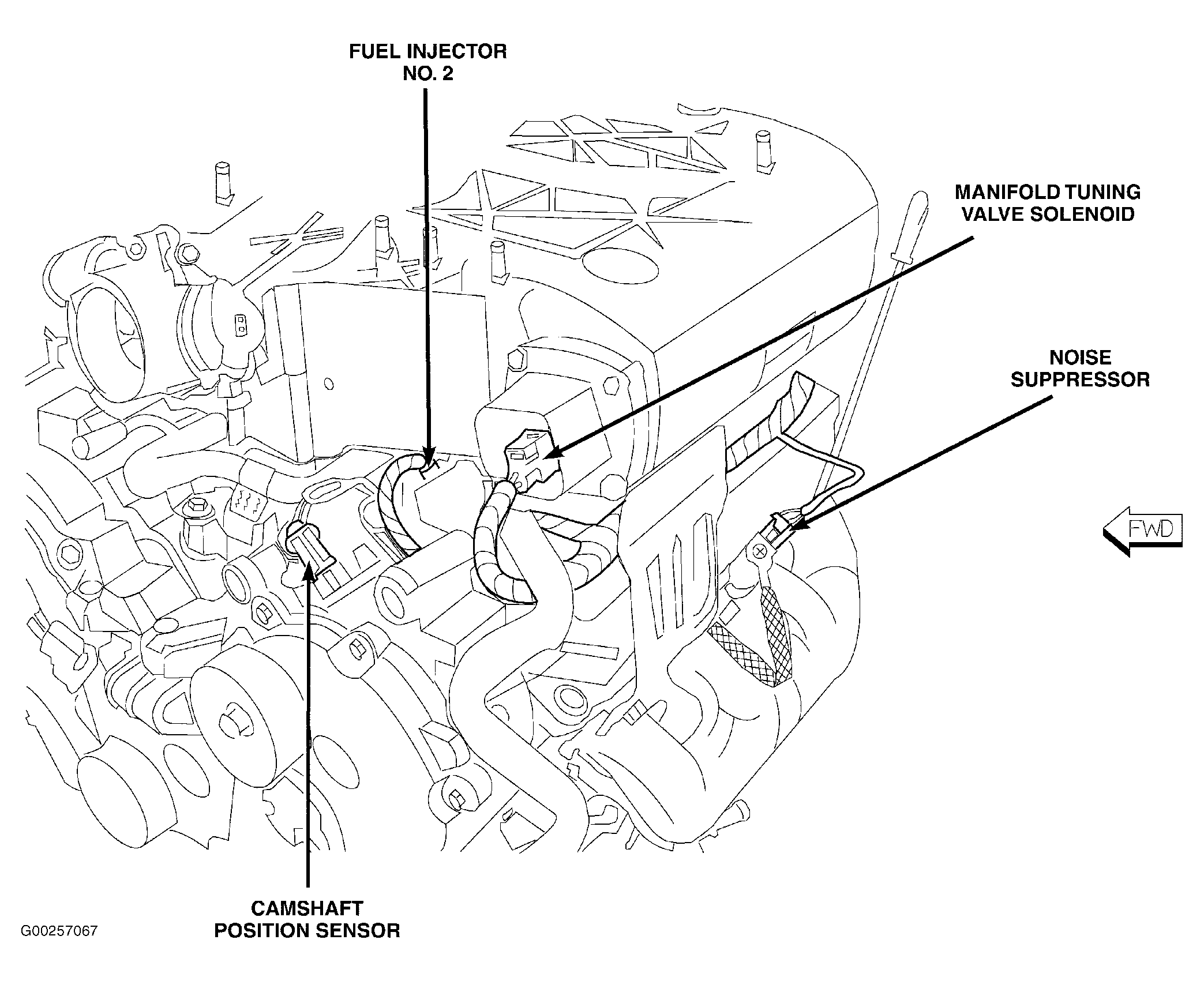

Fig 9: Left Front Of Engine

G00257067

Courtesy of DAIMLERCHRYSLER CORP.

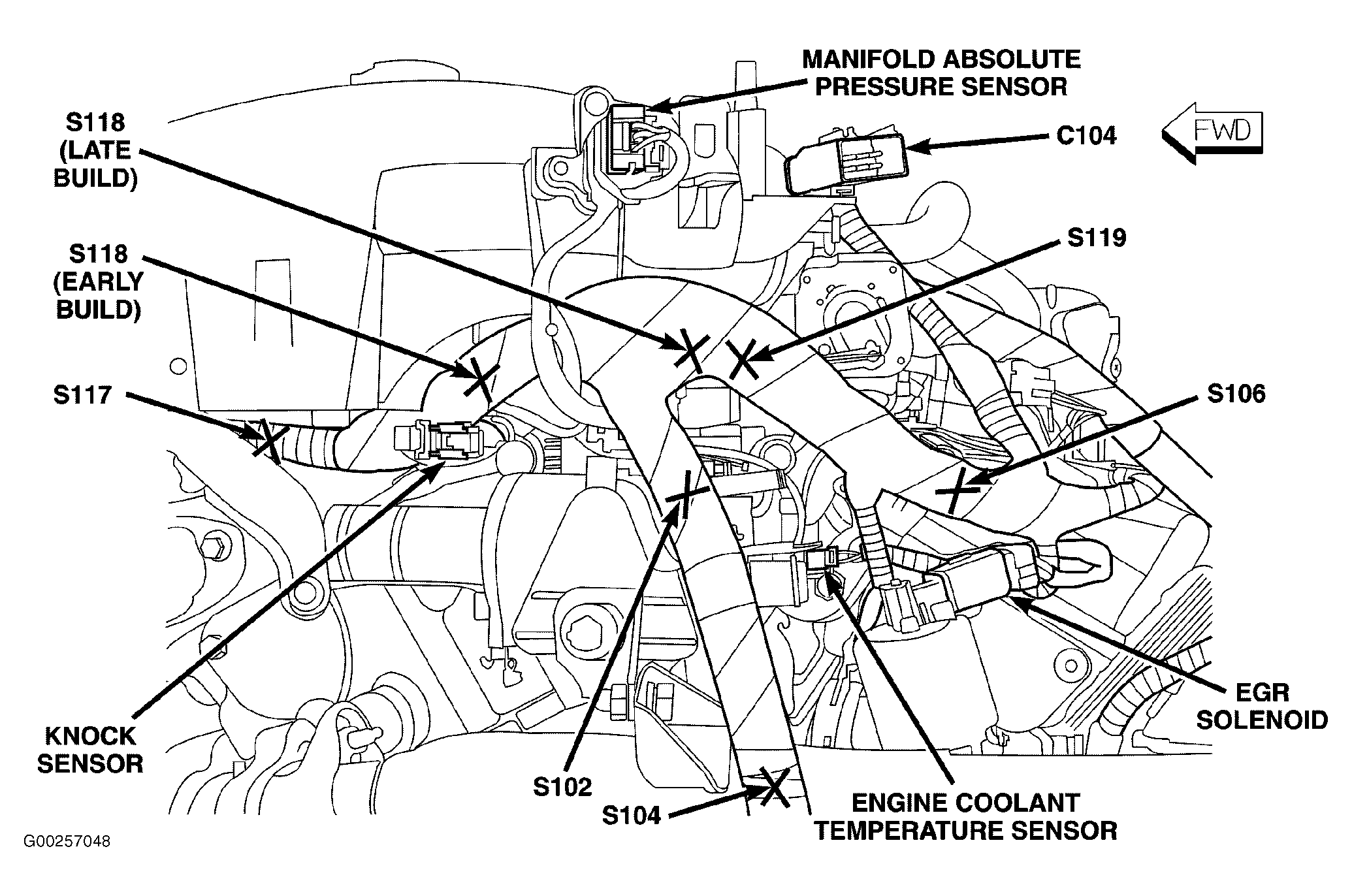

Fig 10: Top Front Of Engine

G00257048

Courtesy of DAIMLERCHRYSLER CORP.

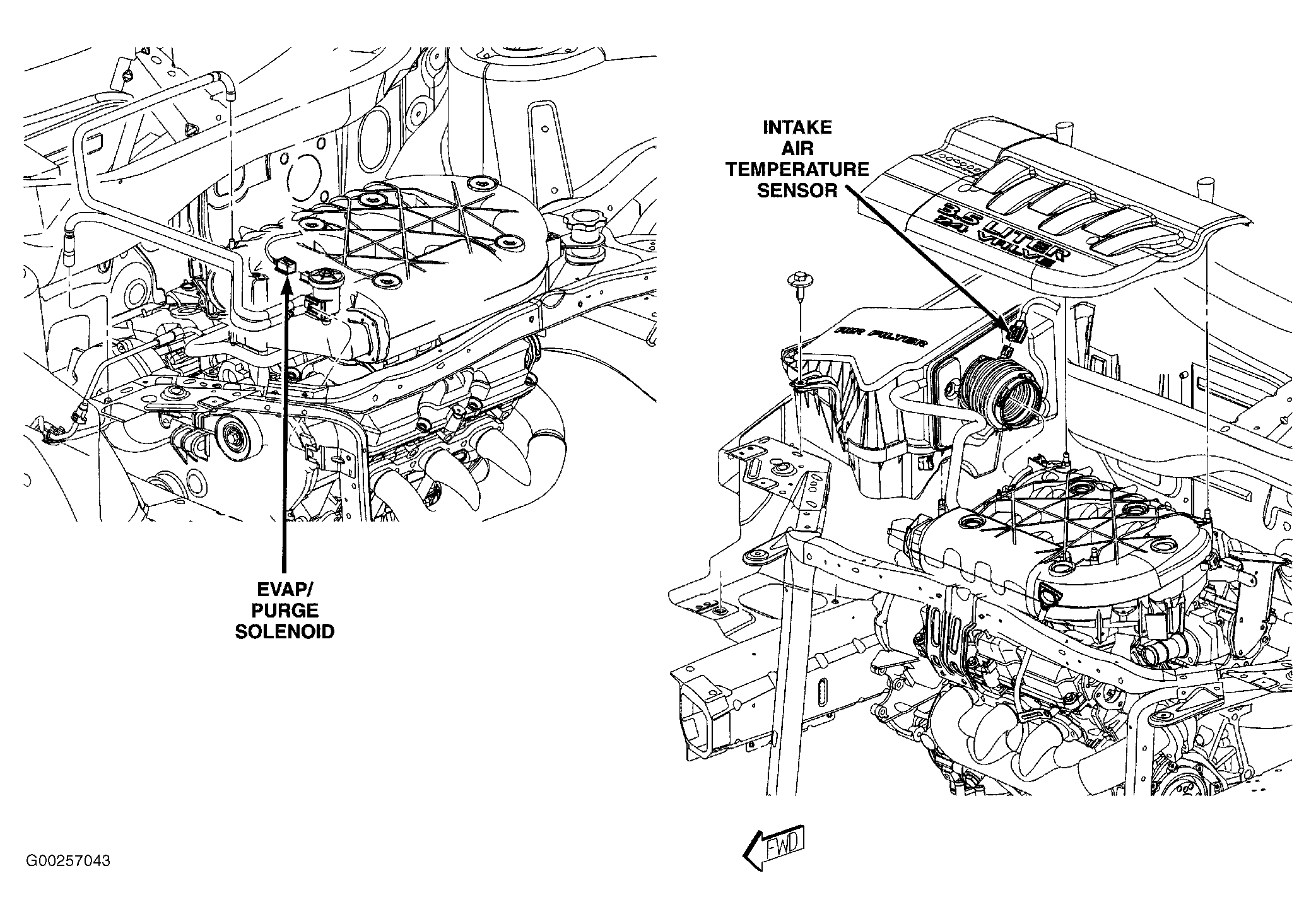

Fig 11: Top Of Engine

G00257043

Courtesy of DAIMLERCHRYSLER CORP.

Fig 12: HVAC

G00257055

Courtesy of DAIMLERCHRYSLER CORP.

Fig 13: Rear Of Dash

G00257057

Courtesy of DAIMLERCHRYSLER CORP.

Fig 14: Rear Of Dash

G00257052

Courtesy of DAIMLERCHRYSLER CORP.

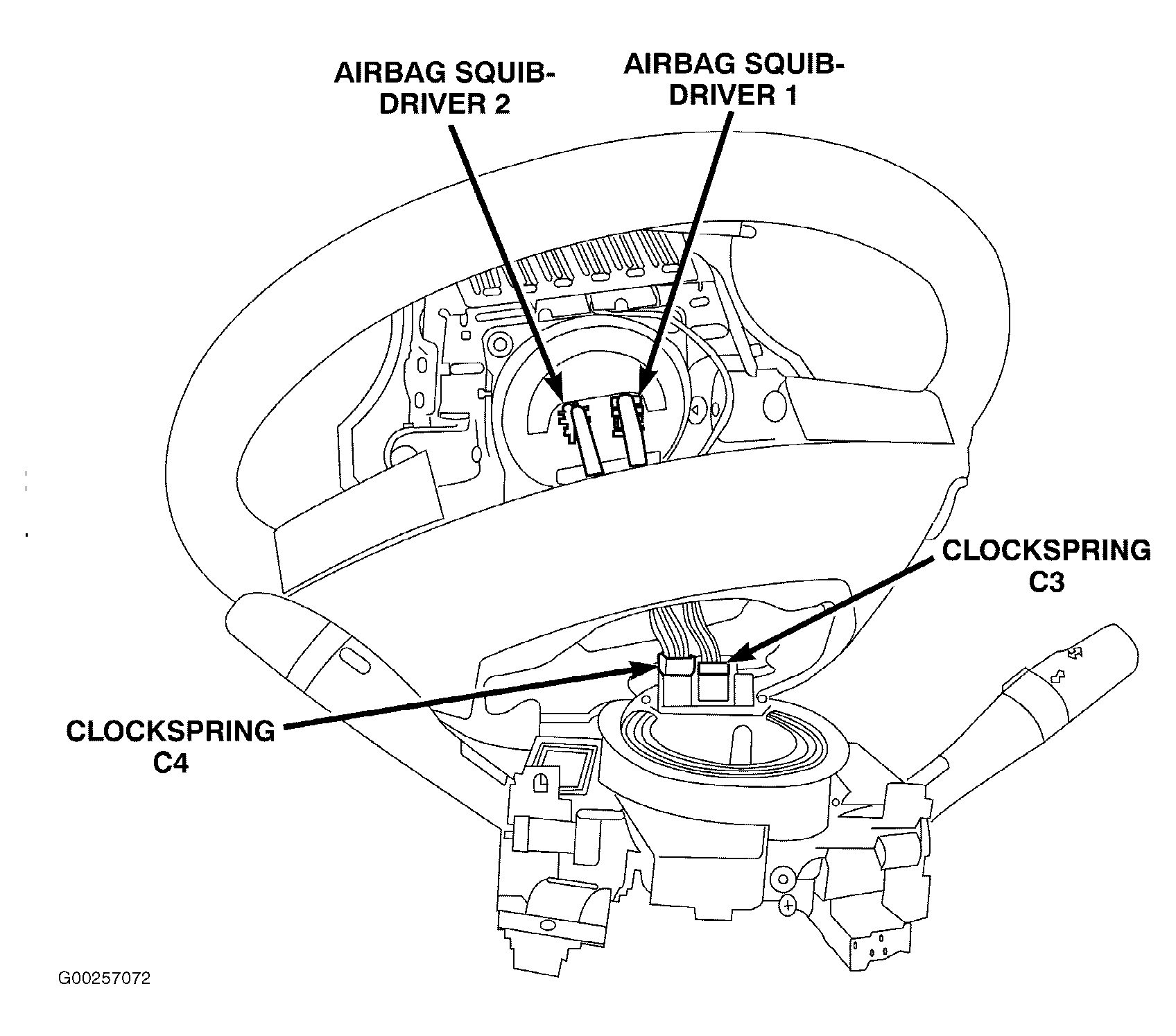

Fig 15: Steering Wheel

G00257072

Courtesy of DAIMLERCHRYSLER CORP.

Fig 16: Center Console

G00257073

Courtesy of DAIMLERCHRYSLER CORP.

Fig 17: Rear Console

G00257074

Courtesy of DAIMLERCHRYSLER CORP.

Fig 18: Left Kick Panel

G00257075

Courtesy of DAIMLERCHRYSLER CORP.

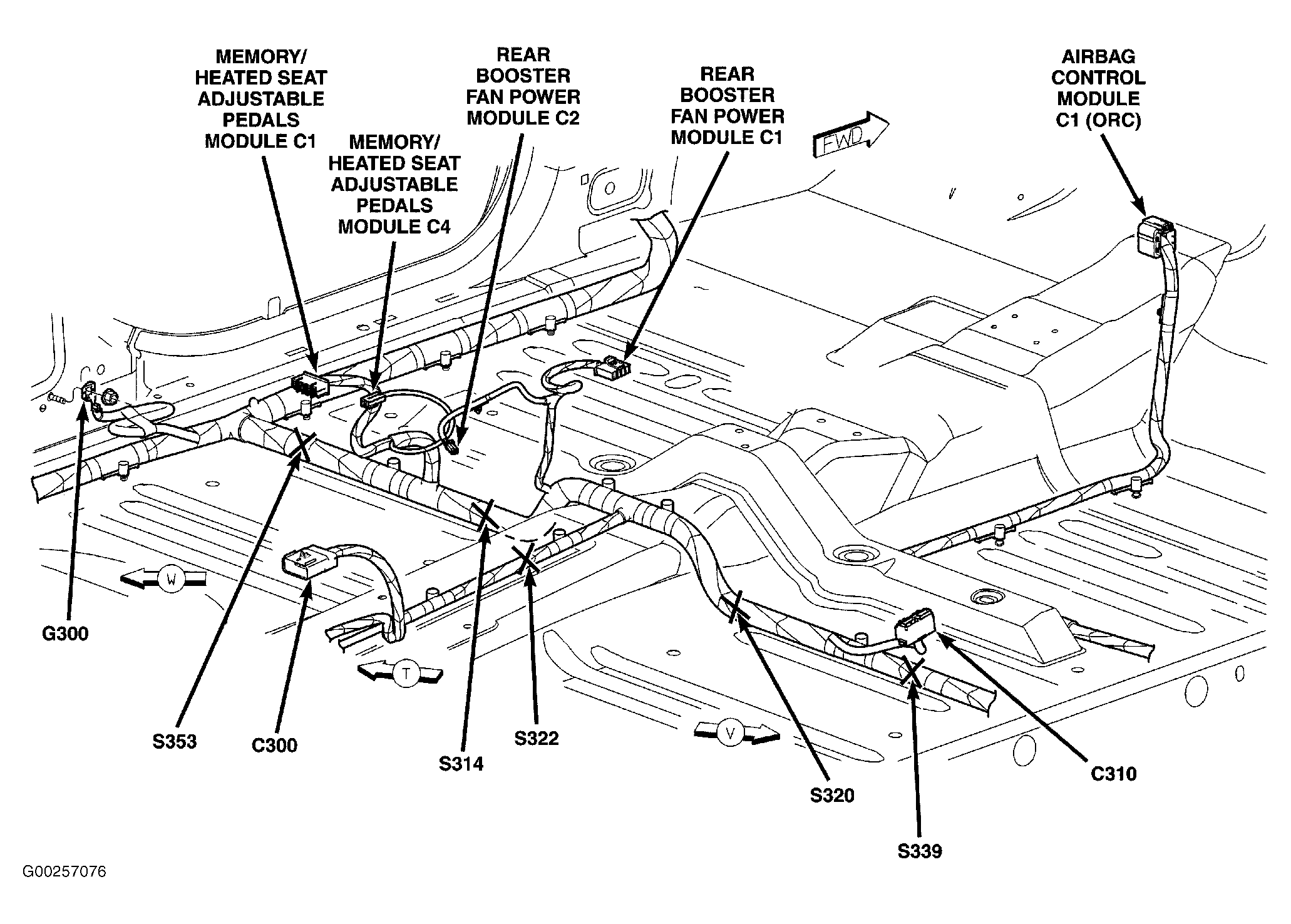

Fig 19: Vehicle Floor

G00257076

Courtesy of DAIMLERCHRYSLER CORP.

Fig 20: Left Inside Of Body

G00257077

Courtesy of DAIMLERCHRYSLER CORP.

Fig 21: Left Rear Of Vehicle

G00257078

Courtesy of DAIMLERCHRYSLER CORP.

Fig 22: Right Side Of Body

G00257079

Courtesy of DAIMLERCHRYSLER CORP.

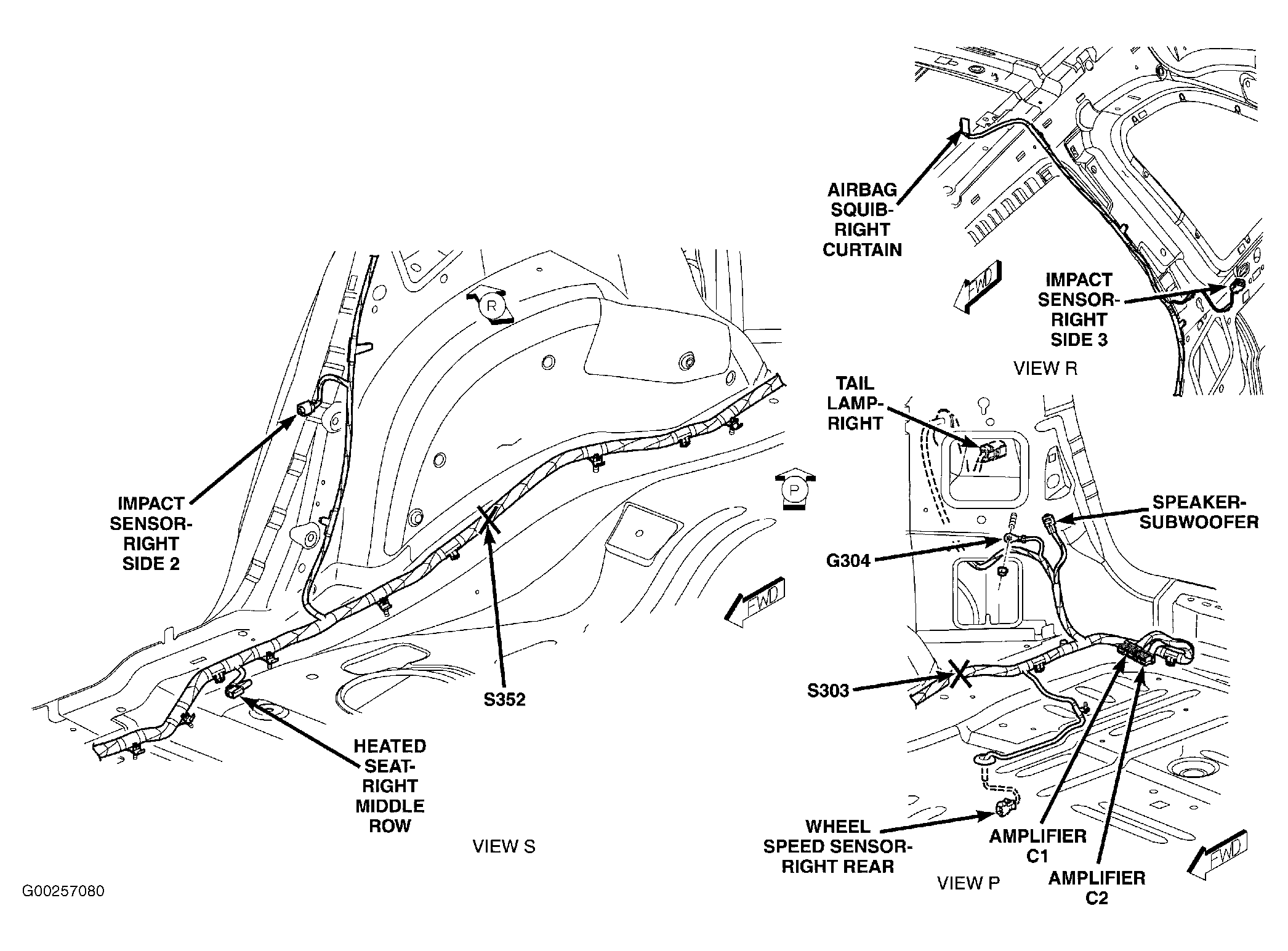

Fig 23: Right Rear Of Vehicle

G00257080

Courtesy of DAIMLERCHRYSLER CORP.

Fig 24: Rear Floor Of Vehicle

G00257081

Courtesy of DAIMLERCHRYSLER CORP.

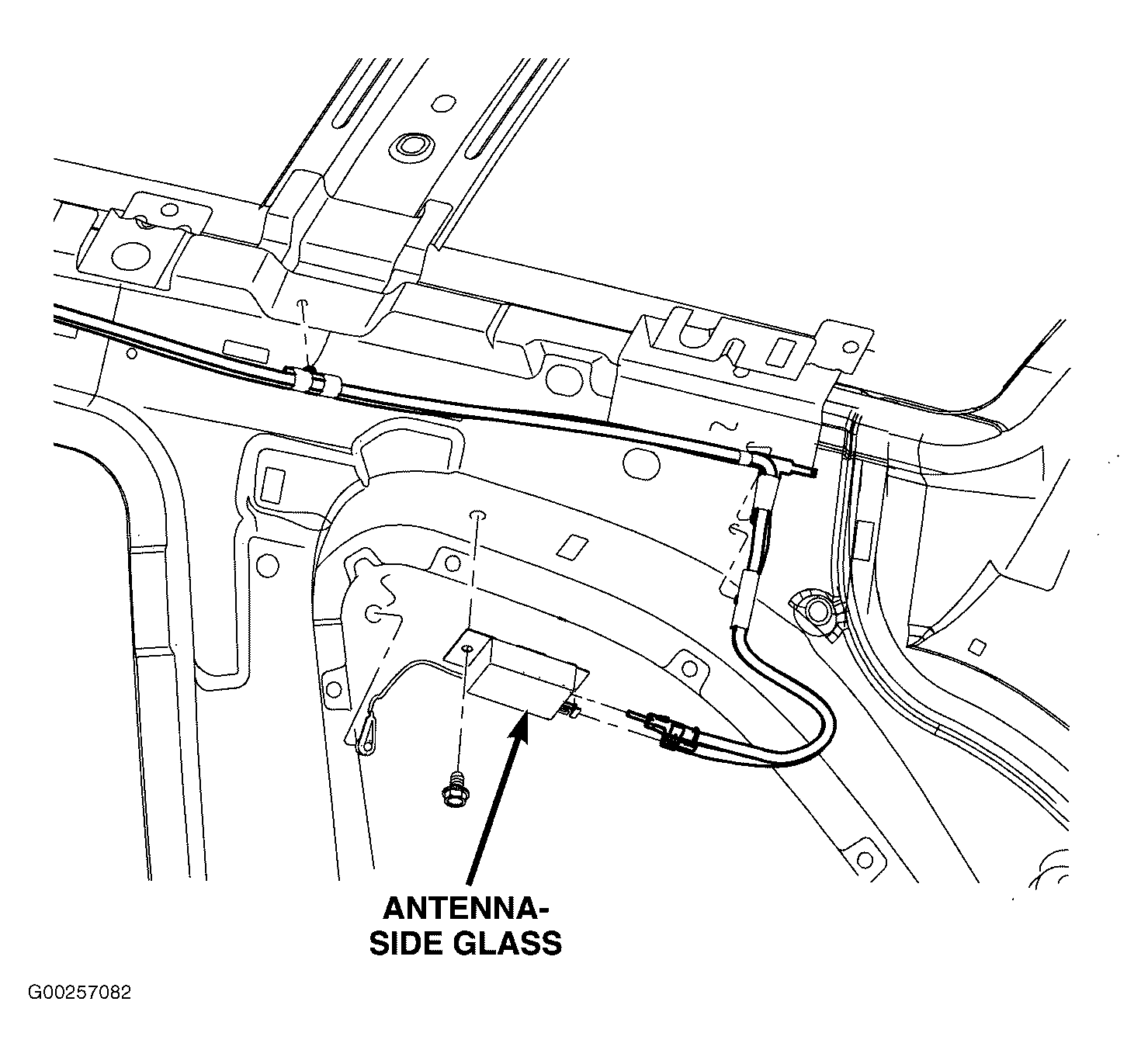

Fig 25: Right Rear Of Roof

G00257082

Courtesy of DAIMLERCHRYSLER CORP.

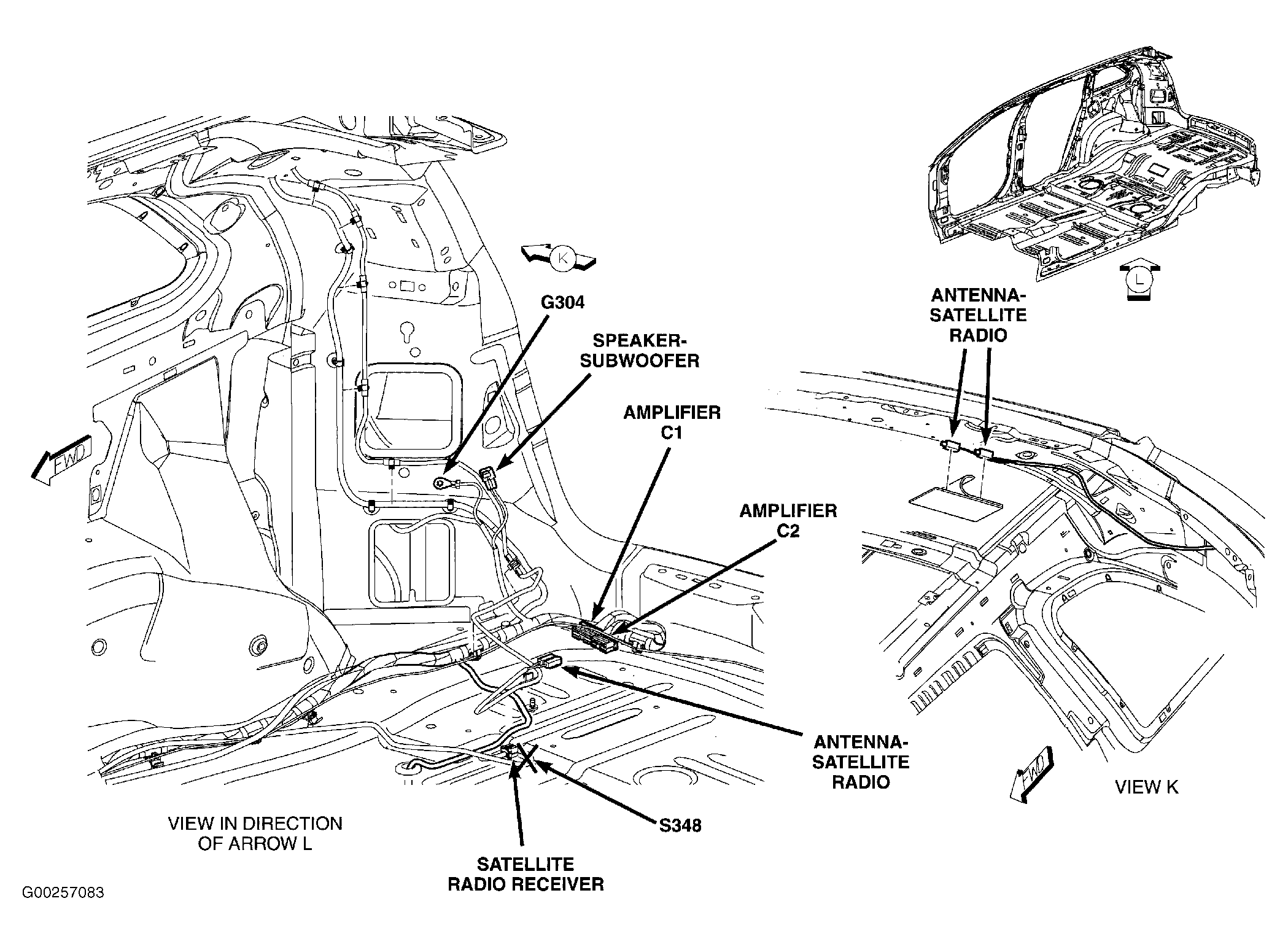

Fig 26: Right Rear Of Vehicle

G00257083

Courtesy of DAIMLERCHRYSLER CORP.

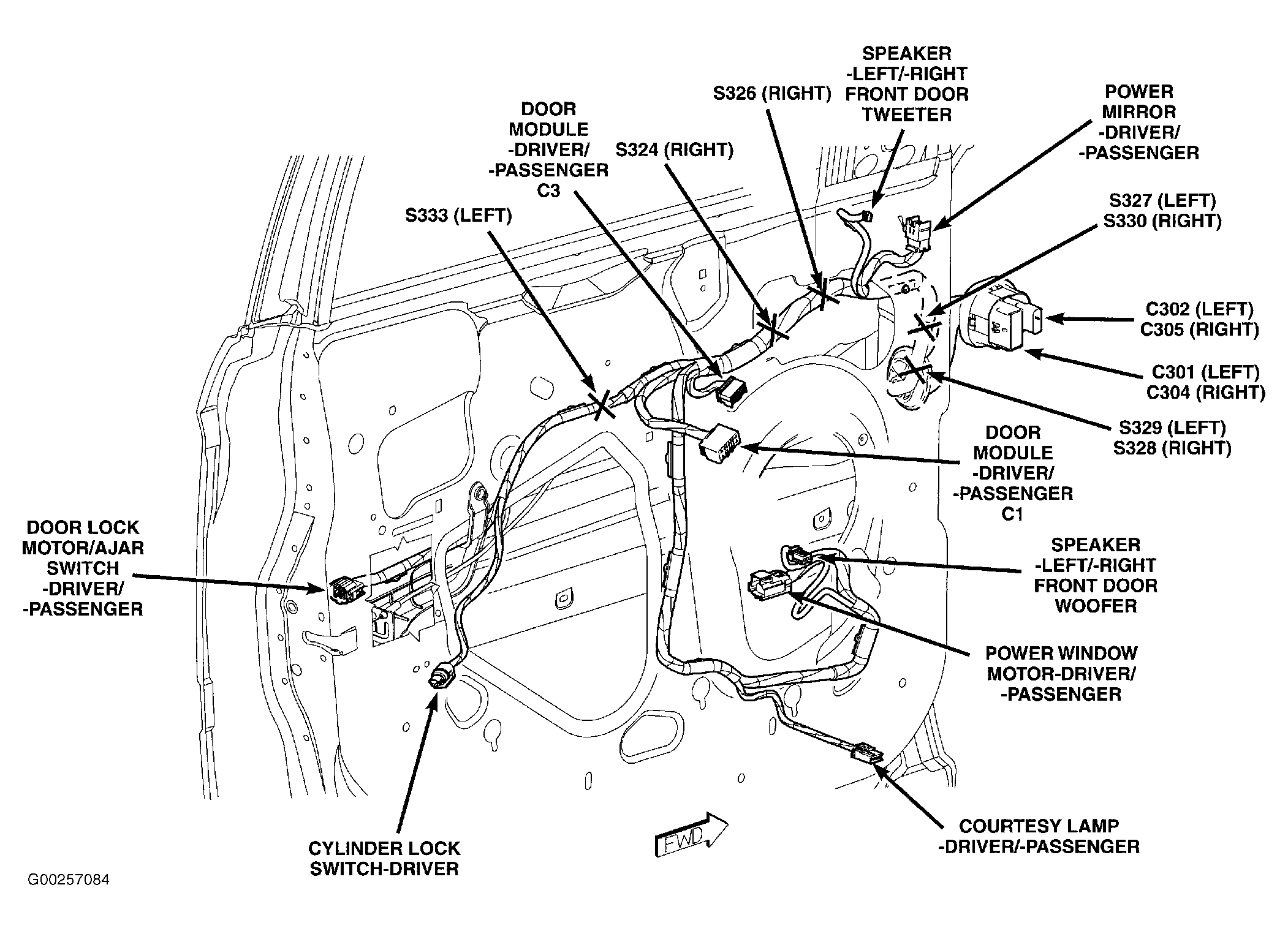

Fig 27: Front Door (Left/Right)

G00257084

Courtesy of DAIMLERCHRYSLER CORP.

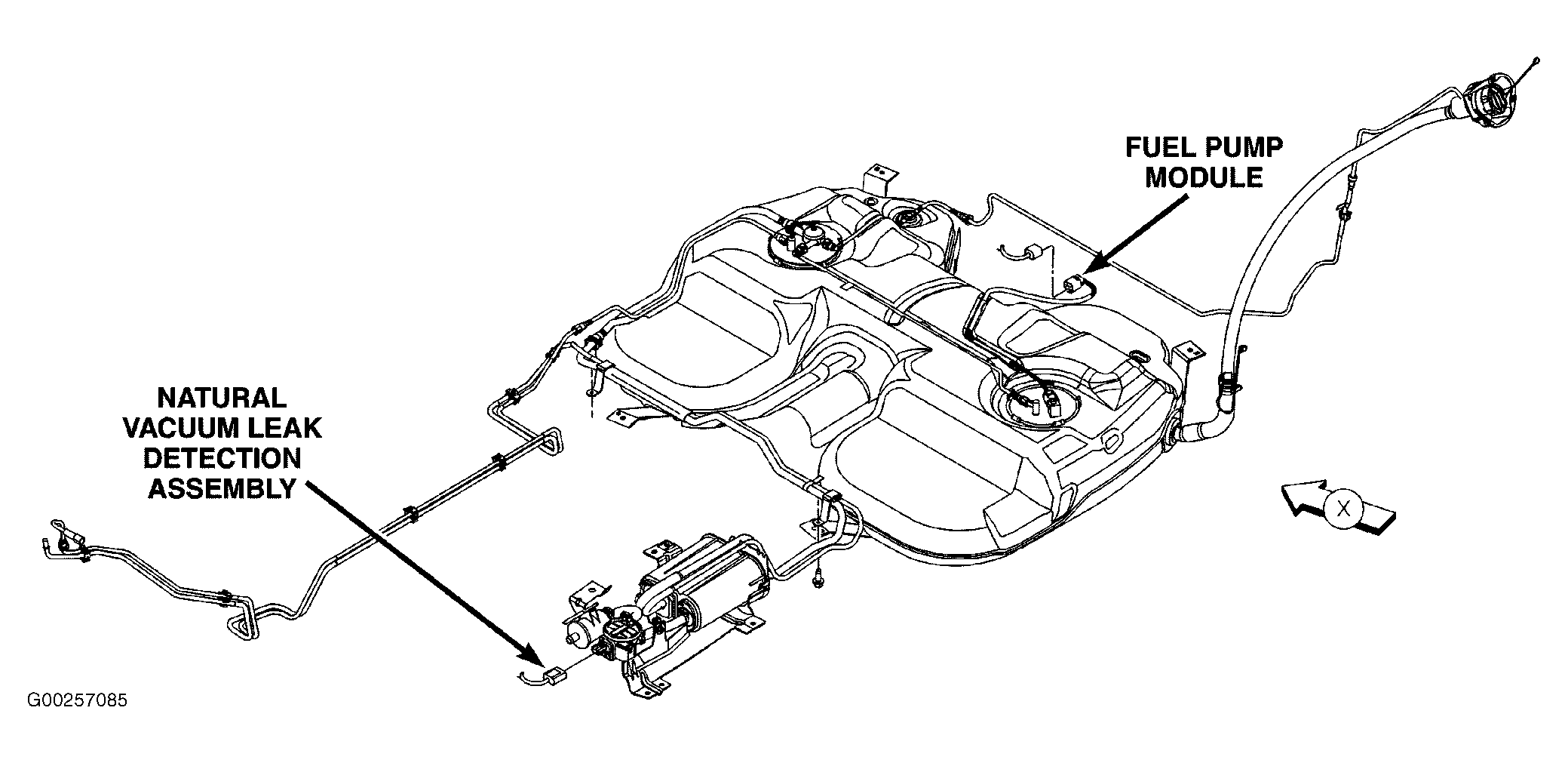

Fig 28: Bottom Of Vehicle

G00257085

Courtesy of DAIMLERCHRYSLER CORP.

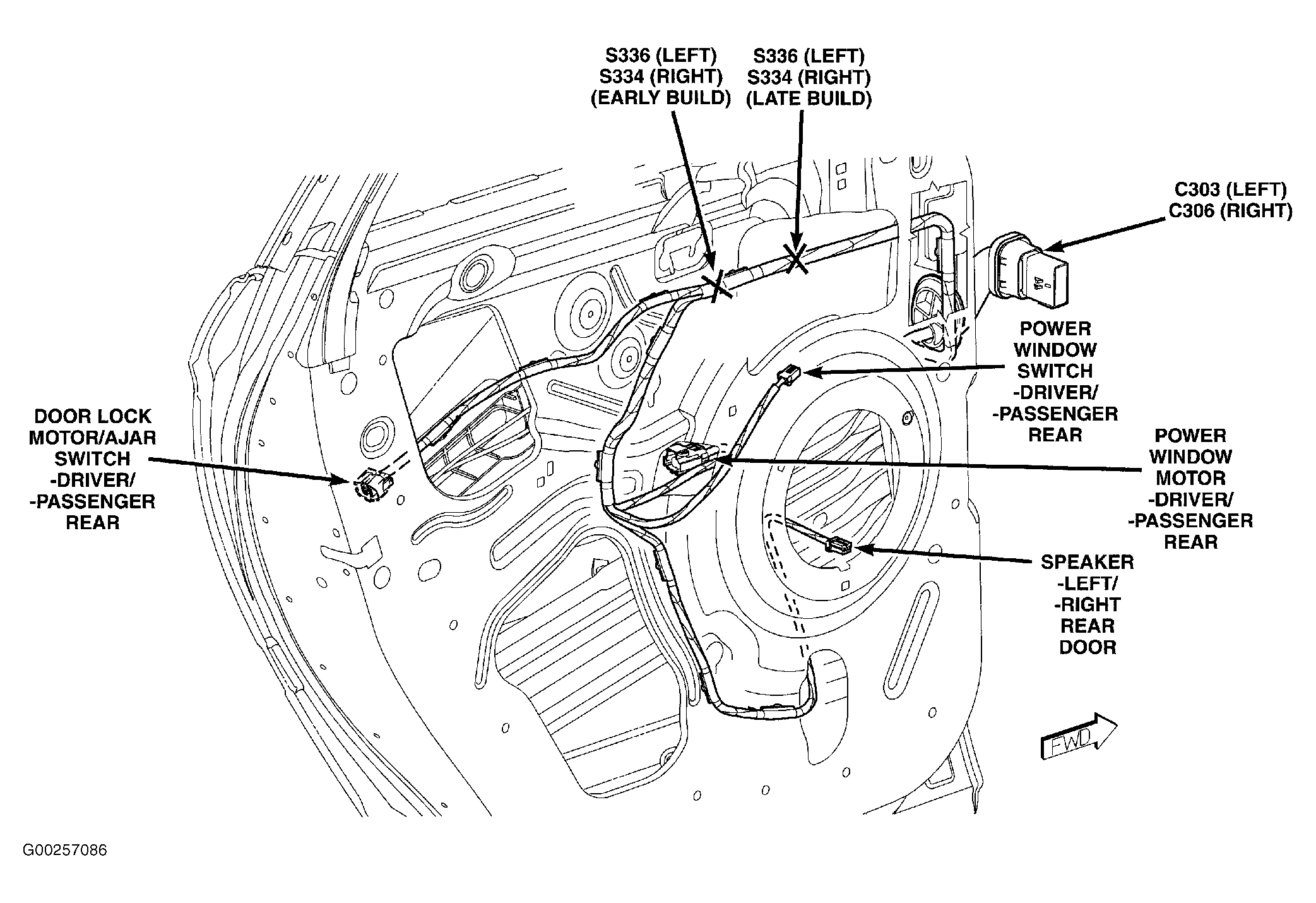

Fig 29: Left/Right Rear Door

G00257086

Courtesy of DAIMLERCHRYSLER CORP.

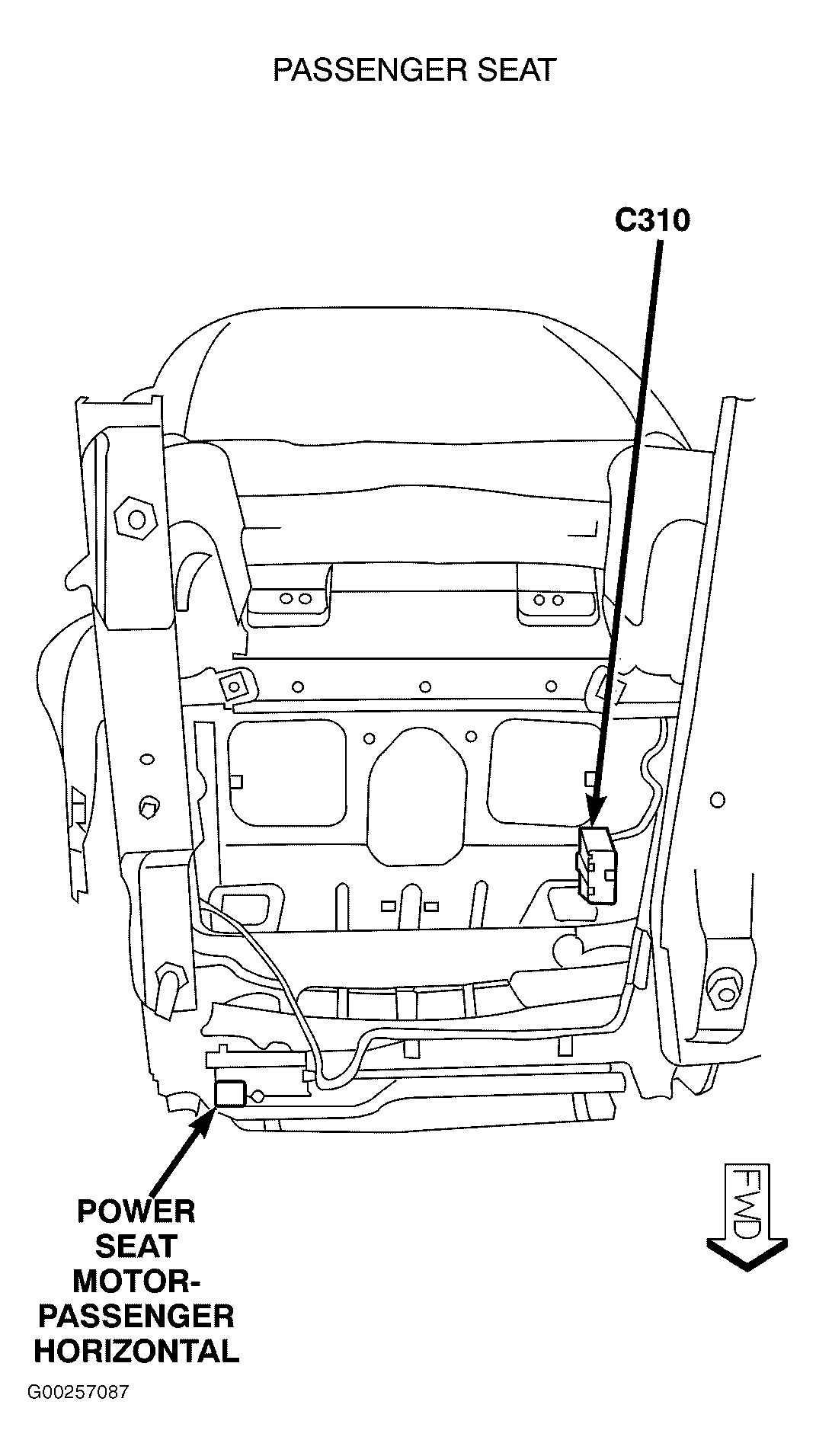

Fig 30: Bottom Of Passenger Seat

G00257087

Courtesy of DAIMLERCHRYSLER CORP.

Fig 31: Bottom Of Driver Seat

G00258365

Courtesy of DAIMLERCHRYSLER CORP.

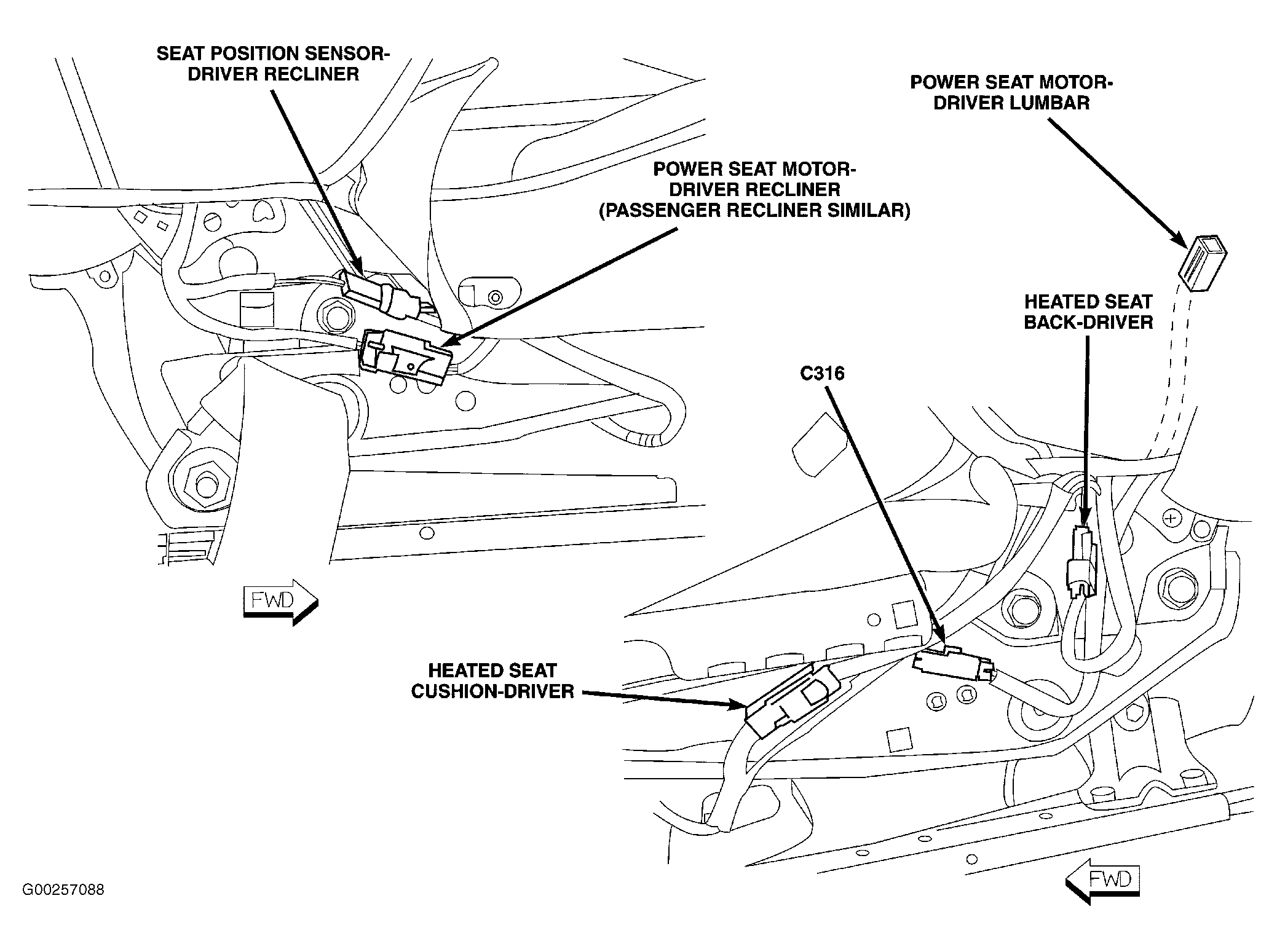

Fig 32: Sides Of Driver Seat

G00257088

Courtesy of DAIMLERCHRYSLER CORP.

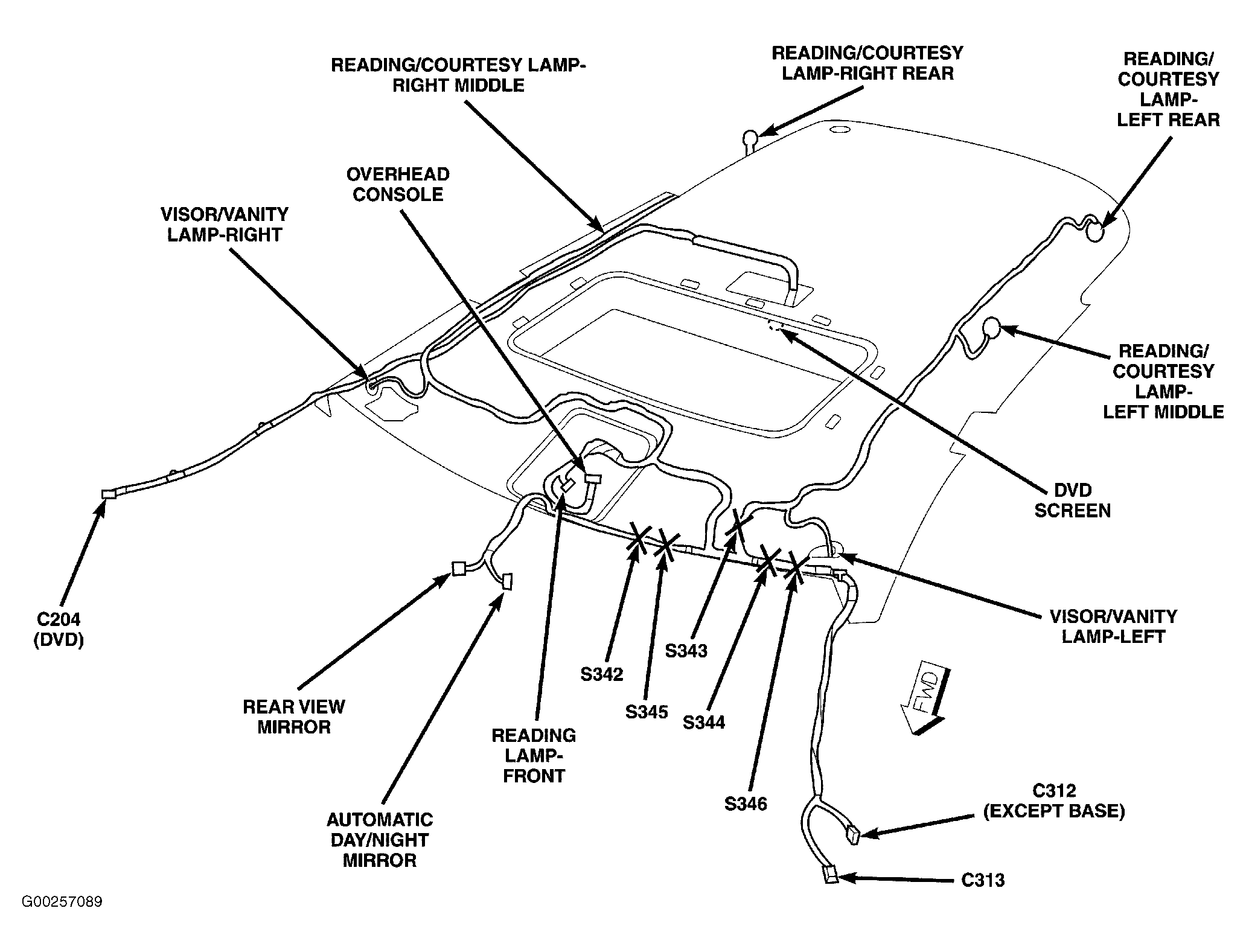

Fig 33: Headliner

G00257089

Courtesy of DAIMLERCHRYSLER CORP.

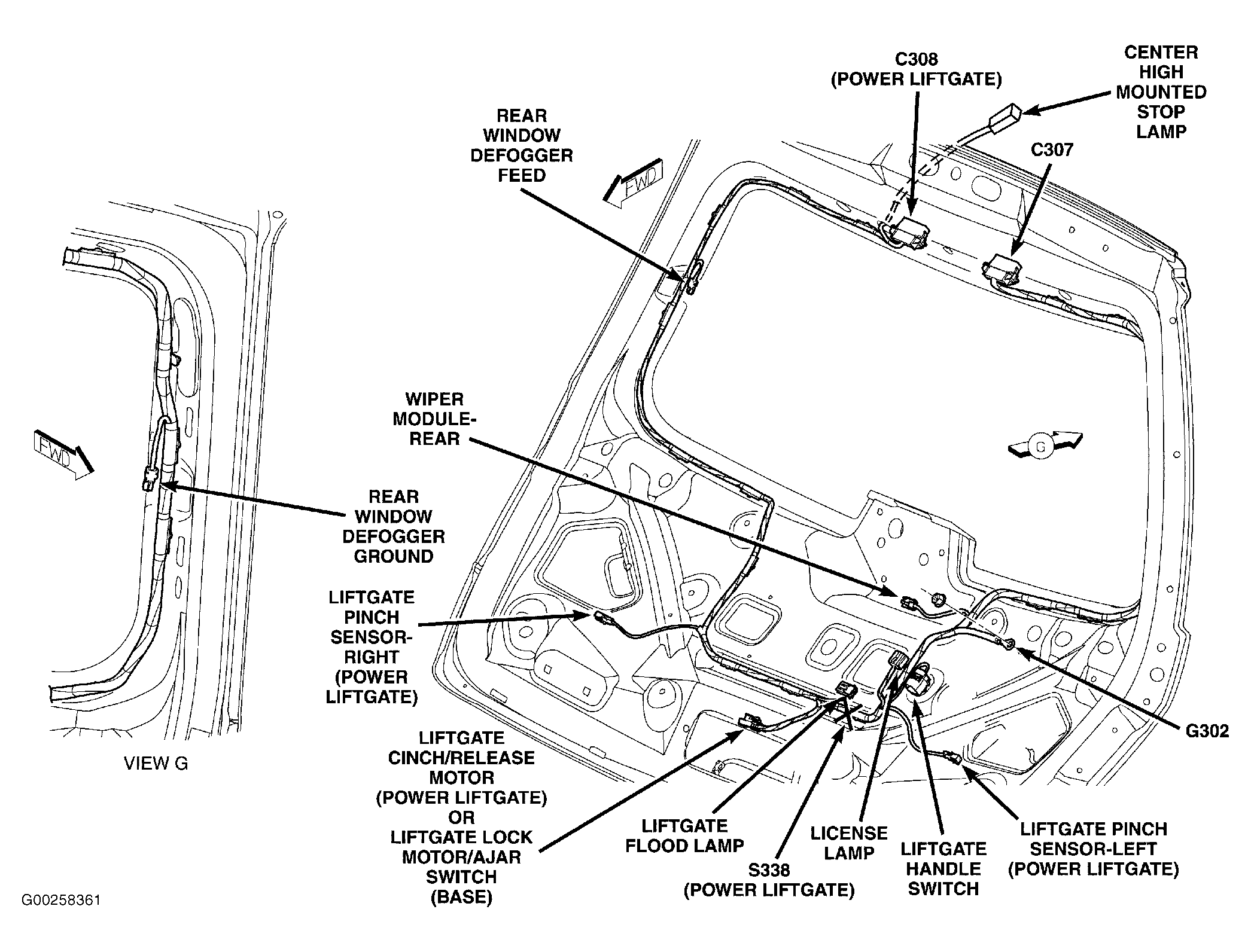

Fig 34: Liftgate

G00258361

Courtesy of DAIMLERCHRYSLER CORP.
