Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Airbag Control Module (ORC) | Under front of center console. See Figure . |

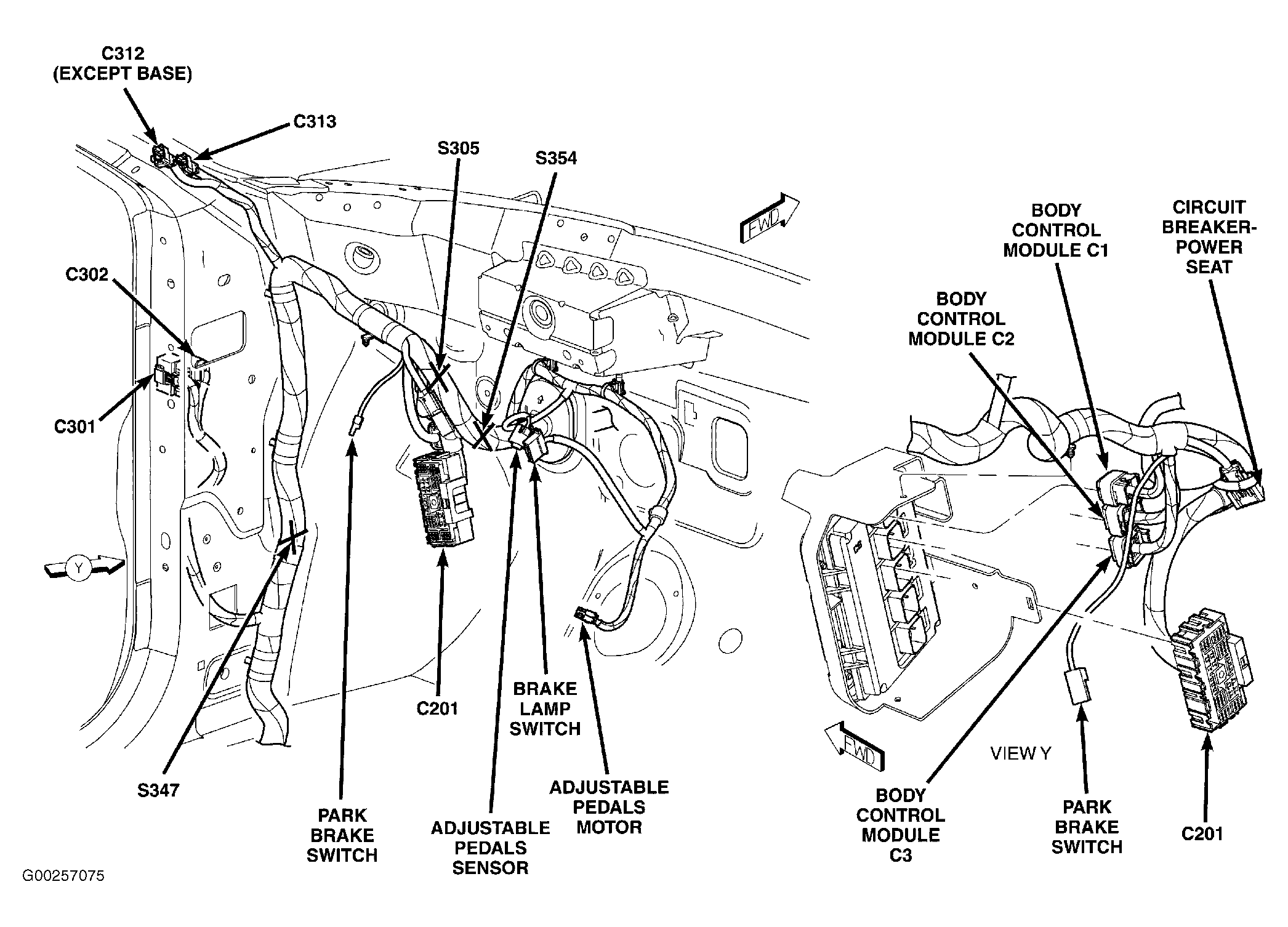

| Body Control Module | Left kick panel. See Figure . |

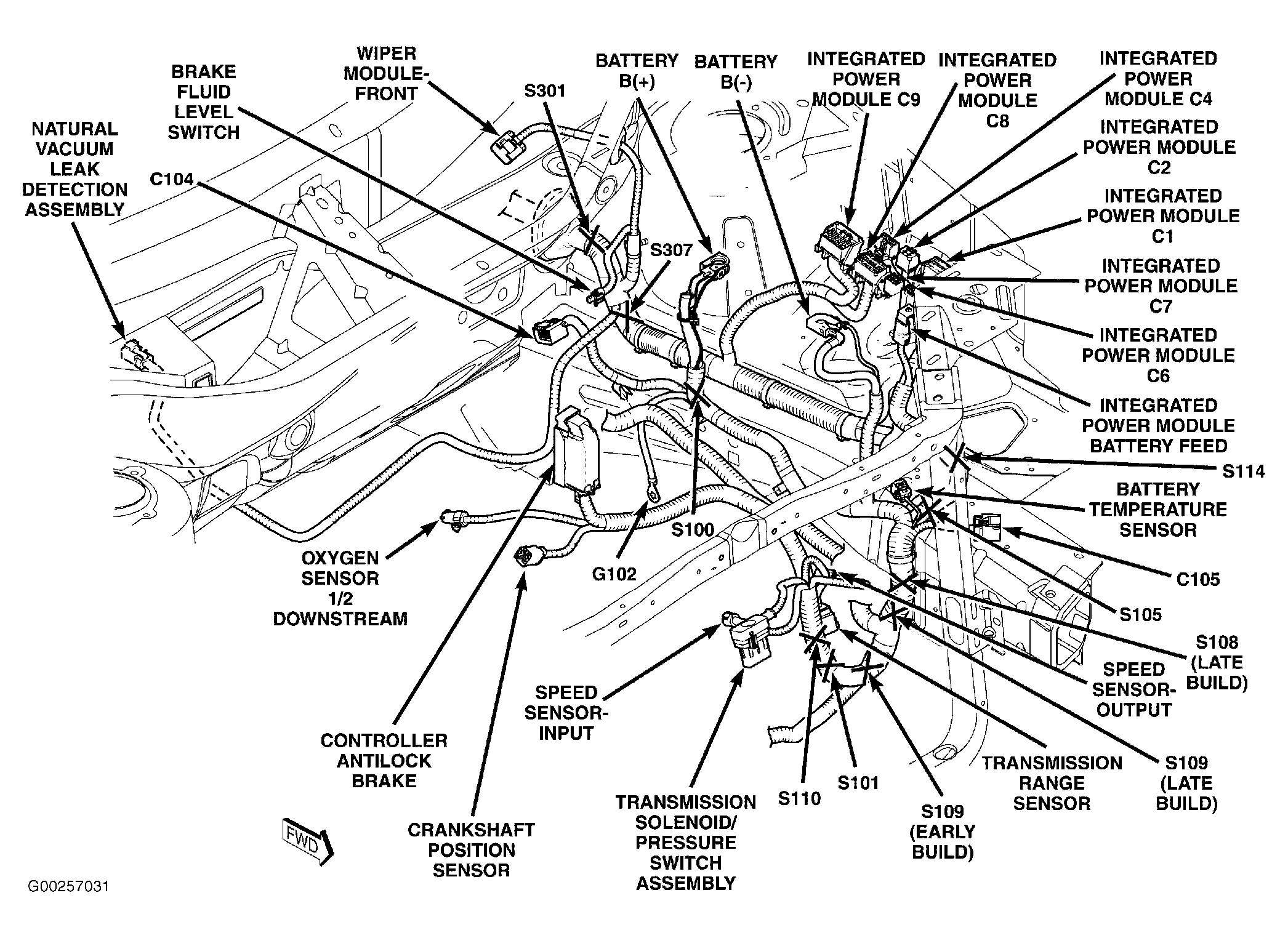

| Controller Antilock Brake | Left rear of engine compartment. See Figure . |

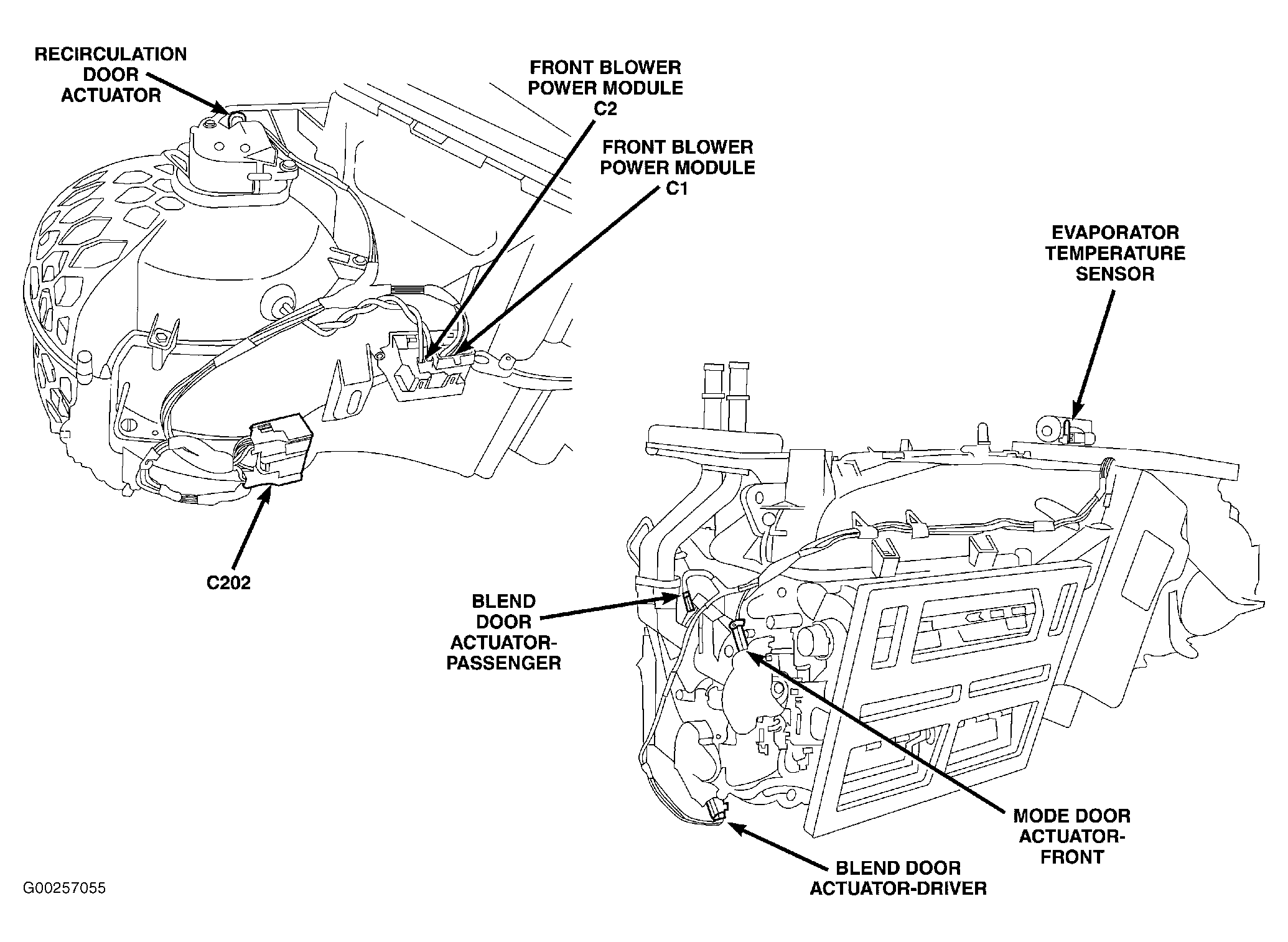

| Front Blower Power Module | On HVAC. See Figure . |

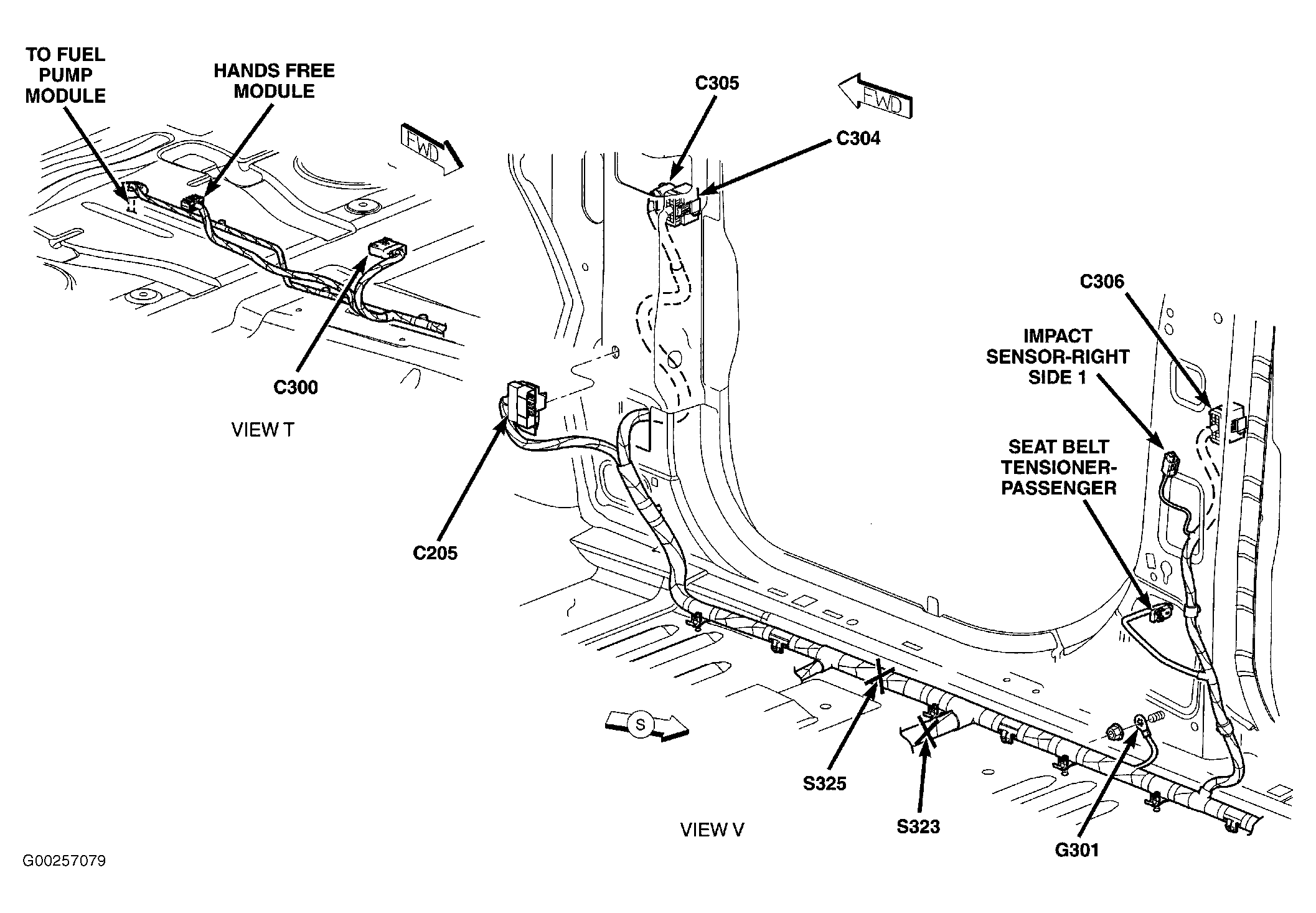

| Hands Free Module | Center of vehicle floor. See Figure . |

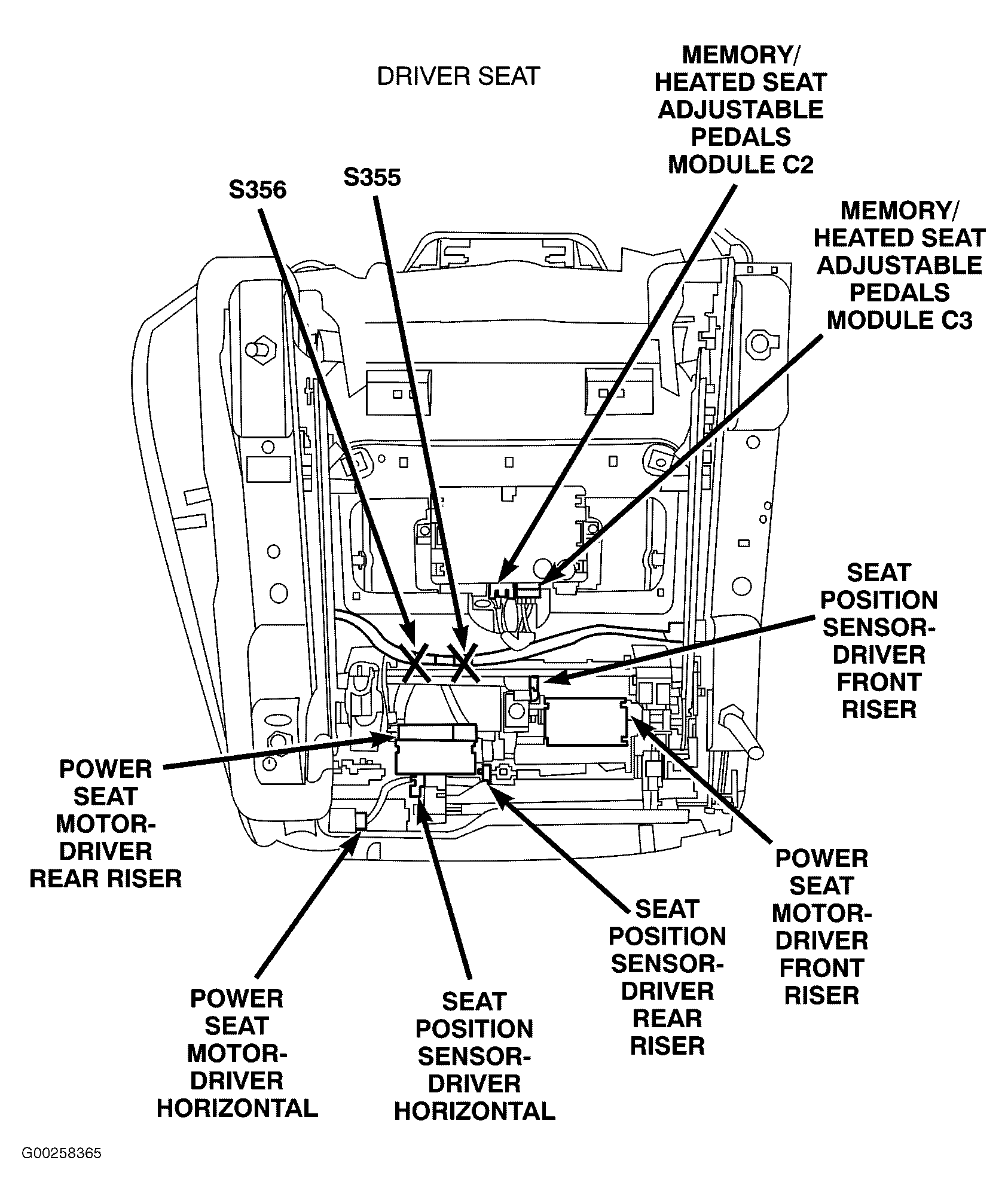

| Memory/Heated Seat Adjustable Pedals Module | Under driver seat. See Figure . |

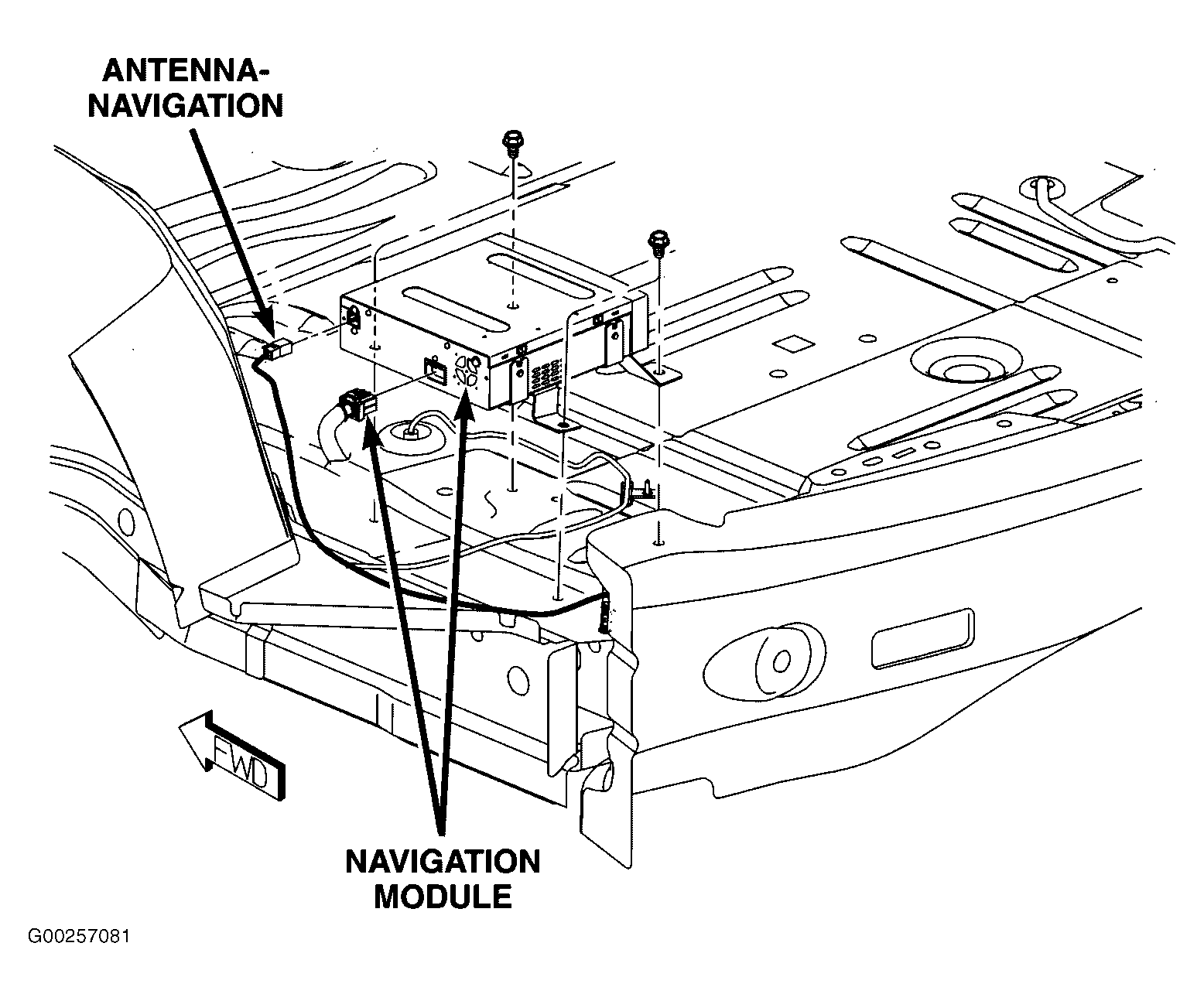

| Navigation Module | Left rear corner of vehicle. See Figure . |
| Navigation Unit | Left rear corner of vehicle. See Figure . |

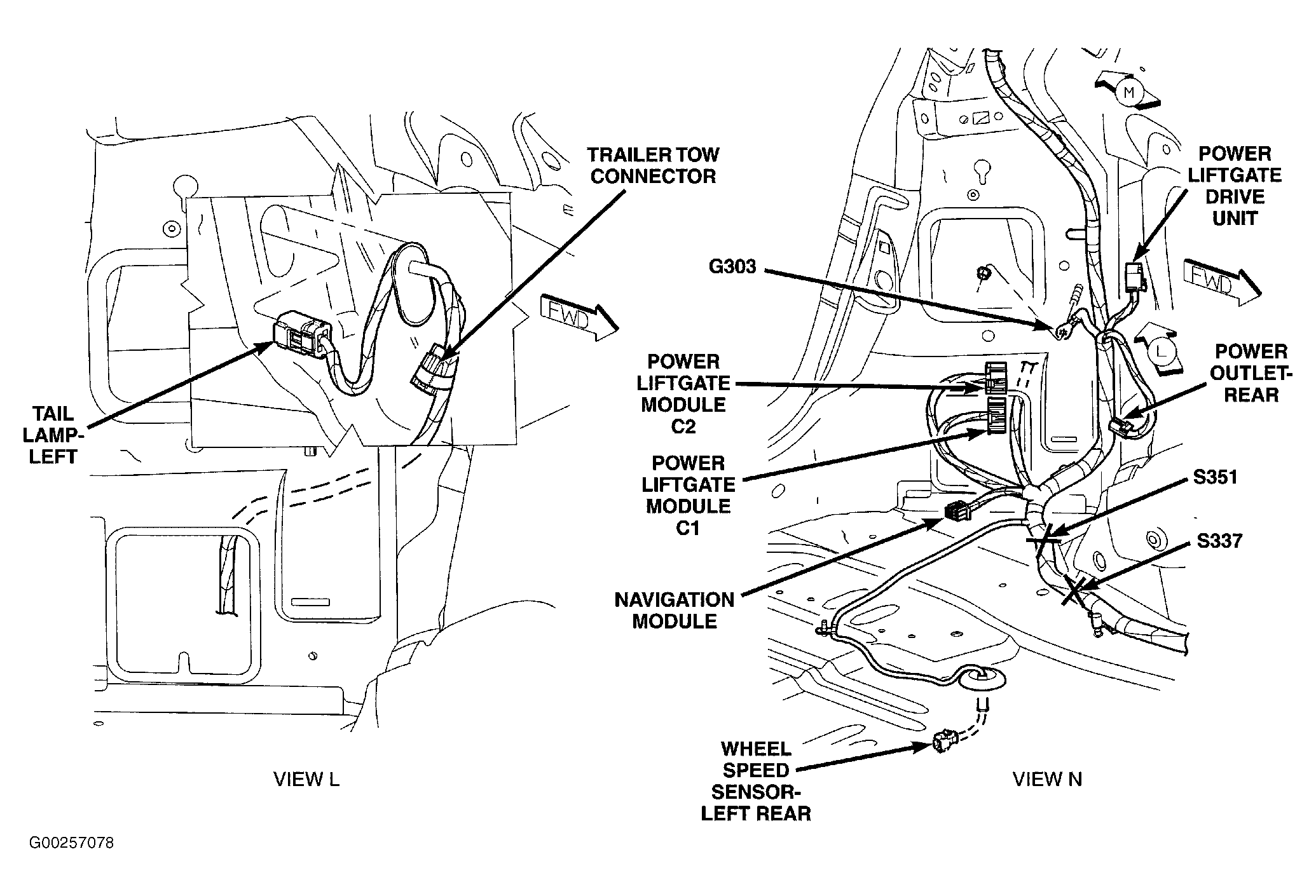

| Power Liftgate Module | Left rear corner of vehicle. See Figure . |

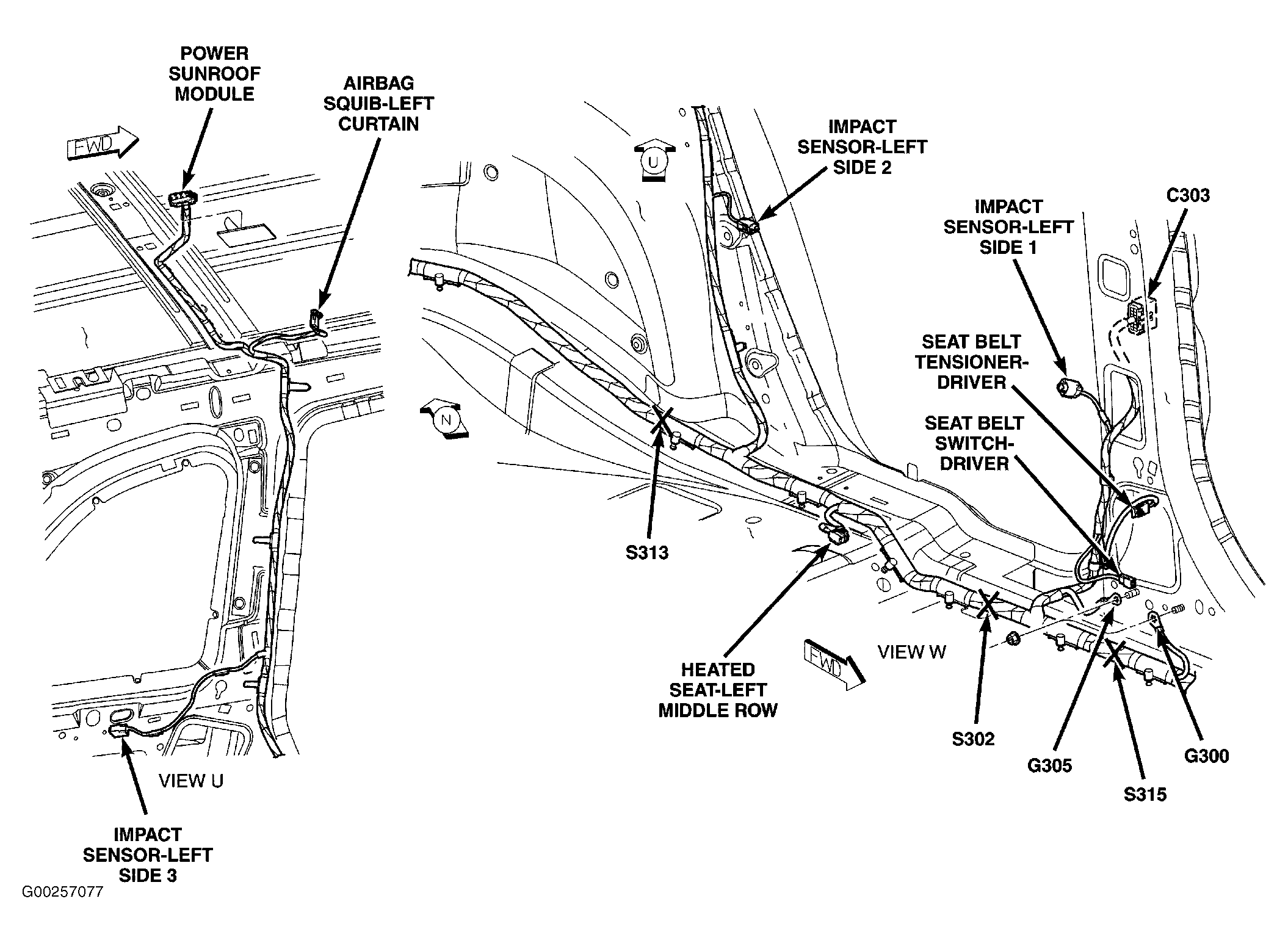

| Power Sunroof Module | Rear of sunroof. See Figure . |

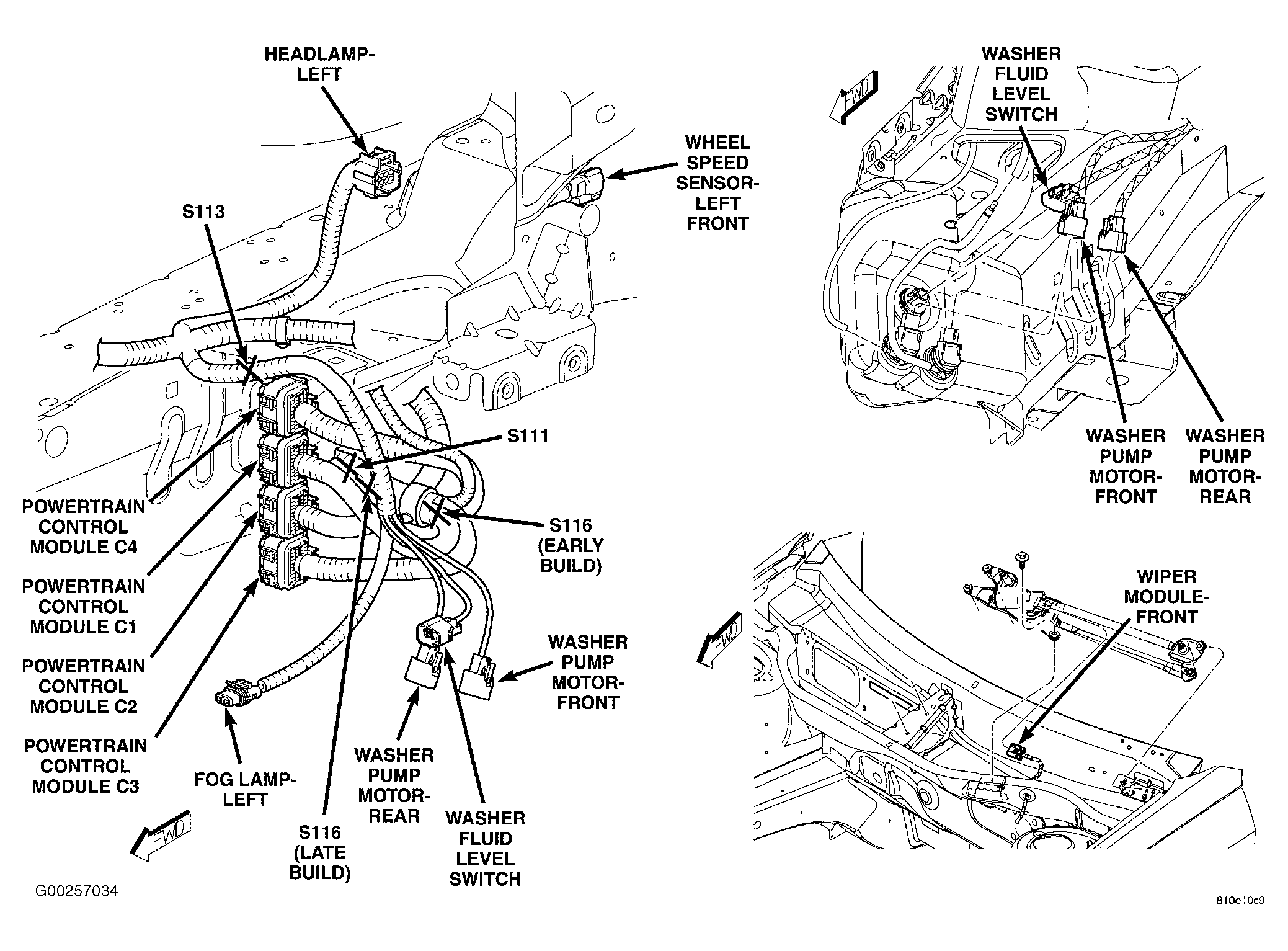

| Powertrain Control Module | Left front of engine compartment. See Figure . |

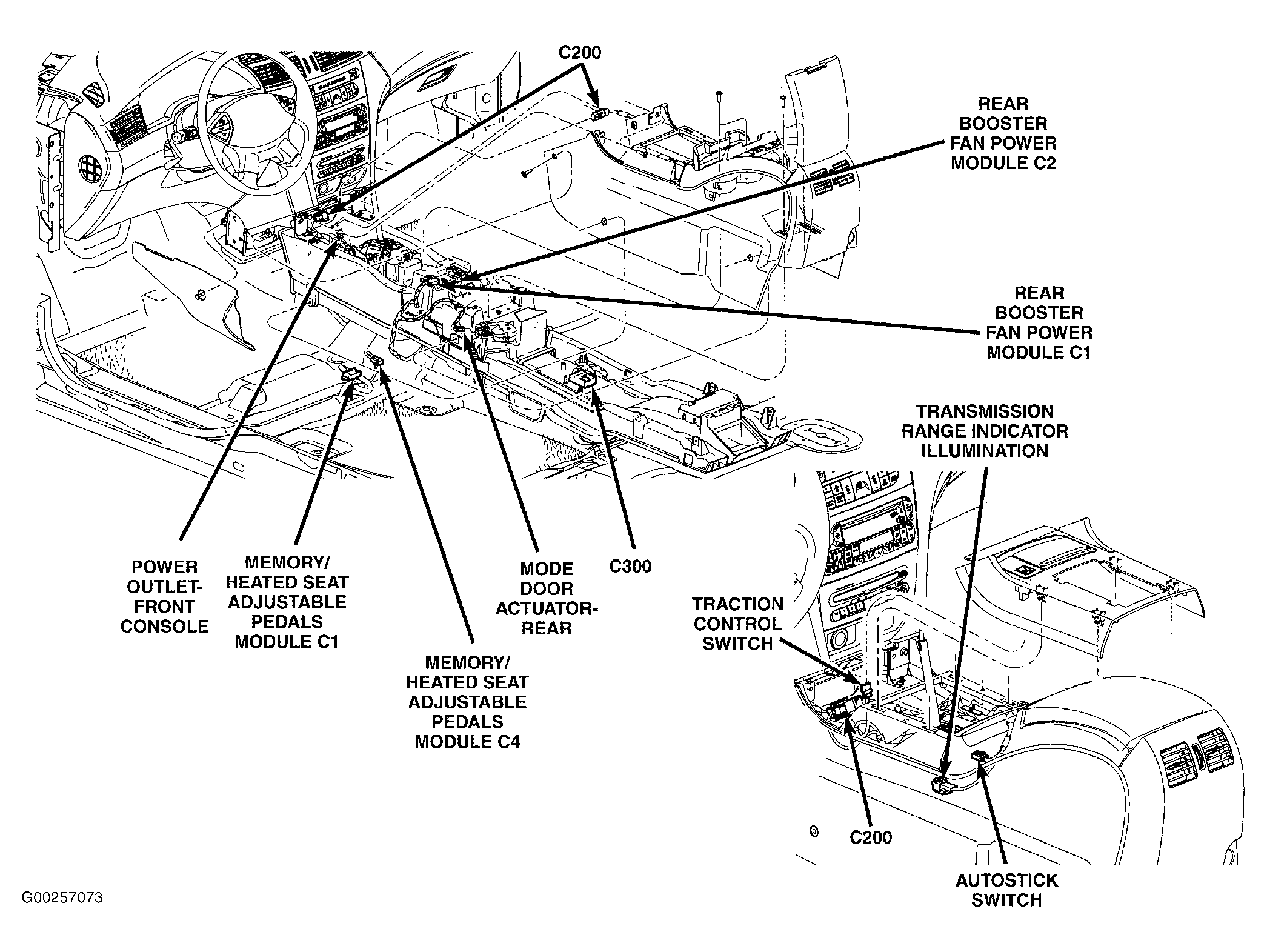

| Rear Booster Fan Power Module | Under rear of center console. See Figure . |

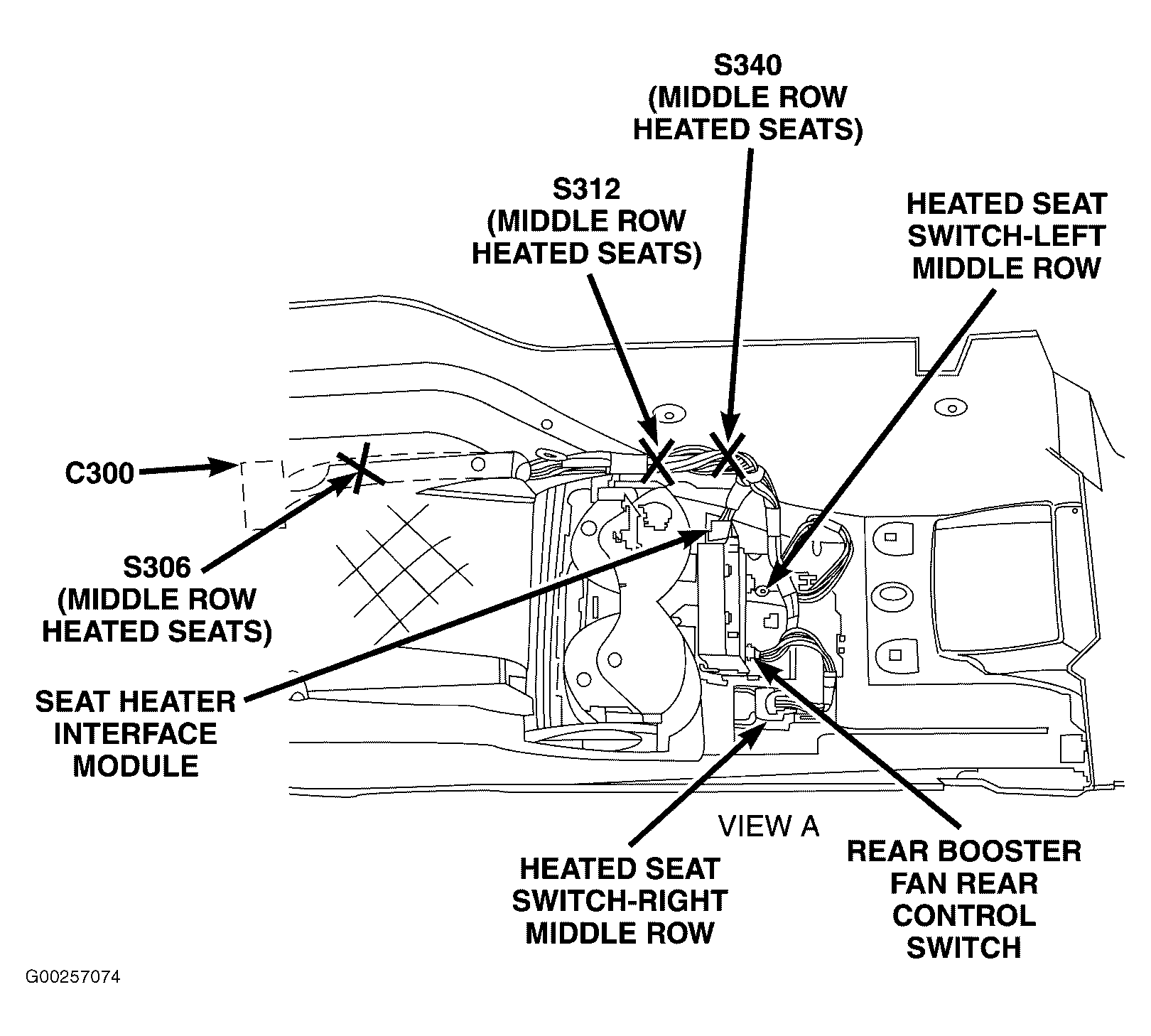

| Seat Heater Interface Module | Under rear console. See Figure . |

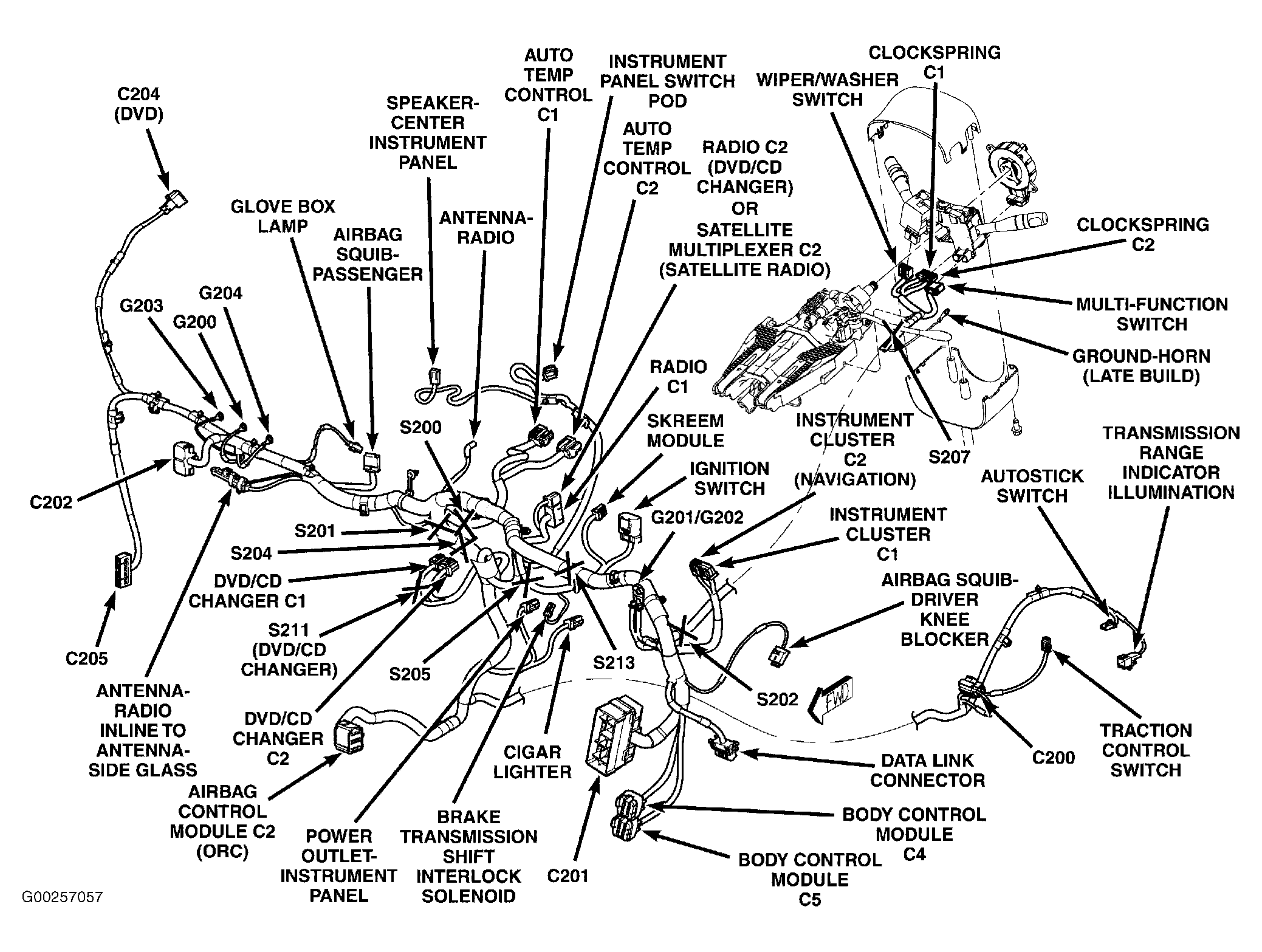

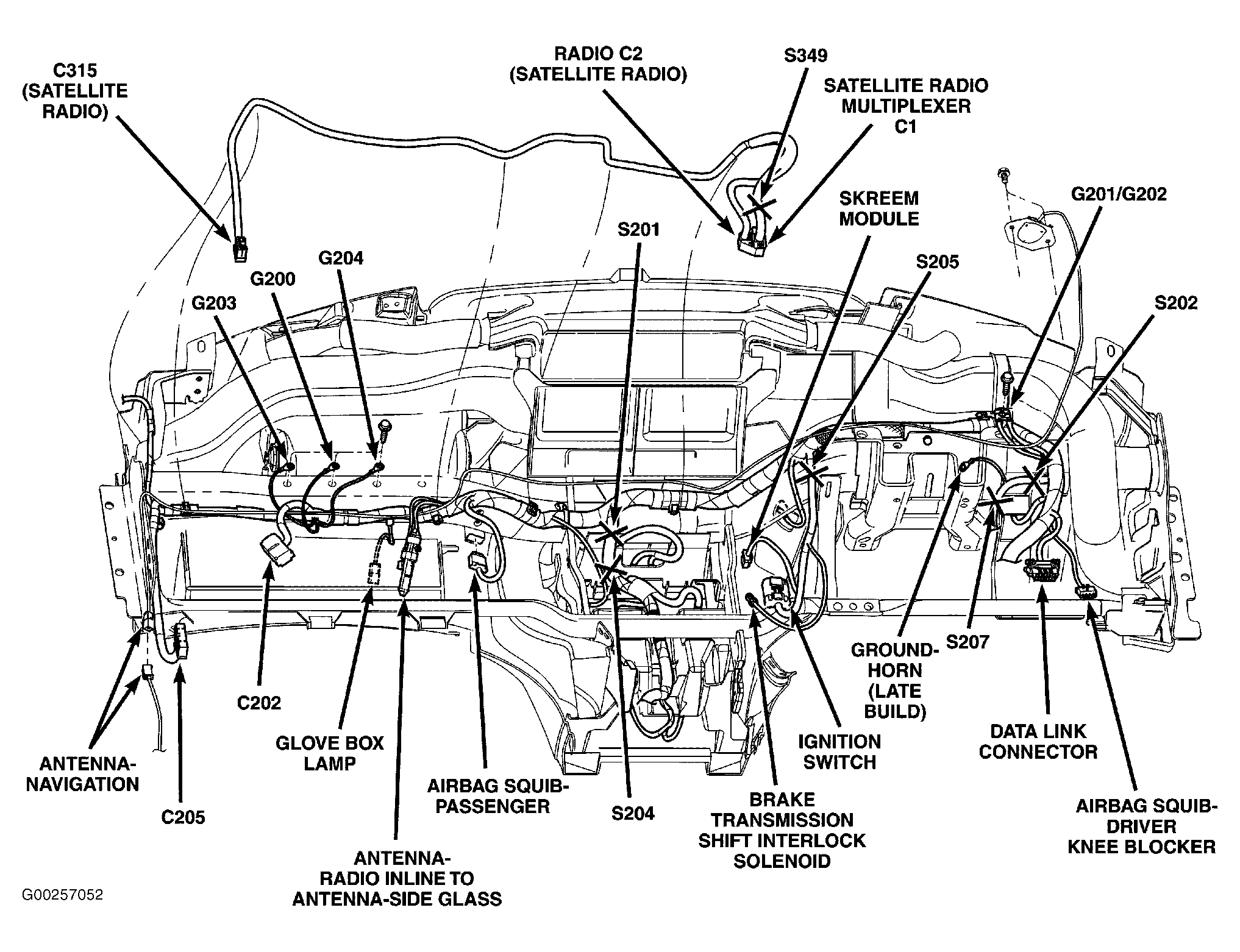

| Skreem Module | Left side of dash. See Figure . |
