Description

This vehicle uses a saddle type tank, a reservoir on both sides of the rear drive shaft. The fuel pump is in the module on the driver side of the vehicle and the fuel pressure regulator is in the module on the passenger side of vehicle. The fuel outlet is on the passenger side and supplies fuel to the engine. The fitting on the fuel pump module (Driver side) is a vapor line fitting that connects to the passenger side module. Both modules have fuel level sending cards. There are 2 hoses that connect the modules together, one is the fuel supply line the other is a return or siphon hose. The lines are removed from the fuel pump module when servicing either unit. The ORVR (Onboard Refueling Vapor Recovery) control valve is in the passenger side module.

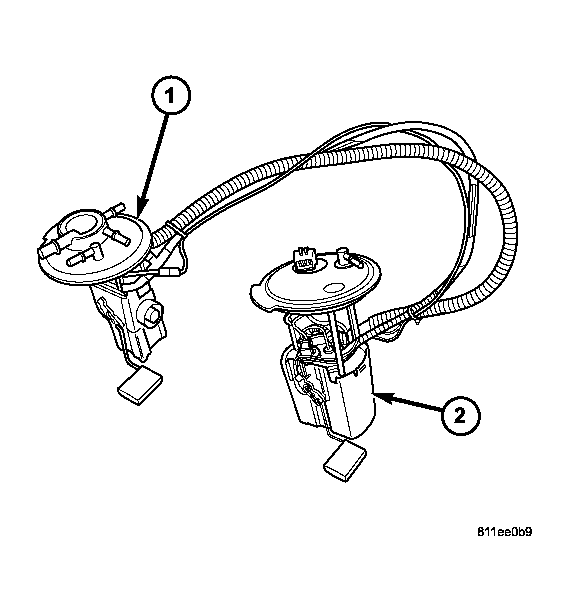

Fig 1: Fuel System Modules

Courtesy of DAIMLERCHRYSLER CORP.

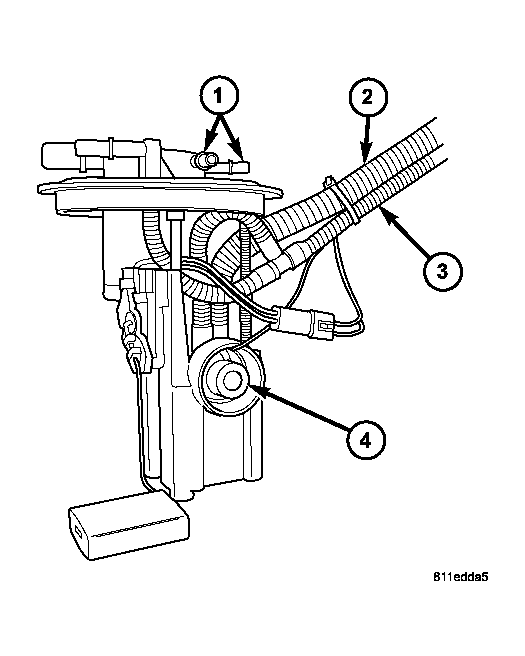

Fig 2: Driver Side Module

Courtesy of DAIMLERCHRYSLER CORP.

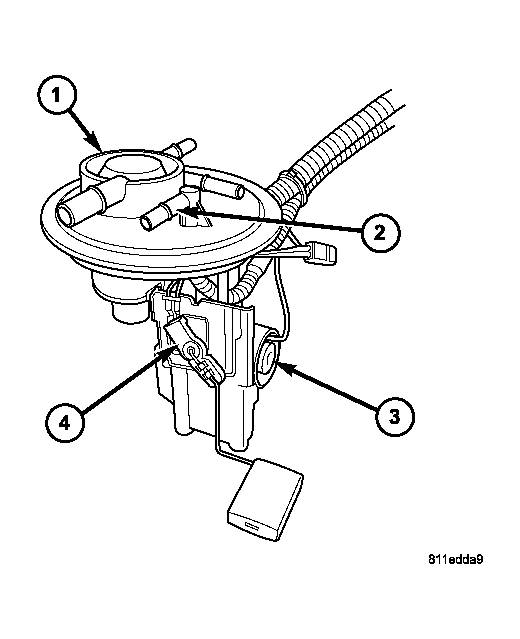

Fig 3: Passenger Side Module

Courtesy of DAIMLERCHRYSLER CORP.

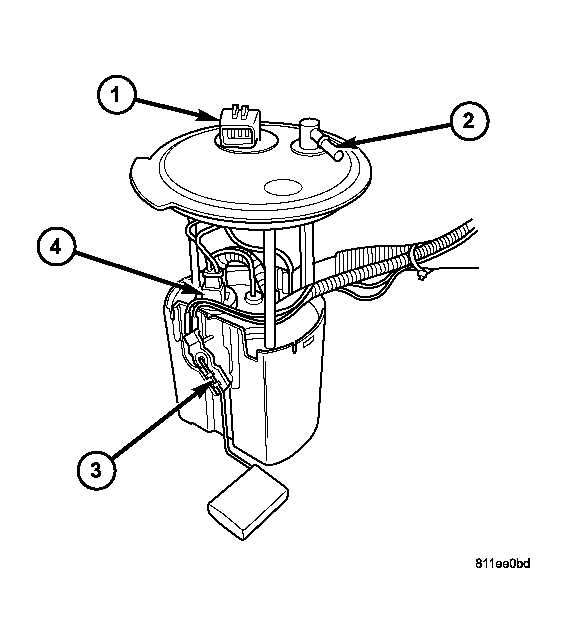

Fig 4: Passenger Side Module Top View

Courtesy of DAIMLERCHRYSLER CORP.
