Fuel Tank Filler Tube: Installation
- Install the filler tube.
- Install 3 screws from filler neck to quarter panel.
- Connect the vent line to filler tube.

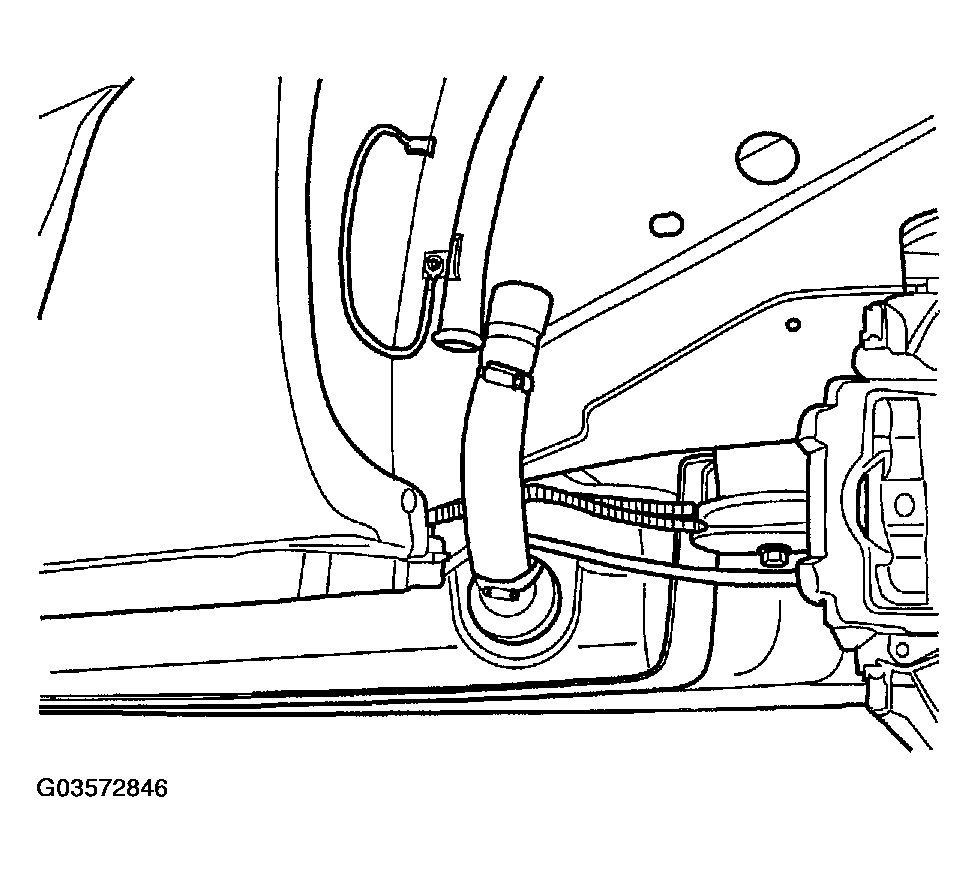

- Install the fuel filler tube from the rubber hose at fuel tank (Figure).
- Install the left rear tire.
- Lower vehicle.
- Connect the negative battery cable.
