Short Runner Valve Solenoid: Installation

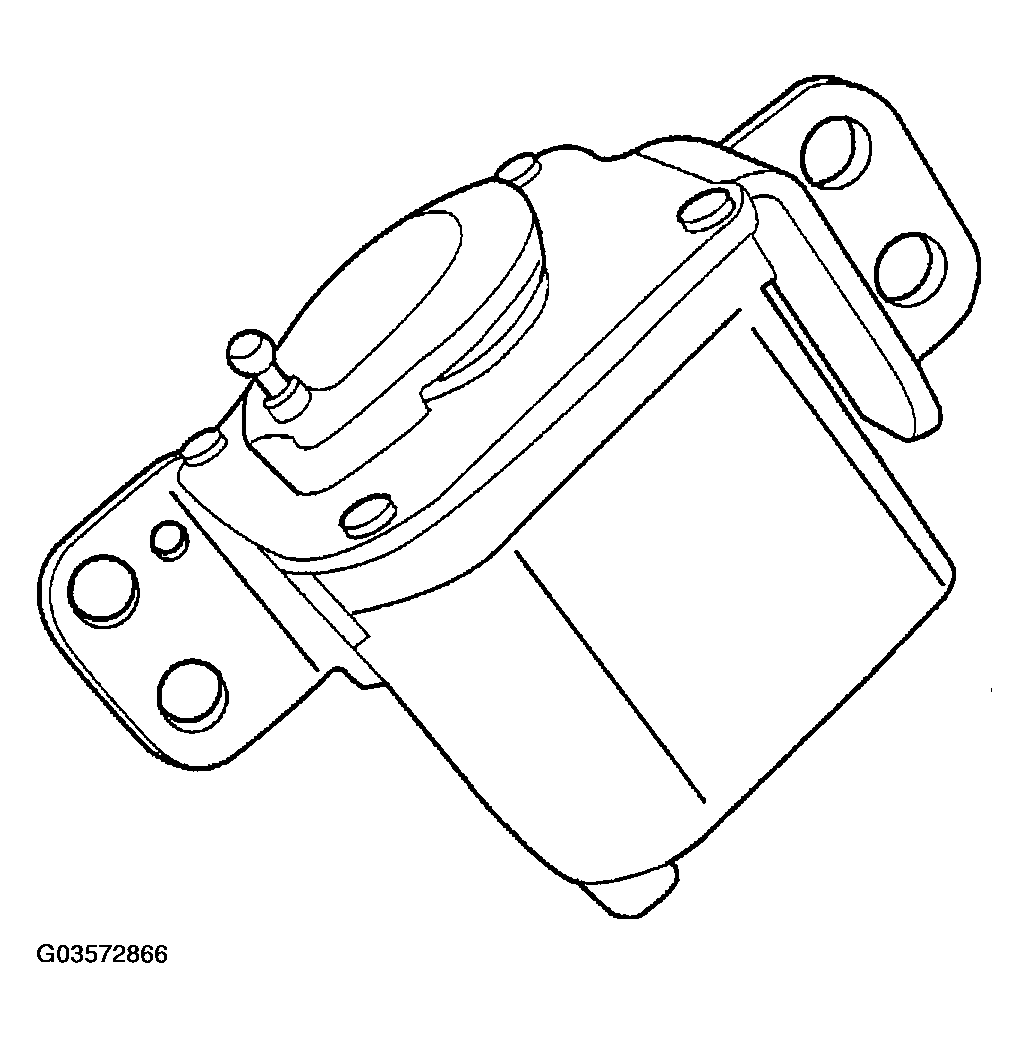

- Install short runner valve (Figure
).
- Install the 4 bolts and tighten.

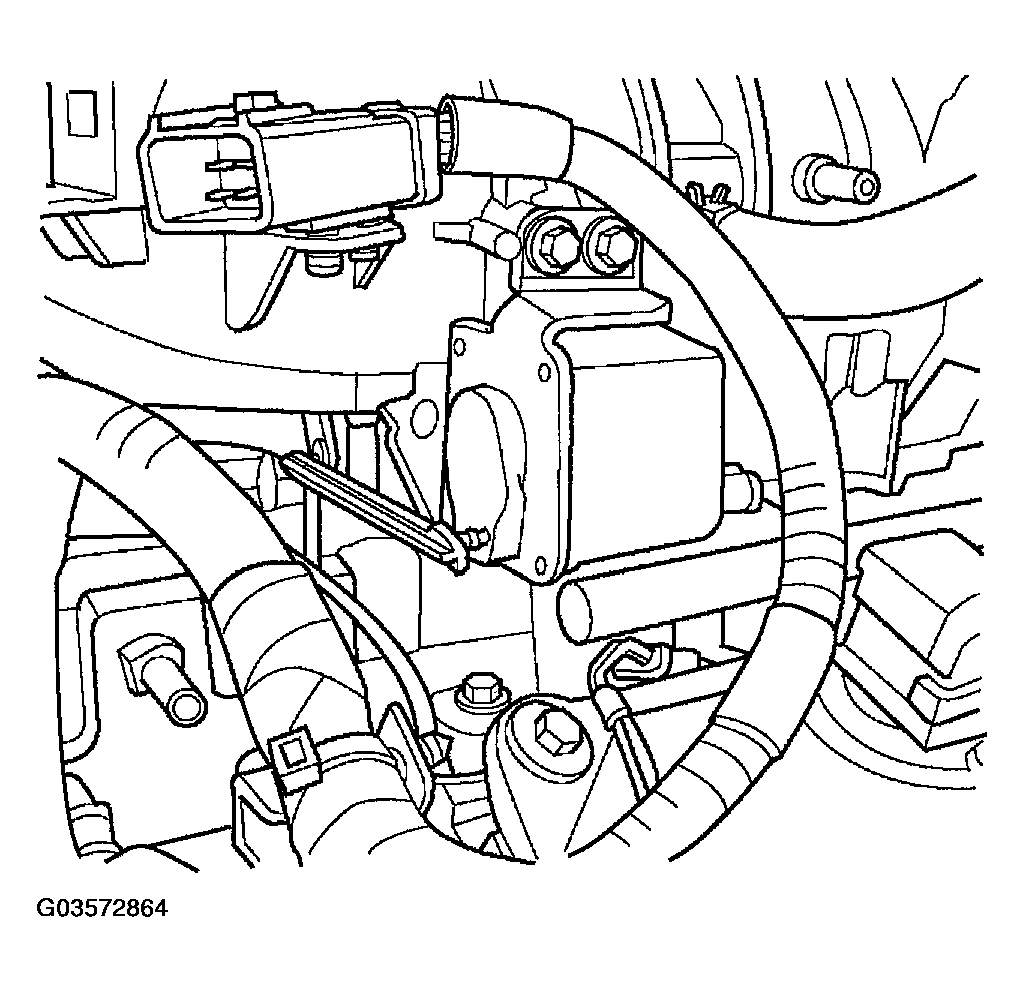

- Install the link to short runner valve lever (Figure
).

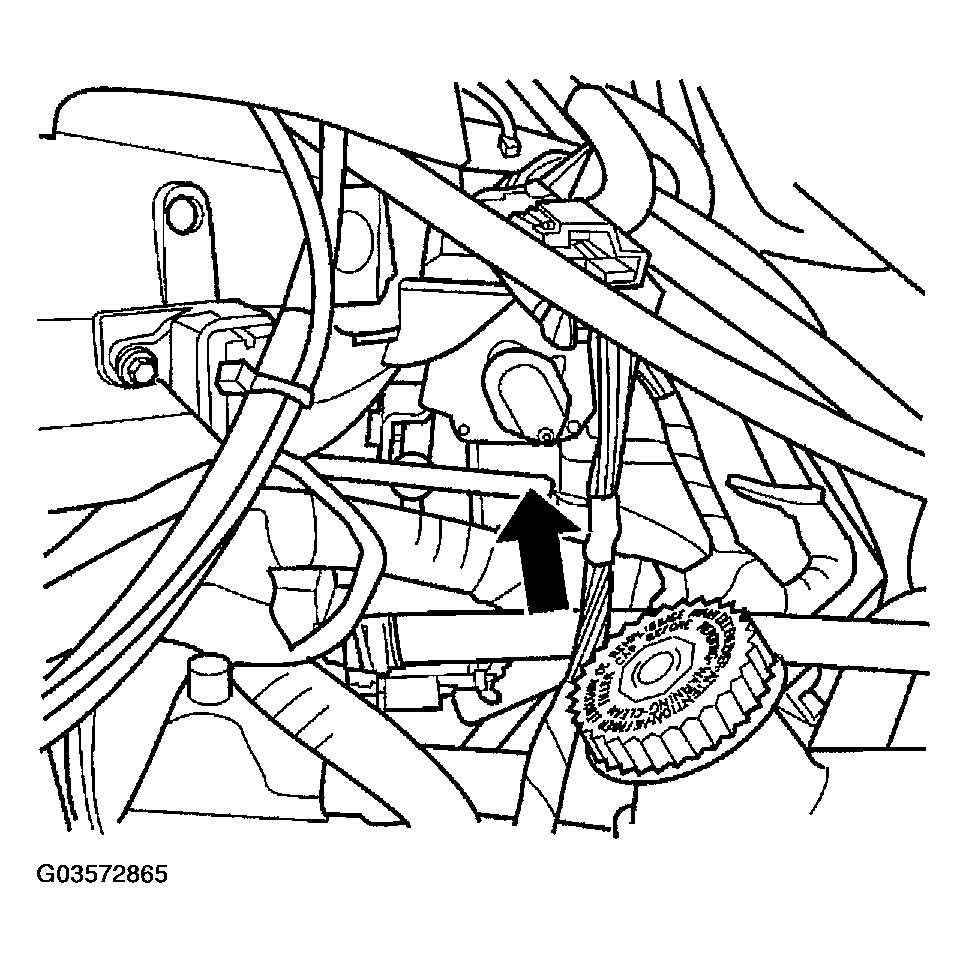

- Connect the electrical connector to the short runner valve (Figure
).
- Connect the negative battery cable.
