Camshaft Position Sensor: Installation

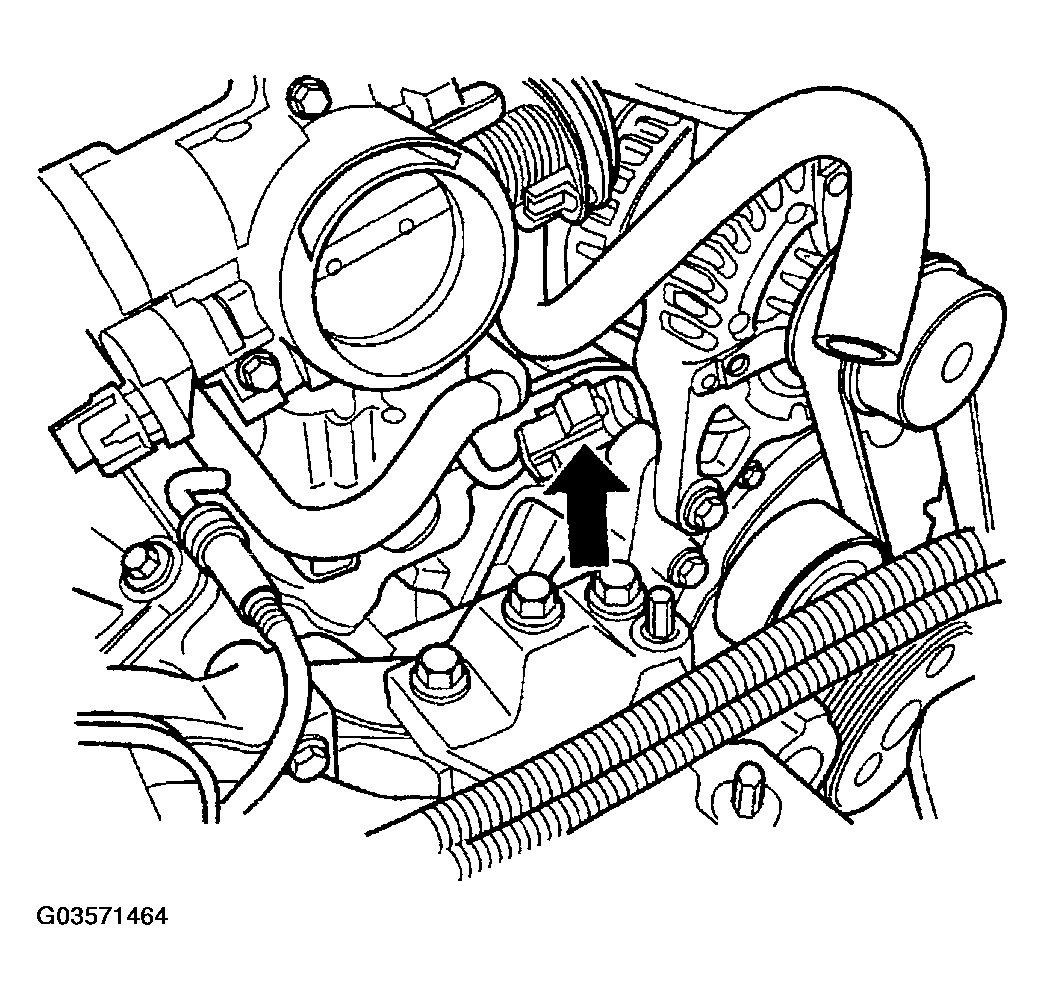

- Install camshaft sensor (Figure).
- Install the mounting bolts and tighten, refer to SPECIFICATIONS .

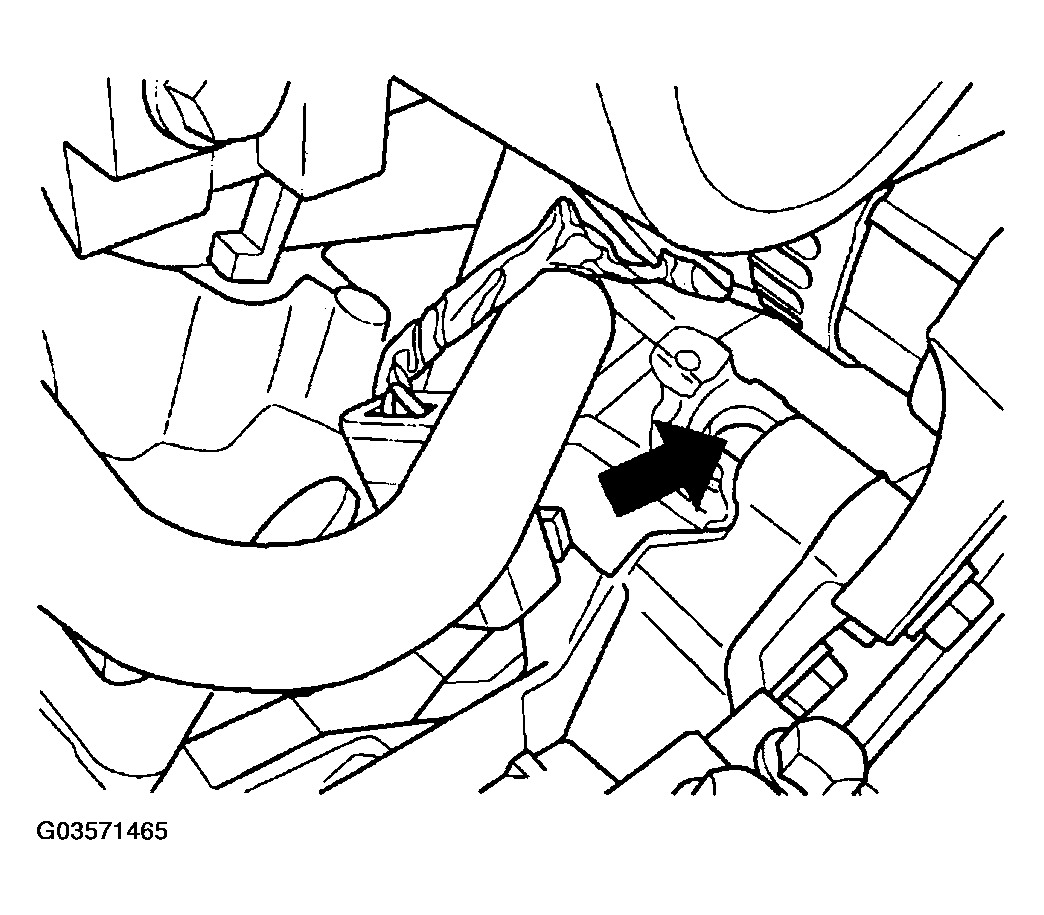

- Install and lock the camshaft sensor electrical connector (Figure).
- Install air cleaner box.
- Connect the negative battery cable.
