Installation - Front - 3.5L

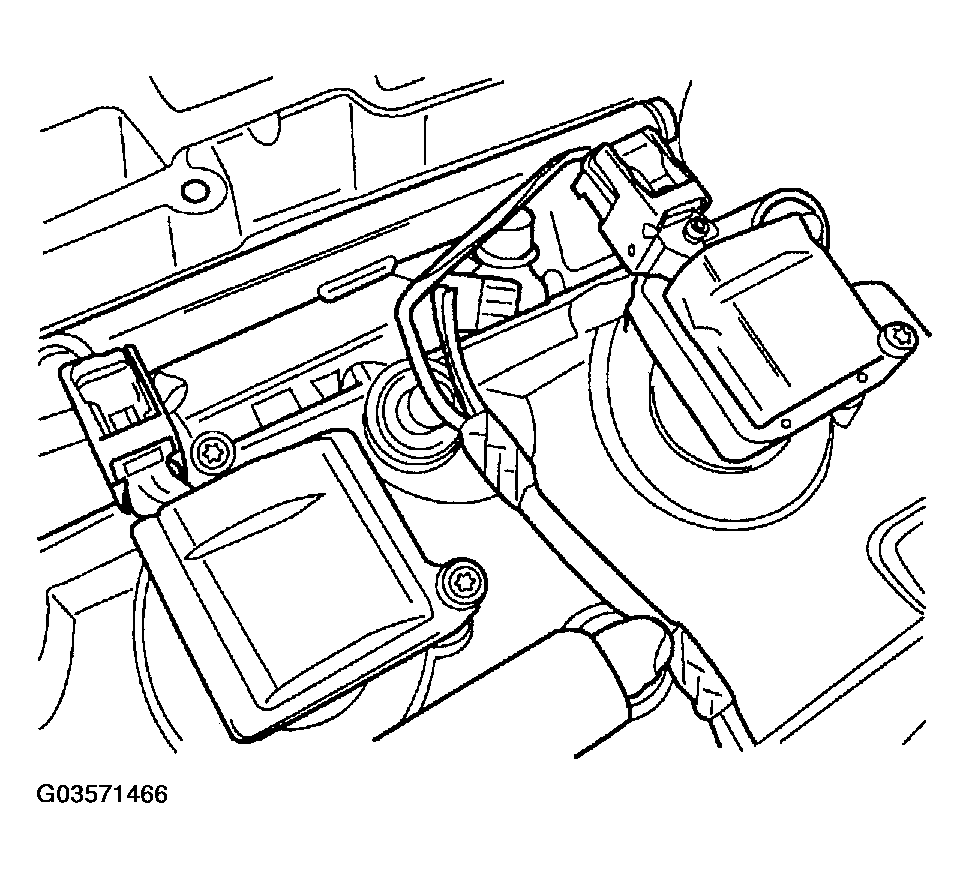

- Install the ignition coil (Figure).
- Hand tighten coil screws.
- Refer to the SPECIFICATIONS for torque specification.

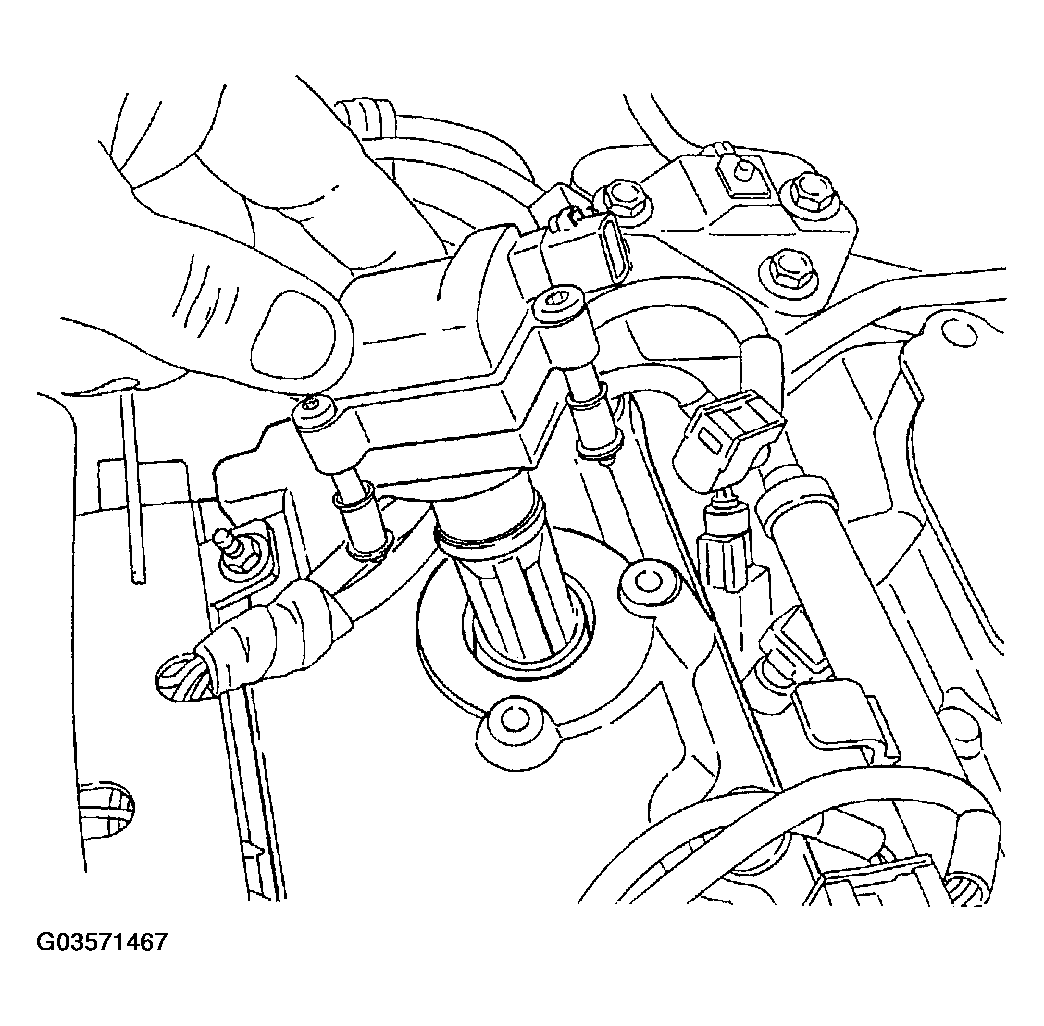

- Install and lock the electrical connector to the ignition coil (Figure).
- Install the upper intake manifold, (Refer to INTAKE MANIFOLD )
- Connect the negative battery cable.
