Fuel Pump Module Connector End View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Fuel Pump Module Connector End View

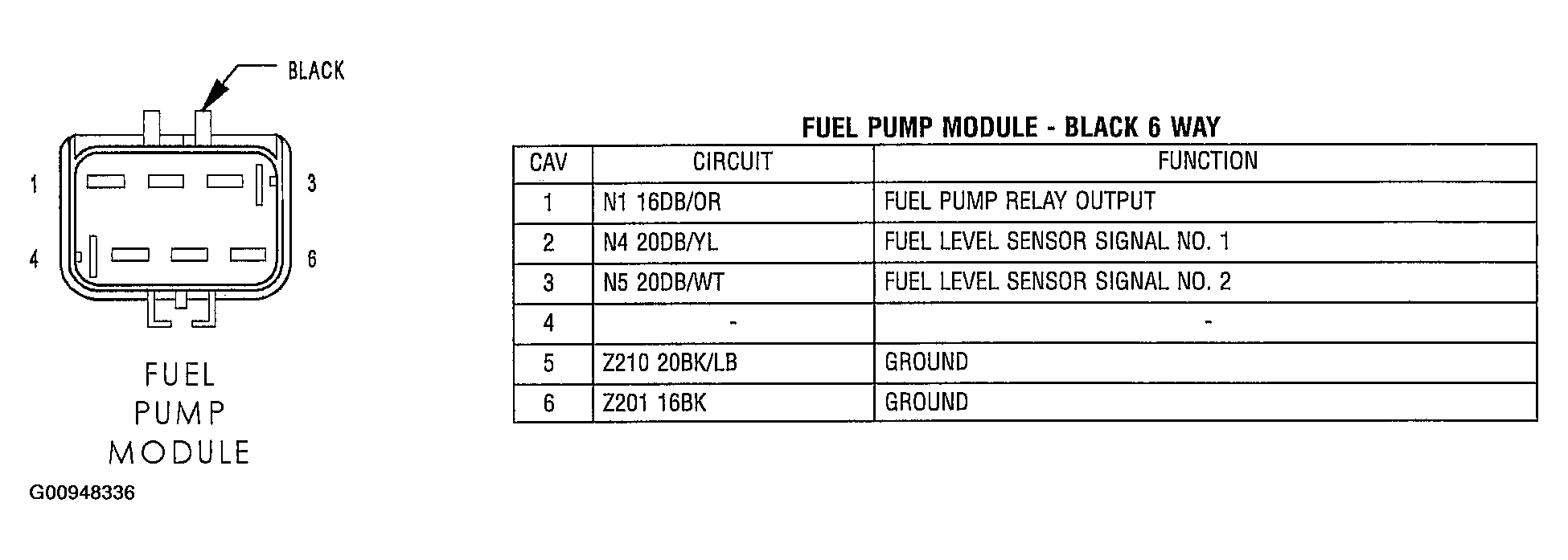

Fig 1: Identifying Fuel Pump Module - Black 6 Way Connector
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
