SKREEM Module Connector End View

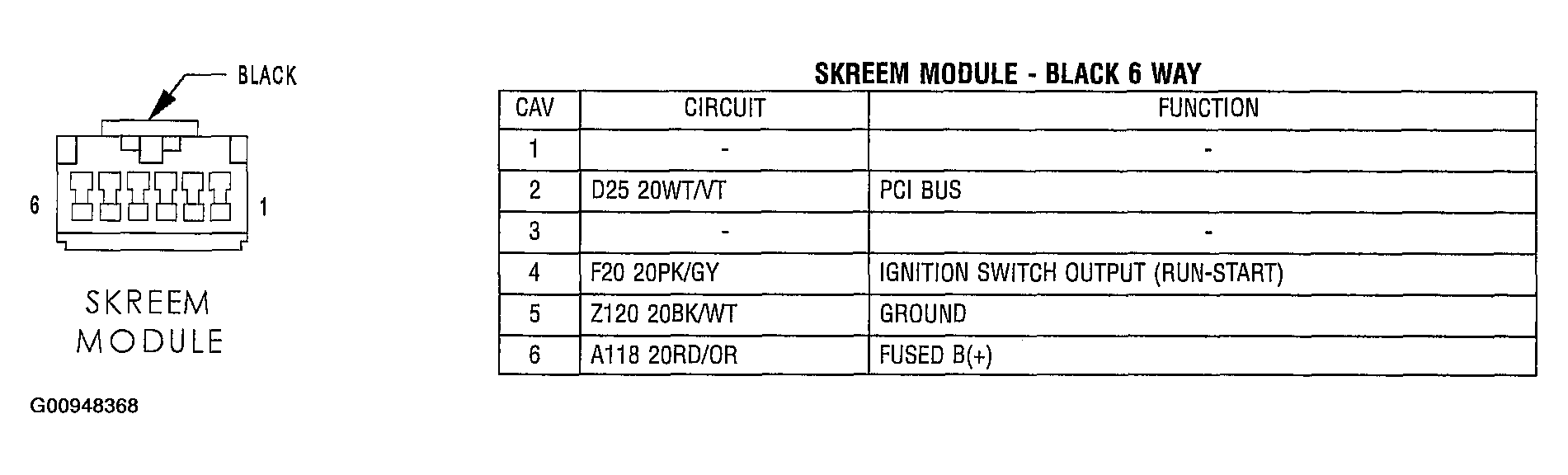

Fig 1: Identifying Skreem Module - Black 6 Way Connector
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
